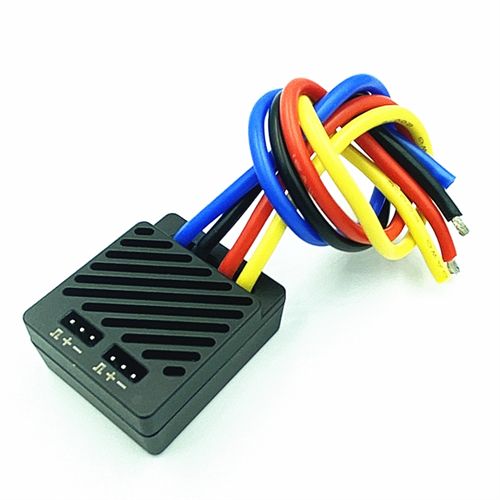

ISDT ESC70 Waterproof 70A Brushed (2-3S) Motor ESC Electronic Speed Controller For RC Car 1:10 1:8 Model

SKU ISDT-ESC70A Category Tag Brand:

ISDT ESC70 Waterproof 70A Brushed (2-3S) Motor ESC Electronic Speed Controller For RC Car 1:10 1:8 Model

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

-Fully waterproof design for all conditions. (Note: please clean and perform maintenance after use for avoiding corrosion);
-Advanced electronic switch and Bluetooth two-in-one module, Support real time operating parameter and status via the ISD Go APP.
-Built-in BEC with adjustable output features; outputs continuous current up to 3A, and support 5V to 7.5V with 0.1V adjustment via ISD Go APP. Support various powerful rc applications and high-voltage servos.
-Adjustable PWM frequency and advanced synchronous function provide ideal throttle curve and outstanding performance for dierent vehicles, conditions.
-Adjustable Active drag brake function and adjustable Brake force or initial braking. Slope anti-skid locking function specially designed for RC Crawler that characteristics operating on toughest terrain.
-Multiple protection functions: battery low voltage protection, over temperature protection, throttle out of control protection, BEC overvoltage and undervoltage protection
-Stepless adjustment of throttle and brake curve
-Customizable start tone
-OTA upgrades firmware and updates functions in time
-Ramp anti-skid locking function designed for climbing car

Model: ESC70
Continuous/Peak Current: 70/120A;
Support Motor Type: 540/550/775 Brushed Motor;
Applicable Models: 1/8 Or 1/10 Various Models (Parameters Can Be Adjusted);
Battery Type: 2~3S Lipo Or 6~9 Cell NiMH;
BEC Output: 5V~7.5V Adjustable (Step 0.1V);
Wire/Plug: 16AWG-200mm/No Plug;
Size: 38.6×31.6×17.15mm (Without Wire);
Weight: ESC Approximately 49g/Switch Approximately 4.5g;


ISDT 70A ESC x 1
