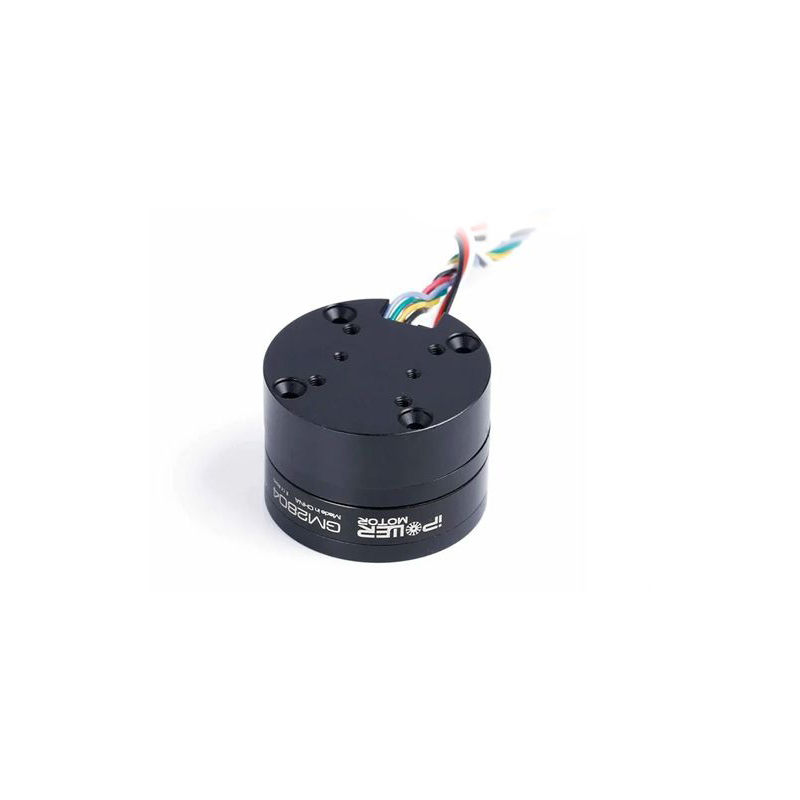

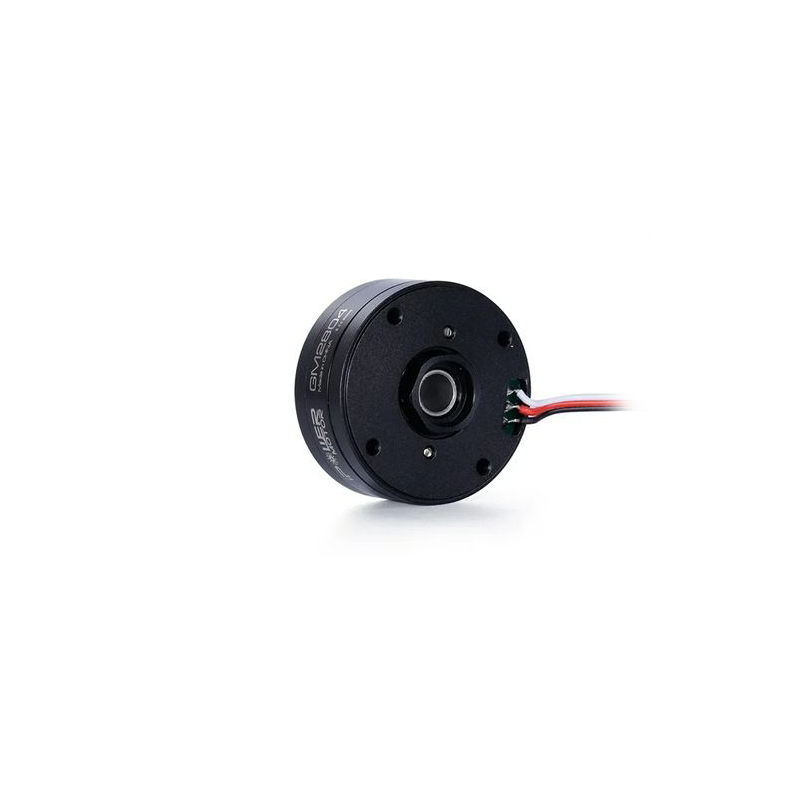

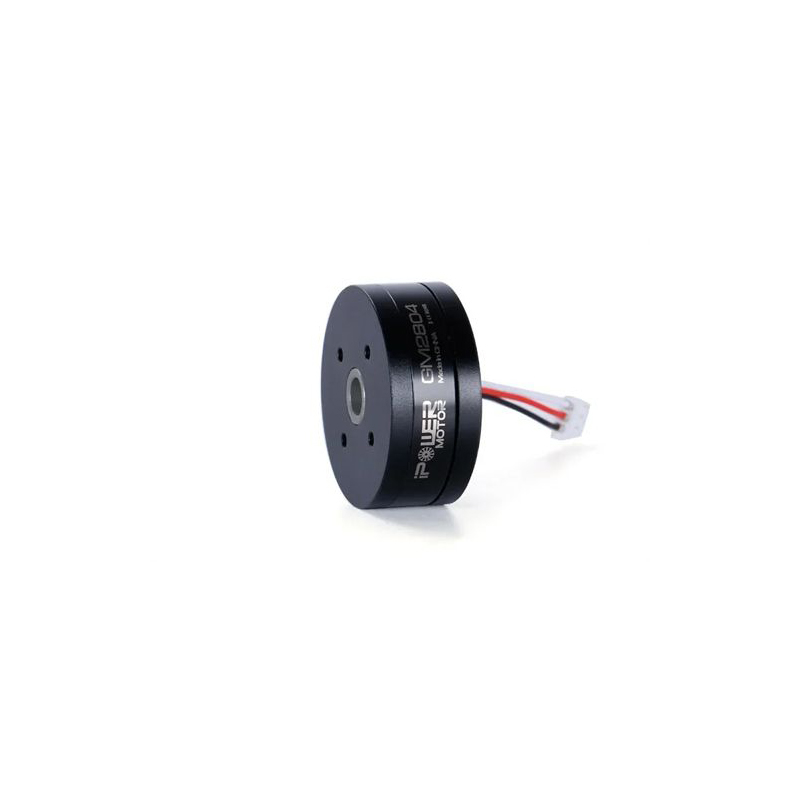

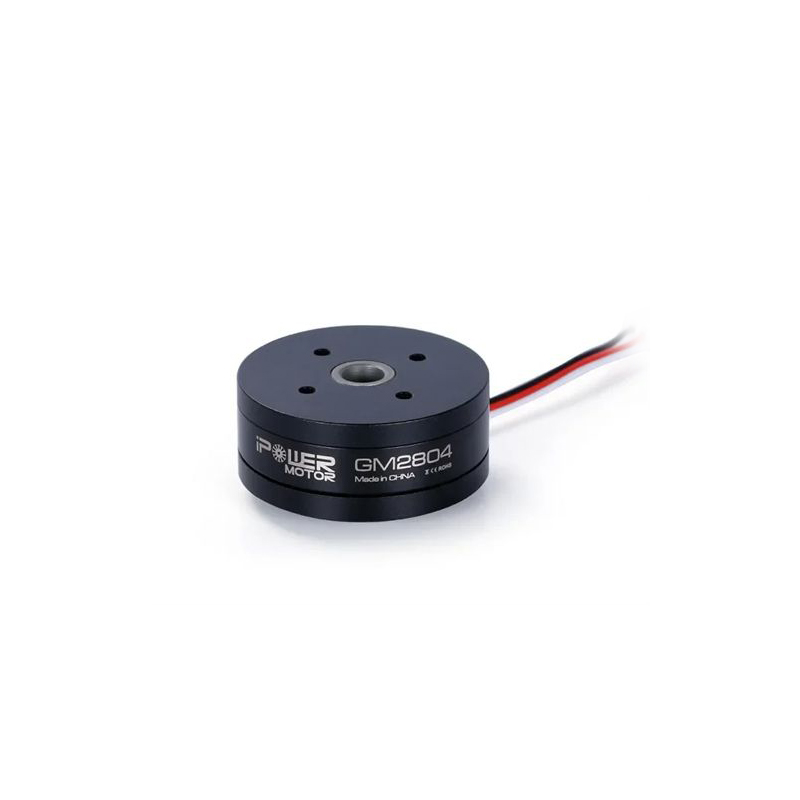

iFlight IPower GM2804 Brushless Gimbal Motor with AS5048A Encoder for Camera Stabilizing Systems
iFlight IPower GM2804 Brushless Gimbal Motor with AS5048A Encoder for Camera Stabilizing Systems
*The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.
*It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new functionality.
Model: GM2804
Motor Out Diameter: Ф35±0.05mm
Motor Height: 15±0.2mm
Hollow Shaft(OD): Ф8-0.008/-0.012 mm
Hollow Shaft(ID): Ф6.5+0.05/0 mm
Wire Length: 60±3mm
Cable AWG: #24
Motor Weight: 42.3±0.2g
Wire plug: PH3P connector
No-load current: 0.09±0.05 A
No-load volts: 10V
No-load Rpm: 1602~1771 RPM
Load current: 0.8A
Load volts: 10V
Load torque(g·cm): 250-350
Motor internal resistance: 9Ω±5%(Resistance varies with temperature)
High voltage test: DC500V 1mA @2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): clockwise
High-low temperature test:
High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 2-3S
Working temperature: -20~60℃;10~90%RH
1 x iPower GM2804 Gimbal Motor

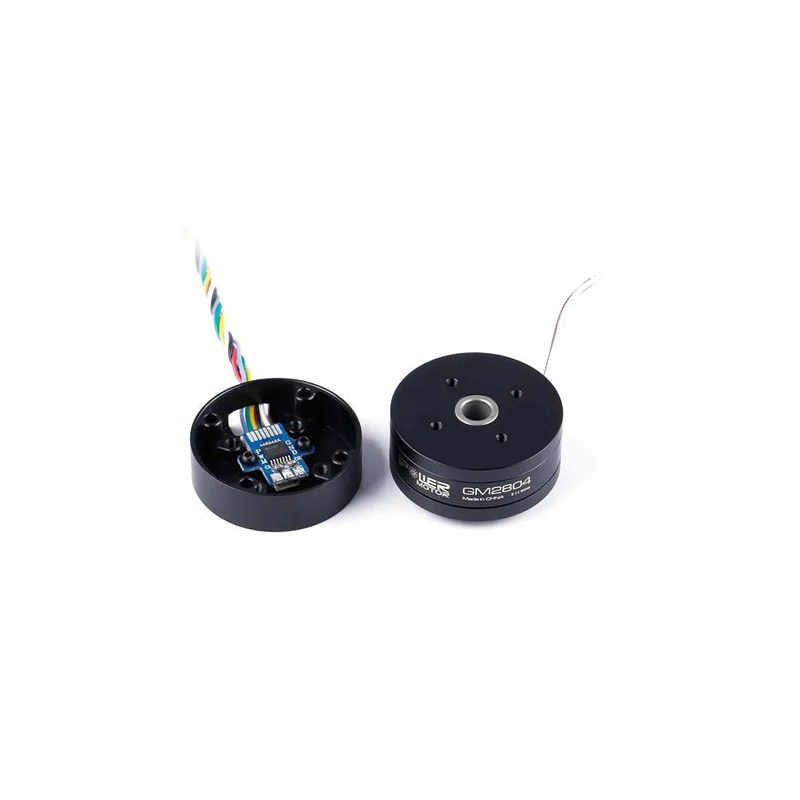

1 x AS5048A Encoder
