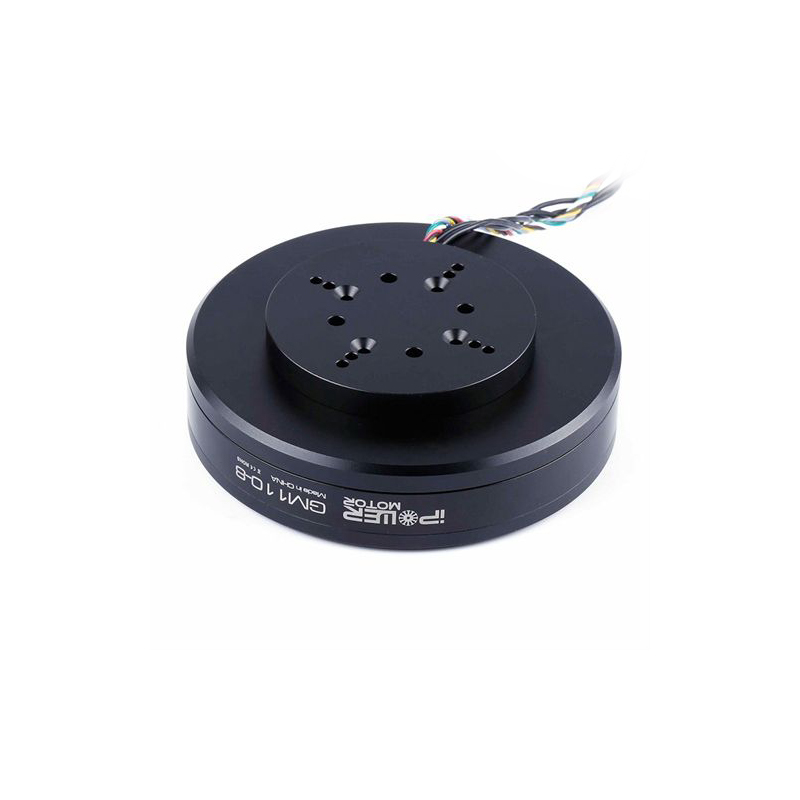

Model: GM110-8
Size : 110*34mm
Package : Yes
Weight : 0.3kg
Model Number : GM110-8
Compatible Drone Brand : GoPro
Motor Out Diameter: 110±0.05mm
Motor Height: 33.9±0.2mm (Included with Encoder housing)
Hollow Shaft(OD): N/A
Hollow Shaft(ID): N/A
Wire Length: 610±3mm
Cable AWG: #24
Motor Weight: 610±3g
Wire plug: 2.5mm dupont connector
No-load current: 20V
No-load volts: 0.09±0.1 A
No-load Rpm: 125~139 RPM
Load current: 20V
Load volts: 2A
Load torque(g): 8000-12000
Motor internal resistance: 20.19Ω±5%Resistance varies with temperature
High voltage test: DC500V 1mA @2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): clockwise
High-low temperature test:
High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤60W
Working current: 4-6S
Working temperature: -20~60;10~90%RH
