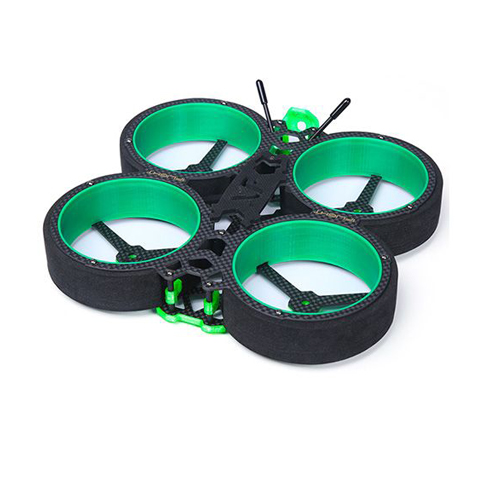

IFlight Green Hornet V2 145mm 3inch FPV CineWhoop Frame








IFlight Green Hornet V2 145mm 3inch FPV CineWhoop Frame
Main changelog V2:
Improved EVA Protectors, Improved duct profile with less noise
Bottom carbon thickness increased from 2mm to 2.5mm
The wheelbase increased from 142mm to 145mm
Properties:
T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
Lightweight one-piece frame design (Less flexibility, more rigid, more durable)
Low Response Frame Construction (Less Jello, More Cinematic)
Auto prop guards protect the sensitive environment or yourself
Wheelbase: 145mm
Base plate thickness: 2.5mm
Top plate thickness: 2mm
Top and bottom plate distance: 27mm (aluminum column height 27mm)
Propeller size: 3 inches
FC pattern: 20 * 20mm, 30.5 * 30.5mm
FPV cam distance: 14mm
Weight: 168.5g
Recommend parts (not included)
SucceX-E mini F4 stack + 35A ESC + 500mW VTX
Motor: XING-C 1408 2800KV (6S) / 3600KV (4S)
3045 CW CCW propeller

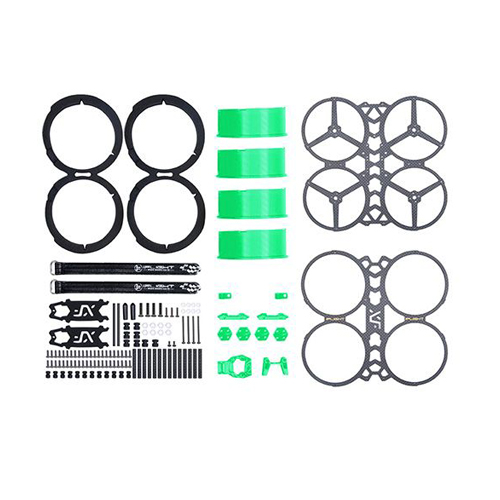

Green Hornet V2 frame x1
TPU camera side plate soft mount x2
