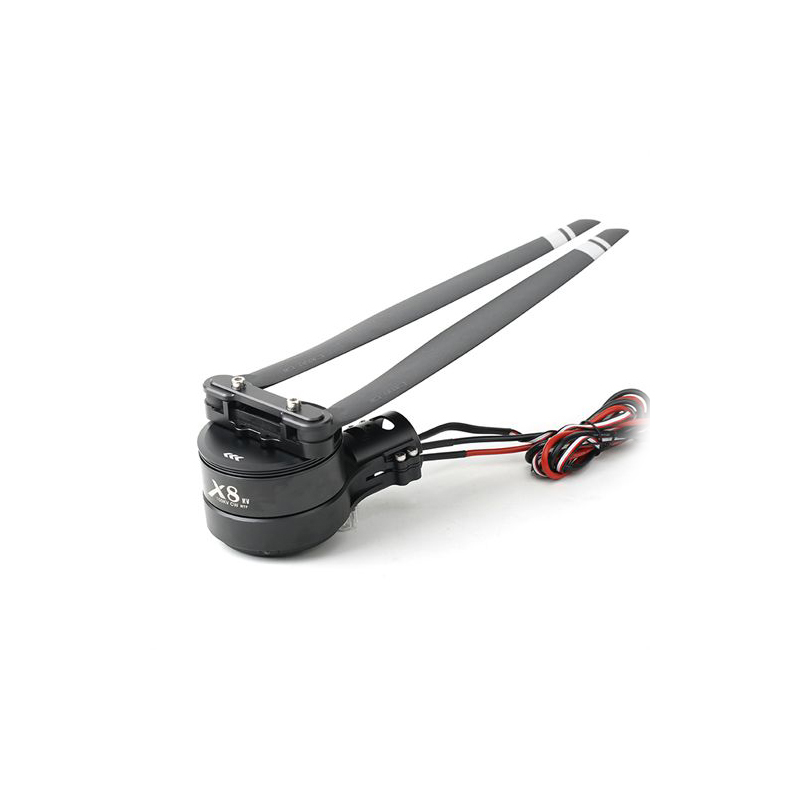

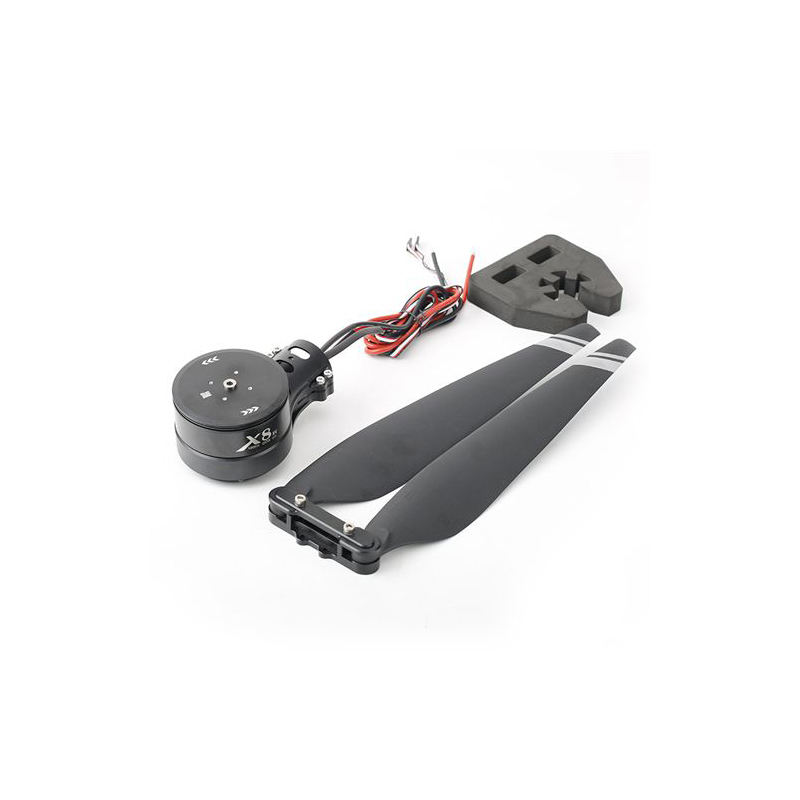

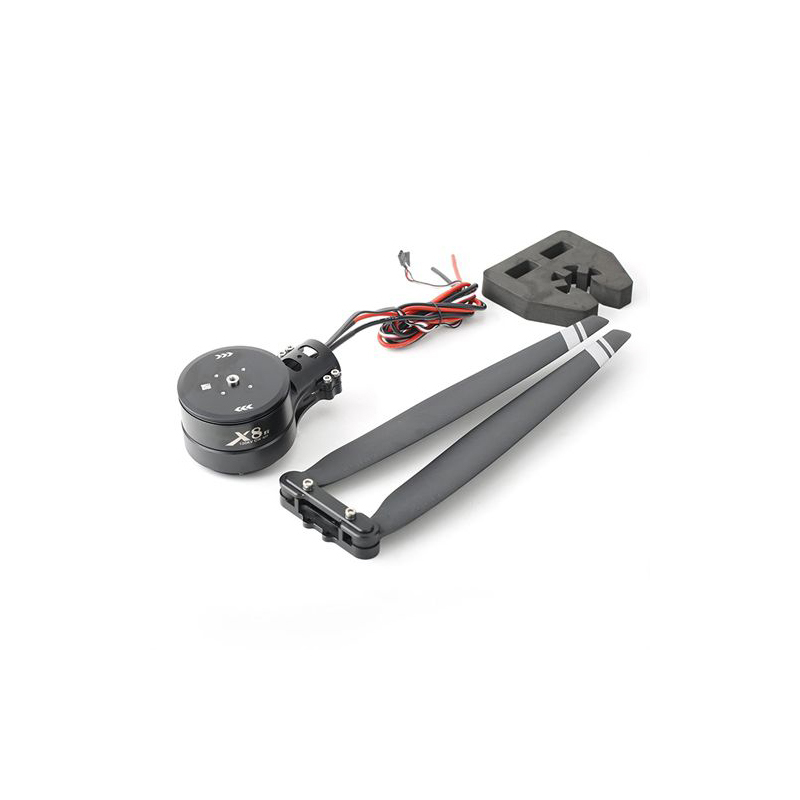

Product Name: X8 Power System Combo
Max. Thrust: 15.3kg/Axis (48V, Sea Level )
Recommended LiPo Battery: 12S LiPo
Recommended Takeoff Weight: 5-7kg/Axis(48V，Sea Level)
Combo Weight: 1040g
Waterproof Rating: IPX7
Operating Temperature: -20℃~65℃

Motor
Stator Size: 81*20mm
KV Rating: 100KV
O.D of Carbon Fiber Tube: Φ35mm/Φ30mm (*Tube Adapter will be Needed)
Bearing: NSK Ball Bearing (Waterproof)

ESC
Recommended LiPo Battery: 6-12S LiPo
PWM Input Signal Level: 3.3V/5V (Compatible )
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage: 52.2V
Max. Input Current (Cont.): 80 A(w/ Good Heat Dissipation )
Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation )
BEC: No
Nozzle Mounting Holes: Φ28.4mm-2*M3

Propeller
Diameter×Pitch: 3090
Weight: 180g
