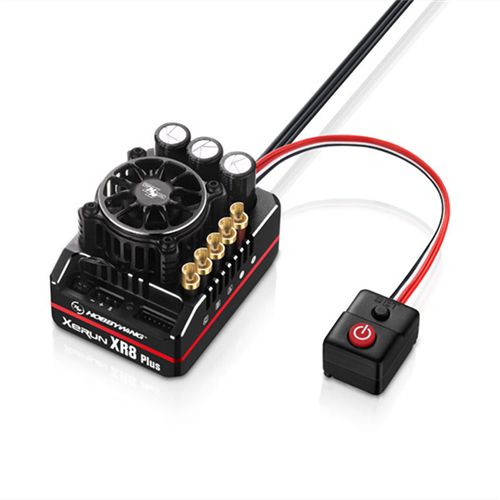

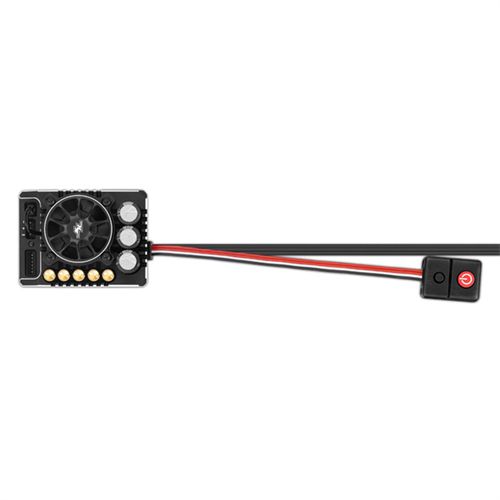

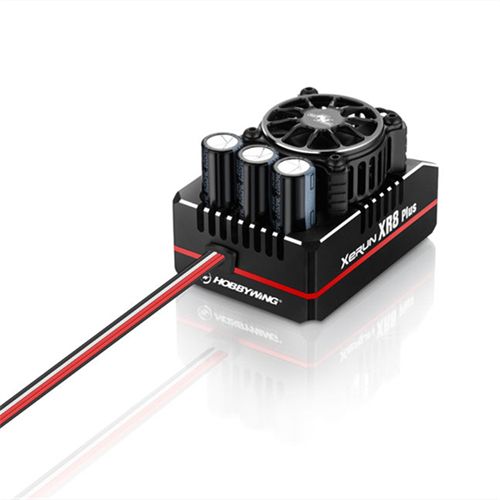

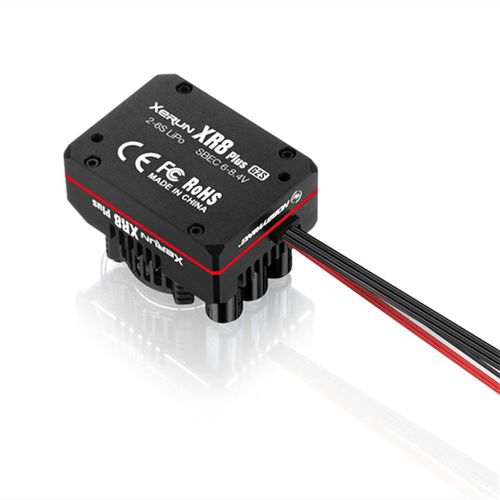

Product Name: Xerun XR8 Plus G2S
Type
– Scale: 1/8th
– Brushed/Brushless: BL
– Sensored/Sensorless: SD
– Waterproof: No
Specifications
– Cont./Peak Current: 200A/980A
– Input Voltage: 2-6S Lipo
– BEC Output: 6-8.4V Adjustable, Continuous/Peak Current : 6A/15A (Switch-mode)
Wires & Connectors
– Wires & Connectors: Black-11AWG-200mm*2
– Output Wires: Black-11AWG-200mm*3
– Input Connectors: No
– Output Connectors: No
Fan
– Size: 30x30x10mm
– Voltage Range: 5-8.4V
– Powered by: Powered by BEC
ESC Programing via
– SET Button on ESC: Not Supported
– LED Program Box: Not Supported
– LCD Program Box: Supported
– OTA Programmer: Supported
– Programming Port: Independent programming port
Firmware
– Firmware Upgrade: Supported
Size & Weight
– – Size: 56.1mmx42.1mmx38.5mm
Weight: 122g (w/wires)
Applications
– Applications: SL BL Motors / SD BL Motors
– Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
– KV Rating/T Count: 4S LiPo:4268/4274≤3000KV / 6S LiPo：4274≤2400KV
