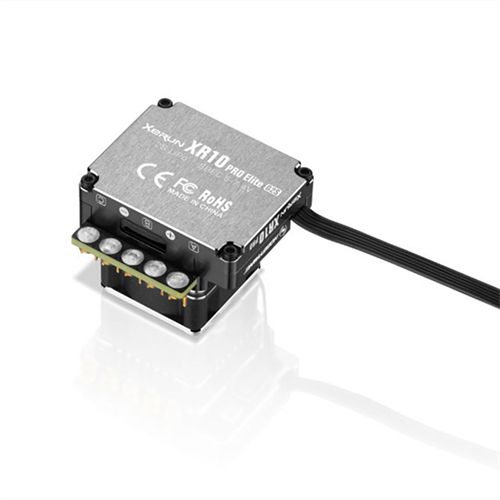

HOBBYWING XERUN XR10 PRO Elite G2S 160A Brushless Sensored ESC for 1/10 RC Racing Car Touring Buggy Drift F1 Vehicle
HOBBYWING XERUN XR10 PRO Elite G2S 160A Brushless Sensored ESC for 1/10 RC Racing Car Touring Buggy Drift F1 Vehicle
• 10 select-to-use profiles applicable to all 1/10th RC car racing.
• Internal electronic key switch for long serice life, high reliability; and the external switch port for connecting an external switch (Not included in the packaging box, purchase separately) is applicable to different situations.
• Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or OTA Programmer to the ESC.
• Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
• Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
• Multile protections: low-votage cutoff protection, ESC and motor themal protection, and fail safe (throttle signal loss protection), reverse polarity protection (the external standard cappack will still be damaged if battery reversal occurs).
• Data logging for recording the maximum ESC/motor temperature, motor speed / RPM, and others in real time.
• Firmware upgrade via Hobbywing multifunction LCD program box or OTA Programmer (item sold separately).
“Product Name: XERUN XR10 PRO G2S
Product Number: 30112613
Type
– Scale: 1/10th
– Brushed/Brushless: BL
– Sensored/Sensorless: SD
– Waterproof: No
Specifications
– Cont./Peak Current: 160A/1200A
– Input Voltage: 2S Lipo
– BEC Output: 5-7.4V,5A
Wires & Connectors
– Input Wires: Black-13AWG-200mm*2
– Output Wires: Black-13AWG-200mm*3
– Input Connectors: No
– Output Connectors: No
Fan
– Type: Normal framed fan
– Size: 25x25x10mm
– Output Wires: 5-7.4V
– Input Connectors: Powered by BEC
ESC Programing via
– SET Button on ESC: No
– LED Program Box: No
– LCD Program Box: Supported
– WiFi Module: Supported
– OTA Programmer: Supported
– Programming Port: Separate
Firmware Upgrade: Supported
Size: 37.5*30.9*32.5mm(w/Fan)
Weight: 95g(w/Wires)
Applications
Applications: SL BL Motors / SD BL Motors
Vehicles: 1/10thTouring car & Buggy racing
KV Rating/T Count: 1/10thTouring car≥4.5T;1/10thBuggy≥5.5T
XR10 PRO Elite G2S 160A Brushless Sensored ESC x1
