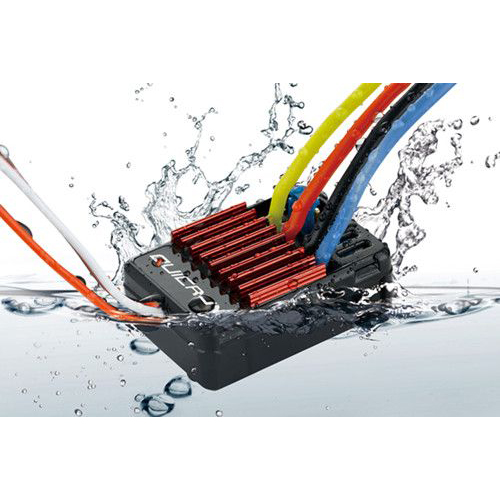

HobbyWing QuicRun 1:16 Brushed 1625 25A ESC 4WD RC Cars Buggy Touring Truck
For: 1/18&1/16: Touring Car, Buggy, Monster, Truggy
Water-proof and dust-proof, suitable for all-weather condition races.
Small size with built-in capacitor module.
Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
Easy to set the ESC parameters with jumpers.
Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
Model: Wp-1625-BRUSHED
Fwd. Cont. / Peak Current: 25A /100A
Rev. Cont. / Peak Current: 25A /100A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Cars Applicable: 1/18 &1/16: Touring Car, Buggy, Monster, Truggy
Motor Limit:
2S Lipo or 6 NiMH
280、370 or 380 Size Motor RPM<30000 @7.2V
3S Lipo or 9 NiMH
280、370 or 380 Size Motor RPM<20000 @7.2V
4S Lipo or 12 NiMH
Not Available
Resistance: Fwd 0.003Ω, Rev 0.003Ω
BEC Output: 1A/5V (Linear Mode)
PWM Frequency: 1KHz
Dimension / Weight: 34*24*14 / 23.5g
Cooling Fan: Without cooling fan
Running Modes: Forward/Reverse/Brake

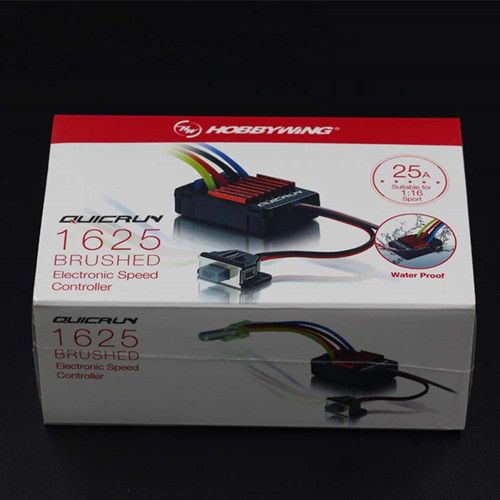

1X QuicRun-1625-Brushed
