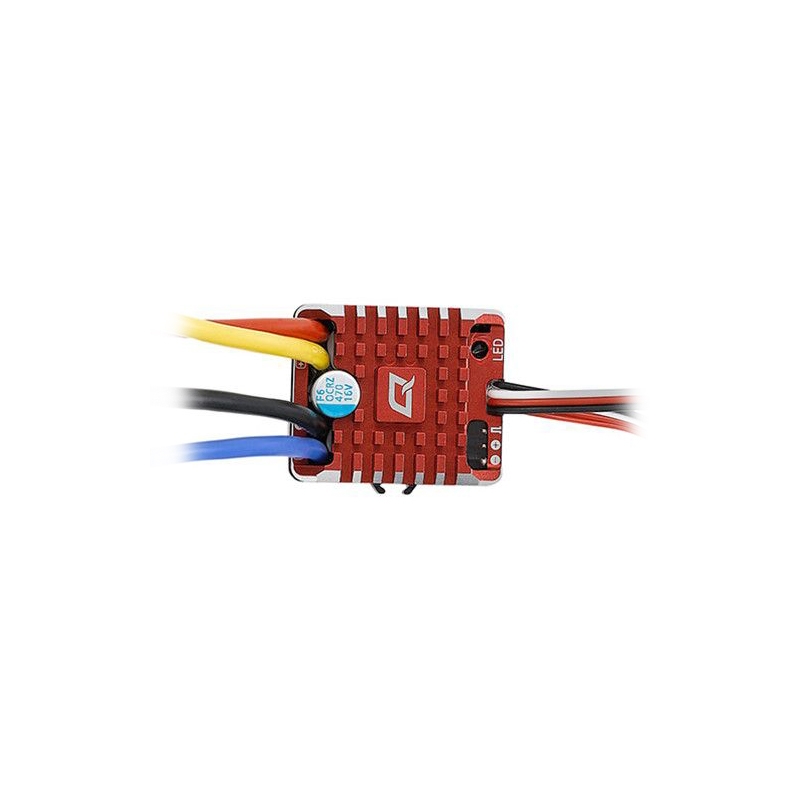

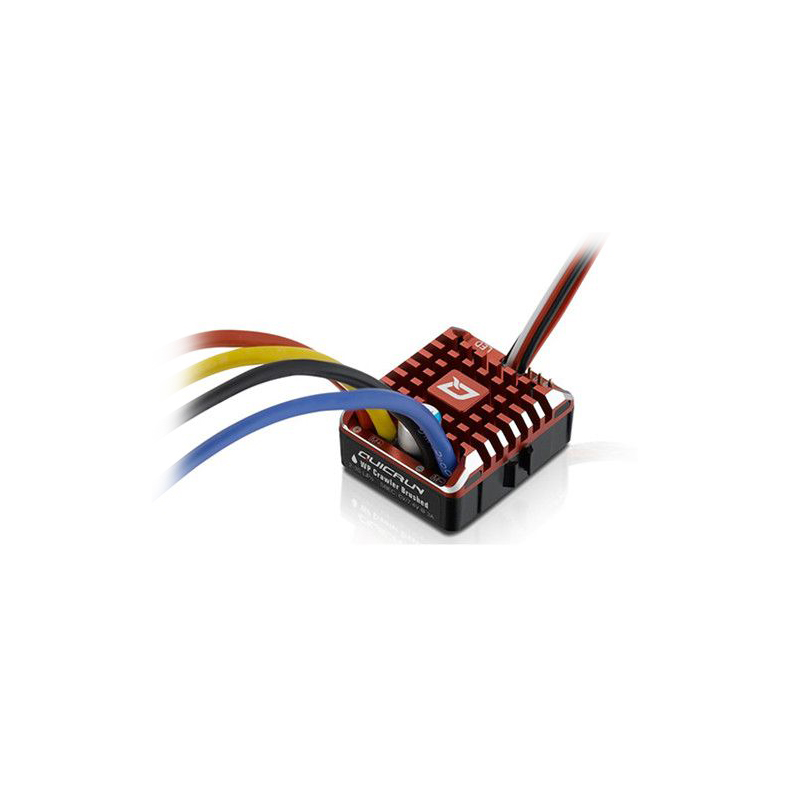

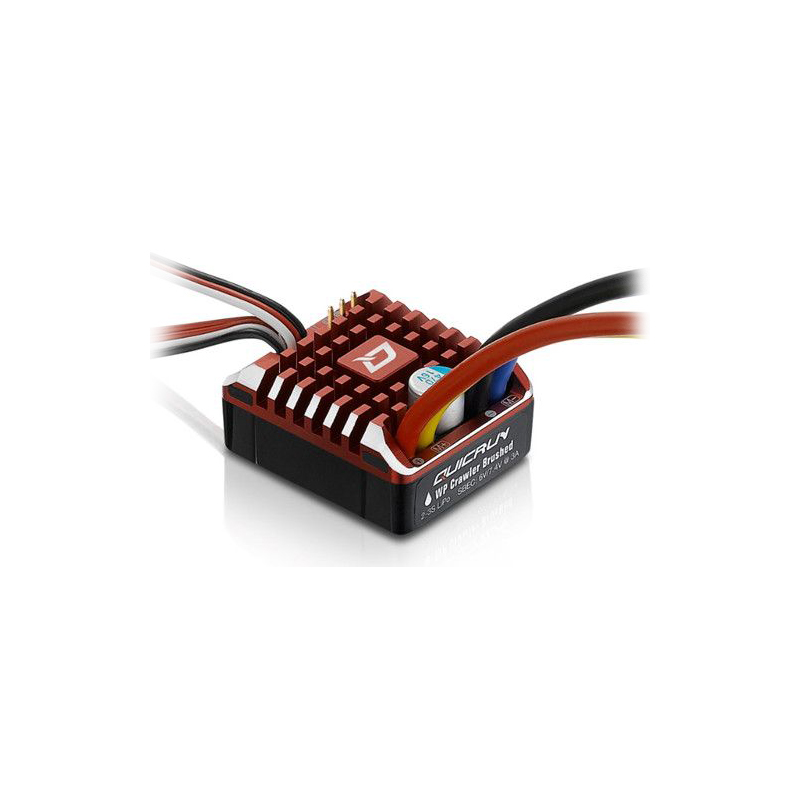

Hobbywing QuicRun 1080 Brushed 80A ESC Program Card #QUICRUN WP-CRAWLER-BRUSHED
100% Waterproof
PWM Frequency: 1K/2K/4K/8K/16K Adjustable
Freewheeling (DEO) capability
Drag brake rate in 9 levels (adjustable)
Electronic switch
Aluminum case
Great heat dissipation
WP-1080 ESC VS WP-1060
Higher cont. and peak current
BEC output can go up to 7.4V
9 levels of drag brake mode
Adjustable PWM frequencies
Freewheeling capability
Adjustable neutral range (9 levels)
Adjustable reverse/drag brake
LED program box supported
Electronic switch
Aluminum case
Applications: 1/10 Rock Crawler
Brushed Motor Limit with 2S LiPo/6S NiMH: T≥12 or RPM
Brushed Motor Limit with 3S LiPo/9S NiMH: T ≥18 or RPM< 20000 @7.2V (540/550 size motor)
LiPo Cells: 2-3S LiPo/5-9S NiMH
Weight: 36.2mm*31.6mm*17.0mm/ 58.5g(W/Wires)
Size: 36.5 x 32 x 18mm (without fan)
Separate Programming Port

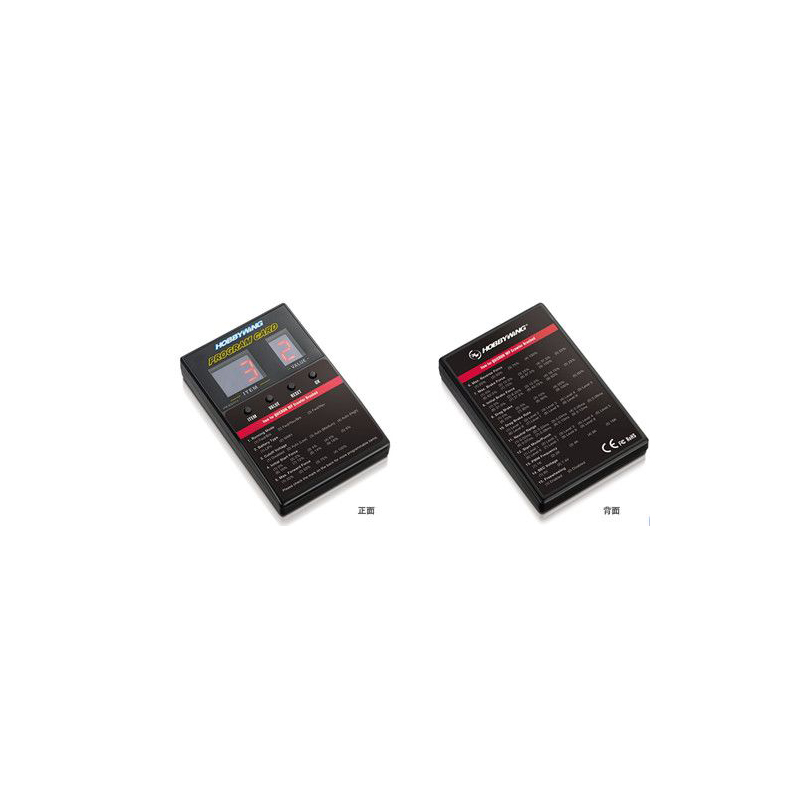

LED Program Box
Cont/Peak Current : 80A/400A
BEC Output 6V/7.4V @ 3A (switch mode)
Adjustable Reverse/Brake Force
LED program box supported
Brushed Motors (540/550/775 Series of Motors)
Hobbywing QuicRun Waterproof Brushed 80A ESC w/ Program Card (1 Set)
