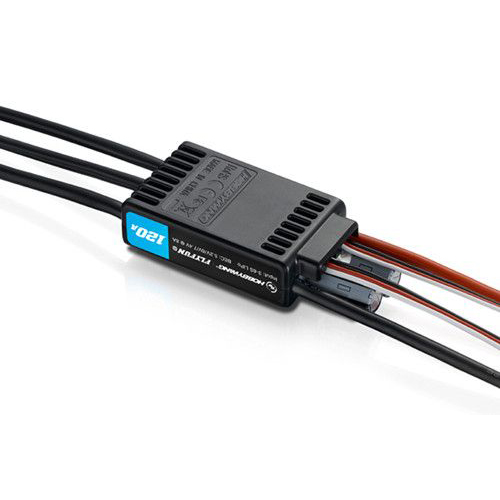

HobbyWing FLYFUN 120A V5 Brushless ESC Speed Controller With BEC for RC Models
* DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
● Rapider and smoother throttle response, better stability and flexibility during flight.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature, more reliable operation.
* Soft Start-ups & Reverse Brake
* High-power BEC
* Multiple Protections
* New Design & Great performance
* Multiple Programmable Parameters
Brand name: HobbyWing
Item numbder: 30201400
Item name: FLYFUN 120A V5 ESC
Type: Brushless
Cont./Peak Current: 120A/150A
Input: 2-8S LiPo
BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A
Input Wires: Red-12AWG-150mm*1
Black-12AWG-150mm*1
Output Wires: Black-12AWG-150mm*3
Input Connectors: No
Output Connecotors: 4.0 Gold Connectors (Female)
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 77.2×34.6×19.2mm
Weight: 93g
1x HobbyWing FLYFUN 120A V5 Brushless ESC
