HEE Wing F-01 Jet Ultra Wing 690mm Wingspan EPP FPV Remote Control Airplane Drone Frame
– Independent detachable lens plug for both FPV and visual observation flights
– Wings have embedded carbon fiber rods with different angles
– Small wingspan with large space for electronics electronics
– Four magnets are applied to the hatch for better fastening
– The new wingtip design supports vertical take-off mode
– Supports horizontal and vertical battery mounting
– Tailored lens ring for better protection
– All new propeller locking method
Brand Name: HEE Wing
Item Name: F-01 Ultra Wing
Version: KIT
Material: EPP/ABS/Carbon Fiber
Wingspan: 690mm
Height: 88mm
Length: 415mm
Max Endurance: >70 minutes
Max Mileage: >45km
Min Flight speed: <27km/h
Maximum Flight speed: ≥220+km/h
KIT Weight: 150g(epp-30)/190g(epp-20)
Take Off Weight: 350g~850g
Fuselage space
– Battery Compartment: 175mm*175mm*55mm (Max dimension)
– ESC Compartment: 70mm*38mm*20mm (Max dimension)
– Camera: 20mm*21mm*30mm (Max dimension)
Note: when speed is≥100km/h, should install lens cover to prevent excessive inflow air form blowing awa the hatch.
Recommended Configuration: (Not inlcuded)
Motor: FX-2205 / 2350kv
ESC : FX-35AEB
Battery: 2-4S
Servo: Digital Metal Teeth 9g
UBEC: MAMBA UBEC 5V 2A
Thrust: ≧ 920g (6 * 4 propellers)

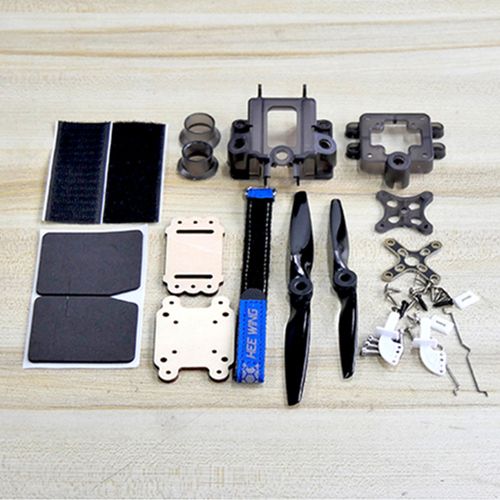

1x Hee Wing Ultra Wing EPP Body
2x VTX Fixed Seat
1x Hardware Kit
1x Lipo Strap
1x 6x4E Prop
1x 5x5E Prop
