H2 ISG Remote Starting Hybrid Engine For 18kg (40 lbs) Take-off Weight Quadcopters Hexacopters or VOTL
H2 ISG Remote Starting Hybrid Engine For 18kg (40 lbs) Take-off Weight Quadcopters Hexacopters or VOTL

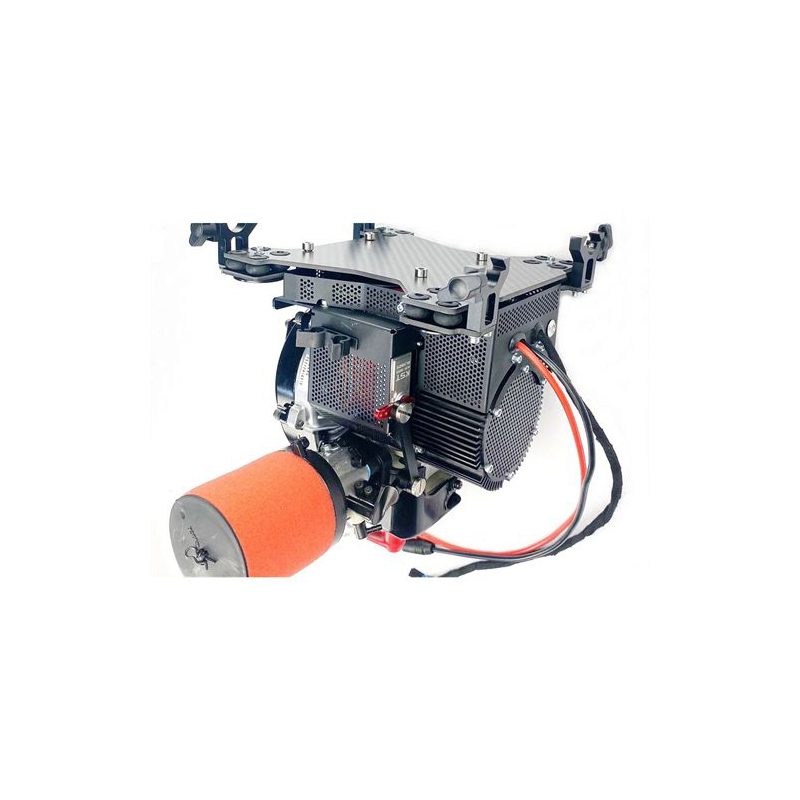

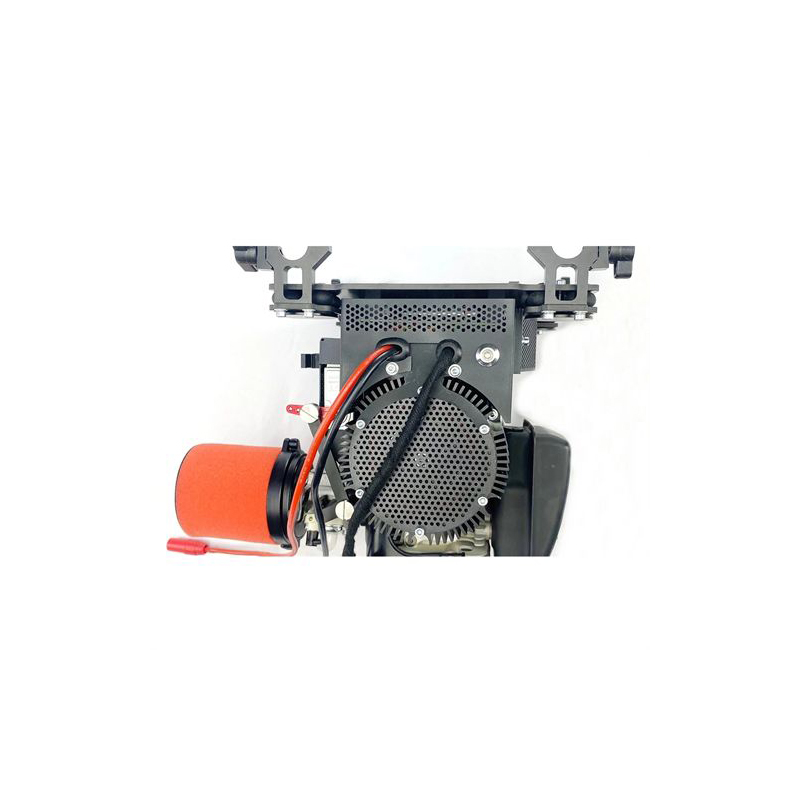

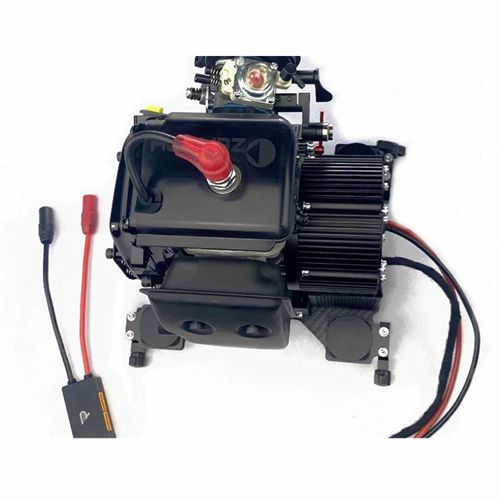

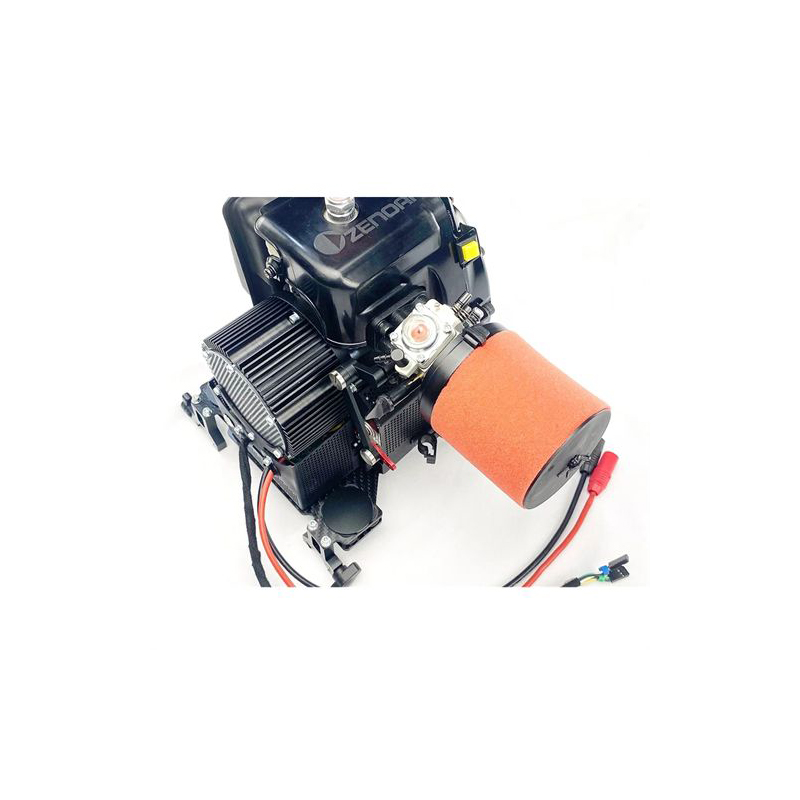

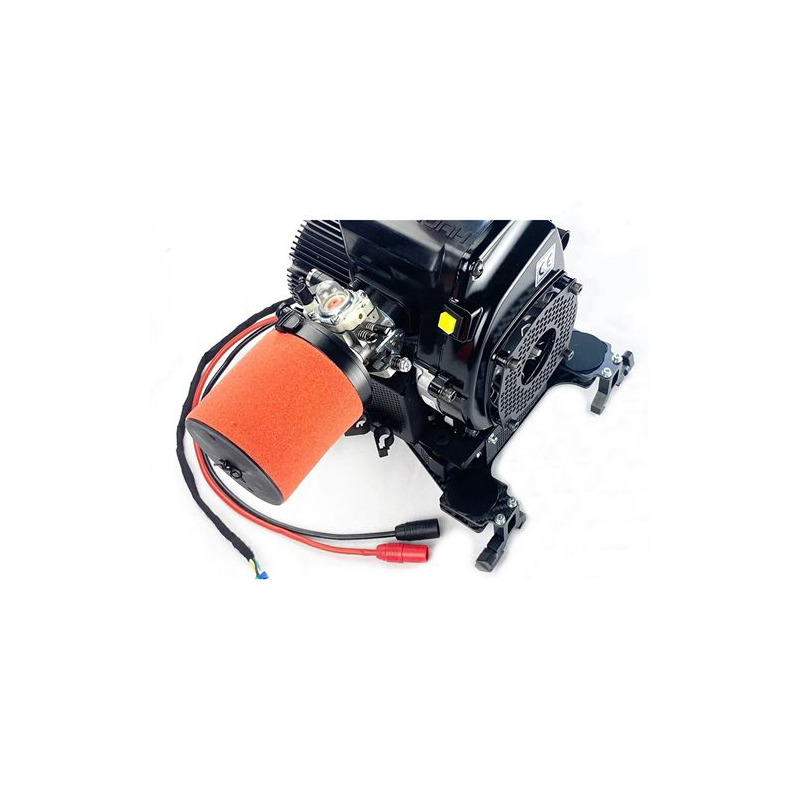

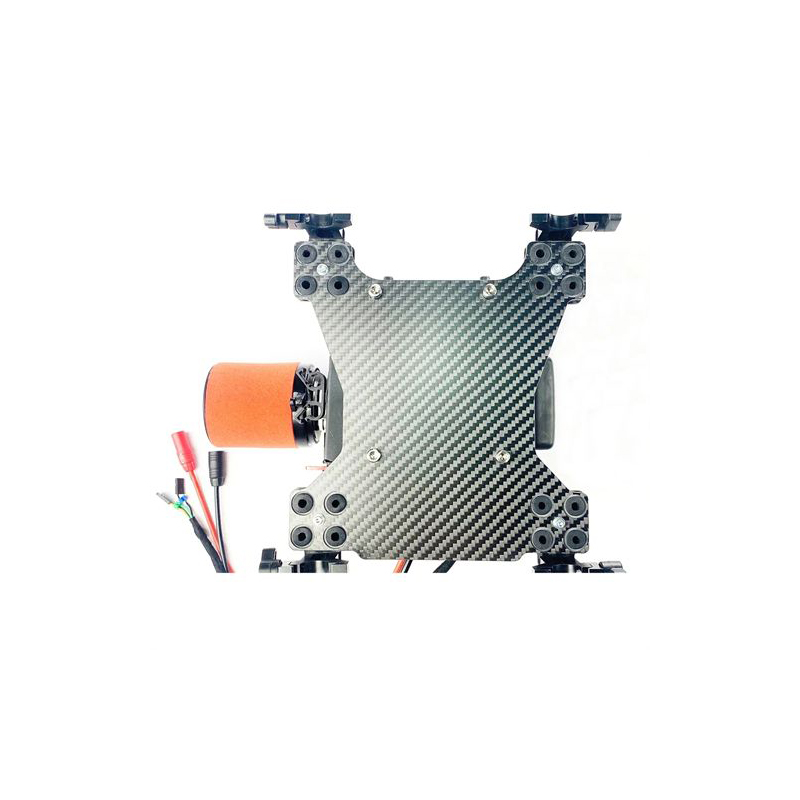

H2 ISG (Integrated Satart & Generator) Gasoline Hybrid Engine
We are proud to release the the upgraded H2, that is H2 ISG.
New features are intruduced:
ISG (Integrated Satart & Generator) system. Starter is not needed any more.
Controller box is removed. The control board and LED are integrated in the generator.
Remote starting is available. To start and stop the engine via RC controller switch or on GSC via MAVLink. It makes the Cold Starting easier as well.
Replace heavy batteries with H2 hybrid engine. More than two hours can the drone fly. Make your drone more useful.
INDUSTRIAL standard designed and manufactured Apply to 18 kg (40 lbs) take-off weight Quadcopters, Hexacopters or VOTL.
Maximum payload is 5 kg (11lbs), Cruise time 2+ hours with 3 kg (6.6lbs) payloadEnvironmental temperature between -20° and 40°C (-4° and 104°F). H2 is available in extremely cold areas without preheating. Plug & Play. Easy to mount on to your UAVs drones only by screwingDC 48V/12S output easy as batteries LOW Cost. Fulfill Automotive regular gasoline
Model: H2 ISG
Weight: 4.0kg(8.8lbs) w/o Accessories / 5.2kg(11.5lbs) Total
Power: 1.8kW(2.4hp) Continuous / 2.0kW(2.6hp) Max. Power
Dimension(L x W x H): 260 x 312 x 325 mm/10 x 12 x 12 in
Applicable UAV Types: Multicopters & VTOL Fix-wings
Max. Take-off Weight: 18kg(39.7lbs) or UAV suggested
Output Voltage: 12 S (49V)
Fuel consumption: 750 g/kw·h(hovering 1.5 L/h)
Service Temperature: -20 ~ 40 °C / –4 ~ 104 °F
Ceiling (above the sea): 1000 m / 3280 ft
Rotating direction: Clock wise (view from starter)
Fuel: Automotive #95 or above + 2T oil
H2 ISG Gasoline Hybrid Engine x 1
