FPV 5.8GHz 48ch RC-HD Receiver with HDMI Output & A/V and Power Cables For FPV Racing Drone
48 channels: Cover A,B,E,F,Rbands and L band (Airwave band), 6bands and all frequencies compactable;
Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
Power off memory: Replay the very last frequency band and channel
Independent video and audio signal outputs
Material:metal
colour:yello
Sensitivity: ≤-93dBm
Working Frequency: ISM 5.8GHz
Available Channel: 48CH
Power supply: DC 6-24V
Consumption Current: 200mA, Max.
Antenna Input Impedance: 50ohm Typ.
Antenna Connector: SMA
Antenna Gain: 2dBi
Video Output Level: 1.0Vp-p Typ, 75Ω
Audio Output Level: 1.0Vp-p Typ, 10KΩ
Audio Carrier: 6.5MHz
Type Standard: NTSC/PAL
Dimension (L x W x H): 80x65x15 mm
Weight: 120 g

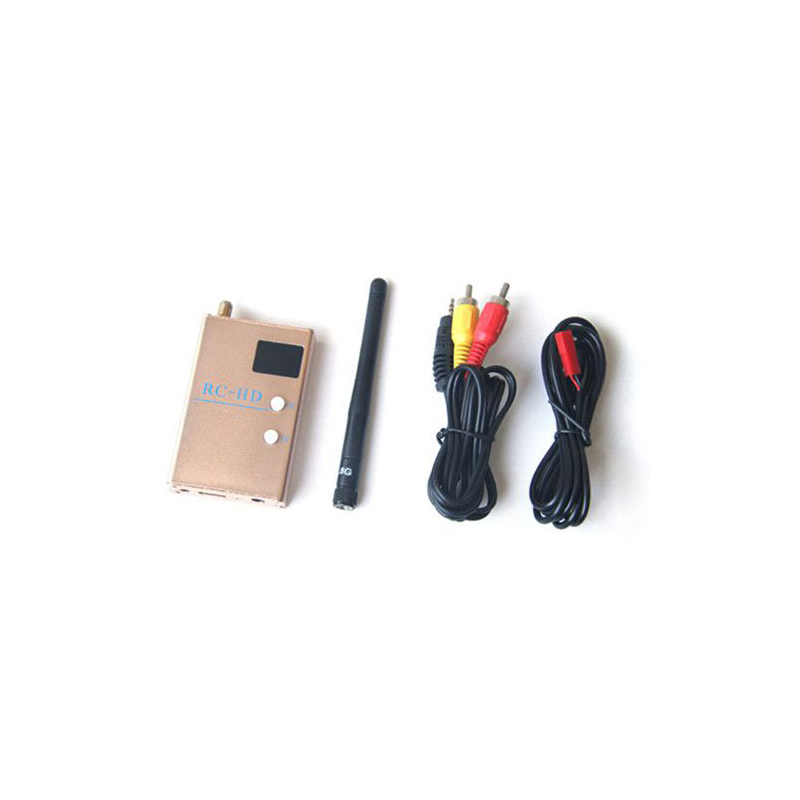

RC-HD Video Receiver x 1
Stereo Jack to RCA AV Output Cable x 1
Power cable x 1
