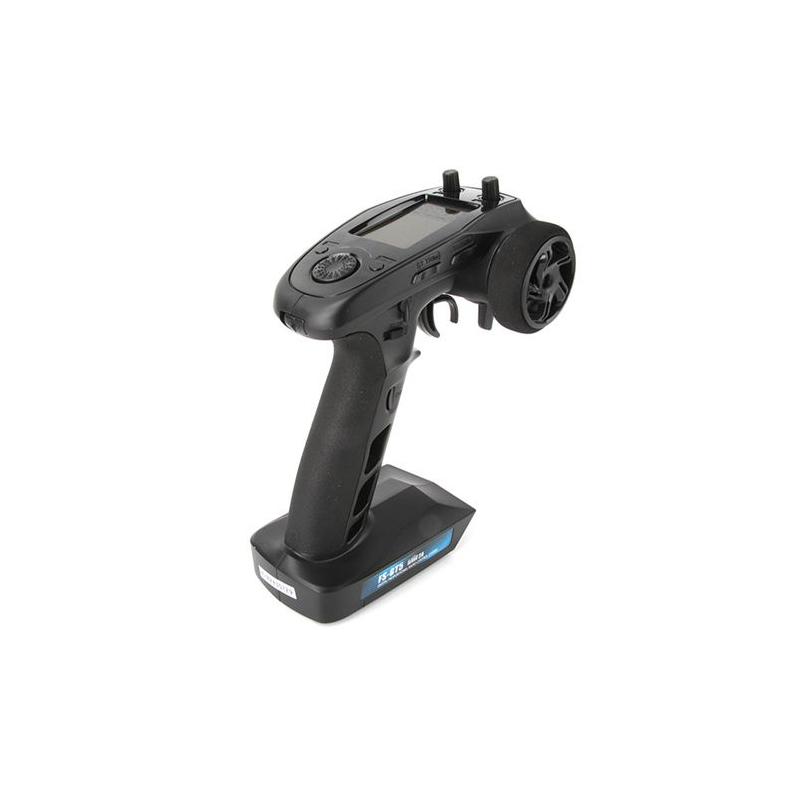

FS-GT5 Transmitter
Item No.: FS-GT5
Channels: 6CH
RF Range: 2.408-2.475GHz
Bandwidth: 500KHz
Bands: 135
RF Power: <20dBm
Receiving Sensitivity: -95dBm
2.4GHz Protocol: AFHDS 2A
Modulation Type: GFSK
Transfer Method: FHSS
Channel Resolution: 4096 steps
Channel Delay: <15ms
Batterry: AA batteries < 4.4V, 2S lithium battery < 7.4V(Not included)
Antenna: 26mm
Display: NTN semi-pemeable,segment screen,VA52.5 x 34mm LCD white backlight
Online Update: N/A
Range: >200m (No ground interference)
Channel Data Parameters: 1500us(Median) 900-2100us(Range)
FS-BS6 Receiver
Item No.: FS-BS6
Channels: 6CH
RF Range: 2.408-2.475GHz
RF Channel: 135
RX Sensitivity: -92dBm
2.4GHz System: AFHDS 2A
Modulatione Type: GFSK
Power Input: 4.0-8.4V DC
Size: 29 x 22 x 16mm
