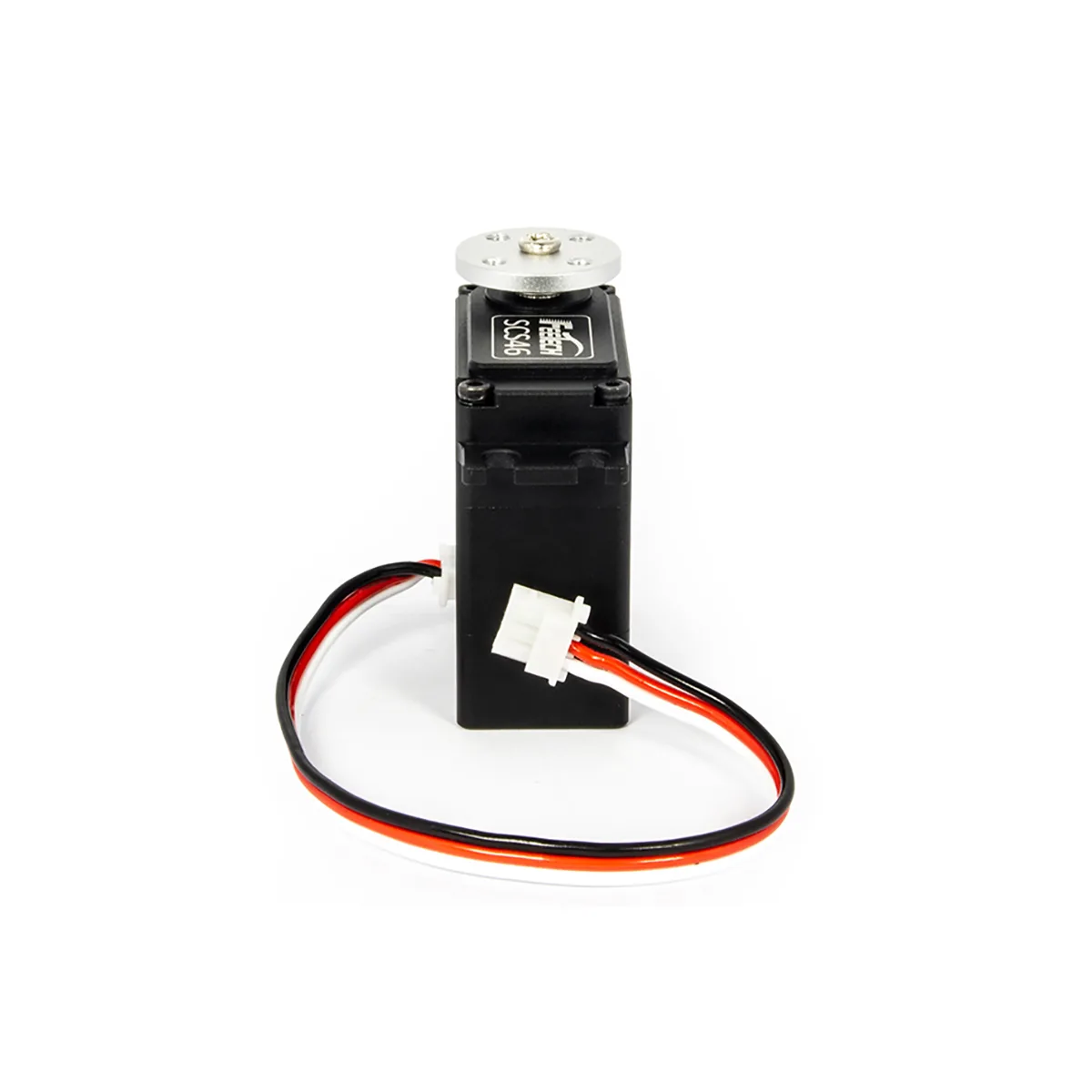

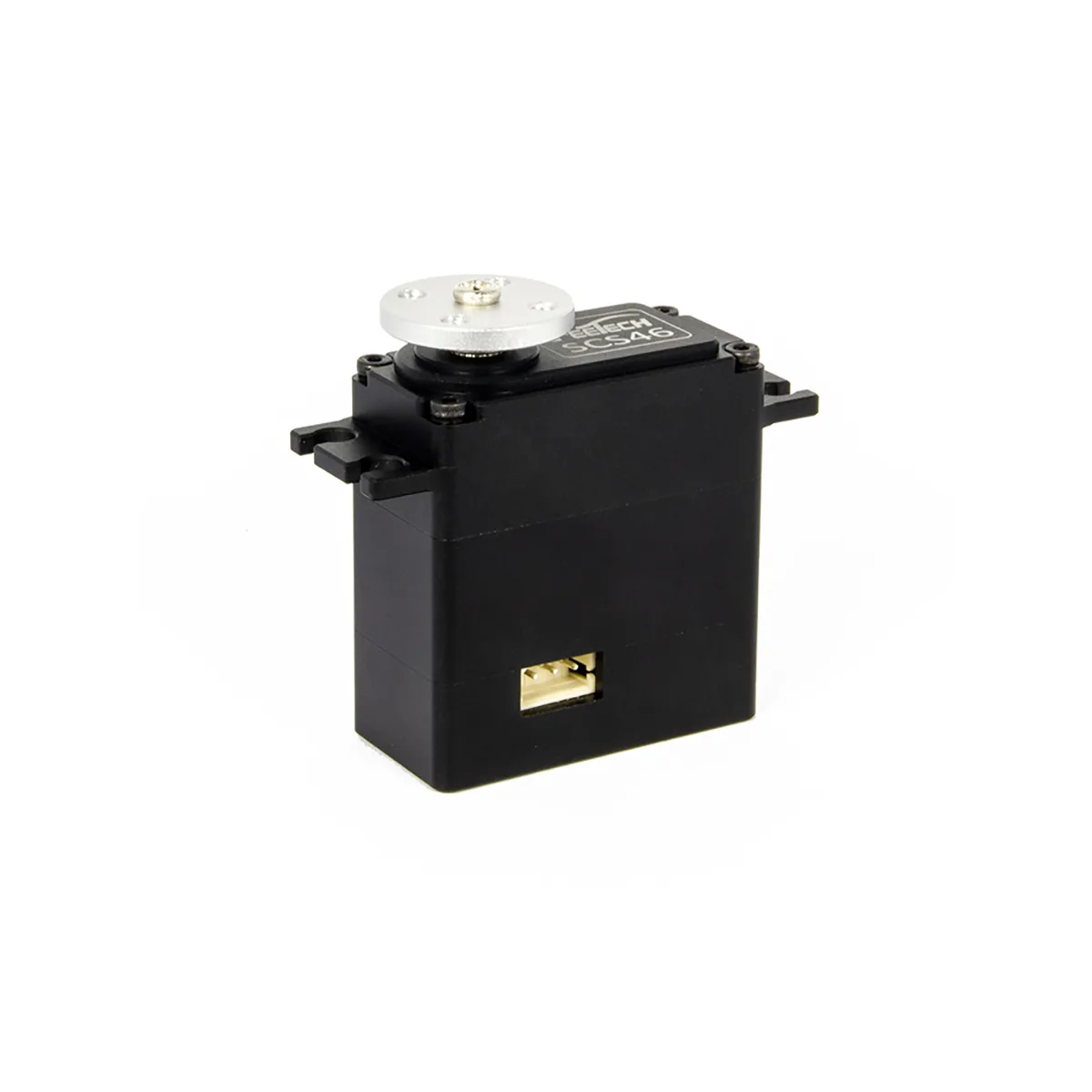

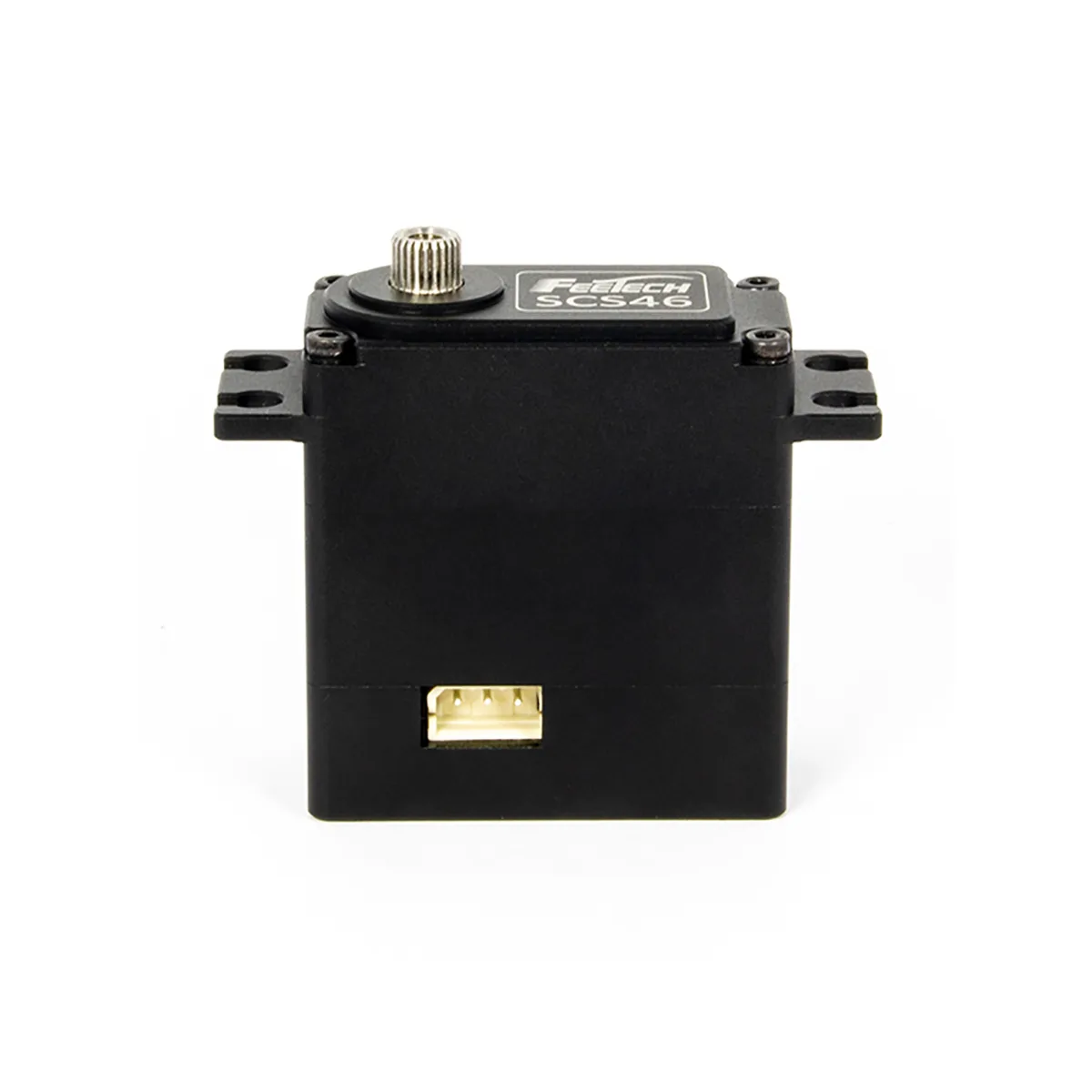

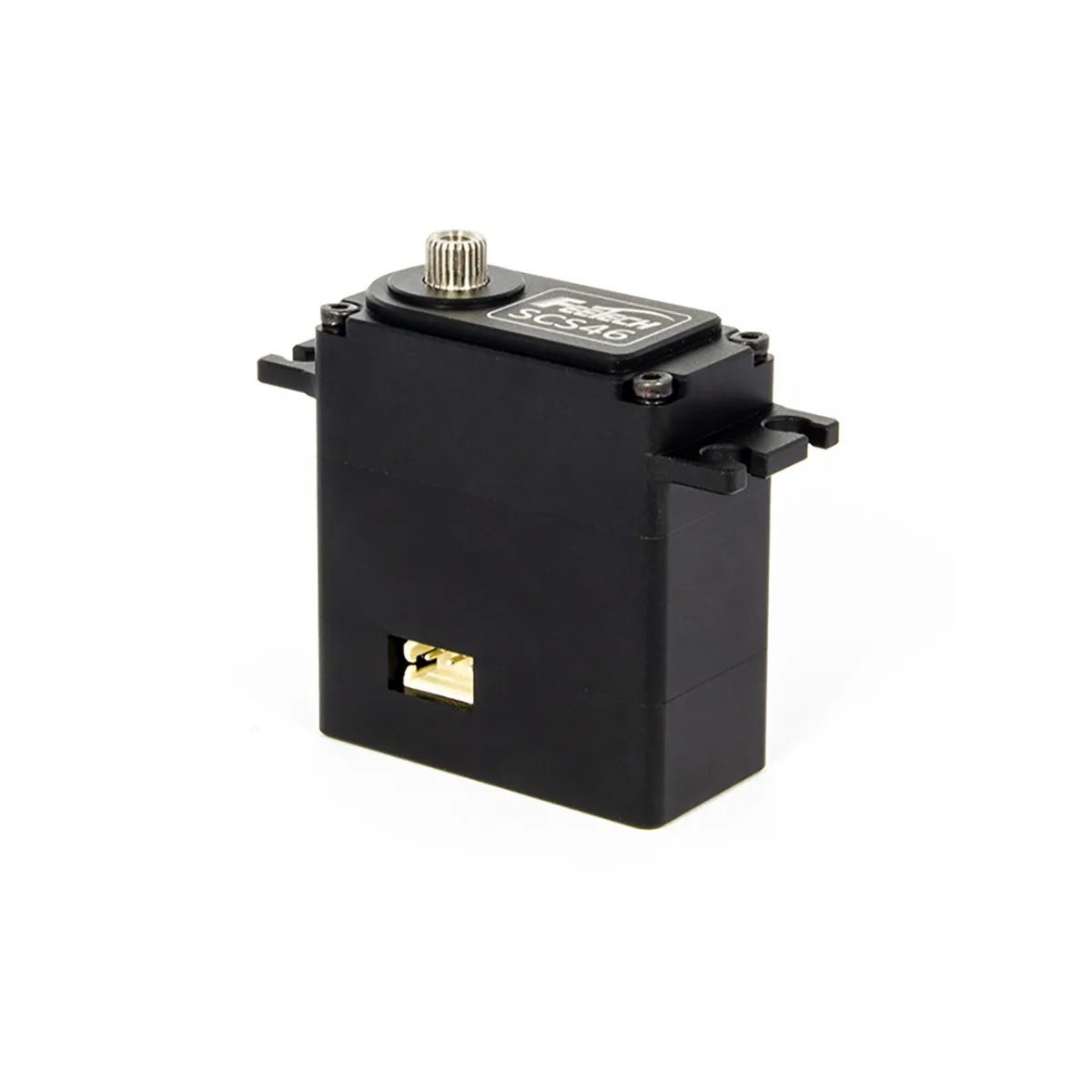

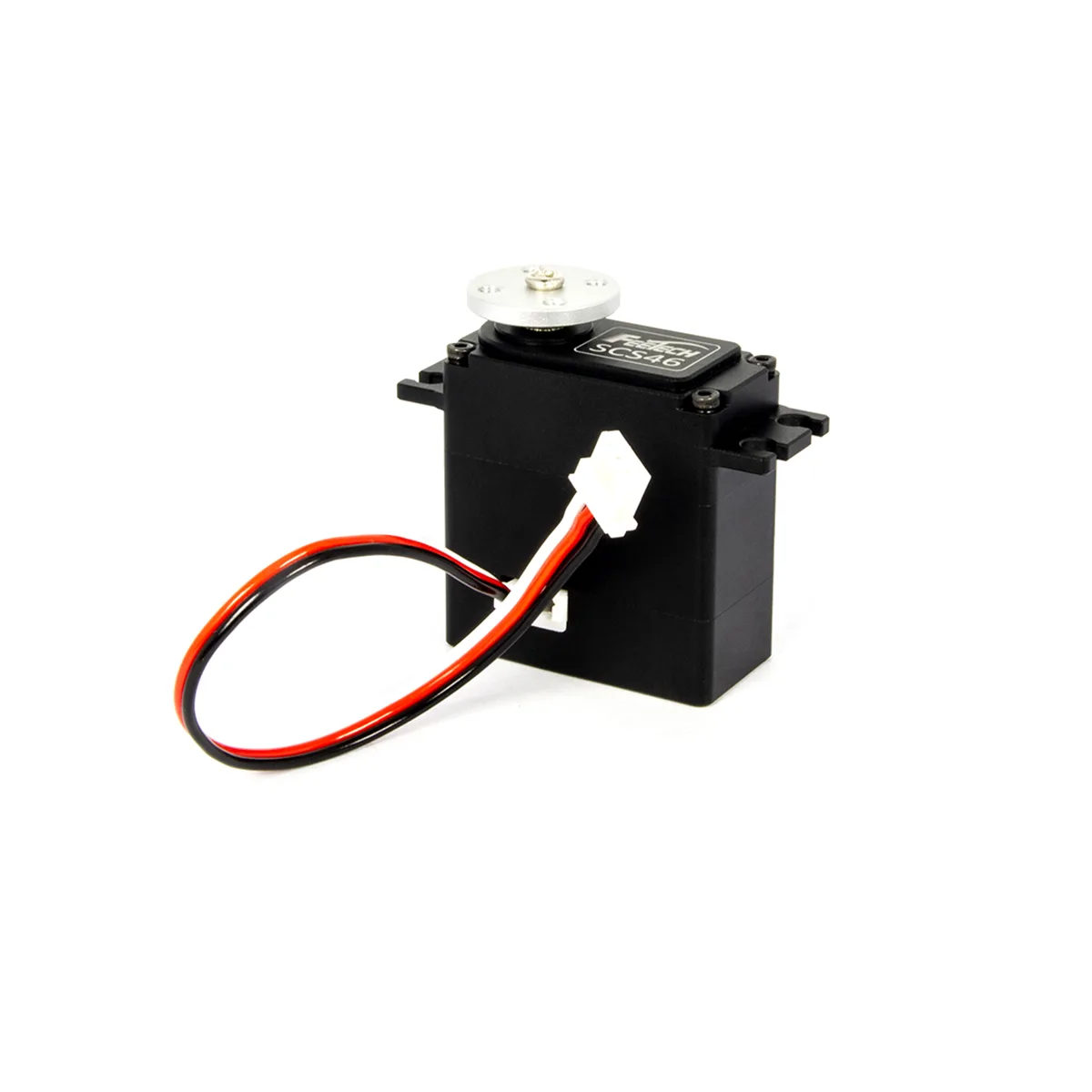

Feetech SCS46 7.4V 40kg Steel Gear Coreless Motor 300 Degree Single Shaft Serial Control BUS Servo
Feetech SCS46 7.4V 40kg Steel Gear Coreless Motor 300 Degree Single Shaft Serial Control BUS Servo
SCS46 7.4V 40kg single shaft serial bus smart servo，adopt full aluminum alloy case，to facilitate heat dissipation，metal gearbox、coreless motor, Feetech self researched and developed TTL control board，high quality potentiometer，25T output shaft. The stall torque is 40kg.cm，the effective control angle is 300°, it has servo mode and continuous rotation motor working mode，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload protection can be realized. It is suitable for the application scenarios of teaching, maker, small torque and low frequency.
Model: SC-4600-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃

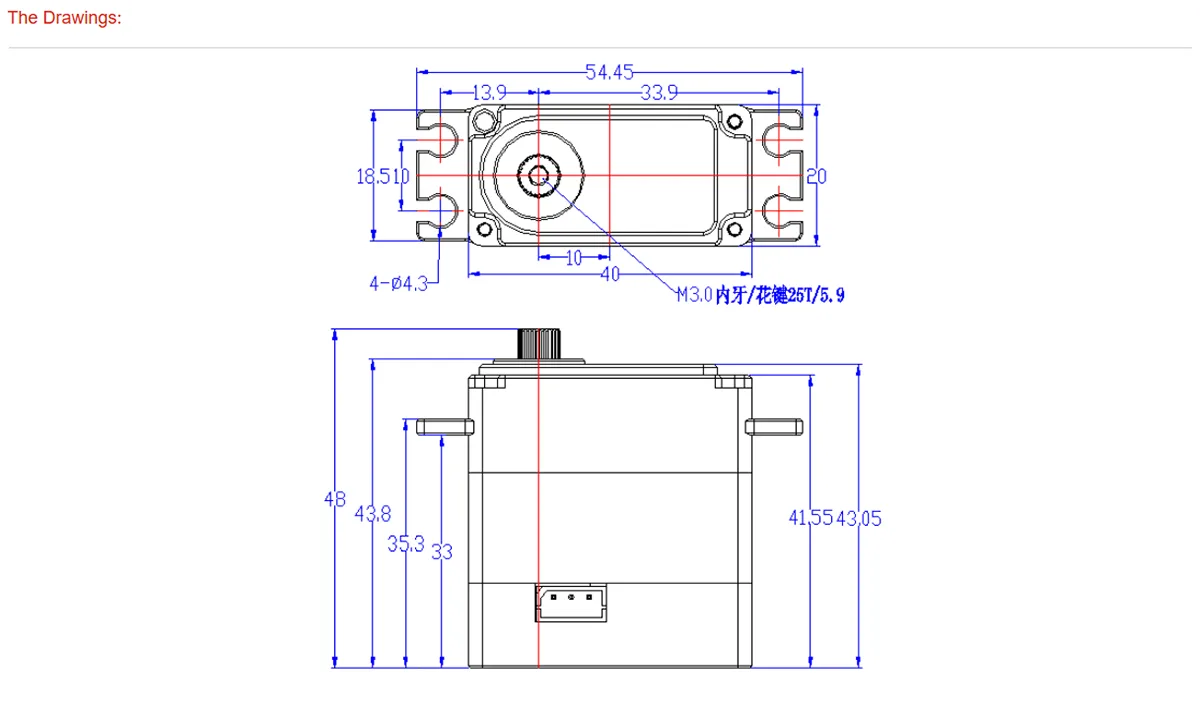

Size: 40*20*43.05mm
Weight: 89±1g
Gear type: Steel
Limit angle: NO limiter
Bearing: Ball bearings
Horn gear spline: 25T/OD5.9mm
Horn type: 0°
Case: Aluminium
Connector wire: 150mm ±5 mm
Motor: Coreless motor
Operating Voltage Range: 6-7.4V
No load speed: 0.22sec/60°@7.4V
Running current(at no load): 300 mA@7.4V
Peak stall torque: 40.5kg.cm@7.4V
Rated torque: 13.5kg.cm@7.4V
Stall current: 4.4A@7.4V
Command signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Running degree: 300°
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature
Position Sensor Resolution: 0.293°(300°/1024)

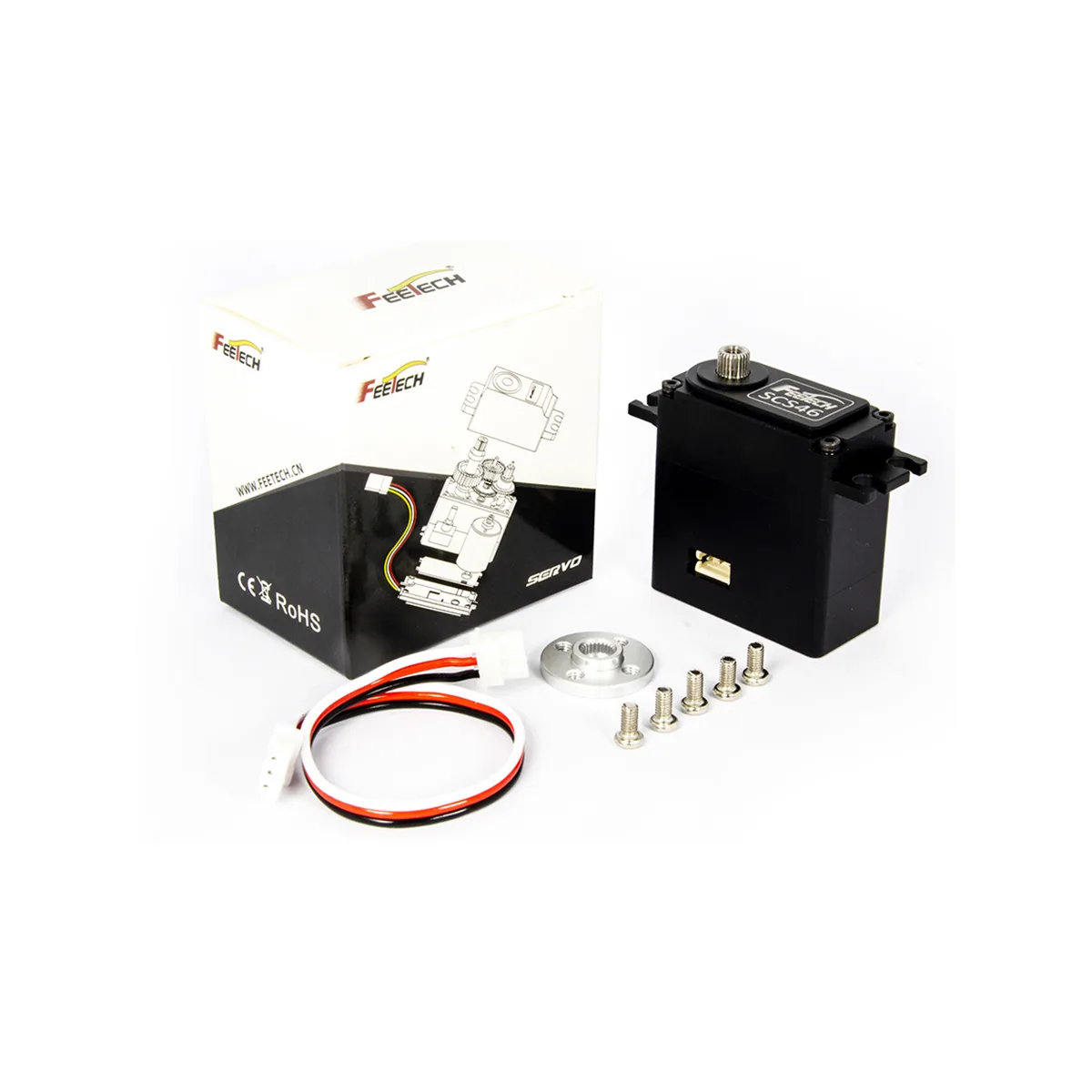

SCS46 Servo x1
