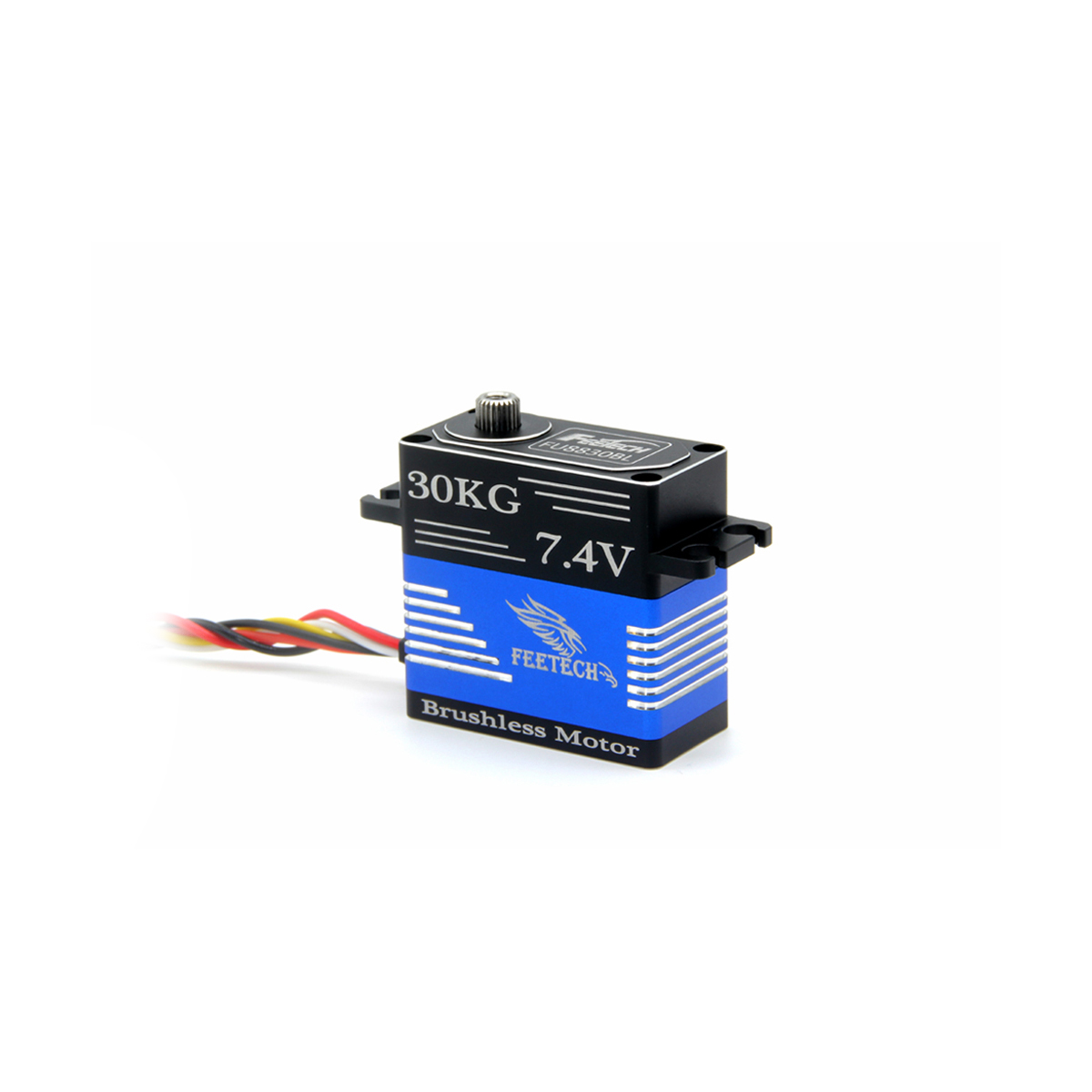

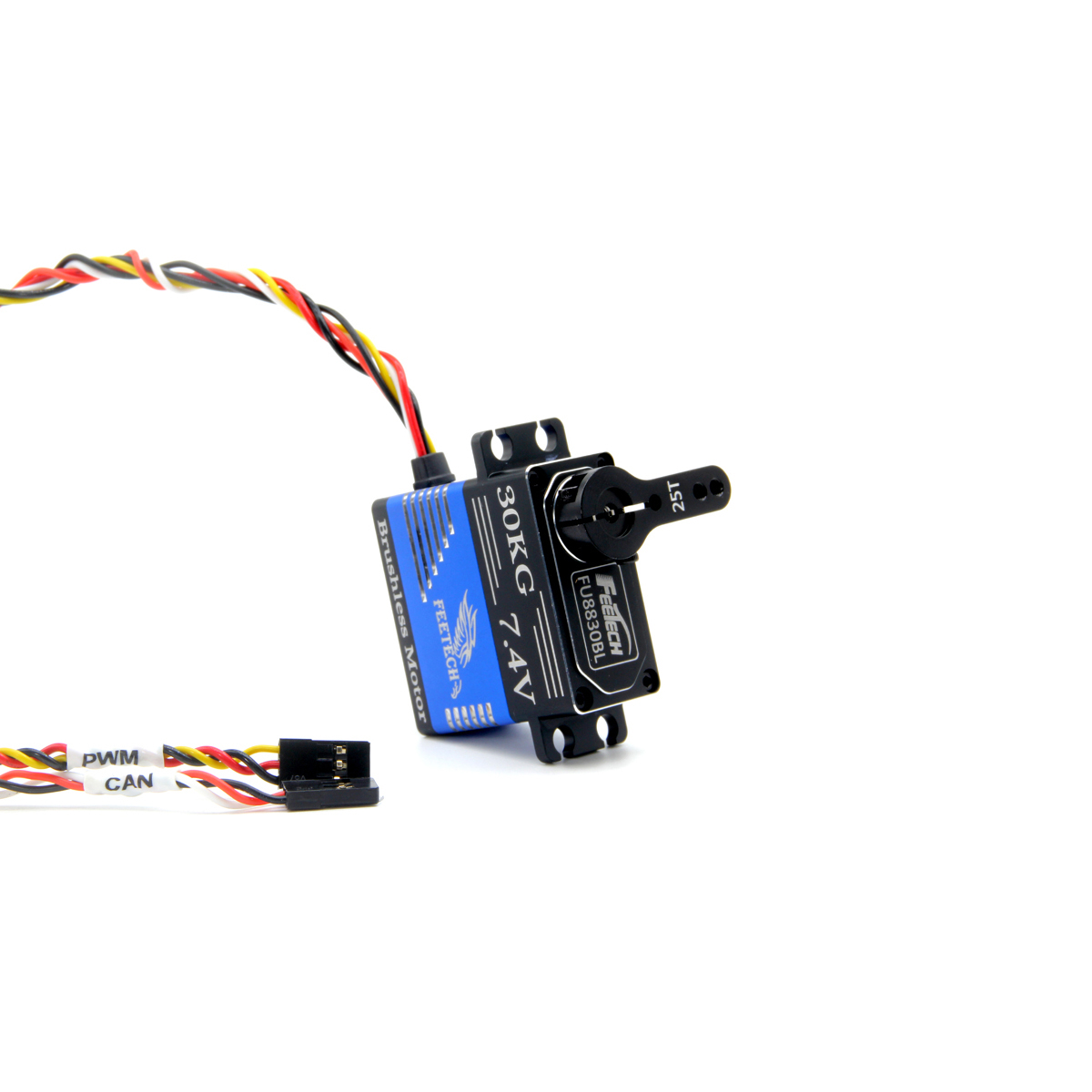

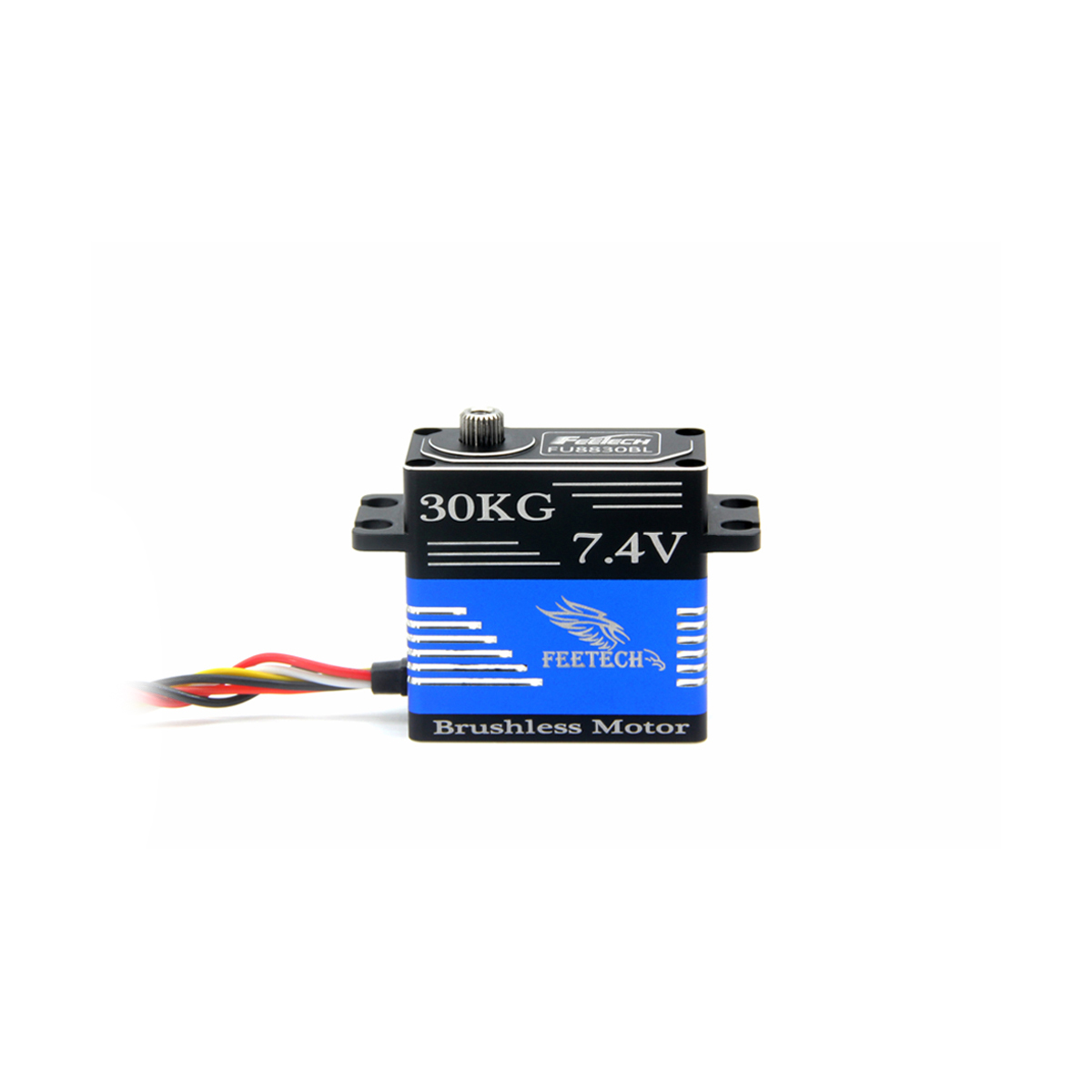

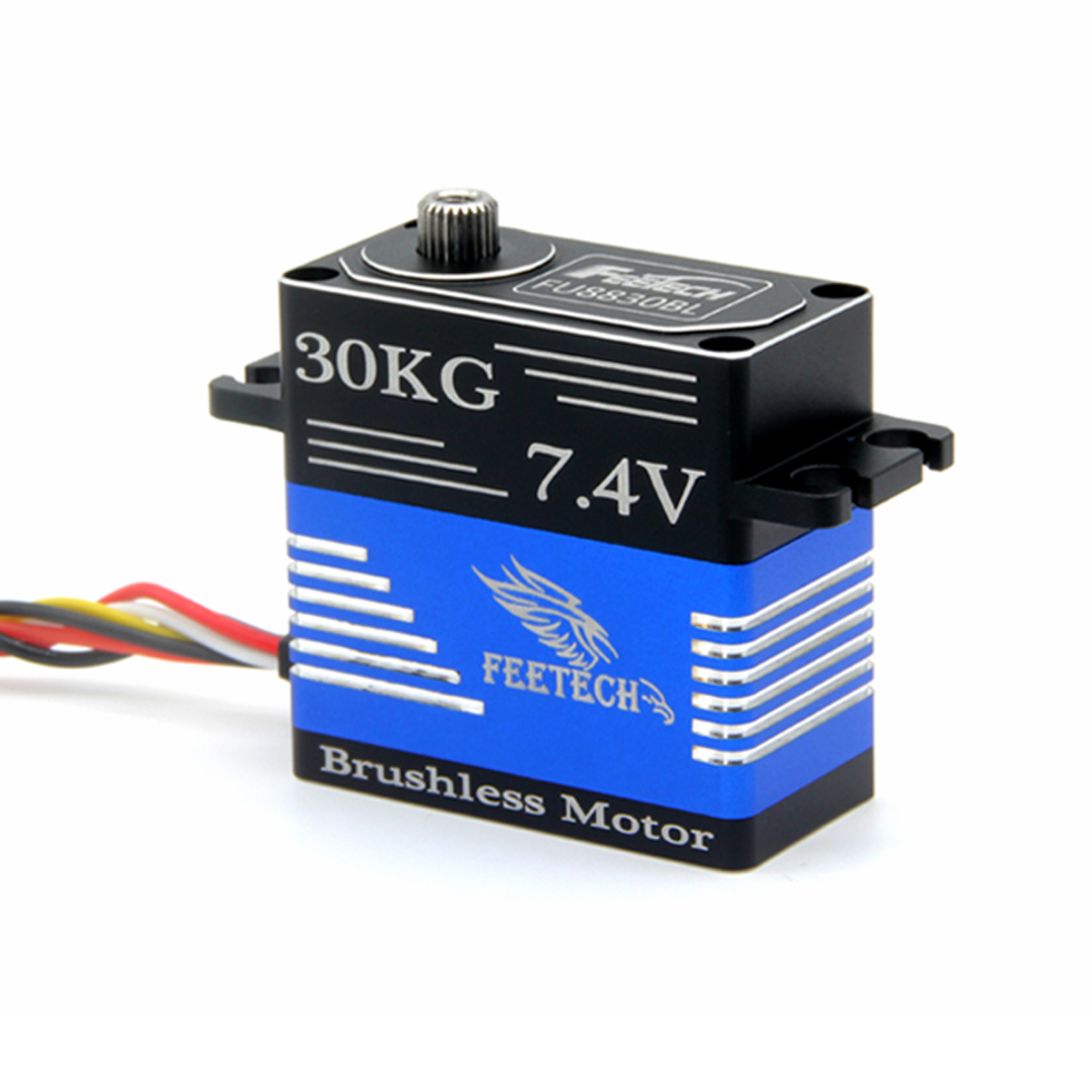

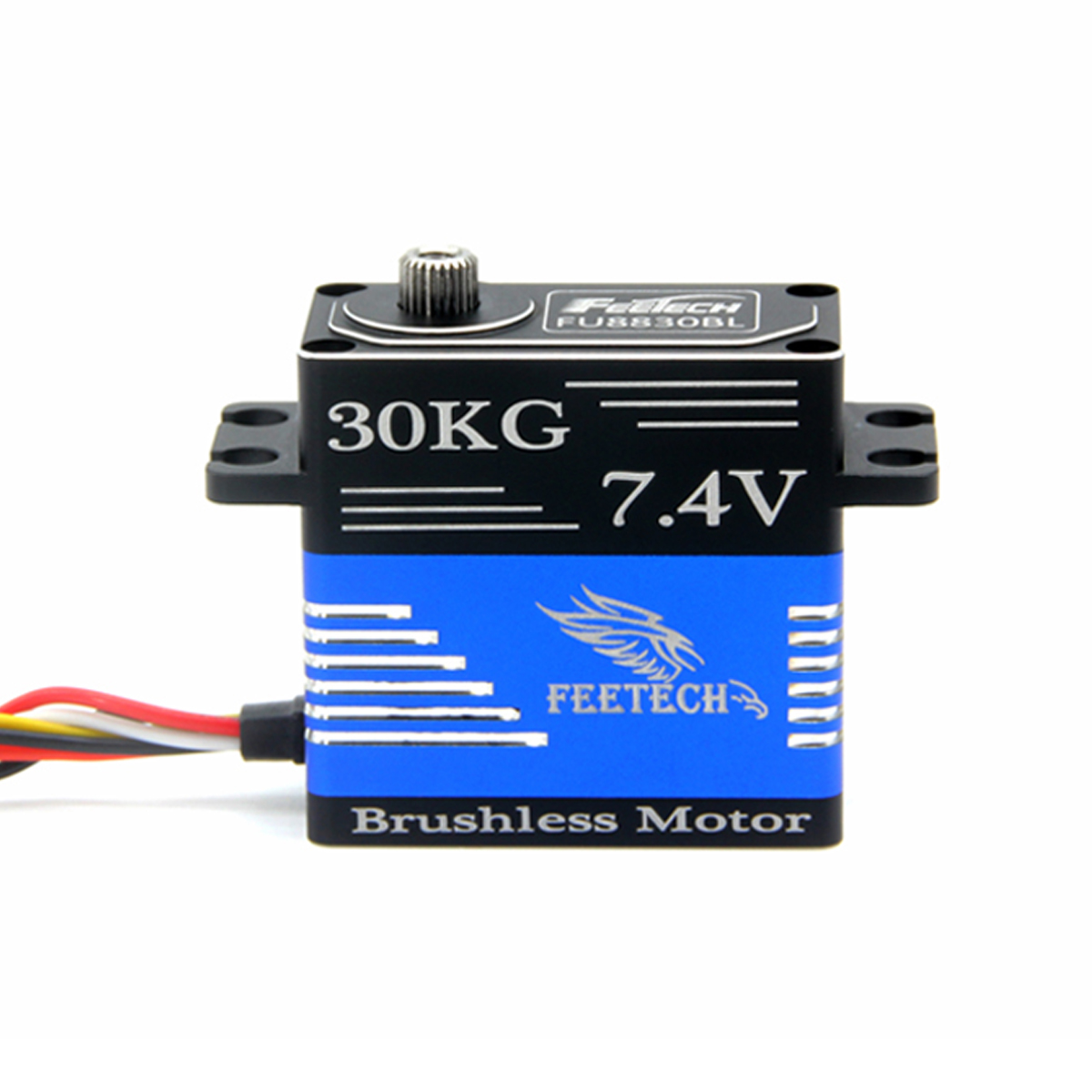

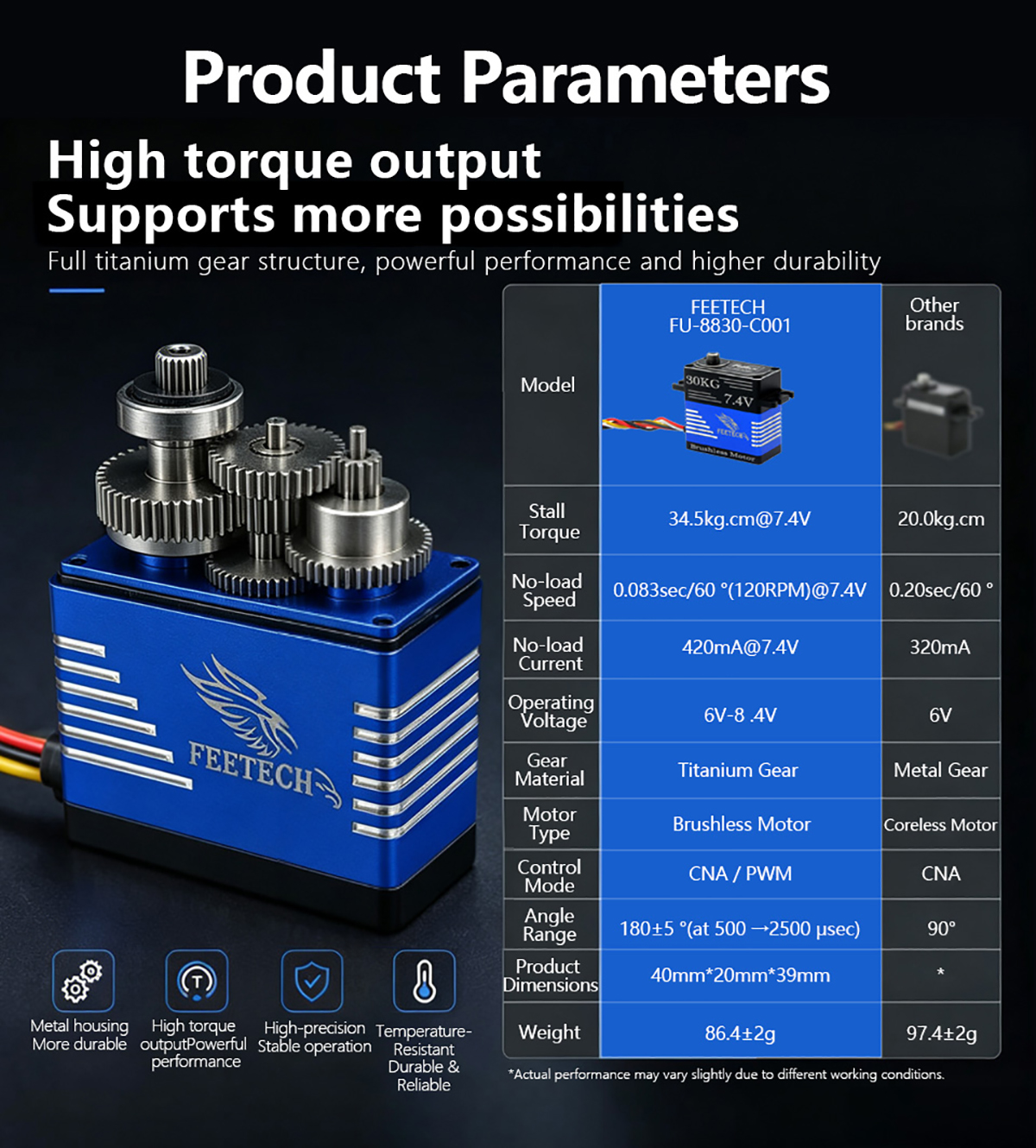

Model: FU-8830-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

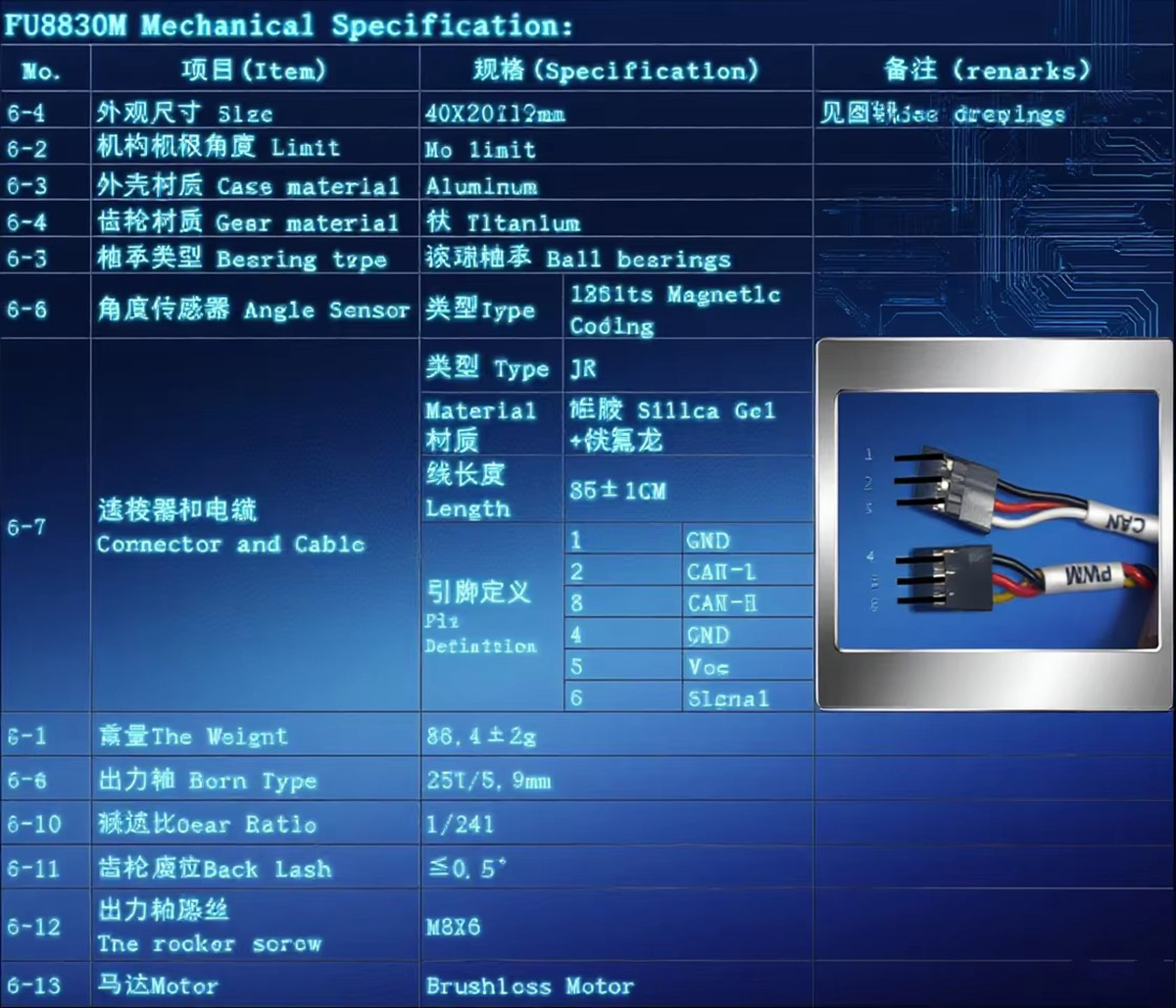

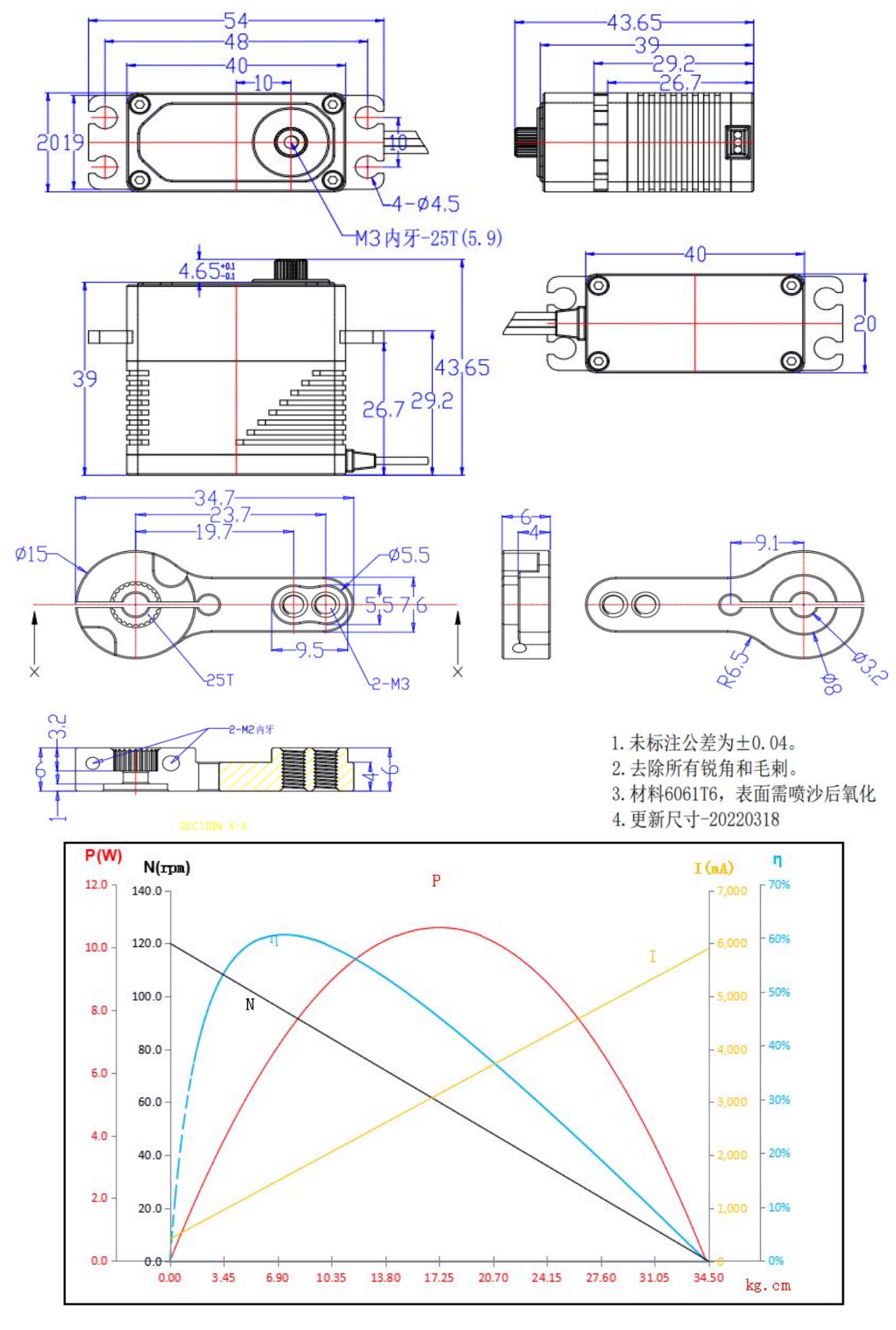

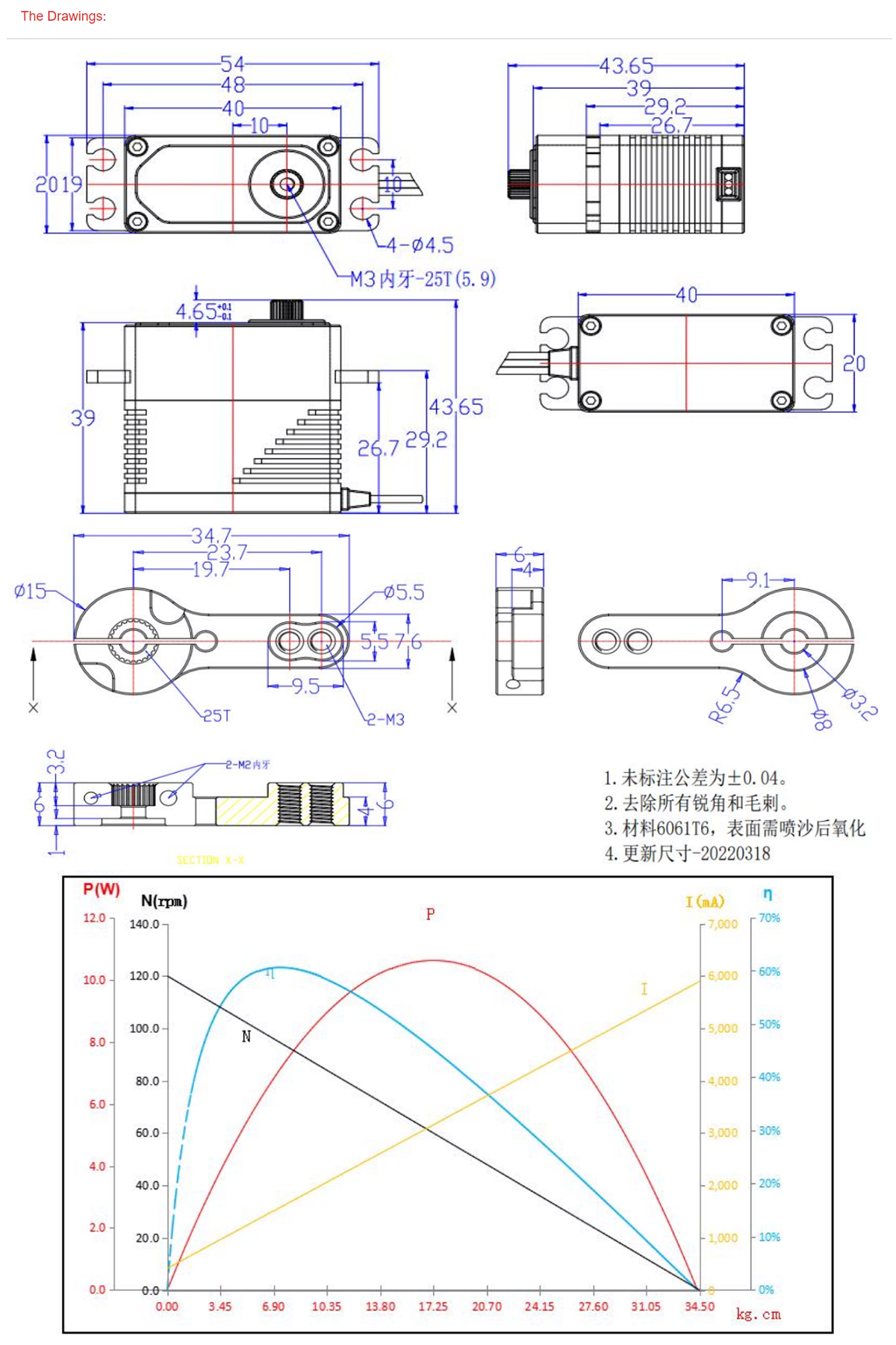

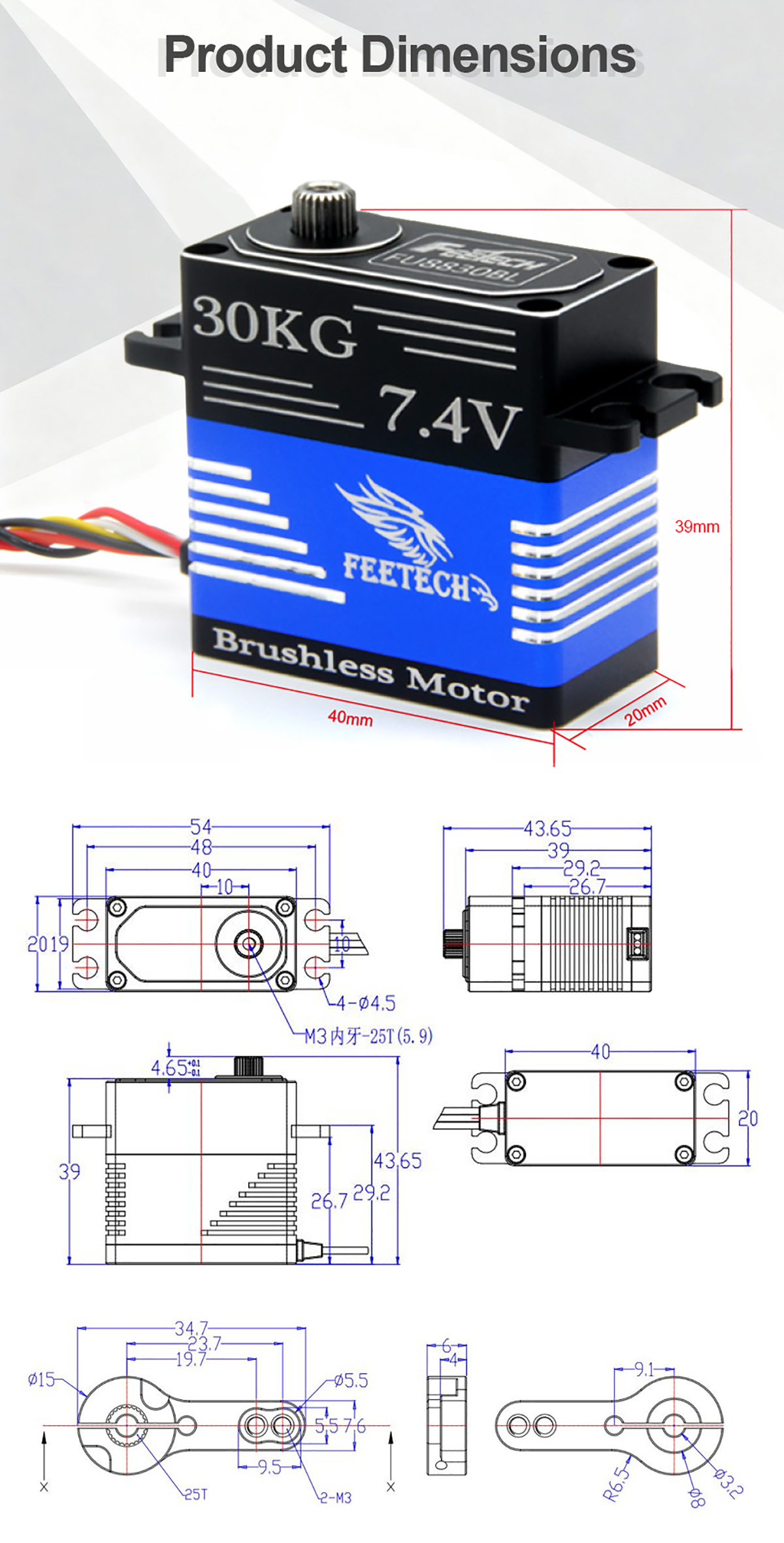

Size: 40*20*39mm
Weight: 86.4±2g

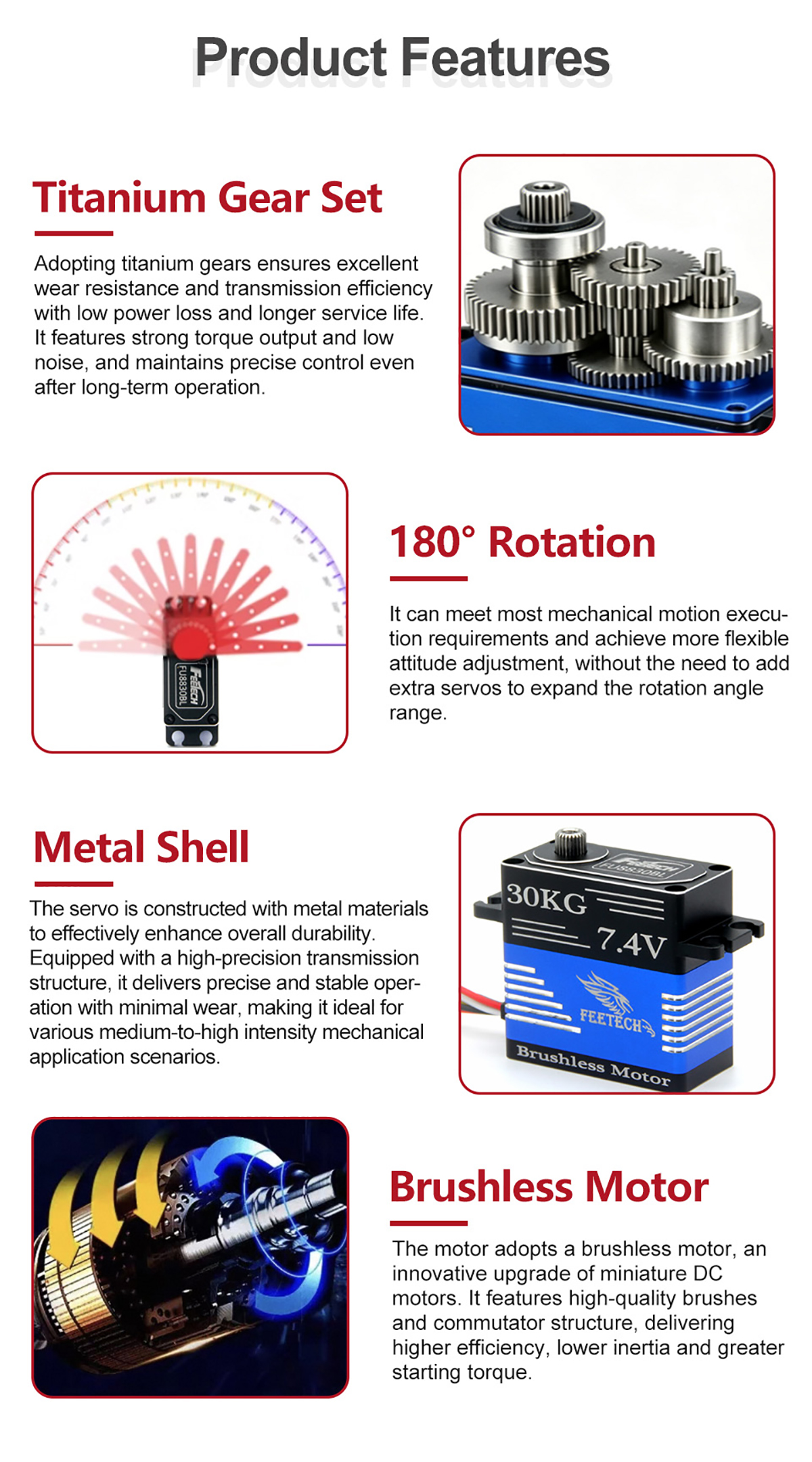

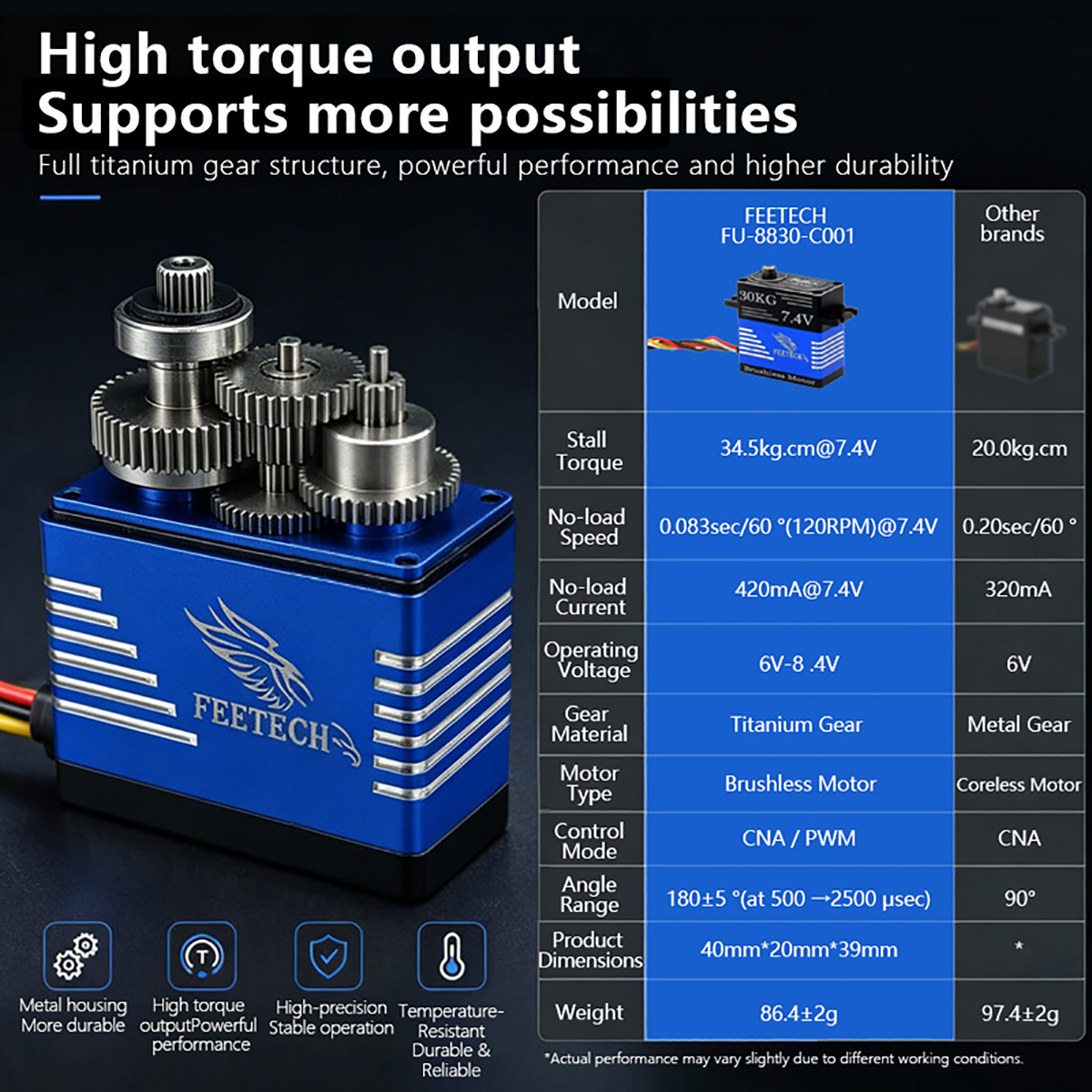

Gear type: Titanium
Limit angle: NO
Bearing: Ball bearings

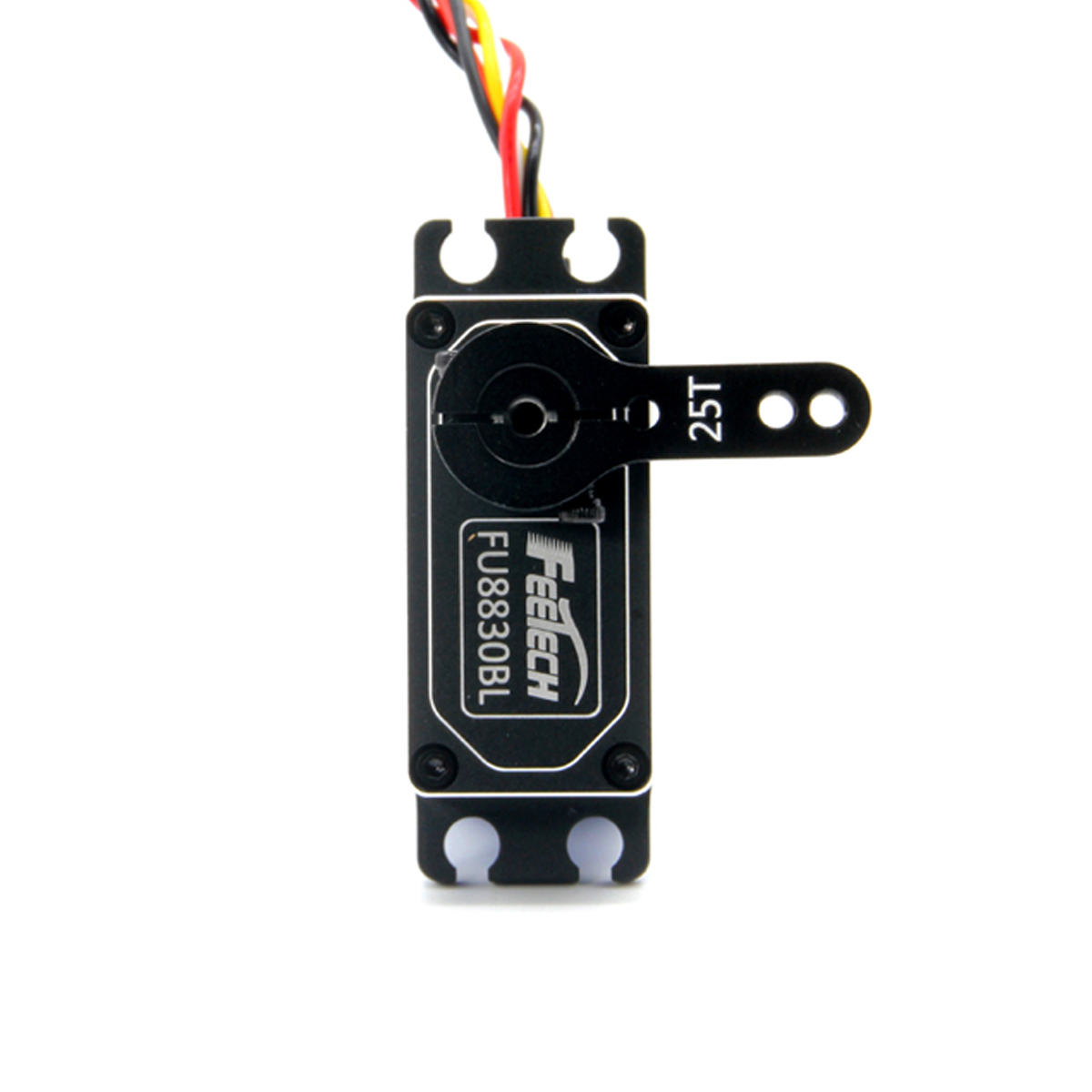

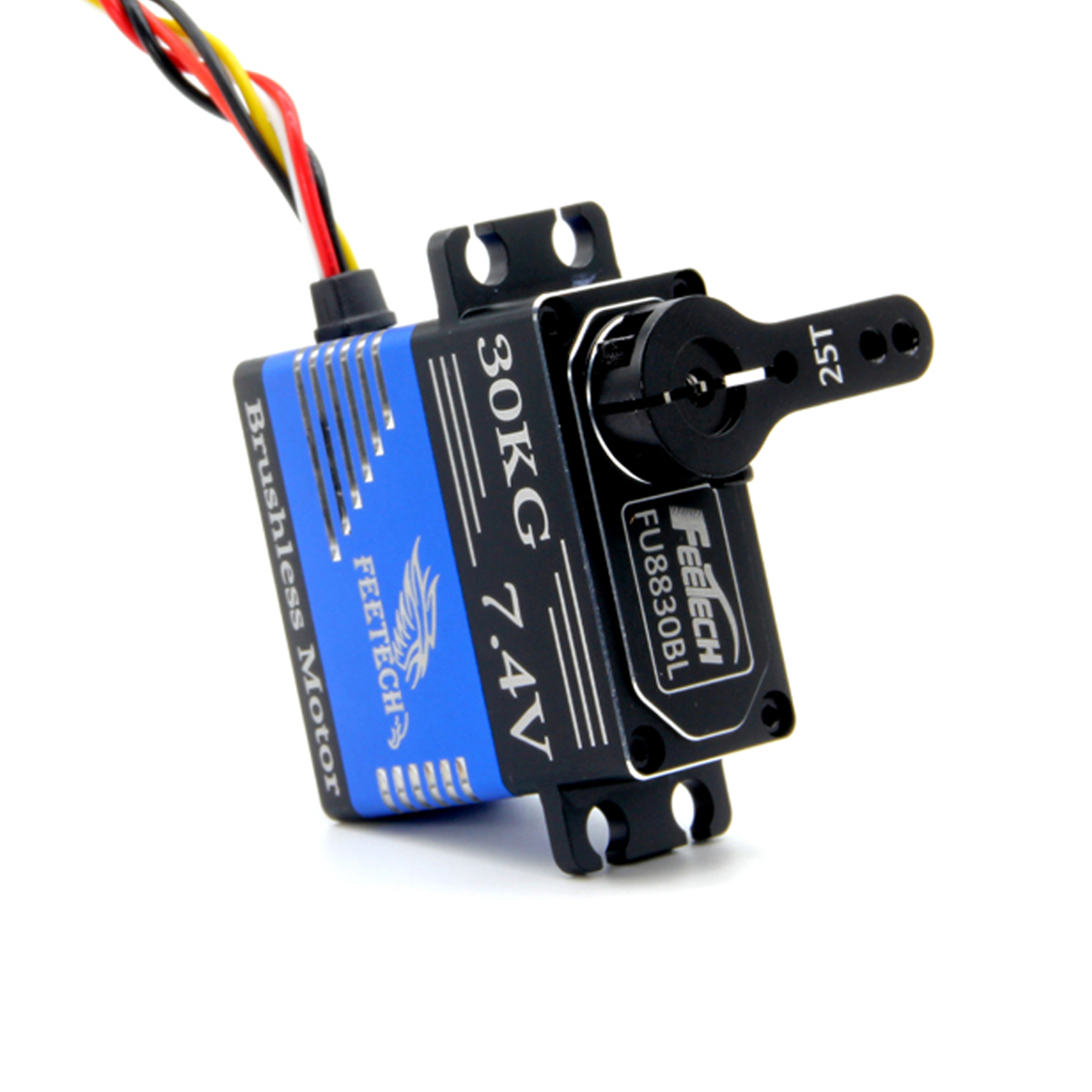

Horn gear spline: 25T/5.9mm
Gear Ratio: 1/241

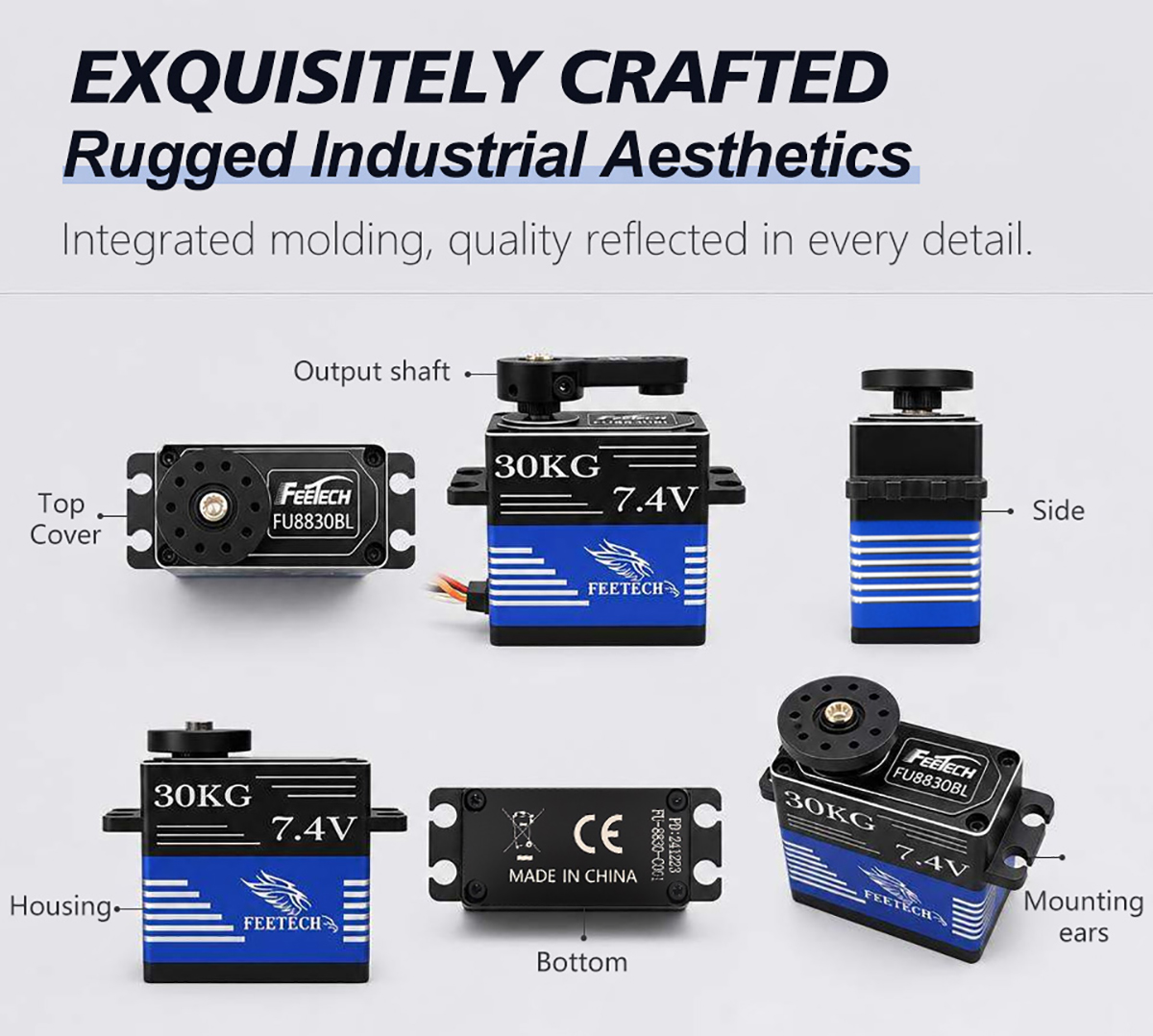

Case: Aluminum

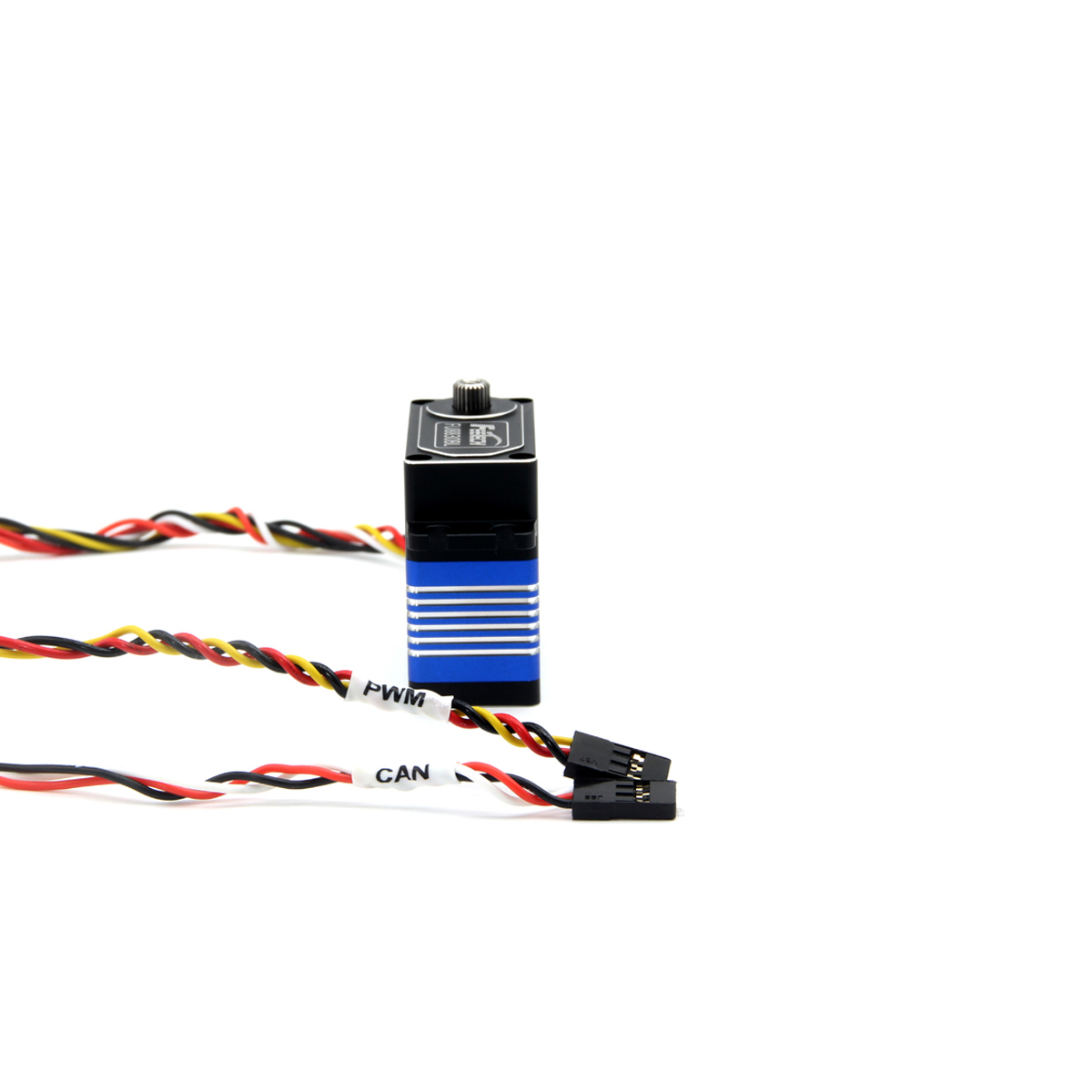

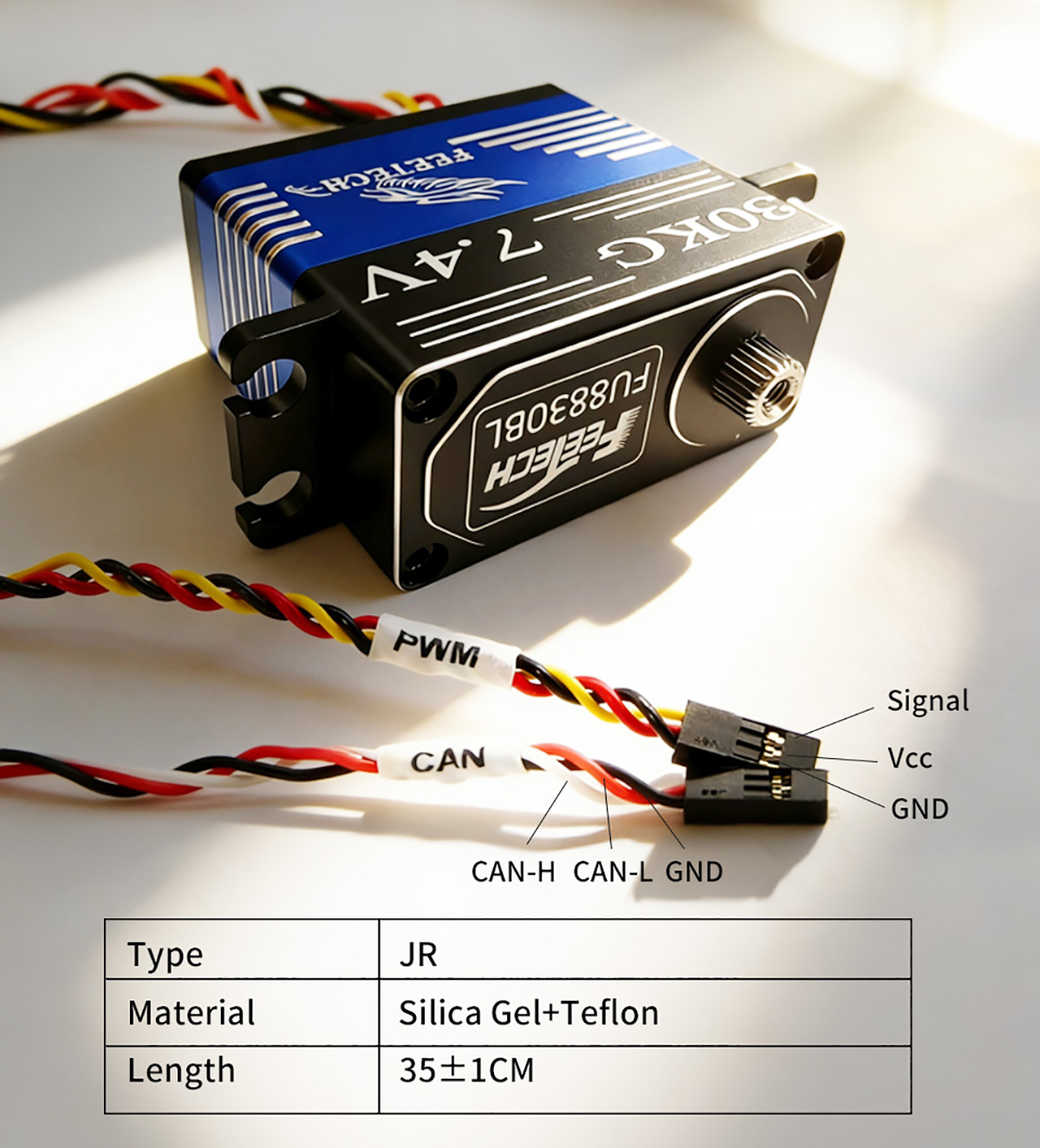

Connector wire: 30±1CM

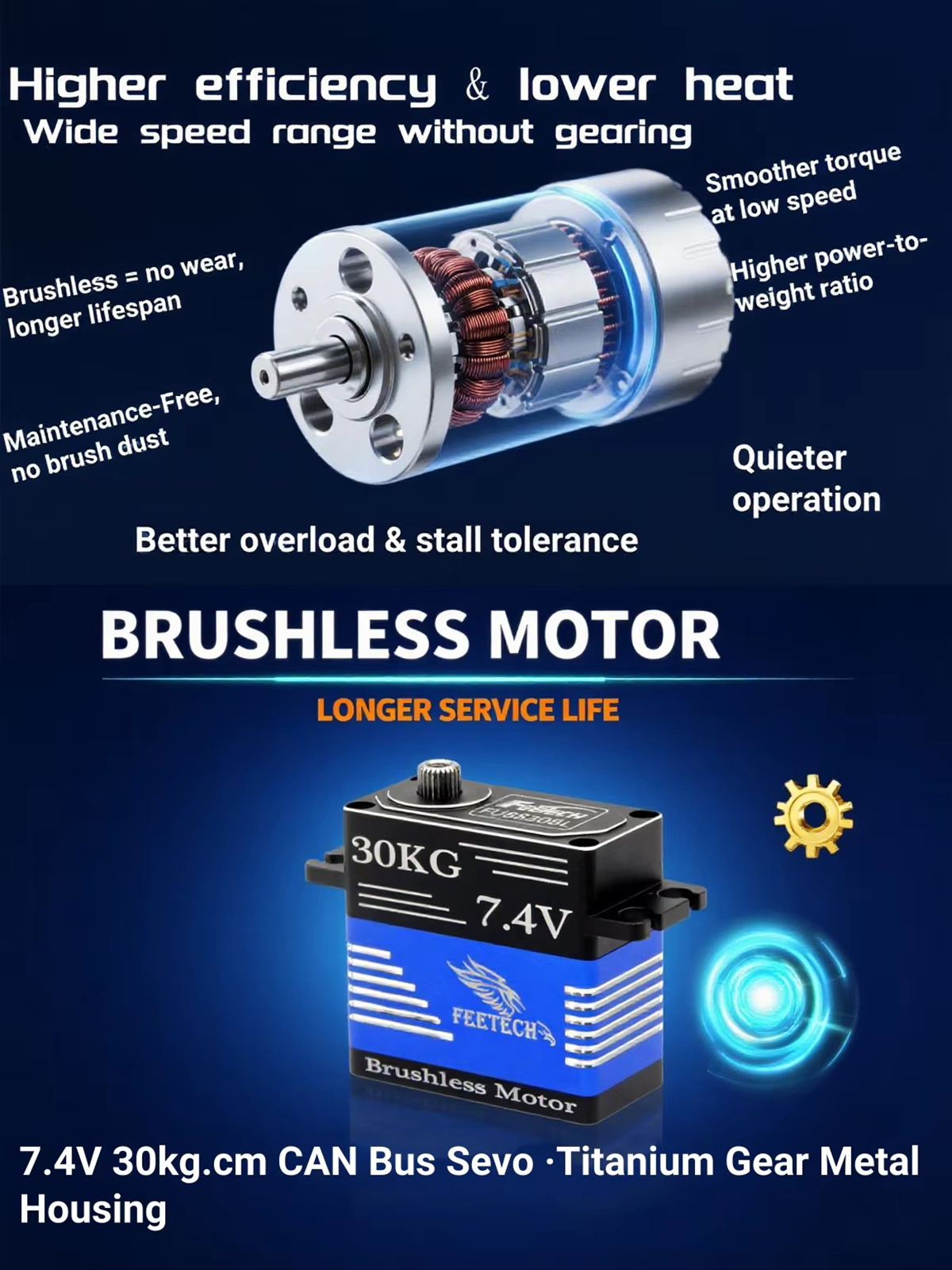

Motor: Brushless Motor

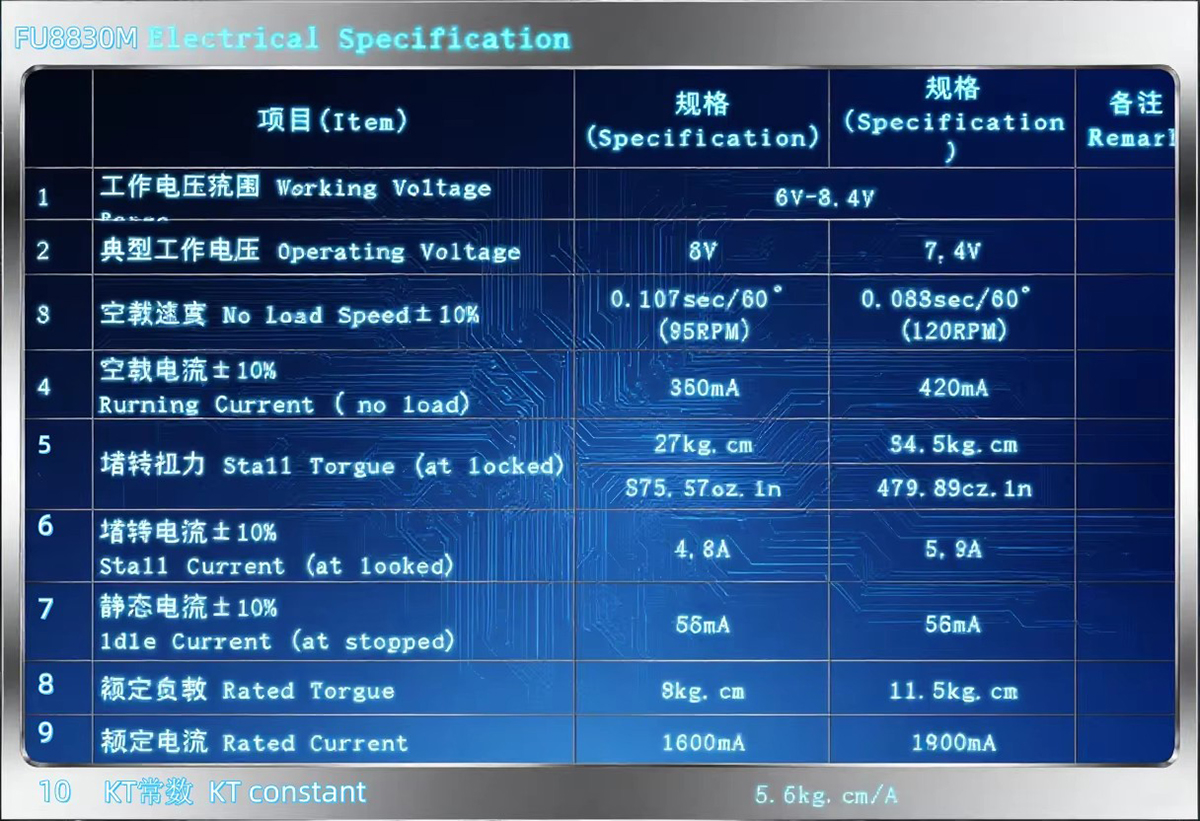

Operating Voltage Range: 6-8.4V
Idle current (at stopped): 55mA@7.4V
No load speed: 0.083sec/60°(120RPM)@7.4V
Running current (at no load): 420mA@7.4V

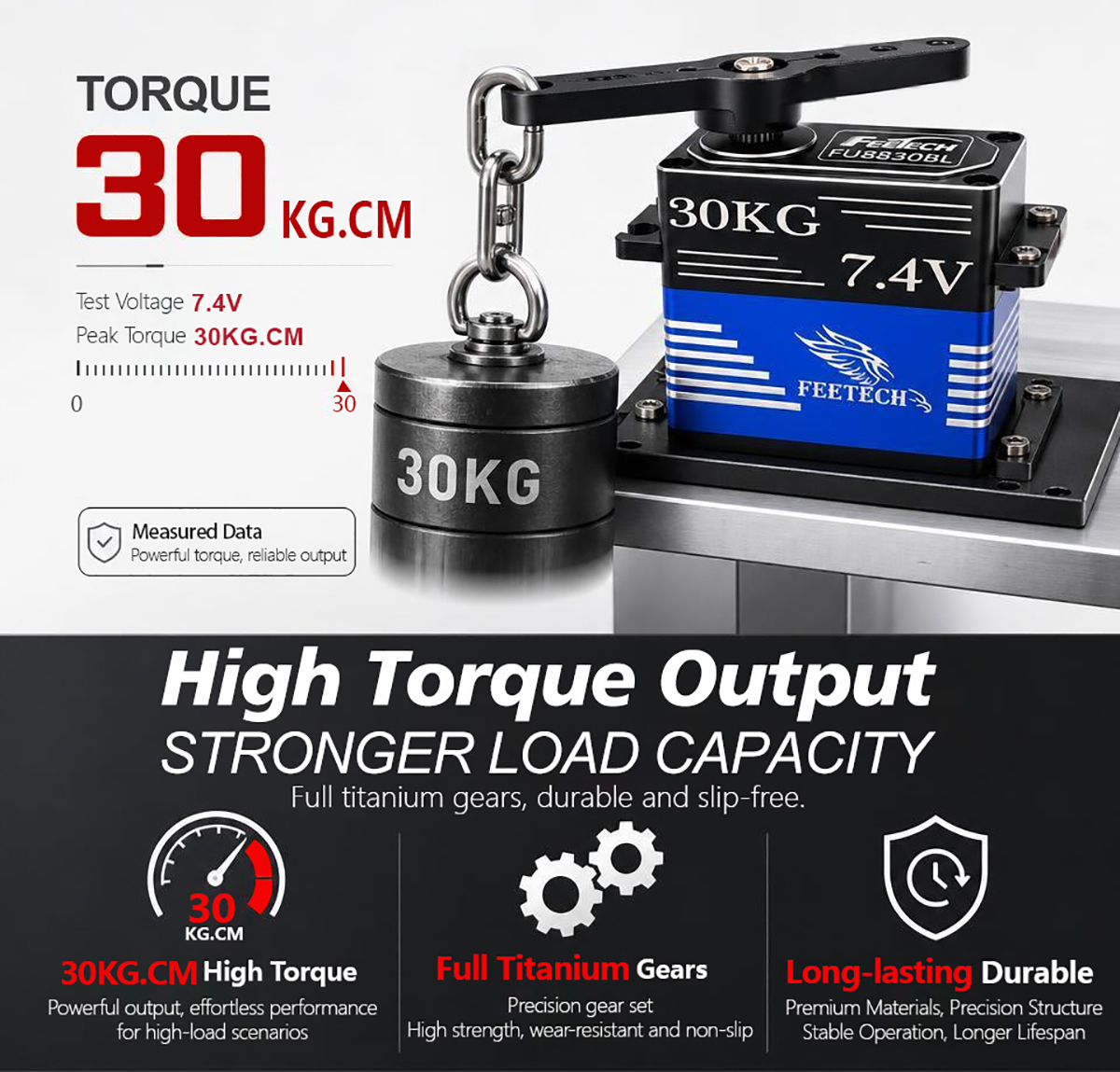

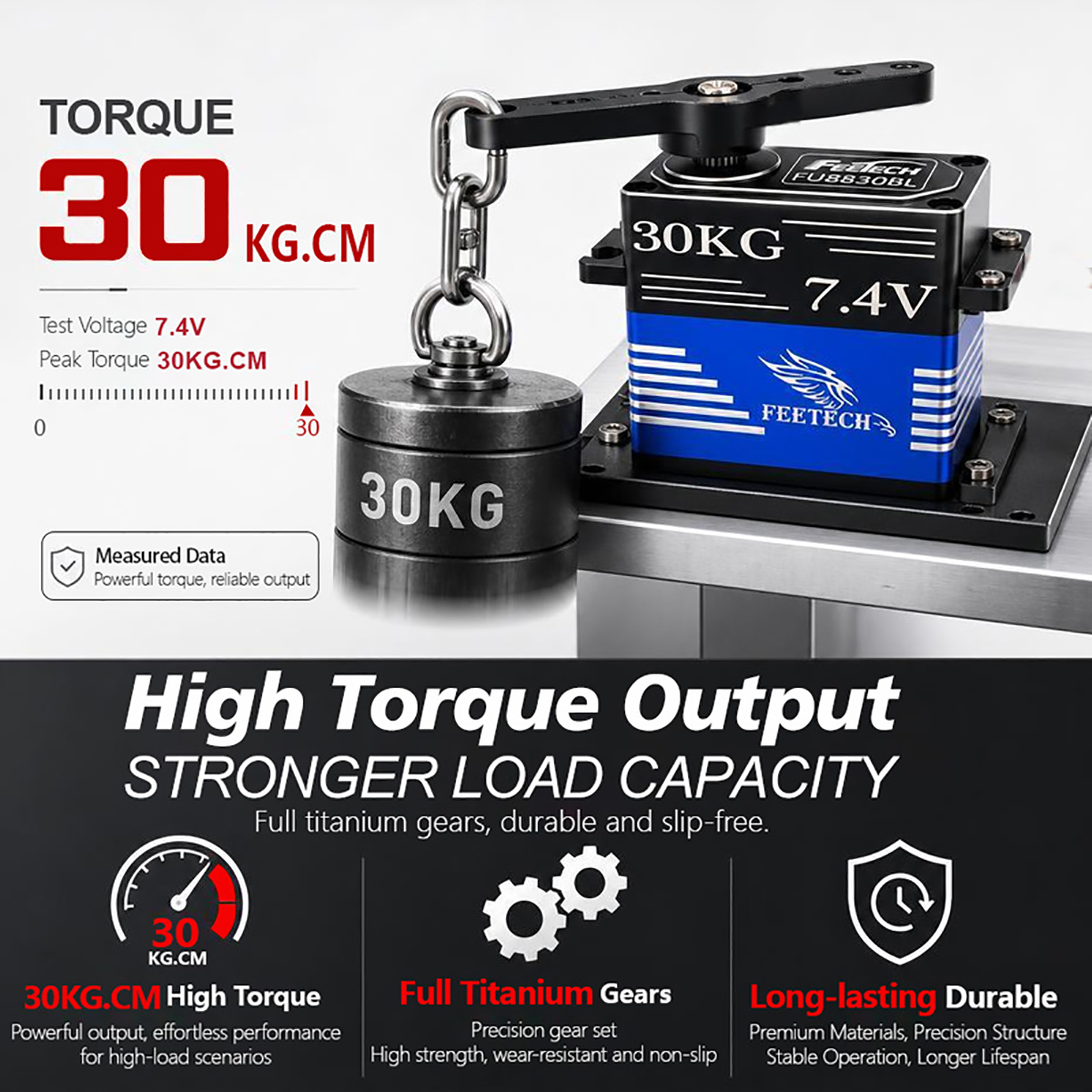

Peak stall torque: 34.5kg.cm@7.4V
Rated torque: 11.5kg.cm@7.4V

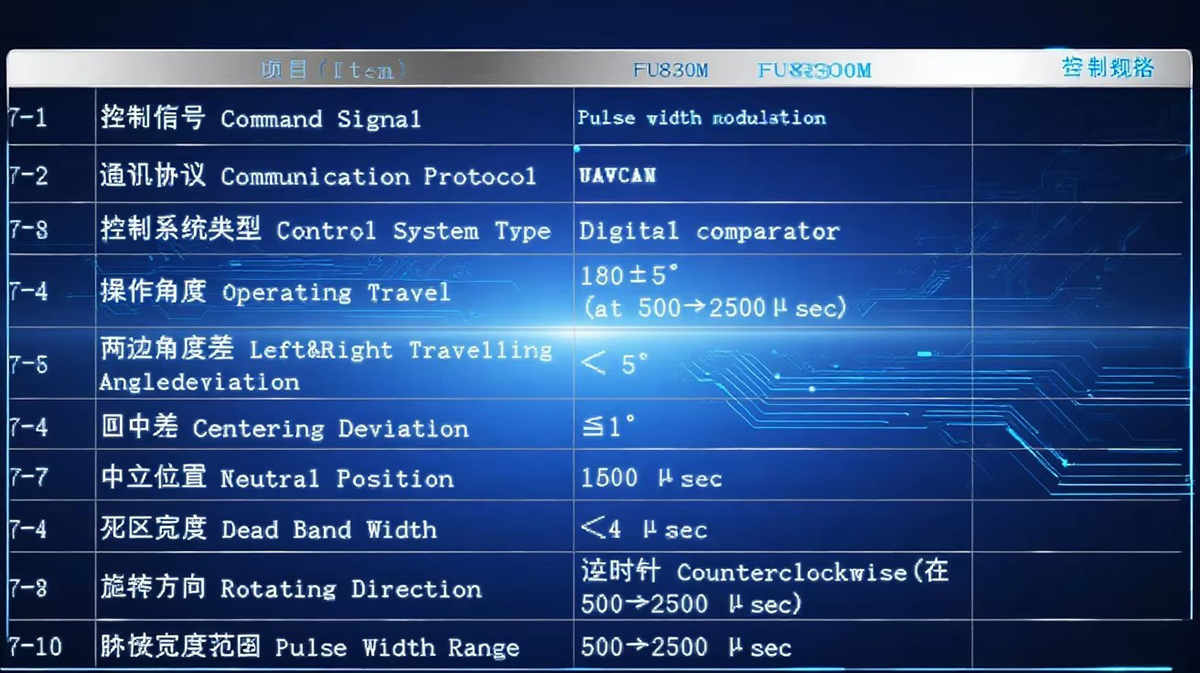

Command signal: Pulse width modulation

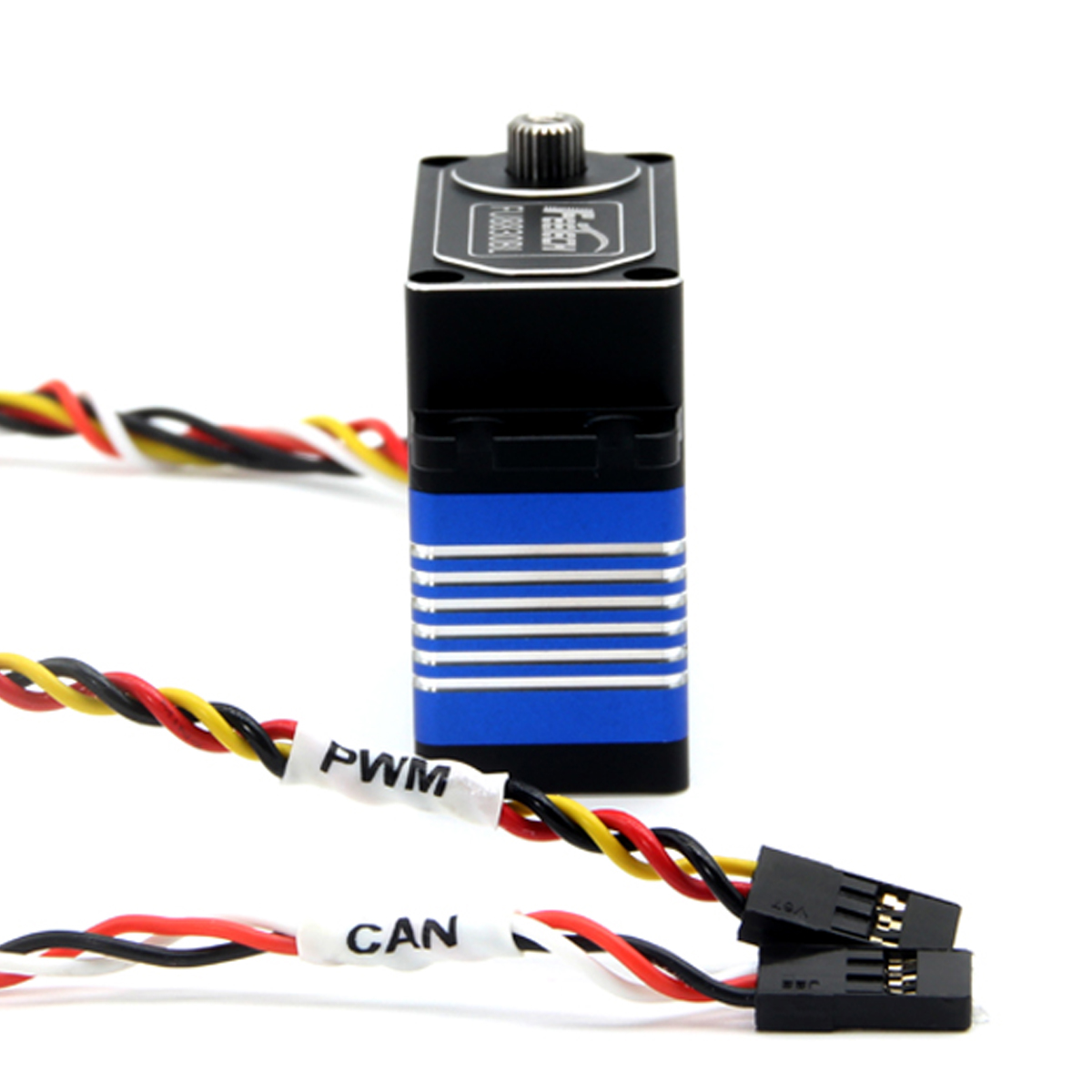

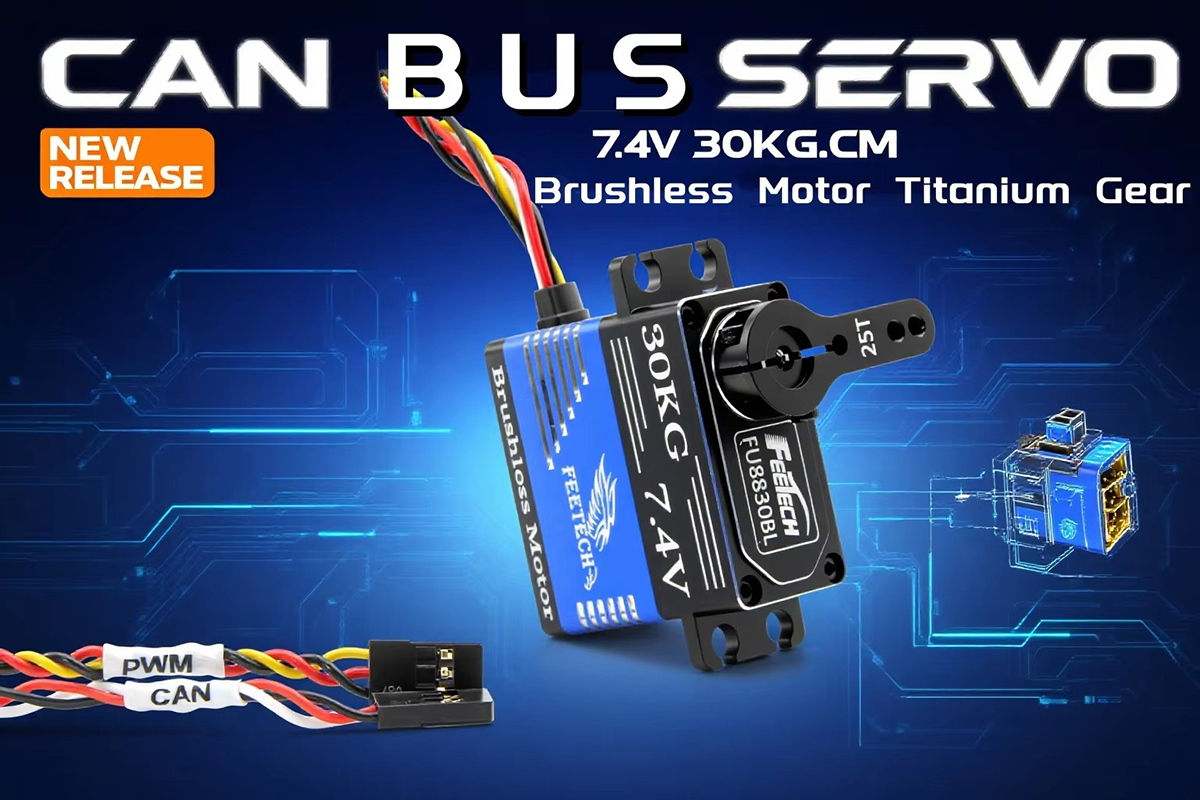

Communication Protocol: UAVCAN
Control System Type: Digital comparator
Pulse width range: 500~2500 μsec
Stop position (Neutral position): 1500 μsec

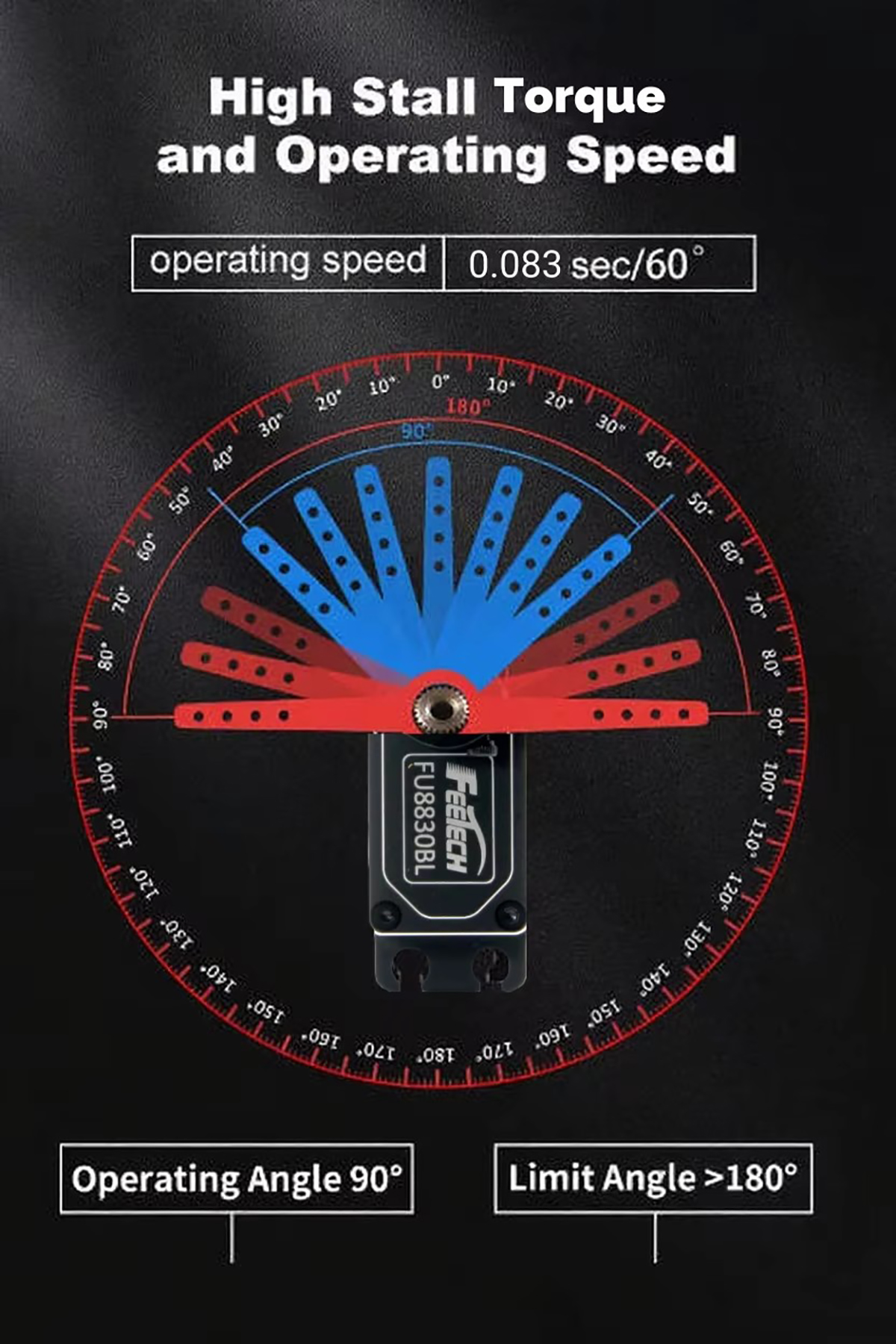

Running degree (Operating angle): 180±5°(at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 1500→2000 μsec)
Waterproof performance: IP66
