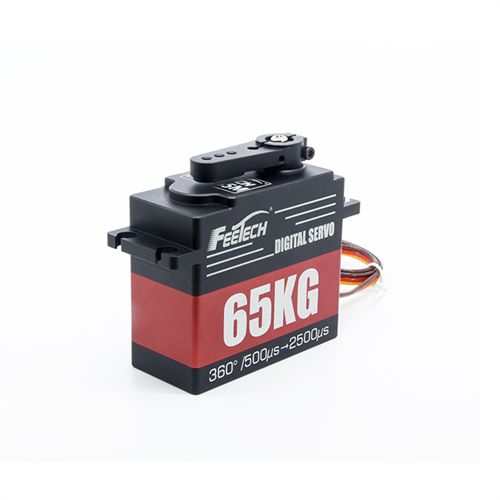

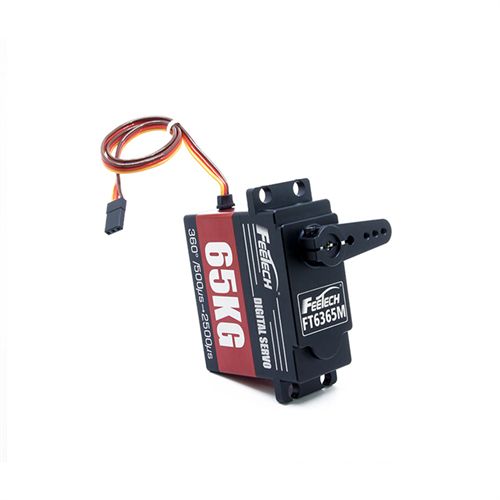

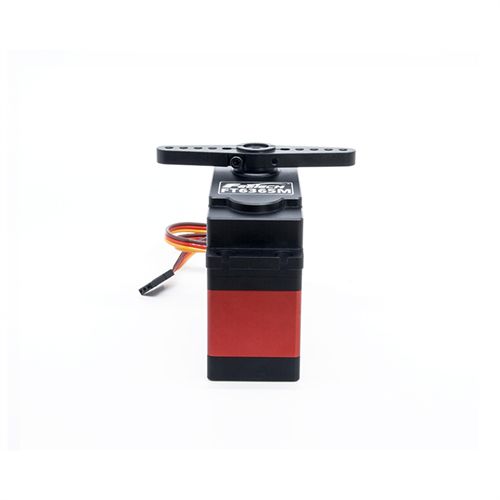

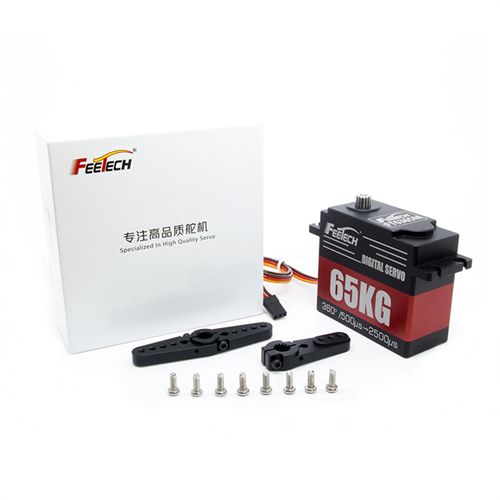

Model：FT-6365-C001
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-20℃～60℃
Size：A：65mm B：30mm C: 58.4mm
Weight：235.2g± 1g
Gear type：Steel
Limit angle：NO limit
Bearing：Ball bearings
Horn gear spline：15T/7.6mm
Gear Ratio：1/305
Case：Alumi num
Connector wire：23CM
Motor：Core Motor
Operating Voltage Range：4.8-8.4V
Idle current (atstopped)：30MA@7.4V
No load speed：0.227sec/60° (44RPM)@7.4V
Runnig current(at no load)：300mA@7.4V
Peak stall torque：65kg.cm@7.4V
Rated torque：21.5kg.cm@7.4V
Stall current：10.2A@7.4V
Command si gnal：Pulse width modulation
Control System Type：Digital comparator
Pulse width range：500~2500 μ sec
Stop position：1500 μ sec
Running degree：360°(at 500→2500μsec)
Dead band width：≤4 μ sec
Rotating direction：Counterclockwi se (在1500→2500 μ sec)
Electronic Protection：Stall 4sec
Temperature protection：>70°C
