Feetech FT6335M 7.4V 35kg 360 Degree Aluminum Middle Shell Digital Servo for Car Boat Robot Arm
Feetech FT6335M 7.4V 35kg 360 Degree Aluminum Middle Shell Digital Servo for Car Boat Robot Arm
Standard type servo by Feetech. It is powered with voltagefrom 6V to 8.4V.
Current consumption without load is 120 mA.
Range of servo movement is from 0° to 360°

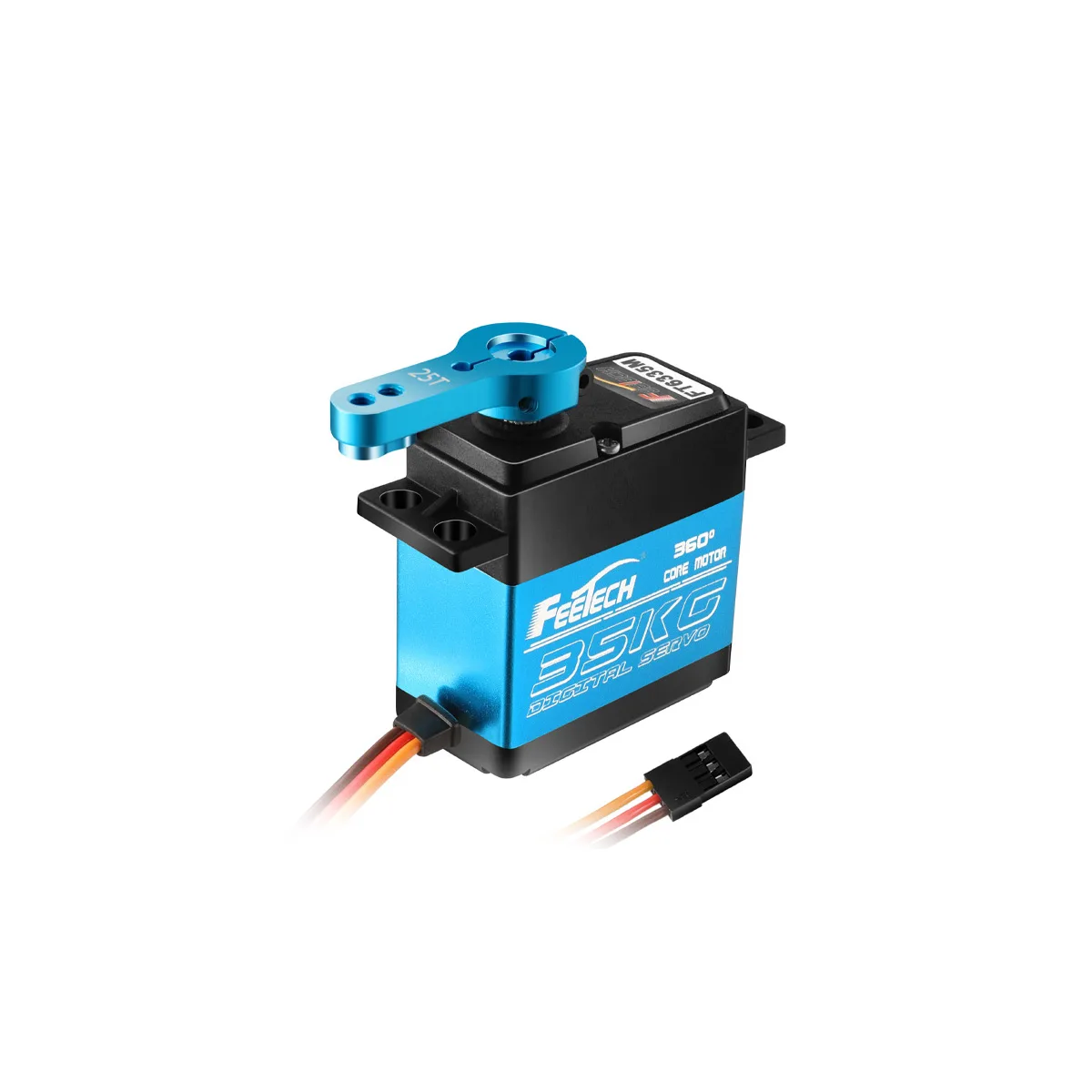

It has a 300mm long cable that is terminated with a JR connector

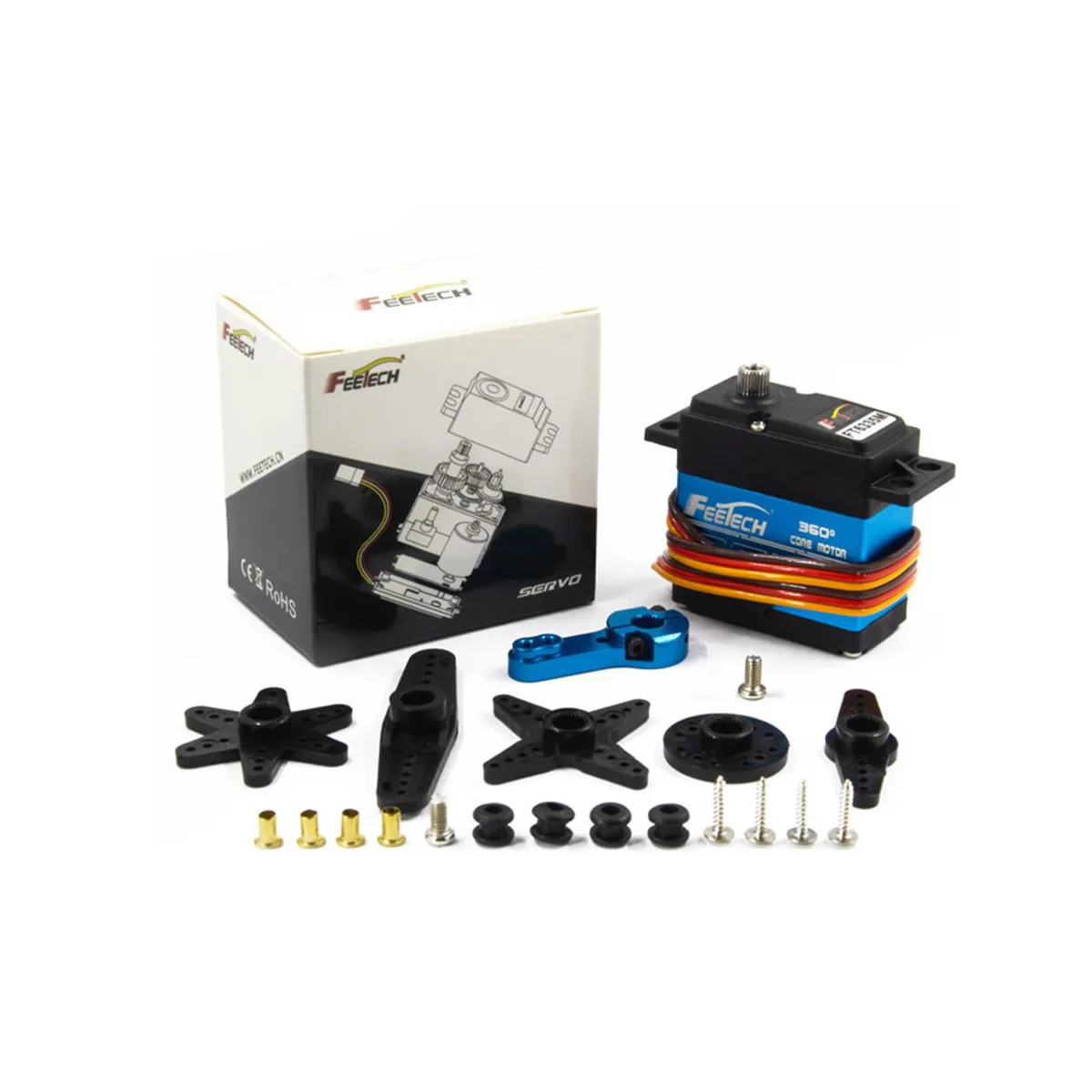

The kit includes several additional servo orbs and the parts needed to mount them
Model: FT-6335-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: 55*20*43mm
Weight: 67±1g

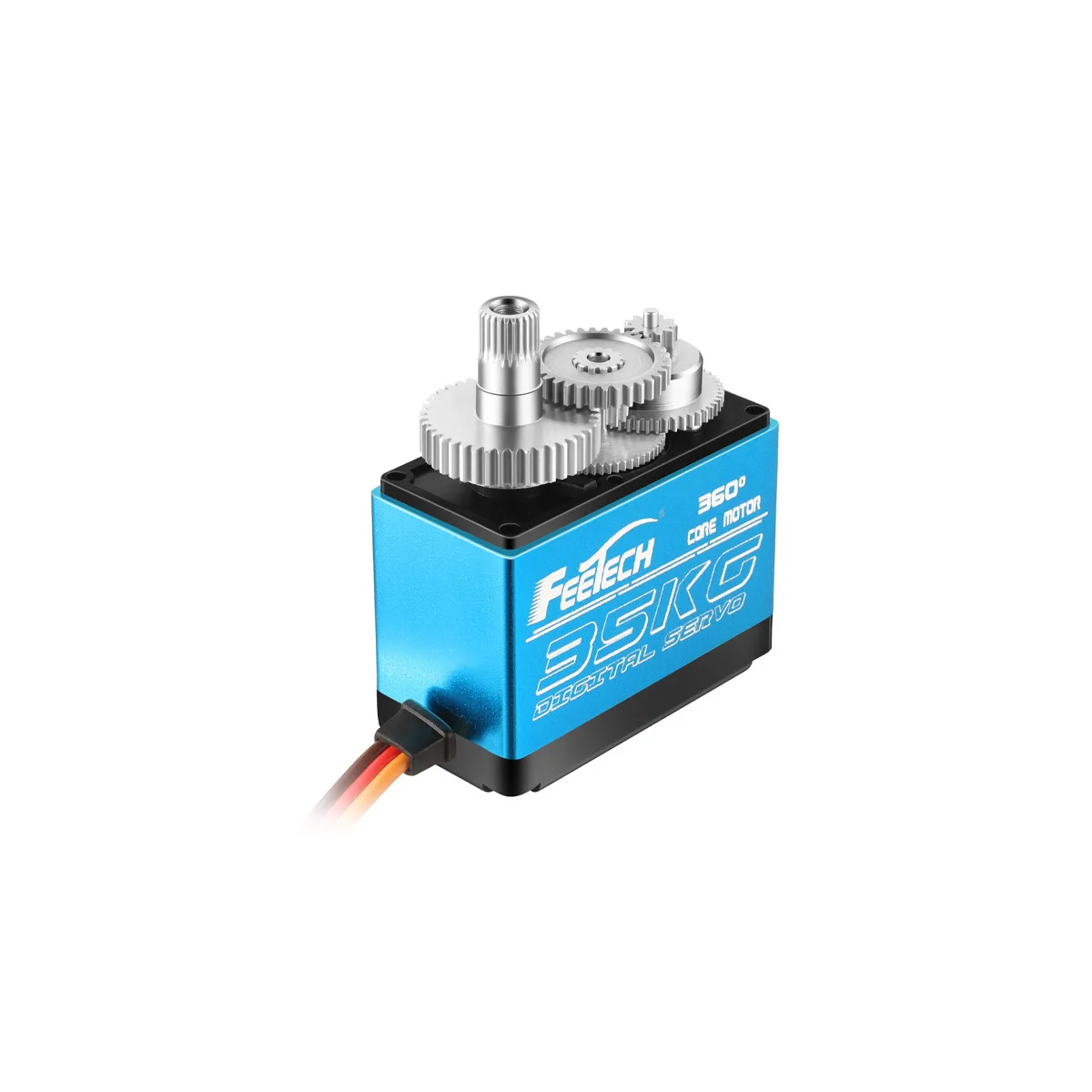

Gear type: Steel tooth
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic, POM
Case: PA+Aluminum
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 6V-7.4V
Idle current (at stopped): 6mA@7.4V
No load speed: 0.192sec/60°@7.4V
Running current(at no load): 180mA@7.4V
Peak stall torque: 35.5kg.cm@7.4V
Rated torque: 11.8kg.cm@7.4V
Stall current: 3.9A@7.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500usec
Stop position: 1500 μsec
Running degree: 360°（at 500-2500 μsec)
Dead band width: ≤4μsec
Rotating direction: Counterclockwise (at 1500→2000μsec)
FT6335M Servo x1
