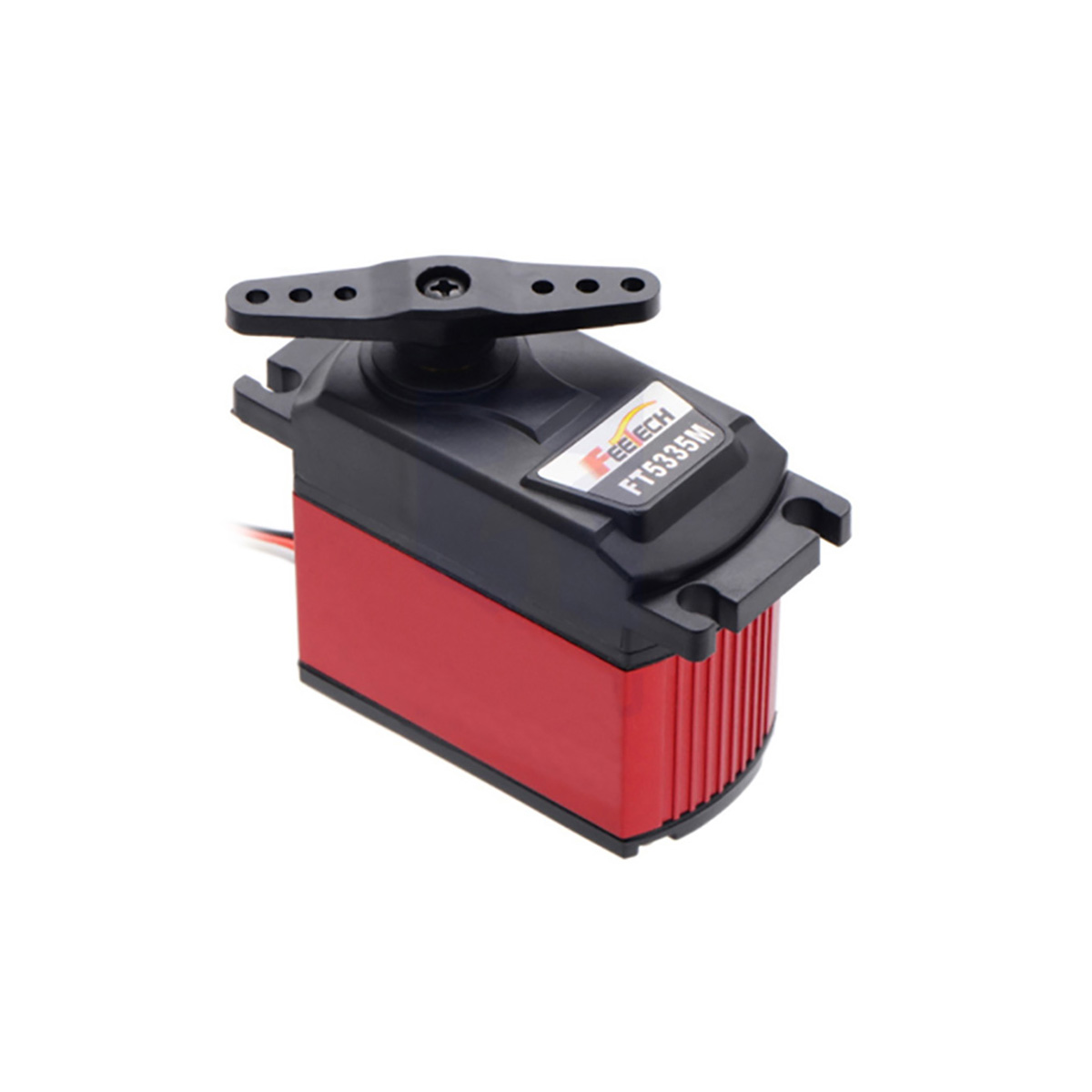

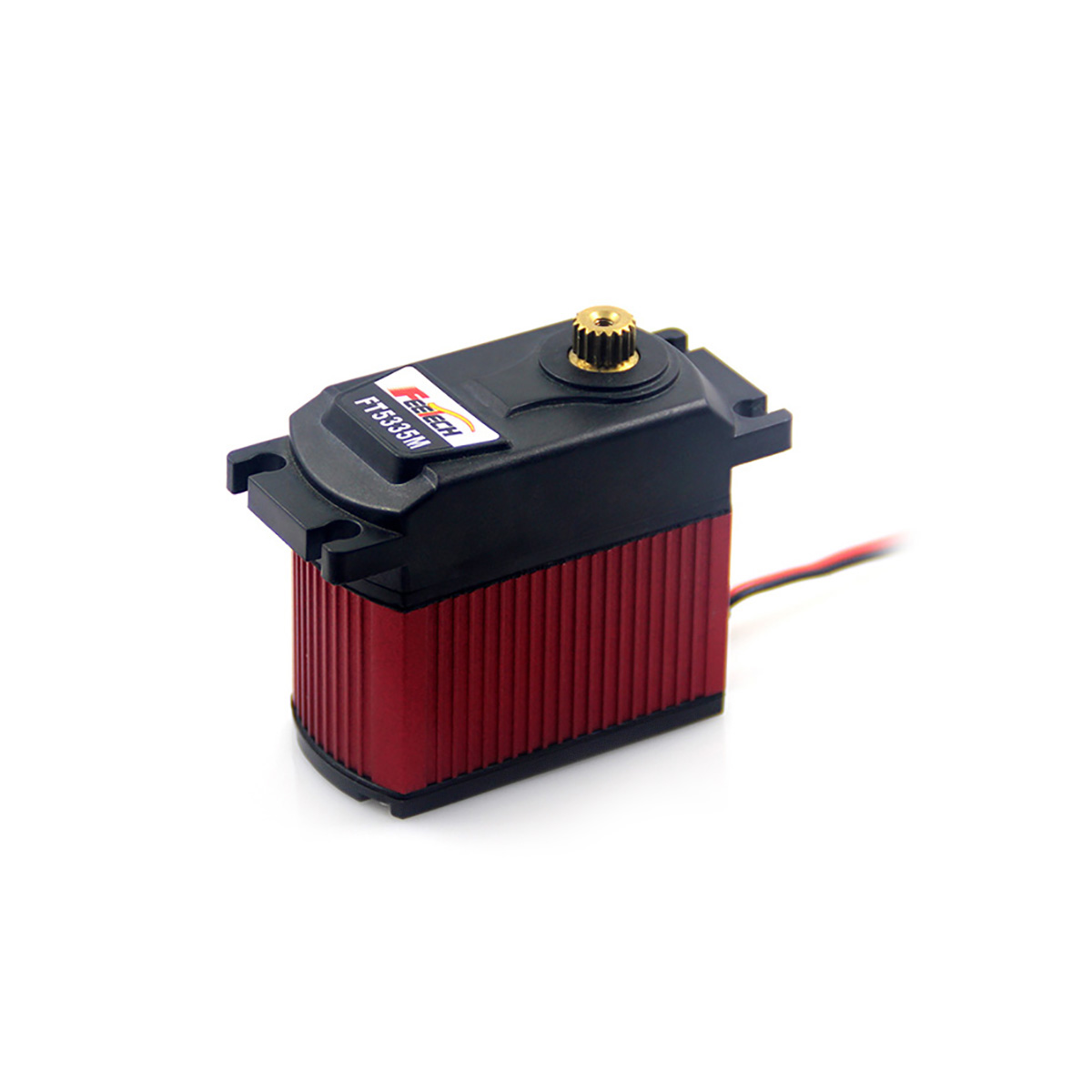

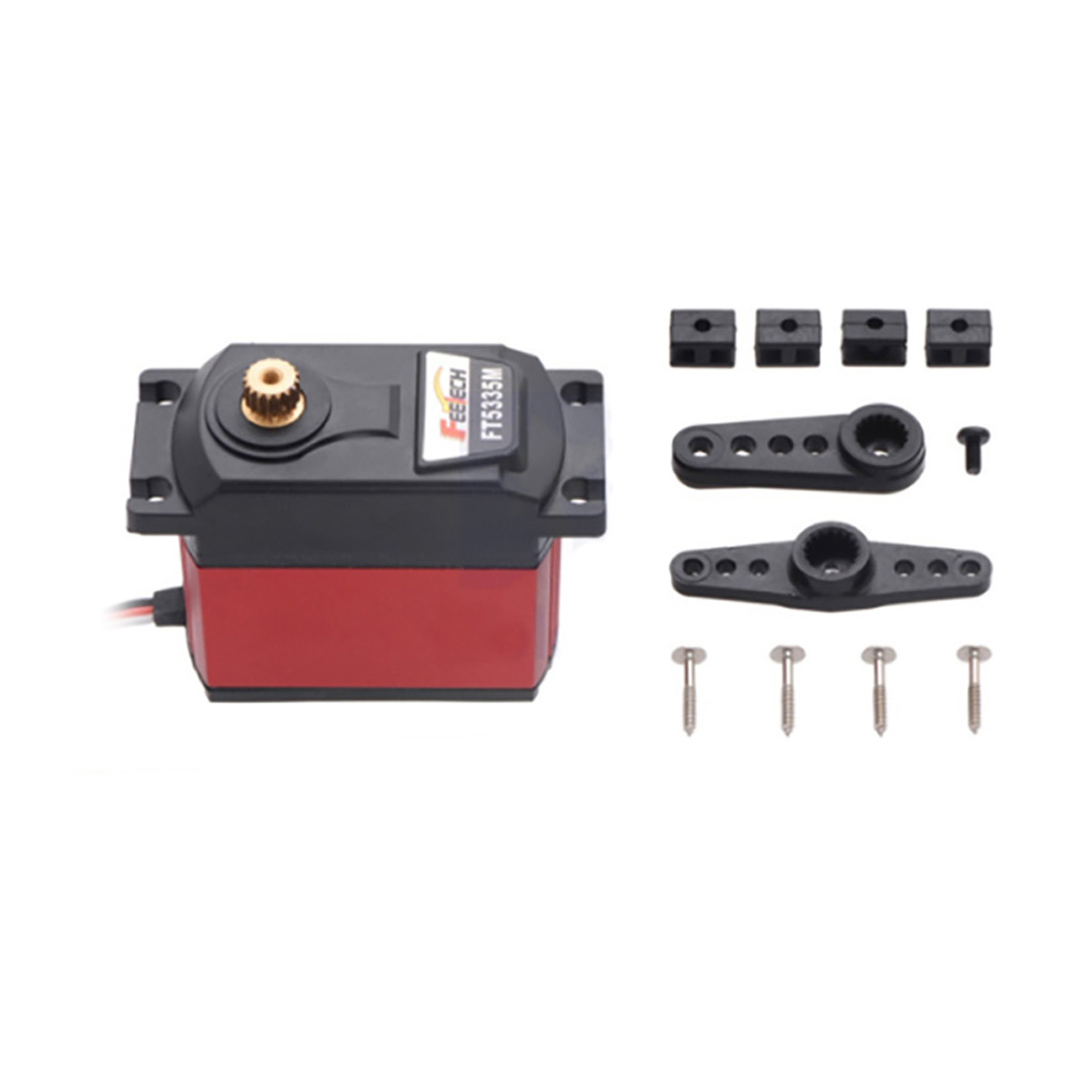

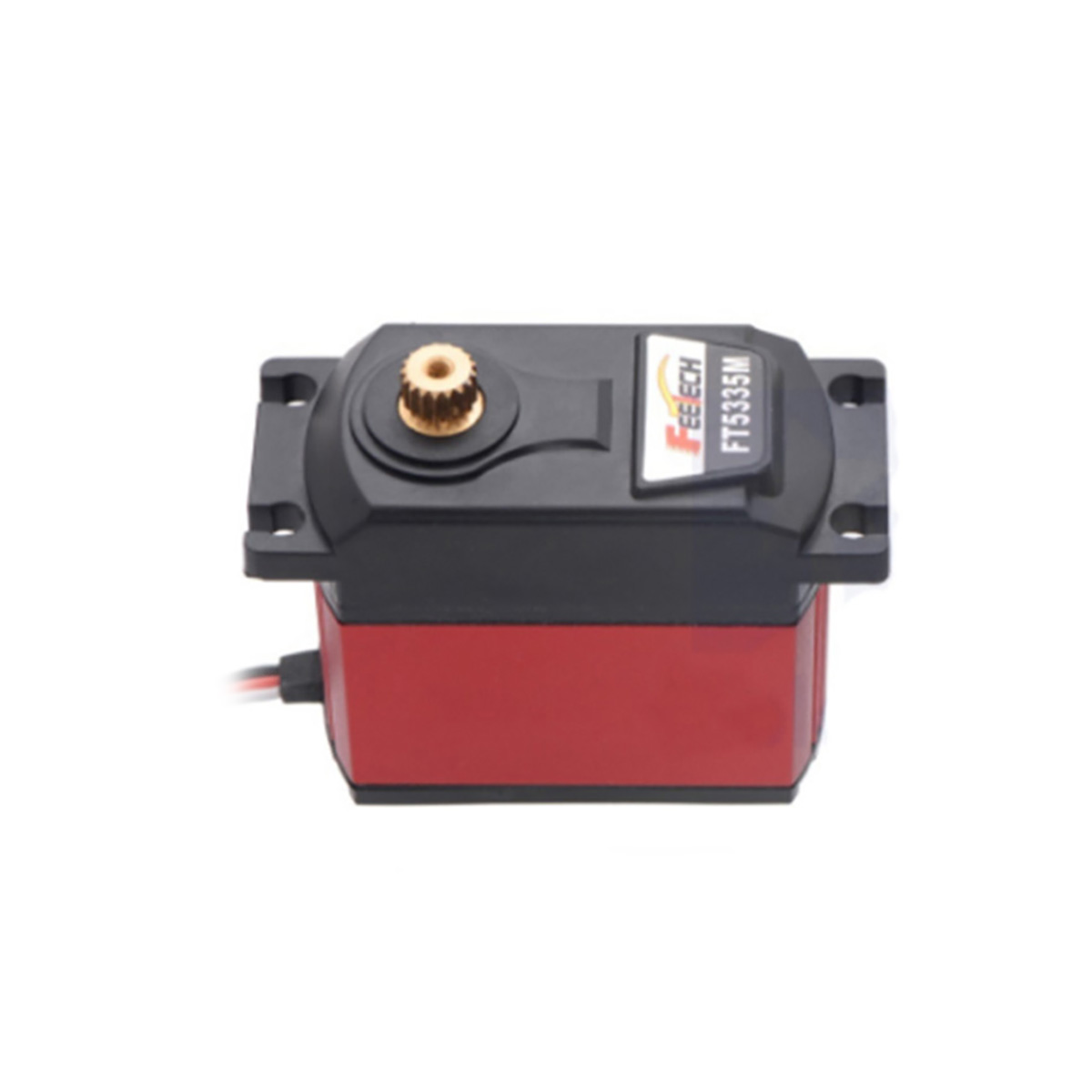

Model: FT-5335-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 62.8*32.5*55.9mm
Weight: 178g±0.2g
Gear type: Metal gear
Limit angle: 180 degree
Bearing: 2BB
Horn gear spline: 25T(5.8mm)

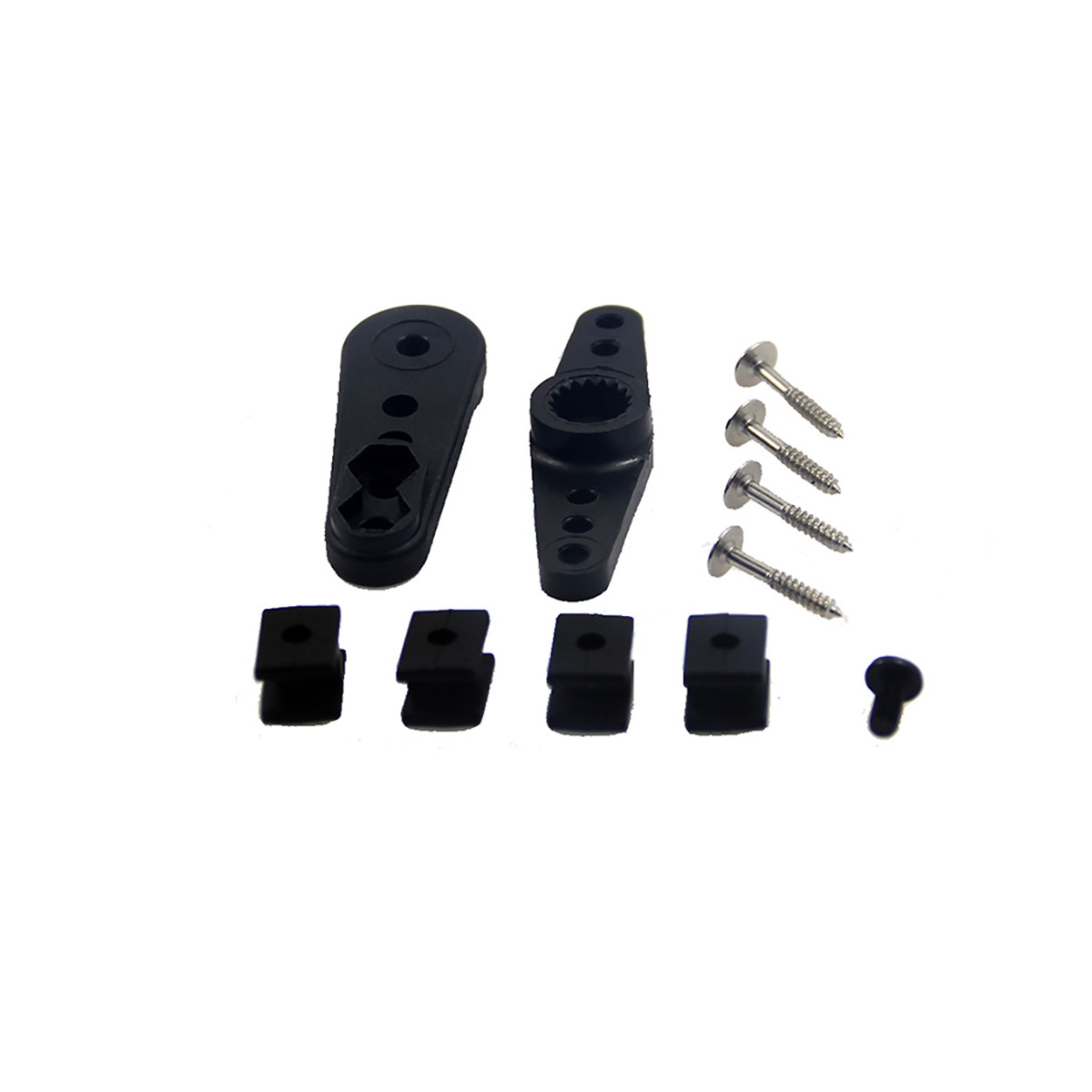

Horn type: Plastic, POM
Case: Engineering plastics+Aluminium
Connector wire: 300mm±5mm
Motor: Core motor
Splash water resistance: NO
Operating voltage range: 6-8.4V
No load speed: 0.18sec/60°@6V
Running current(at no load): 280mA@6V
Peak stall torque: 40.5kg.cm@6V
Rated torque: 13.5kg.cm@6V
Stall current: 2400mA@6V
Command signal: Pulse width modification
Amplifier type: Analog comparator
Pulse width range: 900~2100usec
Neutral position: 1500μsec
Running degree: 120° (when 900～2100µsec)
Dead band width: 2μsec
Rotating direction:
CW (when 1500～900µsec)
CCW (when 1500～2100µsec)
