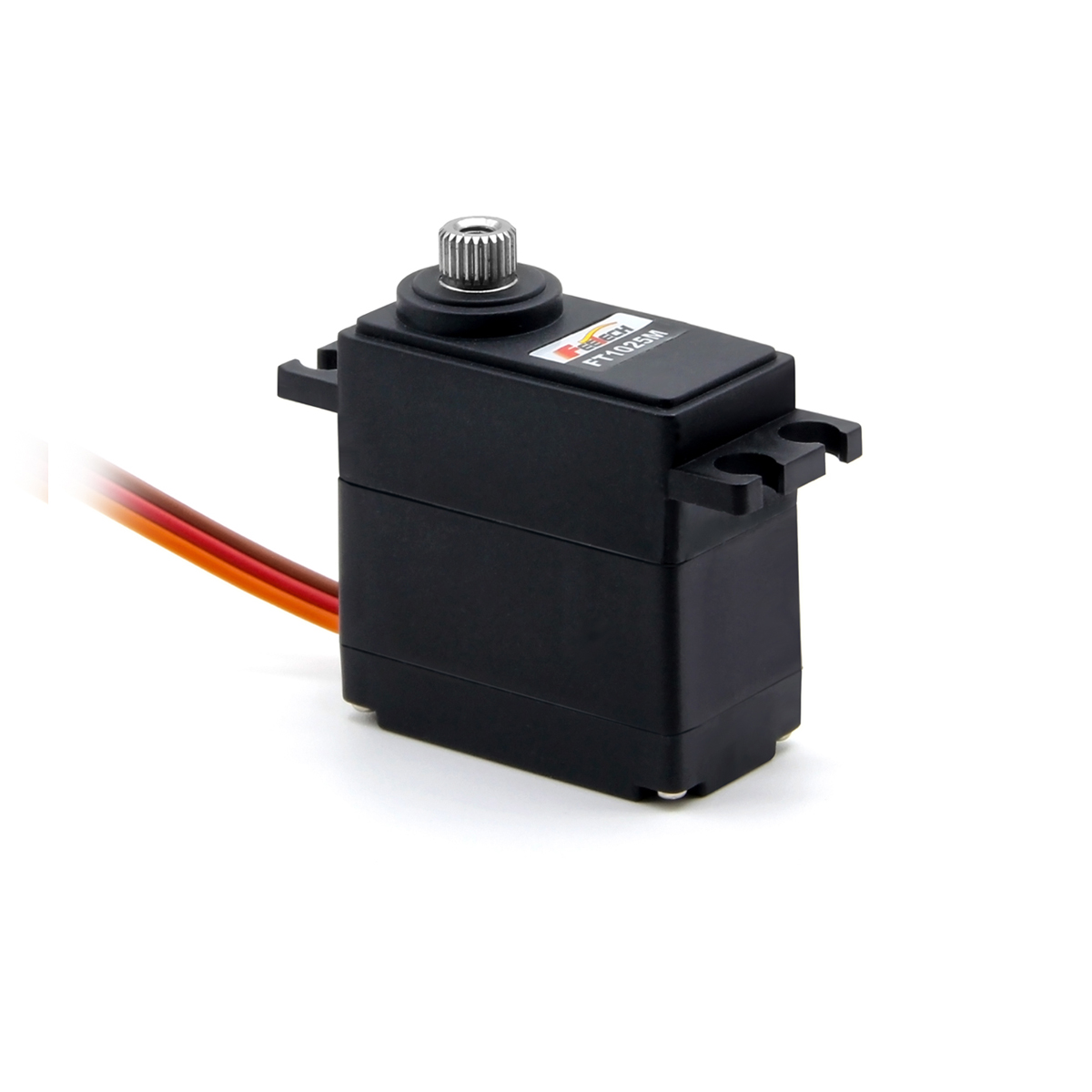

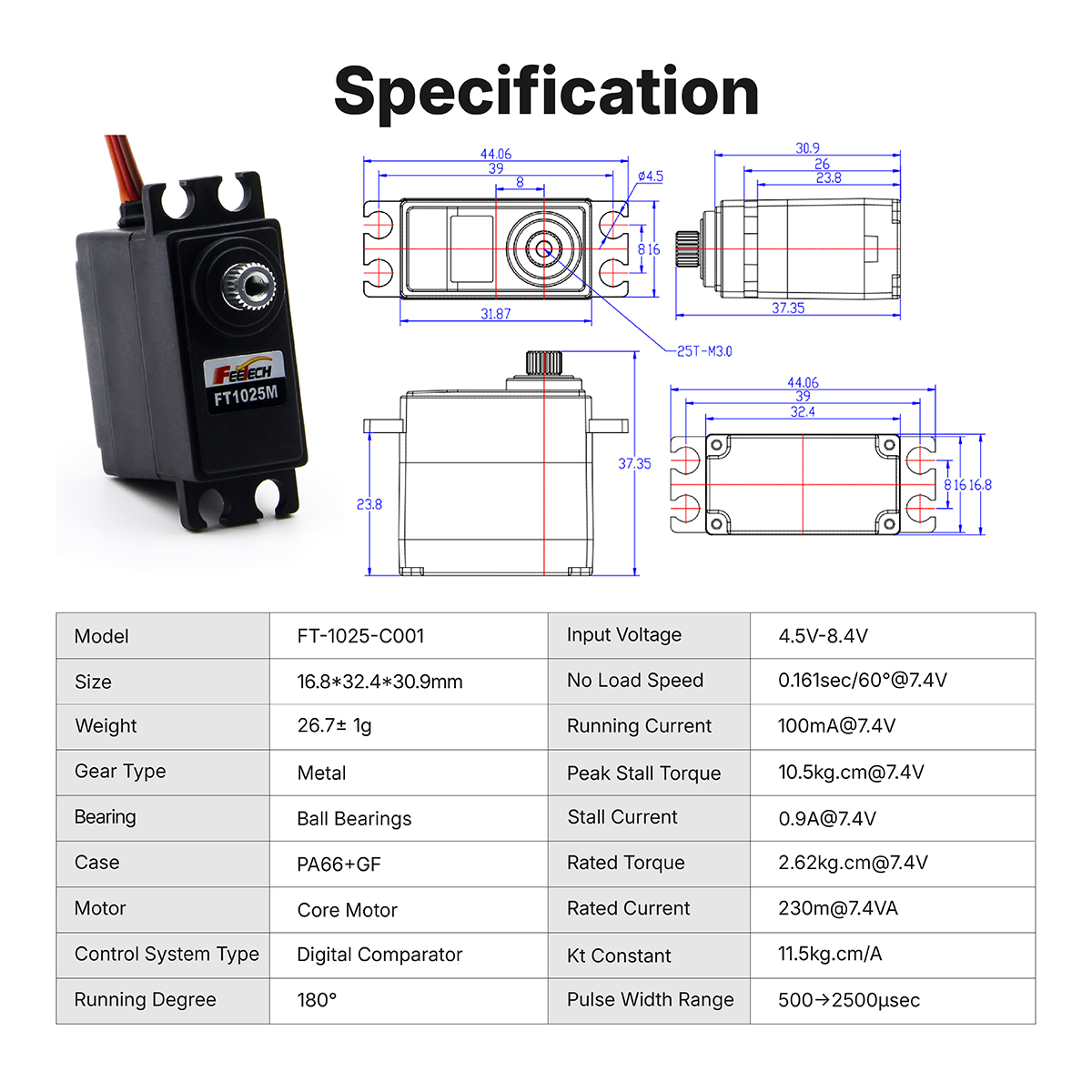

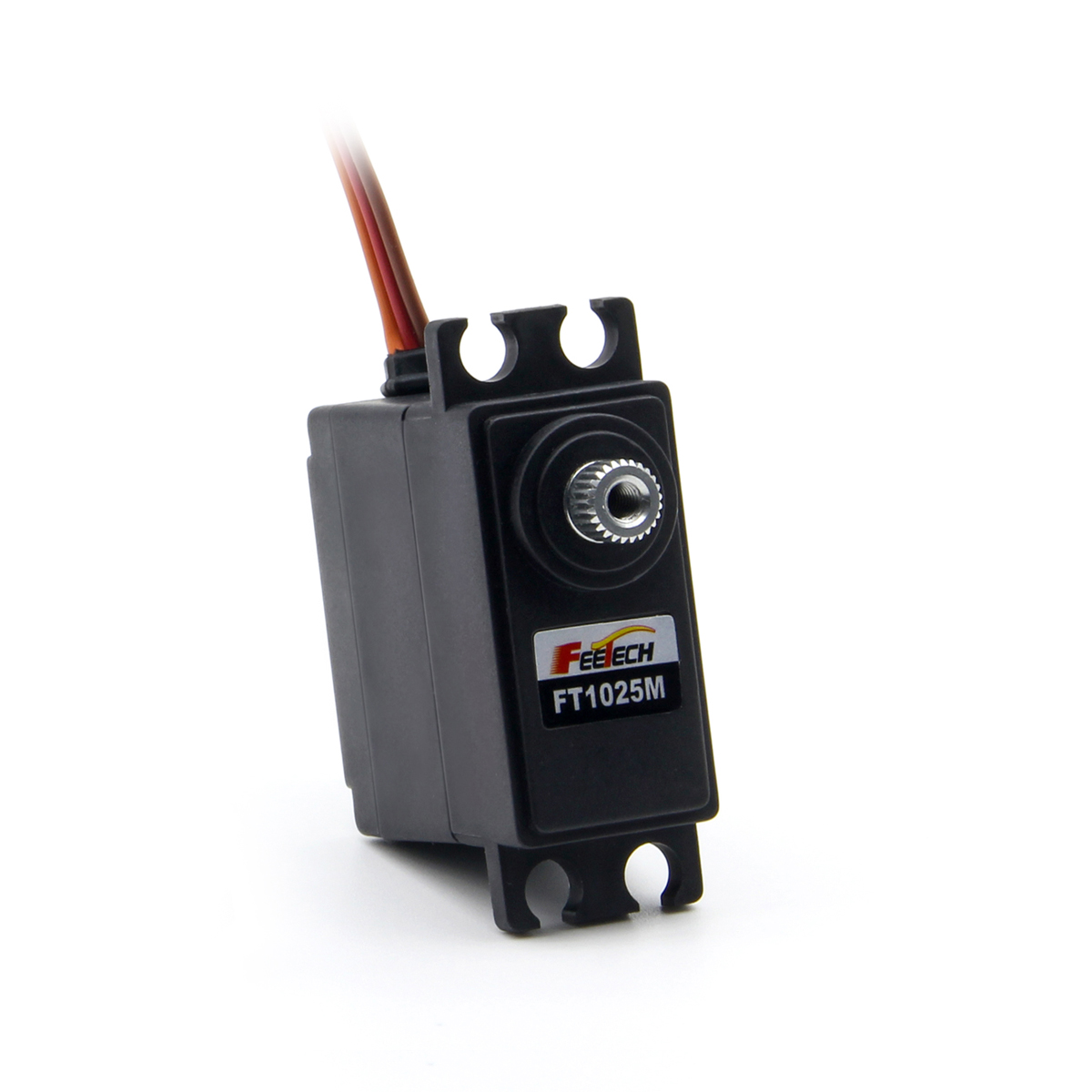

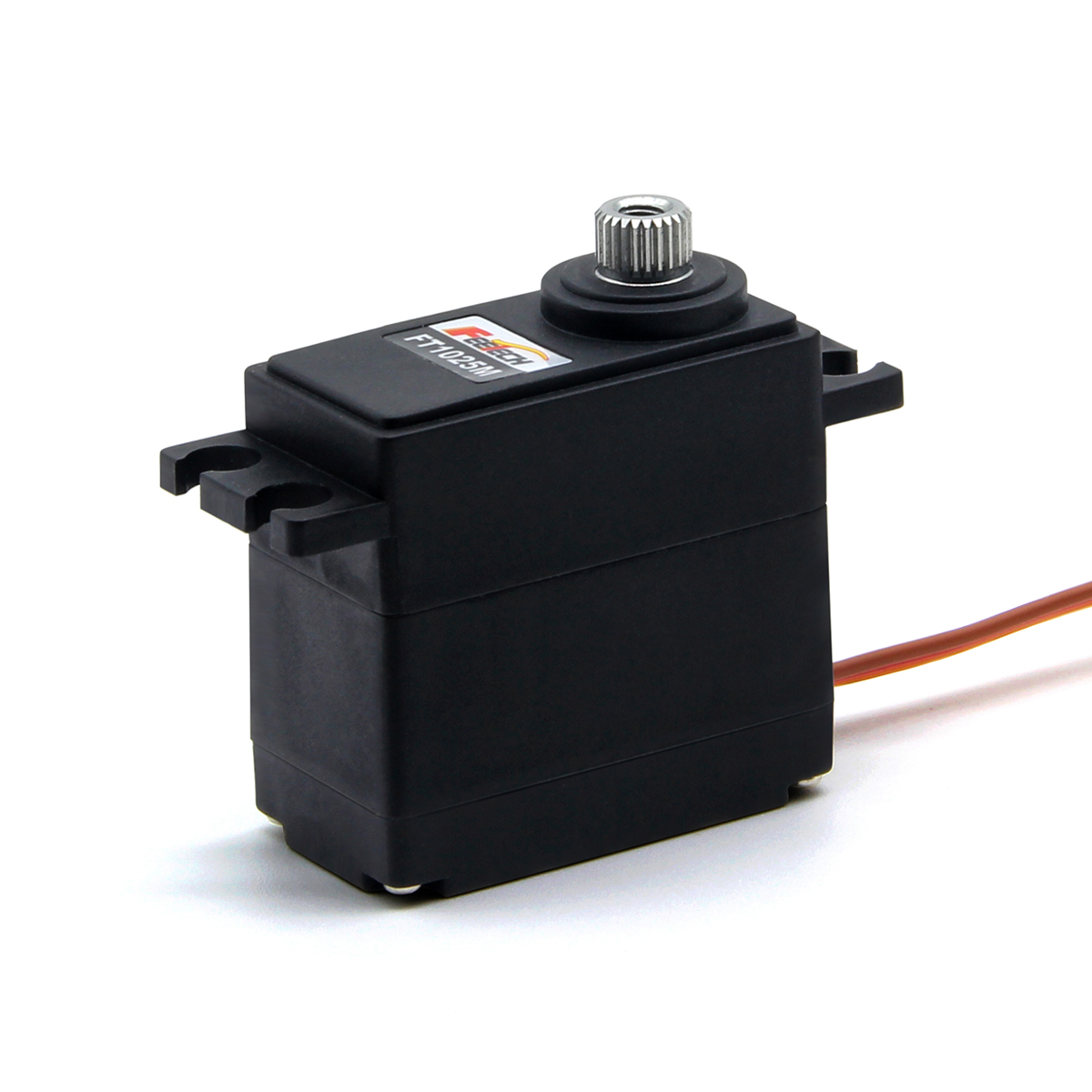

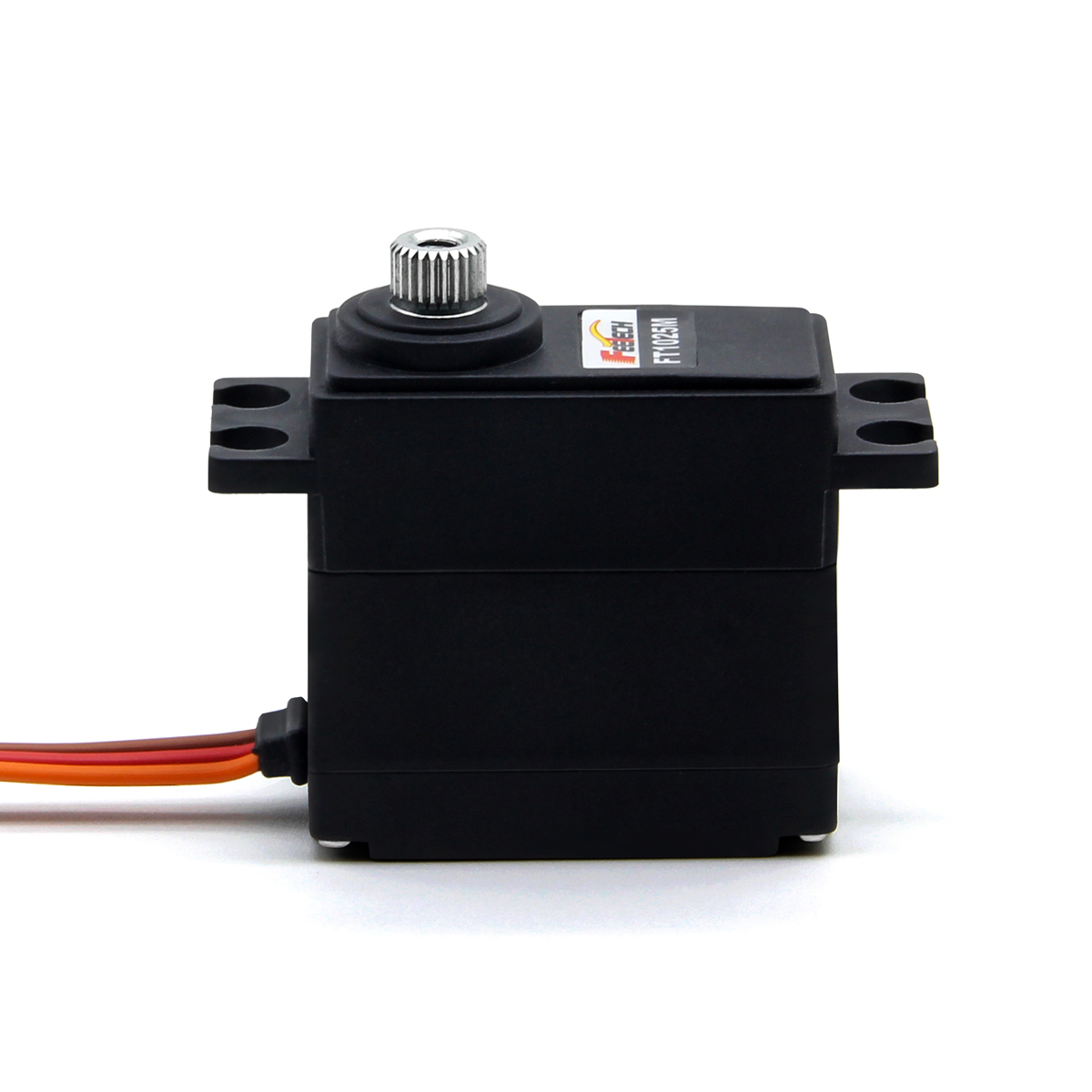

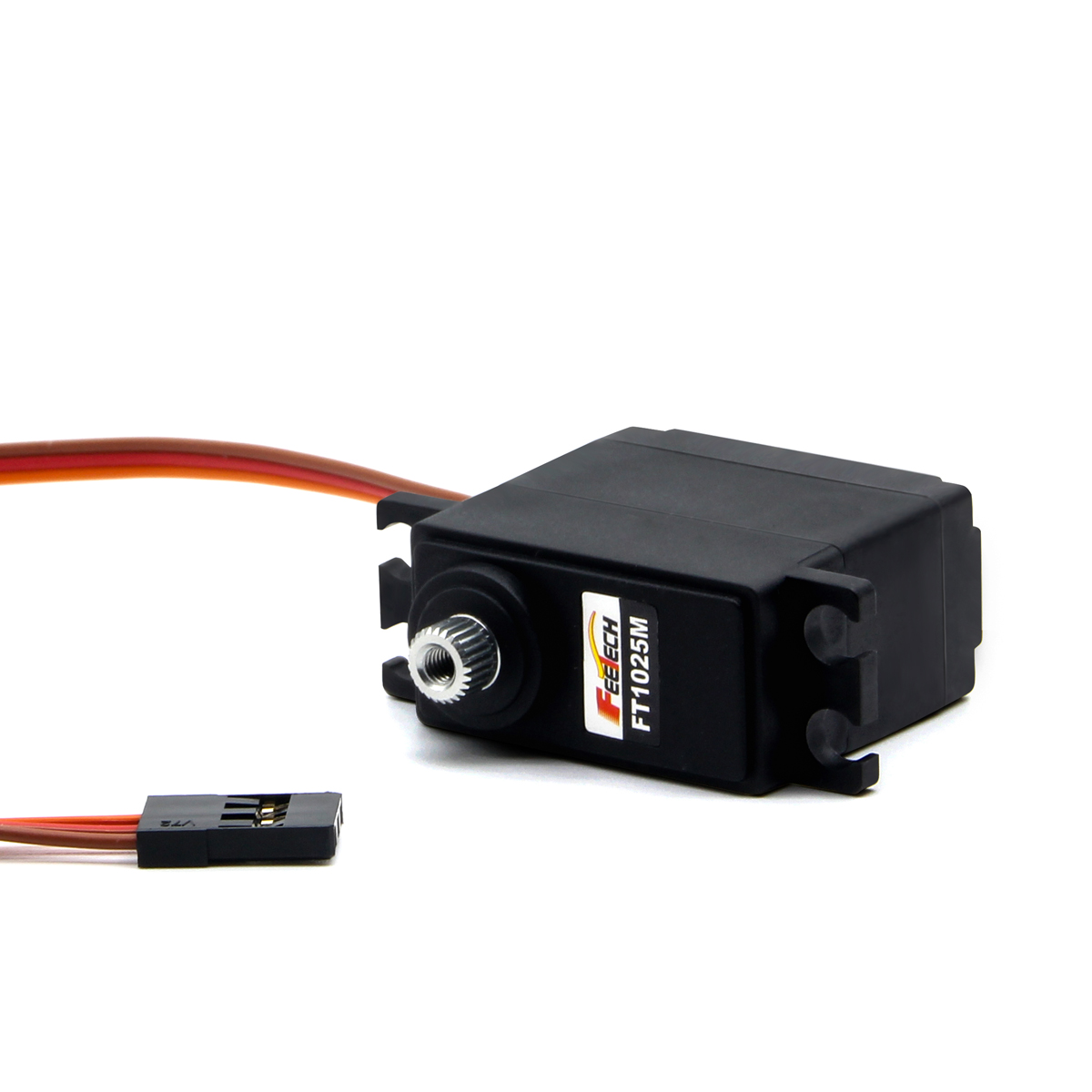

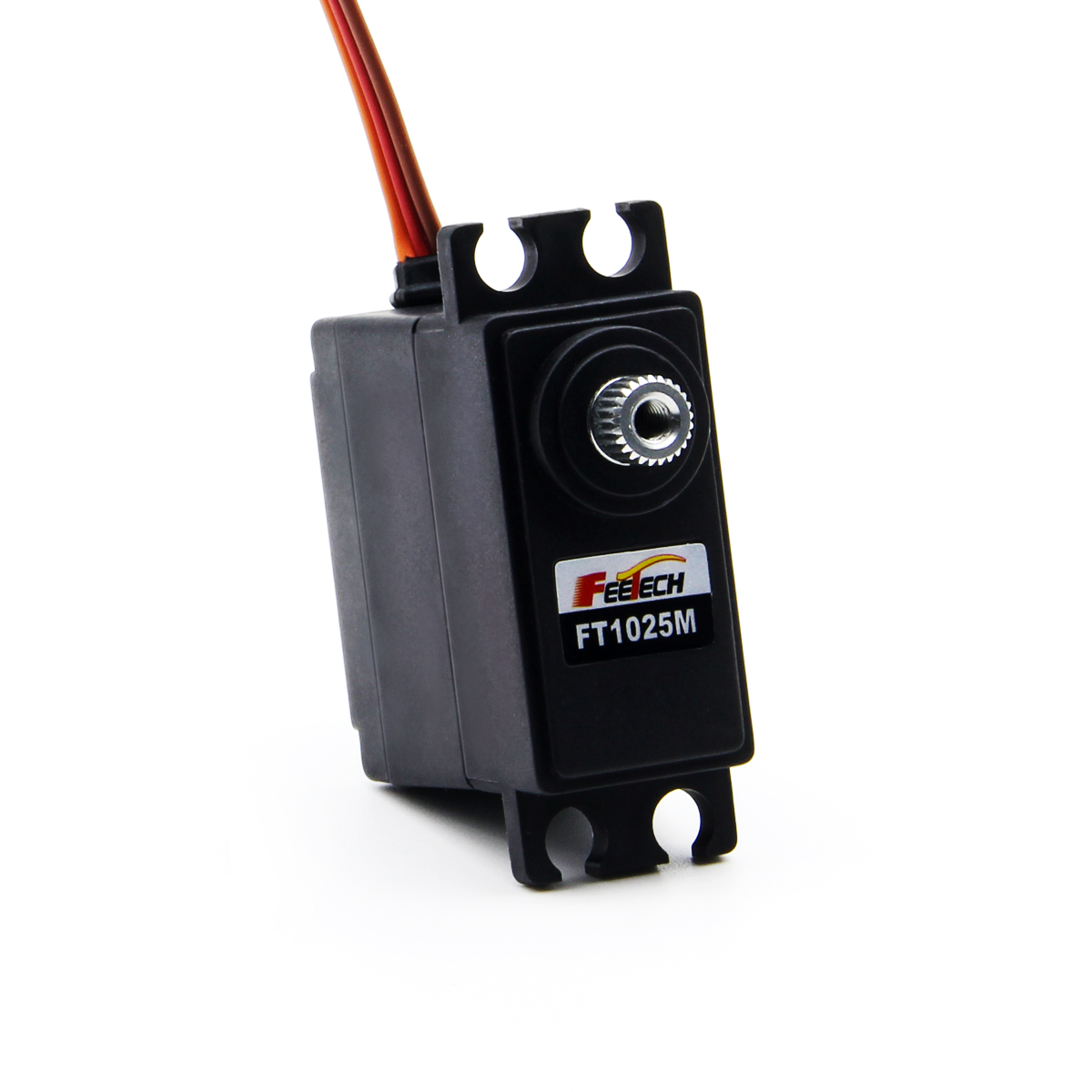

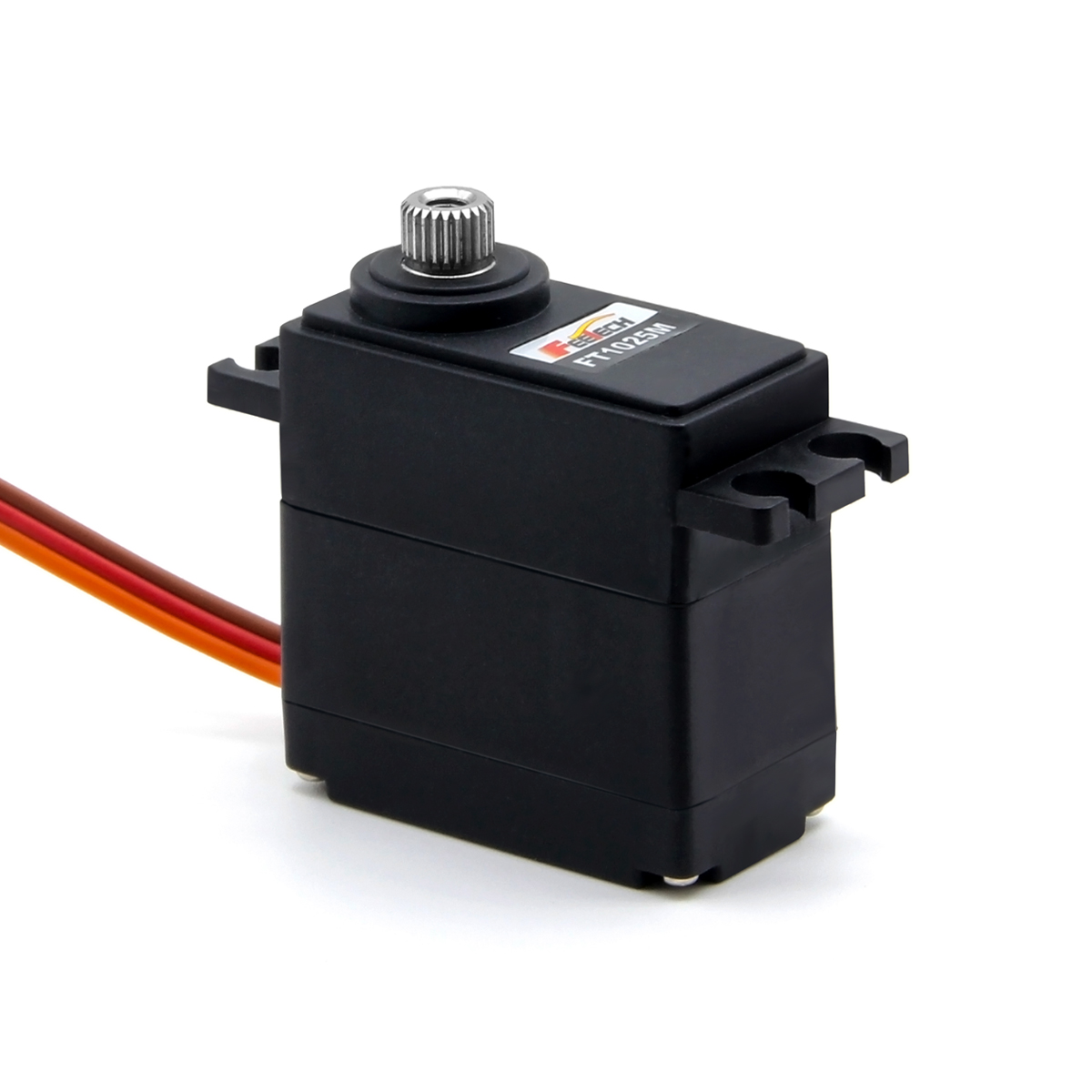

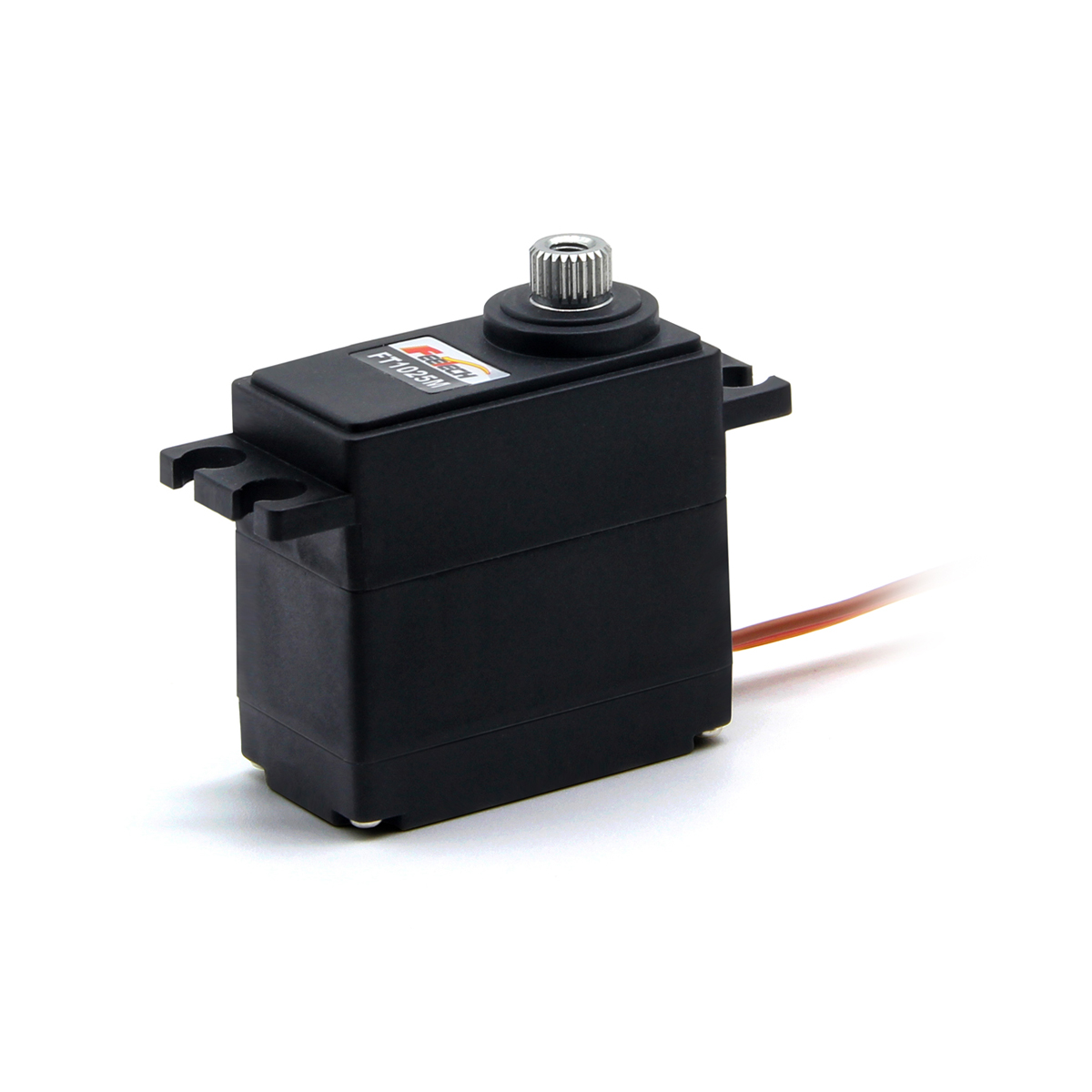

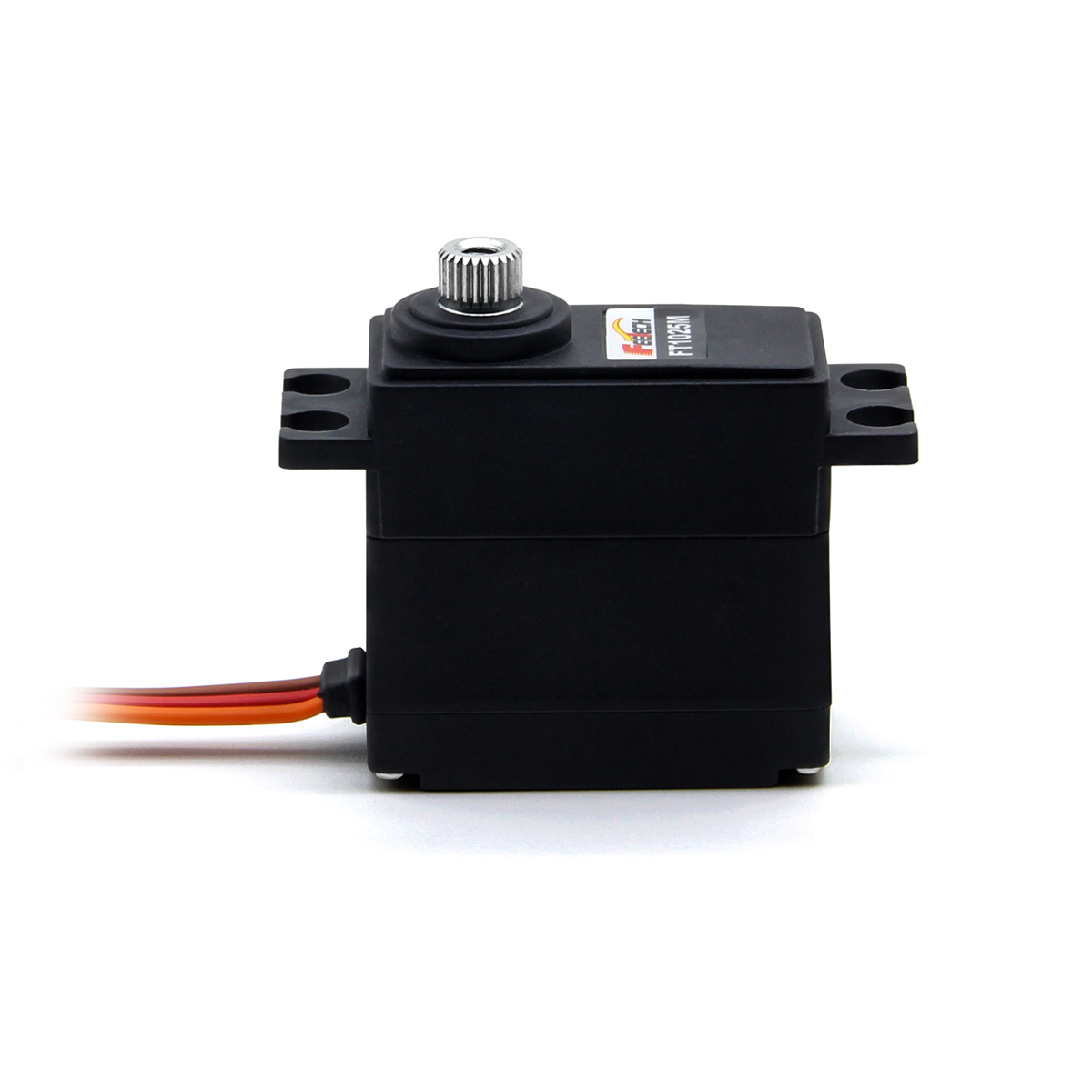

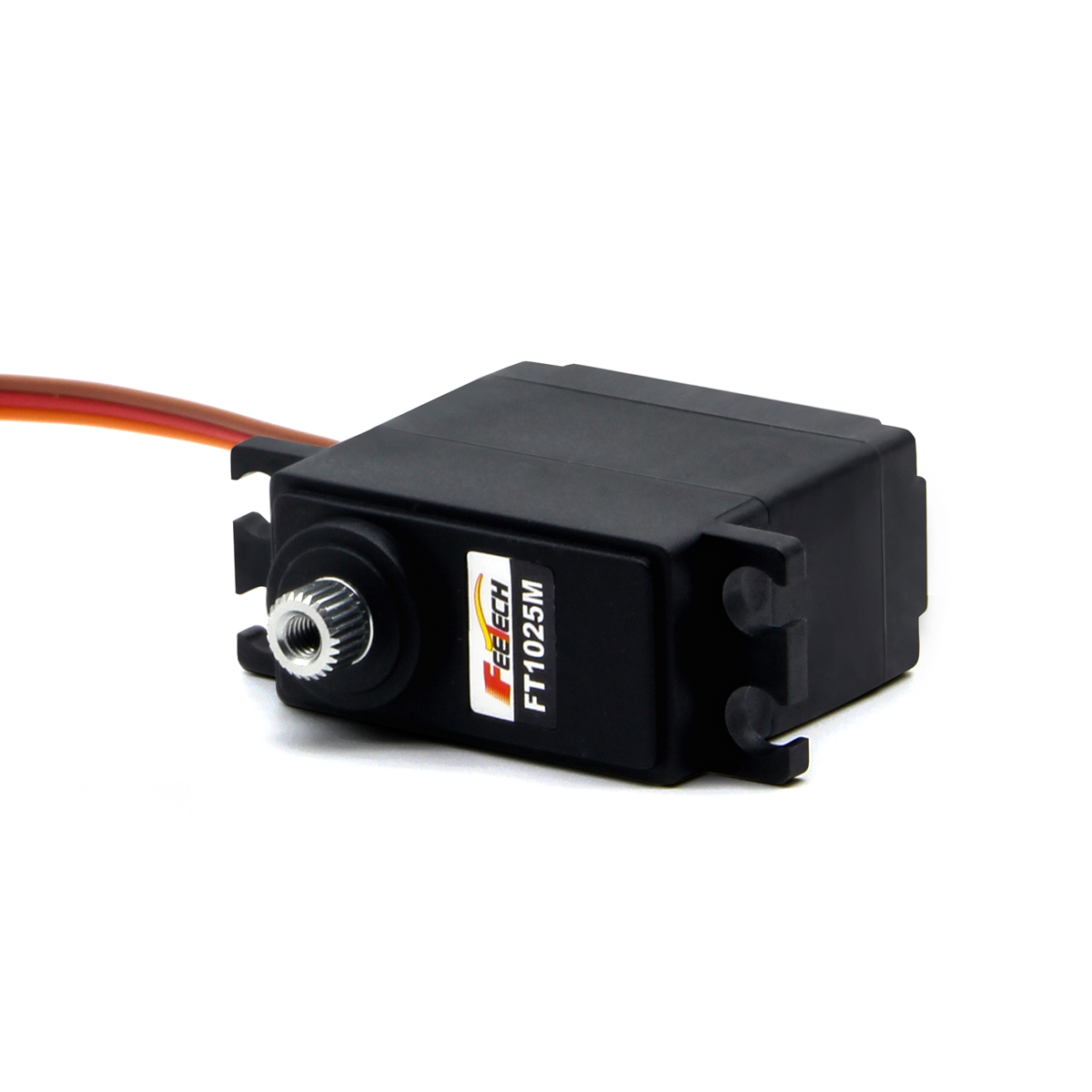

Model: FT-1025-C001
Storage temperature range: -30℃～70℃
Operating temperature range: -20℃～60℃
Size: 16.8*32.4*30.9mm
Weight: 26.7±1g

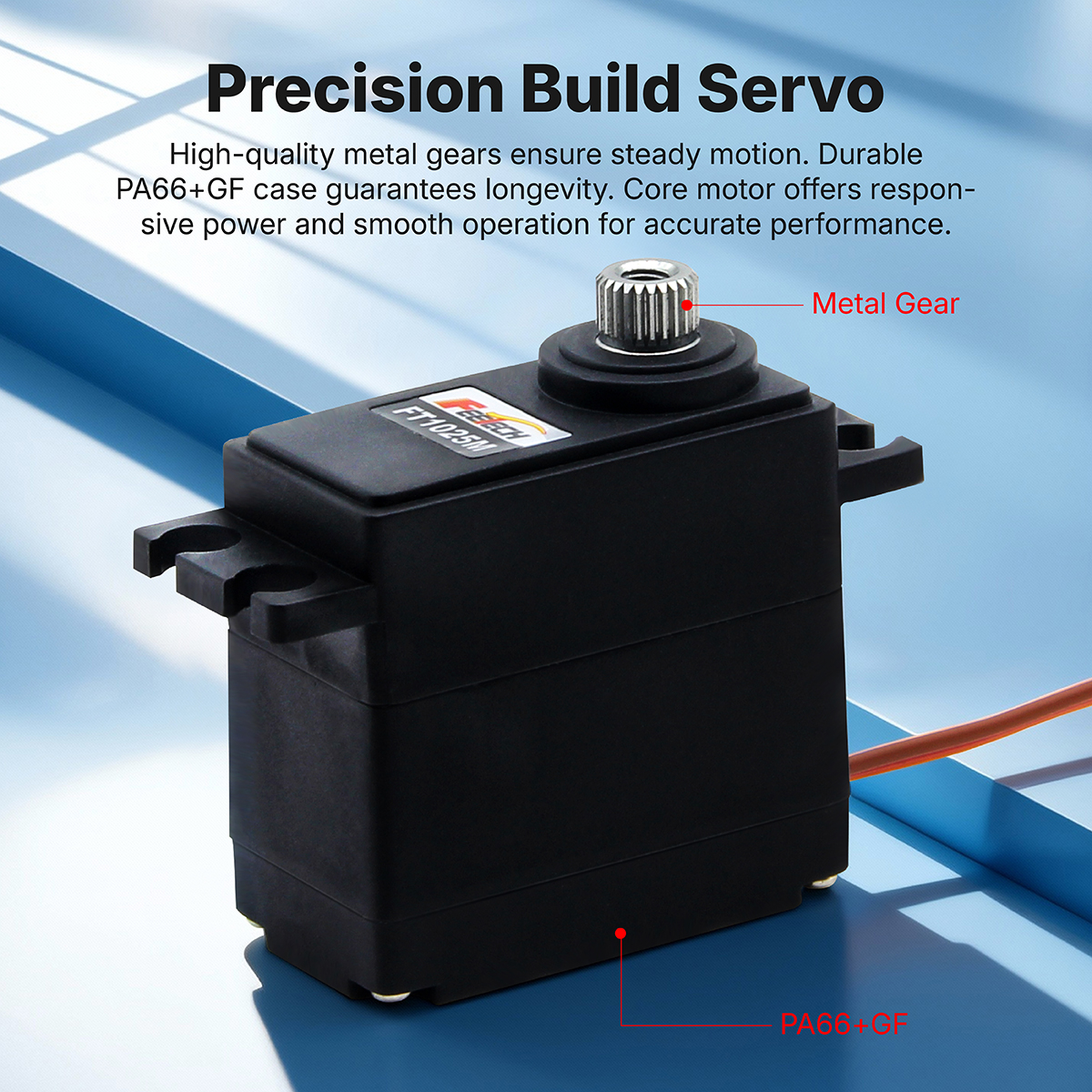

Gear type: Metal
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Case: PA66+GF
Connector wire: 25±1cm
Motor: Core motor

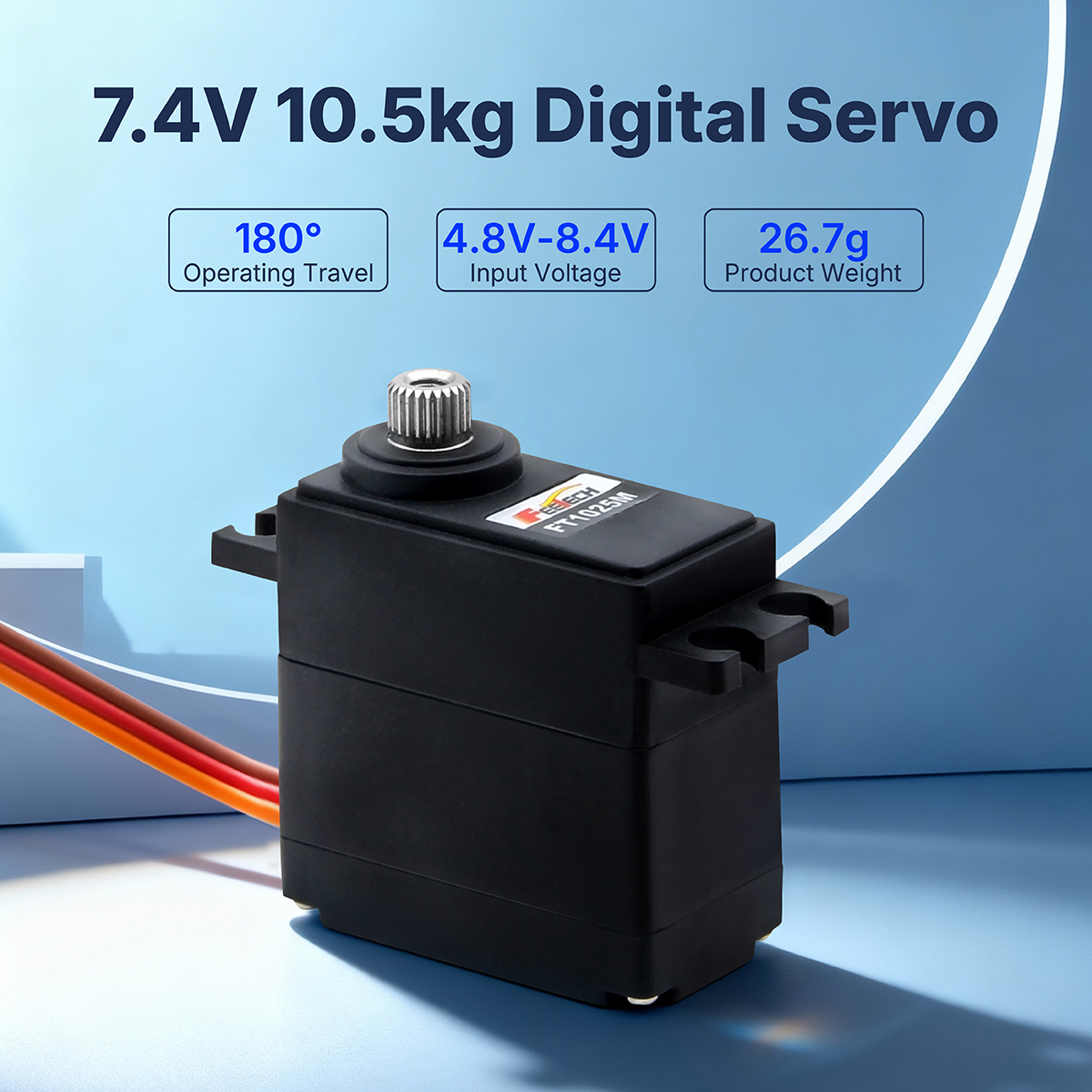

Operating voltage range: 4.8-8.4V
Idle current (at stopped): 7mA@7.4V
No load speed: 0.161sec/60°(62RPM)@7.4V
Running current(at no load): 100mA@7.4V
Peak stall torque: 10.5kg.cm@7.4V
Rated torque: 2.62kg.cm@7.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500→2500 μsec
Stop position: 1500 μsec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 500→2500μsec)
