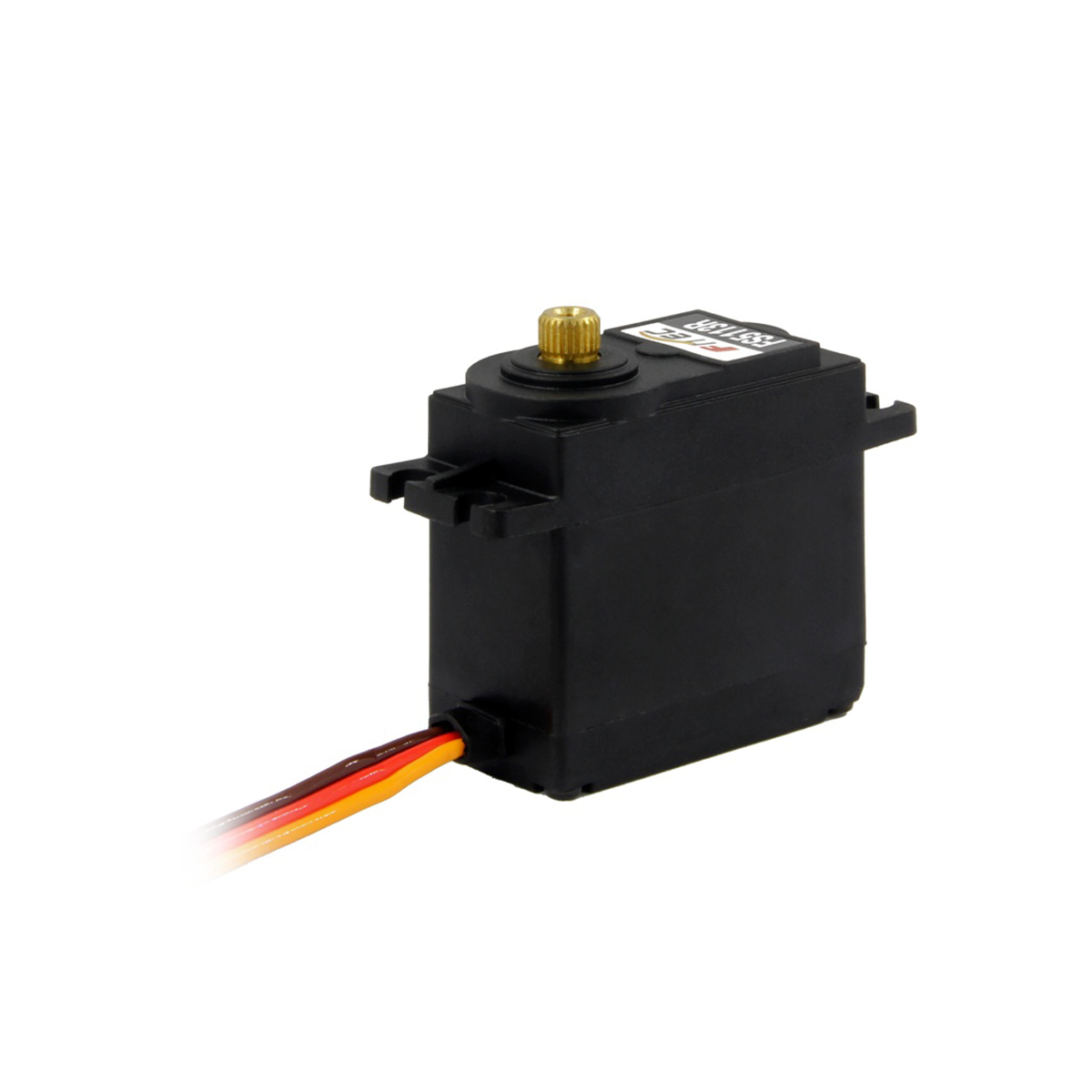

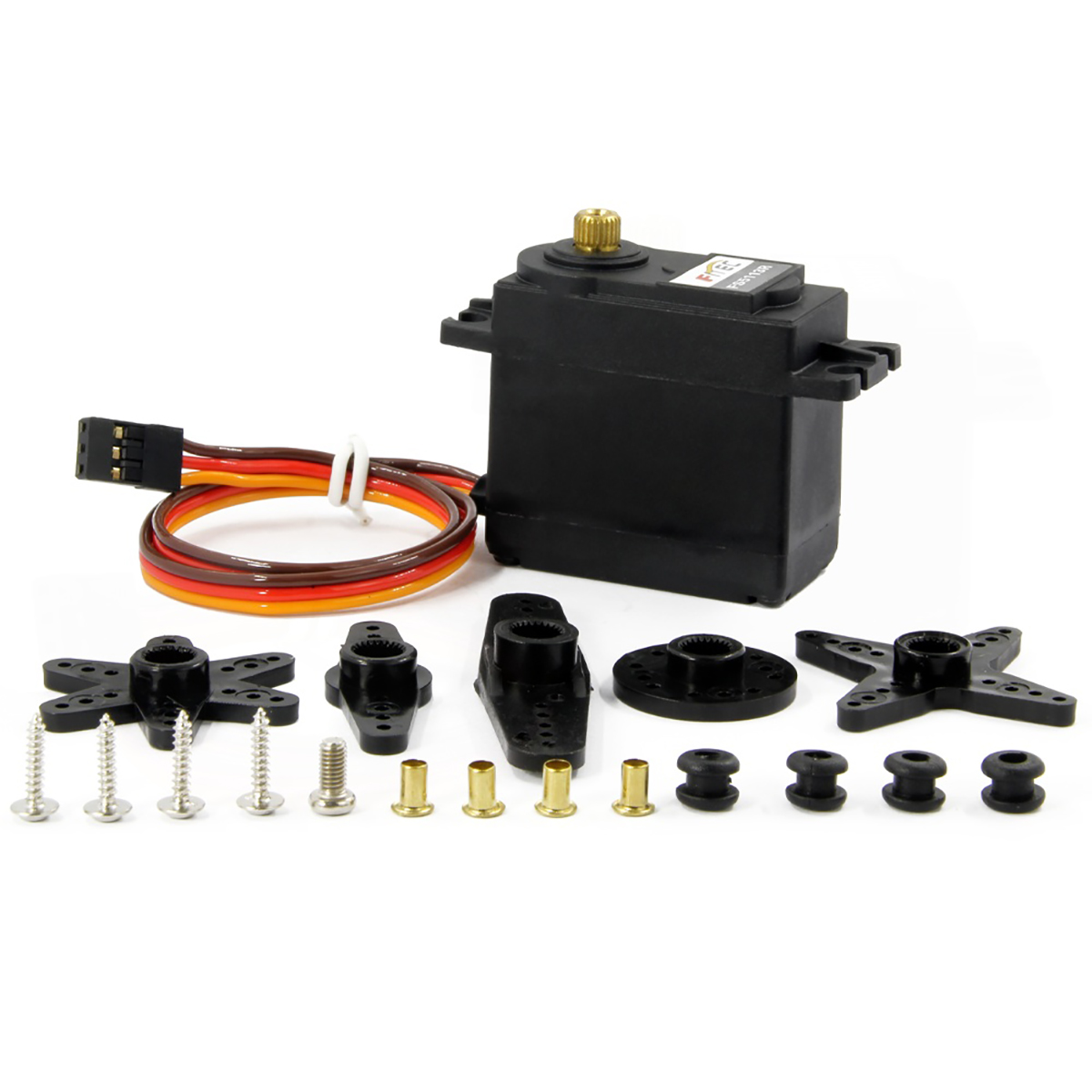

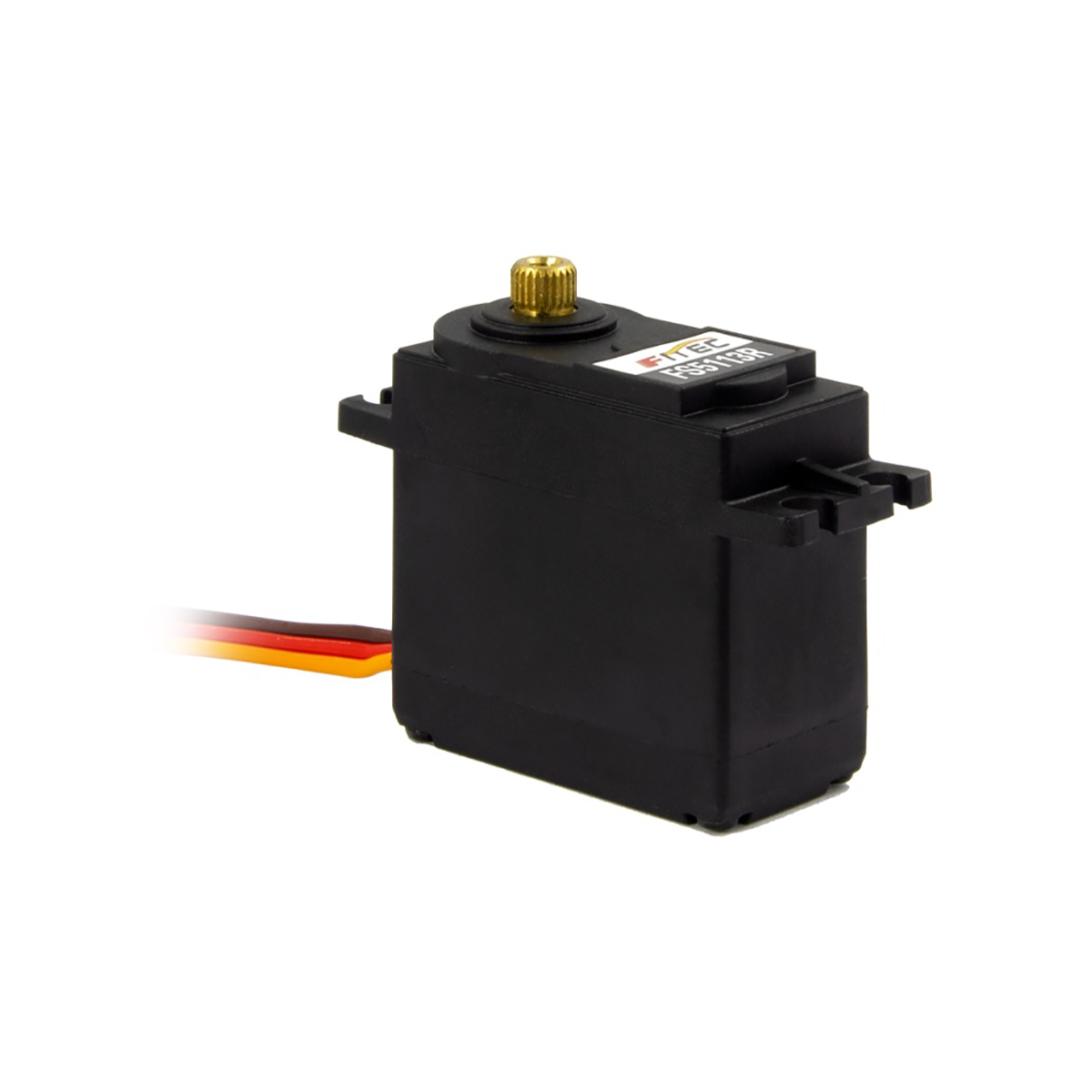

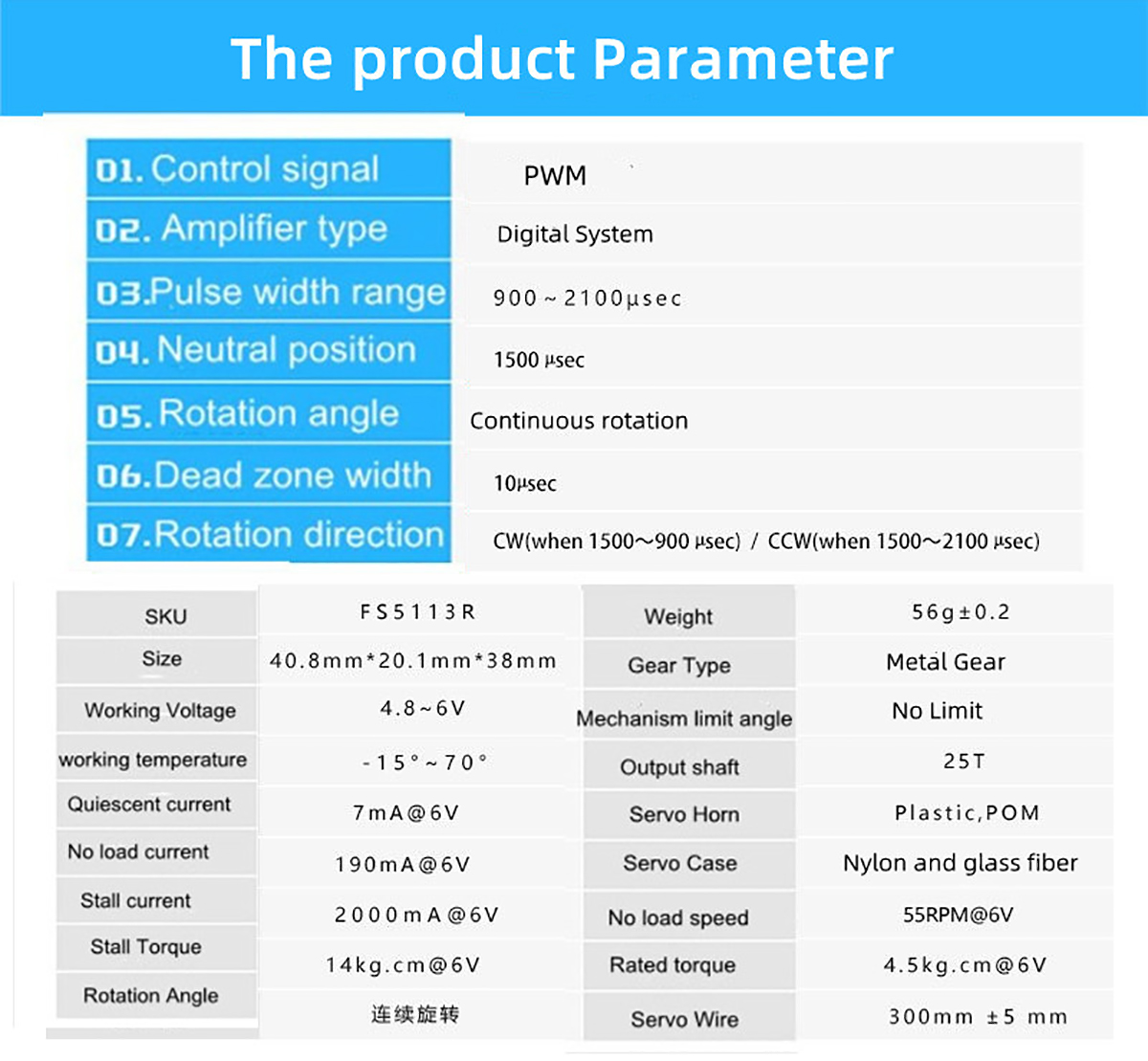

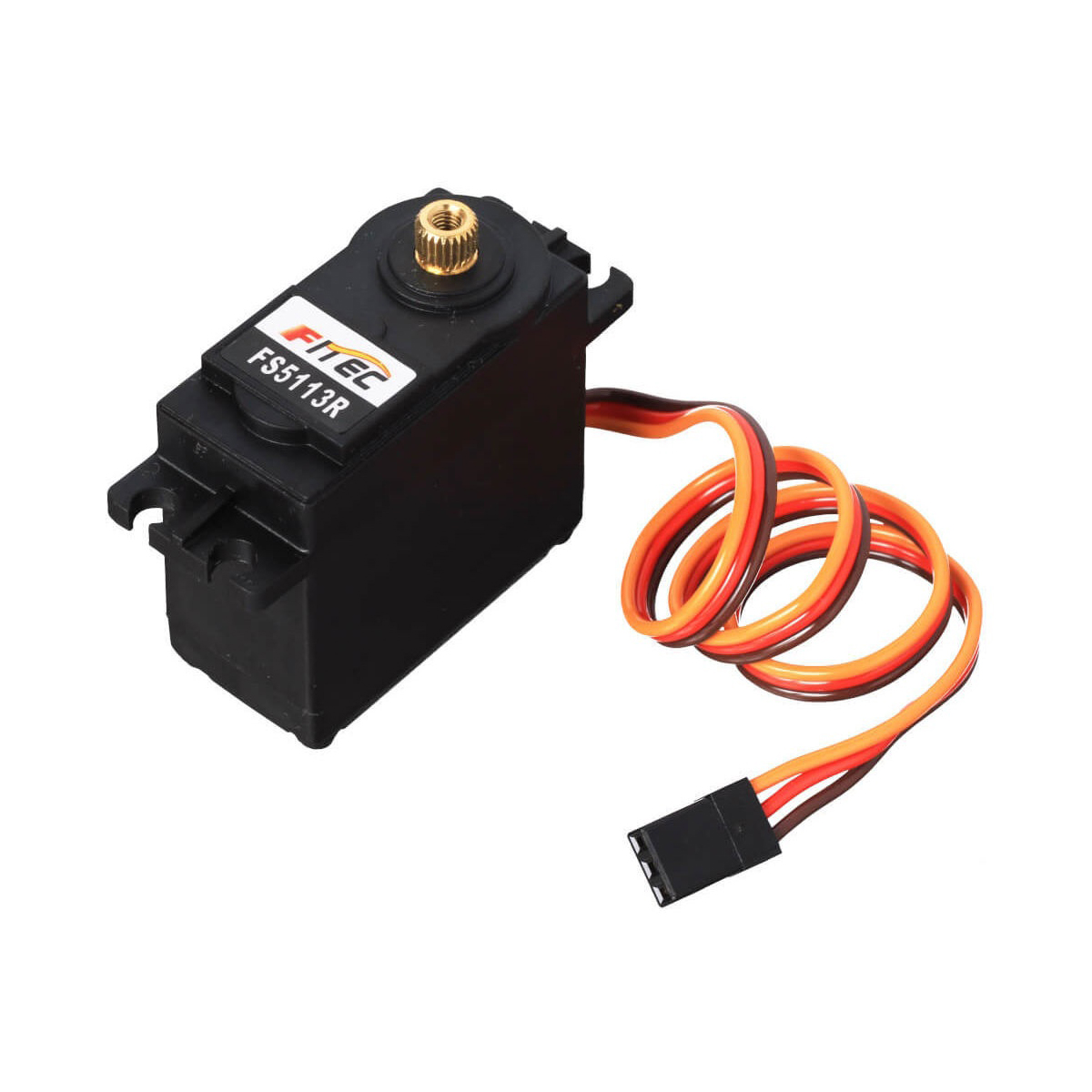

Model: FS-5113-C002
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃

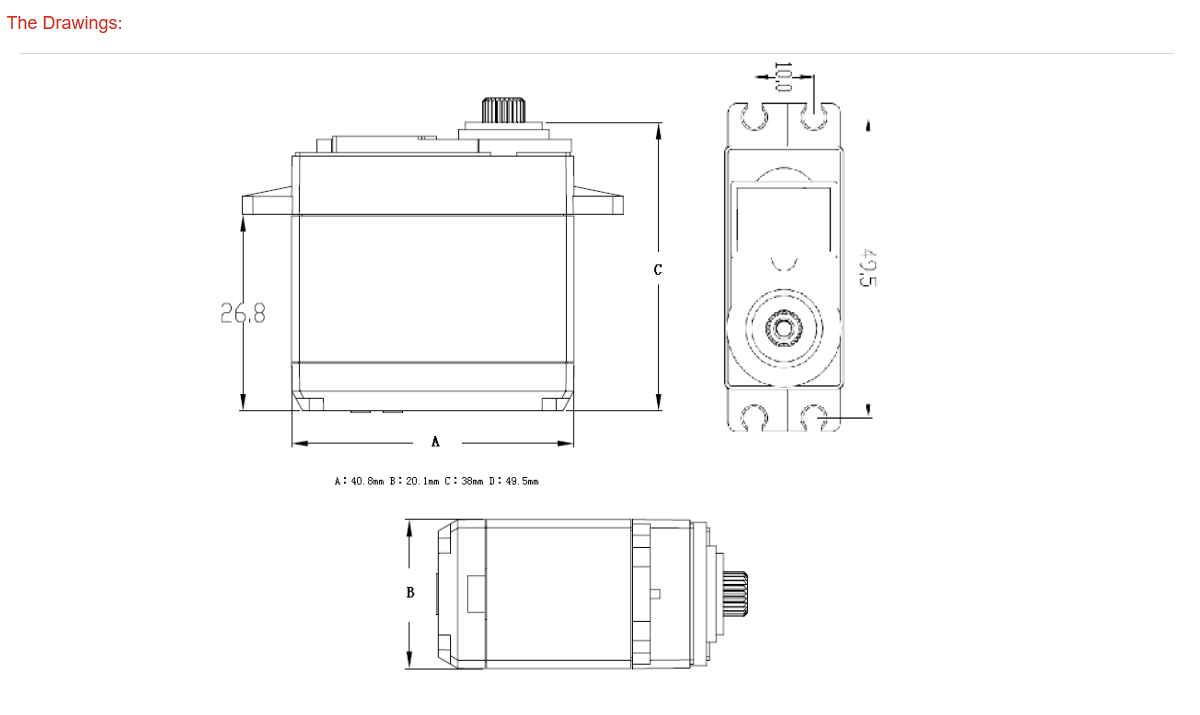

Size: 40.8*20.1*38mm
Weight: 56g±0.2g (1.98oz)
Gear type: Metal gear
Limit angle: 360°
Bearing: 2 Ball bearings

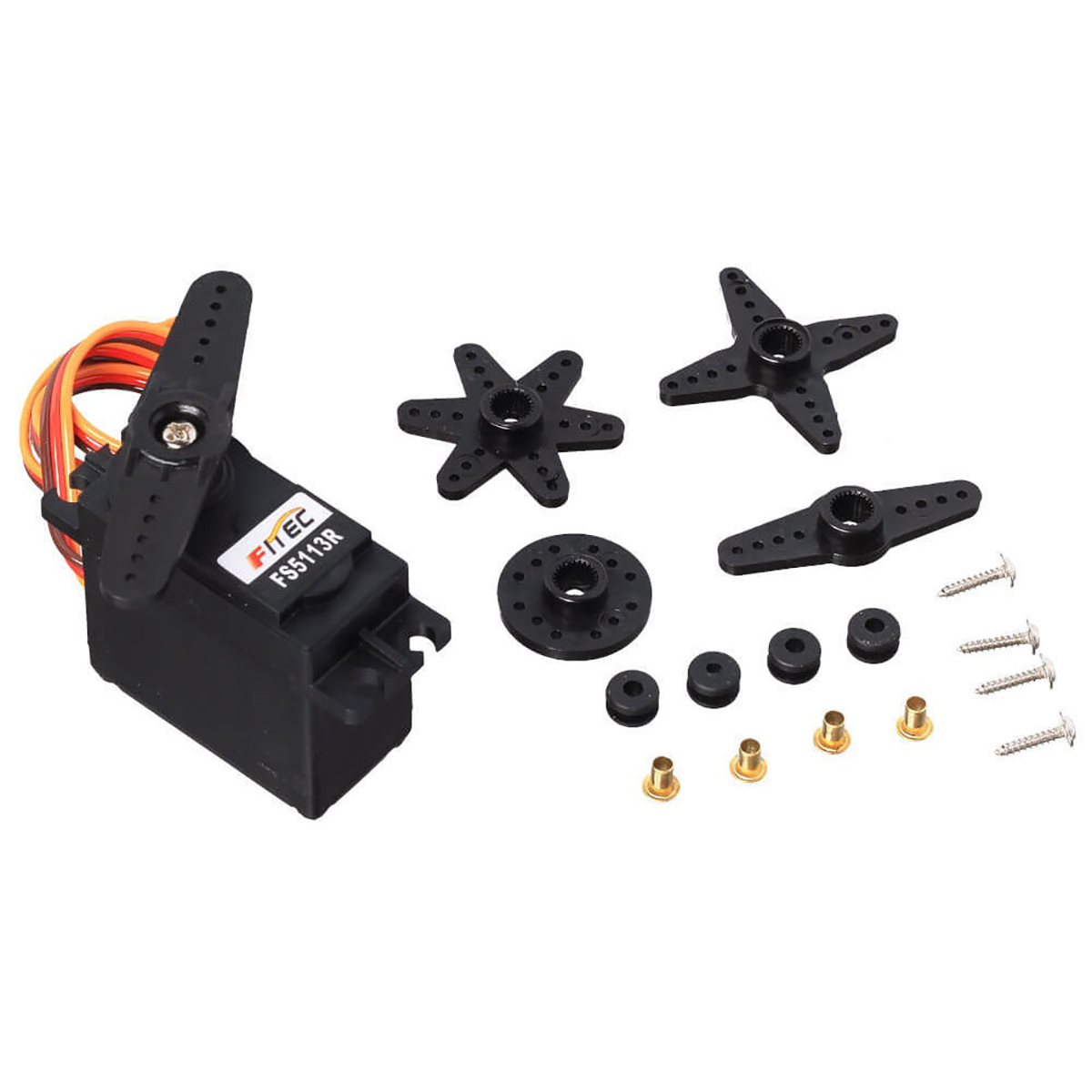

Horn gear spline: 25T
Horn type: Plastic, POM
Case: Nylon & Fiberglass

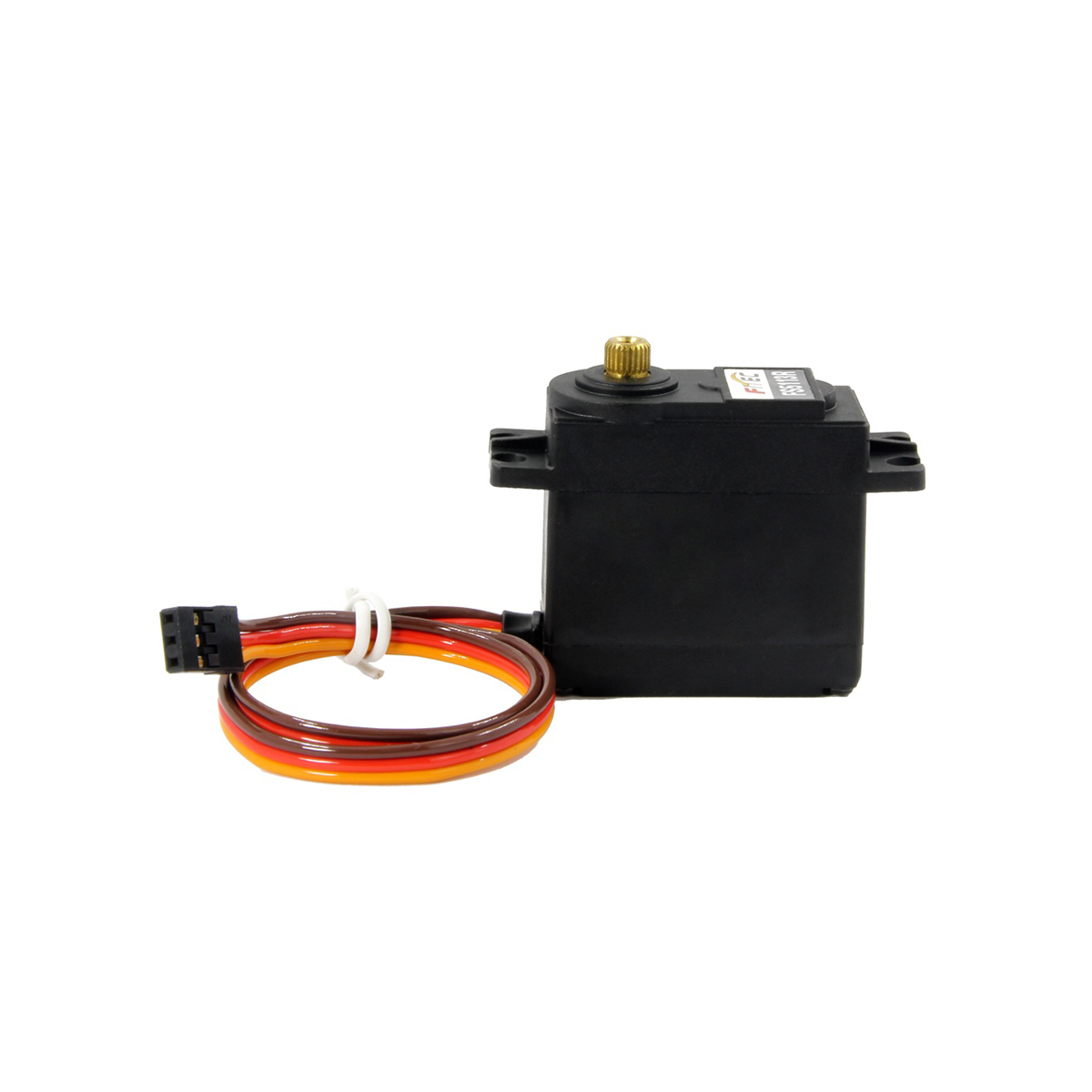

Connector wire: 300mm±5mm
Motor: Coreless motor
Operating voltage range: 4.8-6V
No load speed: 55RPM/60°@6V
Running current(at no load): 150mA@6V
Peak stall torque: 14kg.cm@6V
Rated torque: 4.6kg.cm@6V
Stall current: 2000mA@6V
Amplifier type: Digital system
Pulse width range: 900~2100usec
Stop position: 1500(±5)μsec

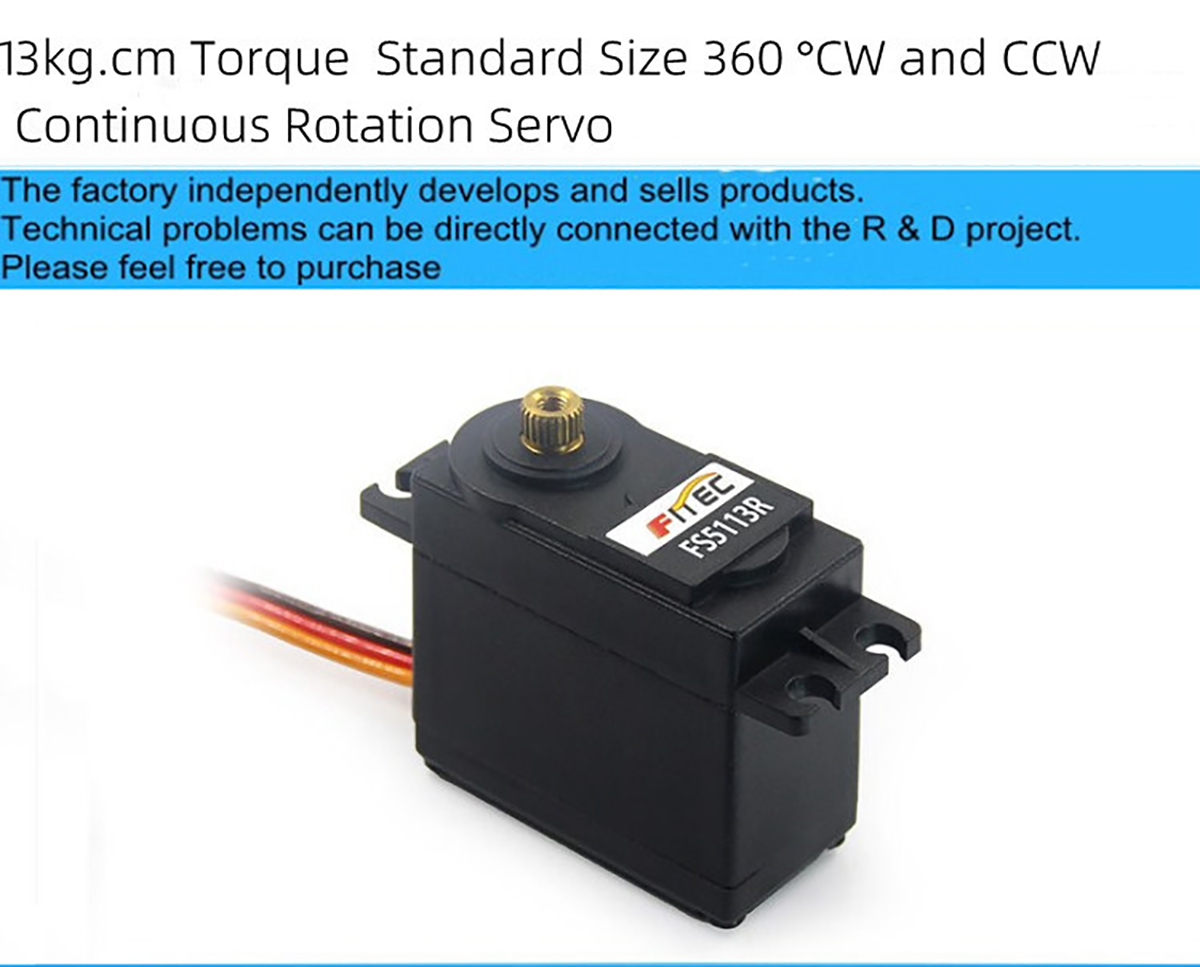

Running degree: Continuous rotation
Dead band width: 10μsec
Rotating direction: CCW (when 1500~2100μsec)
