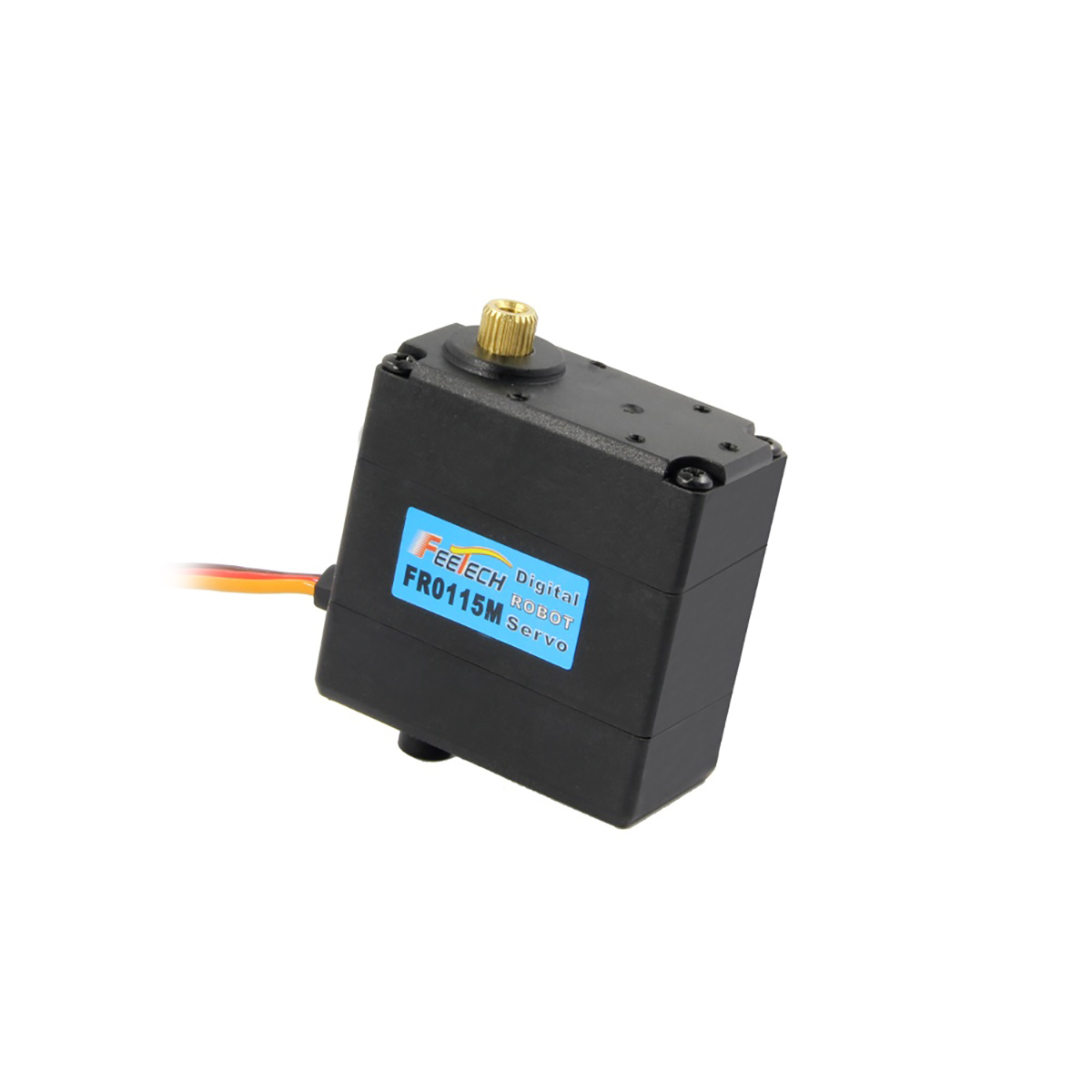

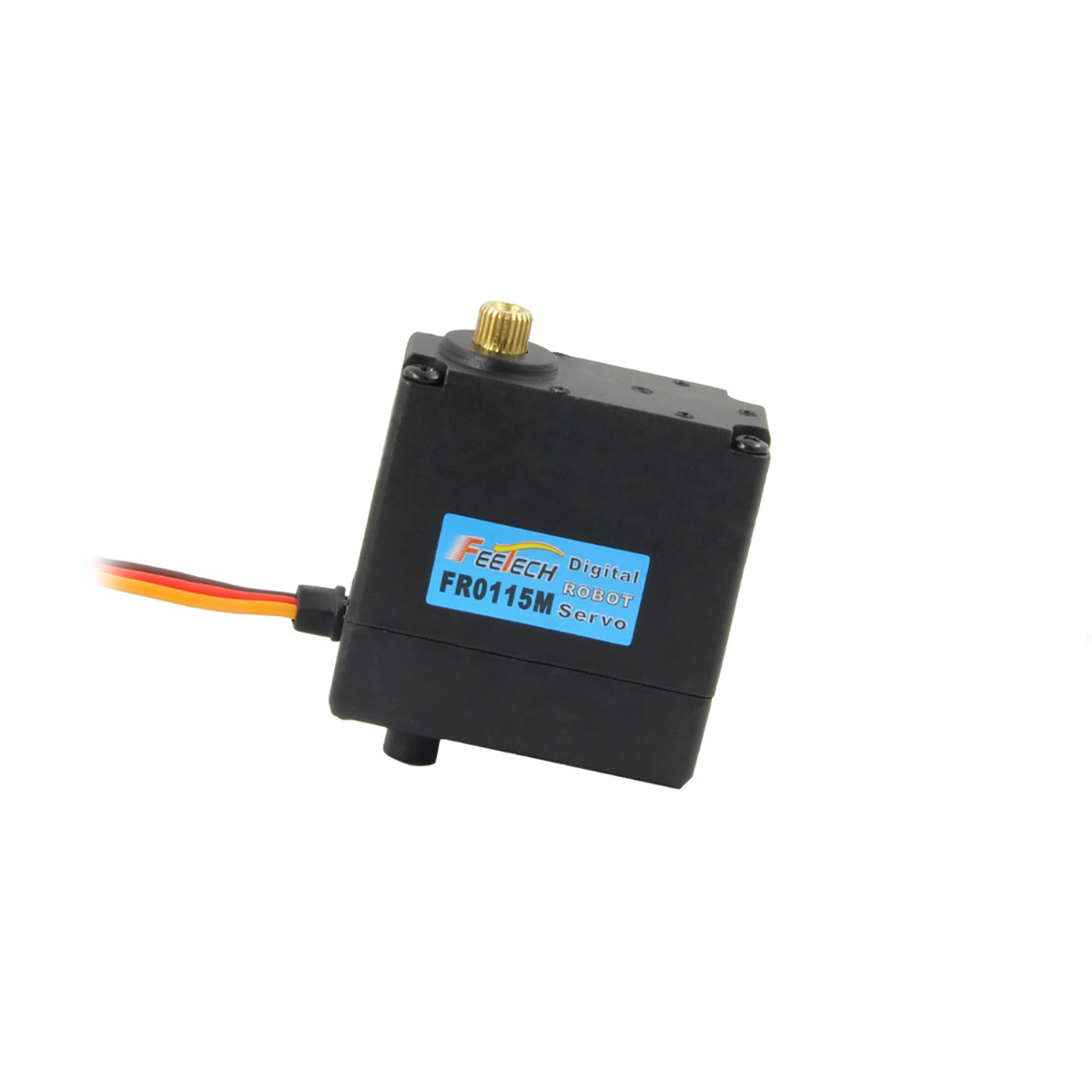

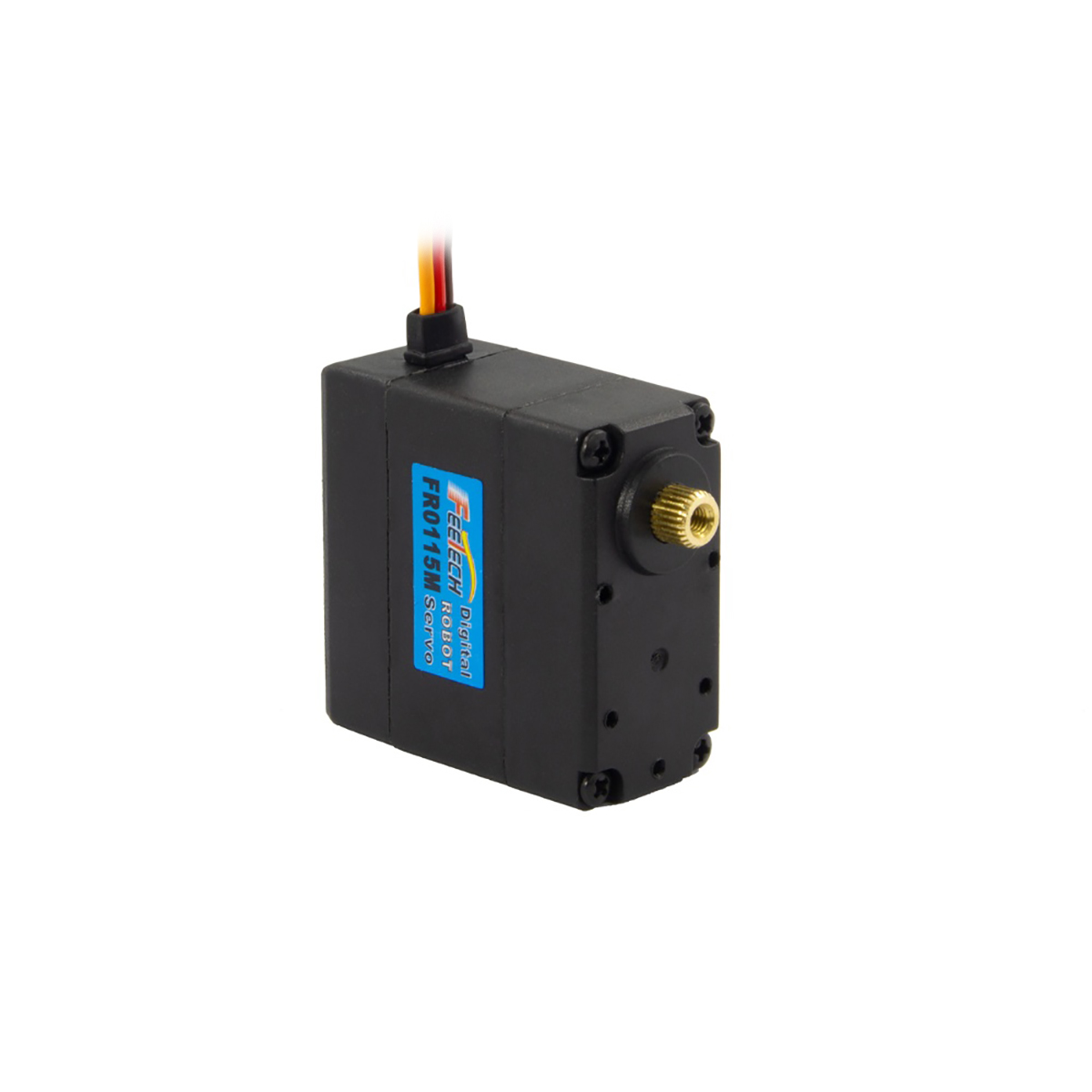

Feetech FR0115M 6V 15kg Coreless Motor Metal Gear Dual Shaft Digita Servo for RC Robot
FR0115M is low price high quality digital robot servo
This servo is used in robots or where standard servos are used
This servo can produce high-current draw from your batteries
If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo
This servo also have different applications for DIY robot
It can be combined with aluminum servo arm suite
Model: FR-0115-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 40.0*20.0*40.5mm
Weight: 59g±1g
Gear type: Metal gear
Limit angle: No limit
Bearing: 2 Ball bearings
Horn gear spline: 25T
Horn type: Plastic, POM
Case: Nylon & Fiberglass
Connector wire: 300mm±5mm
Motor: Coreless motor
Operating voltage range: 4.8-6V
No load speed: 0.16sec/60°@6V
Running current(at no load): 190mA@6V
Peak stall torque: 15kg.cm@6V
Rated torque: 5kg.cm@6V
Stall current: 1500mA@6V
Command signal: Pulse width modification
Amplifier type: Digital system
Pulse width range: 500~2500usec
Neutral position: 1500μsec
Running degree: 180°(±5°) (when 500~2500μsec)
Dead band width: 4μsec
Rotating direction: Counterclockwise (when 1000~2000μsec)

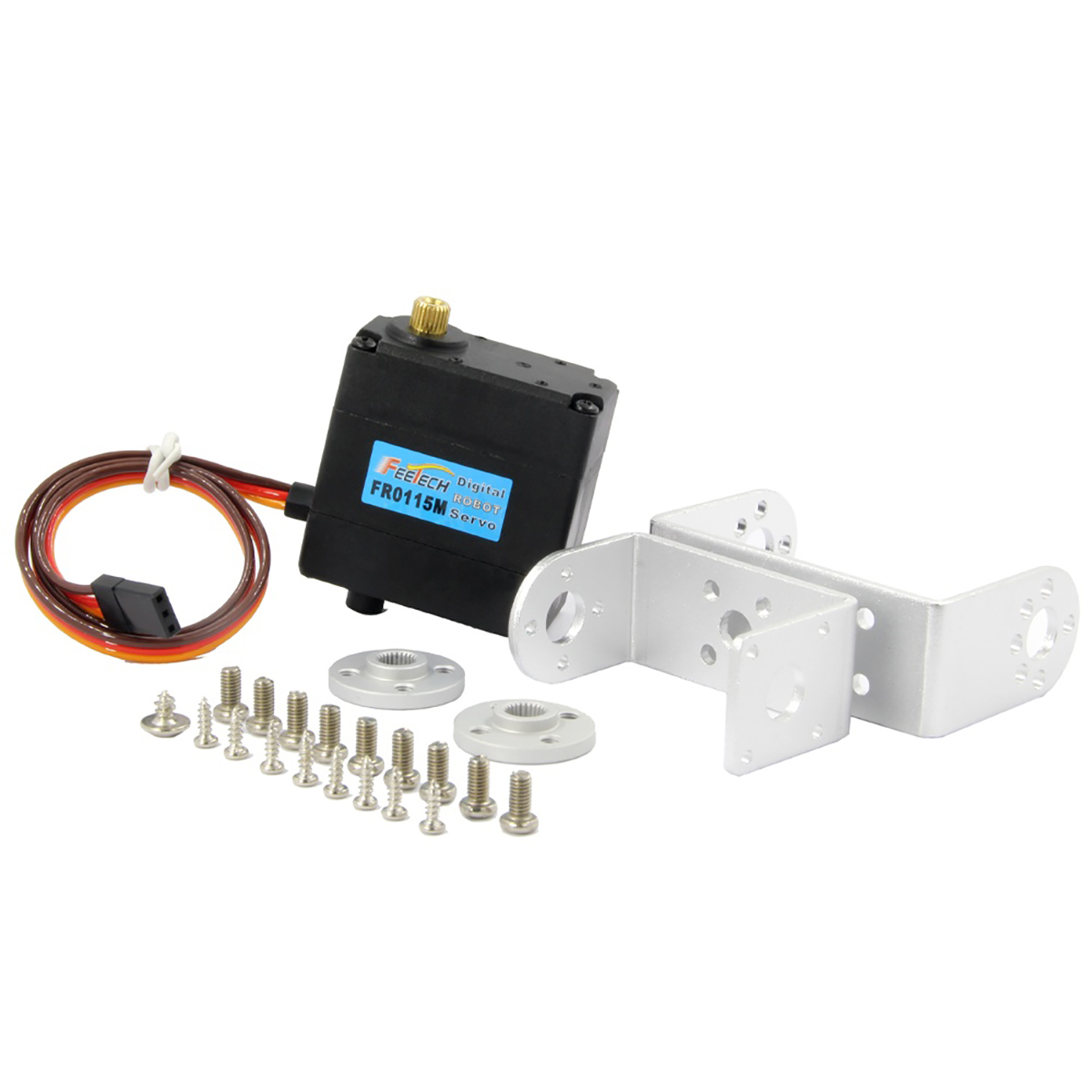

FR0115M Servo x1
