Feetech SM30BL12V 30kg High Precision Double Ball Bearing Smart Serial Bus Brushless Robot Servo

SKU SM-30BL-C001 Category Tag Brand:

Feetech SM30BL12V 30kg High Precision Double Ball Bearing Smart Serial Bus Brushless Robot Servo

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

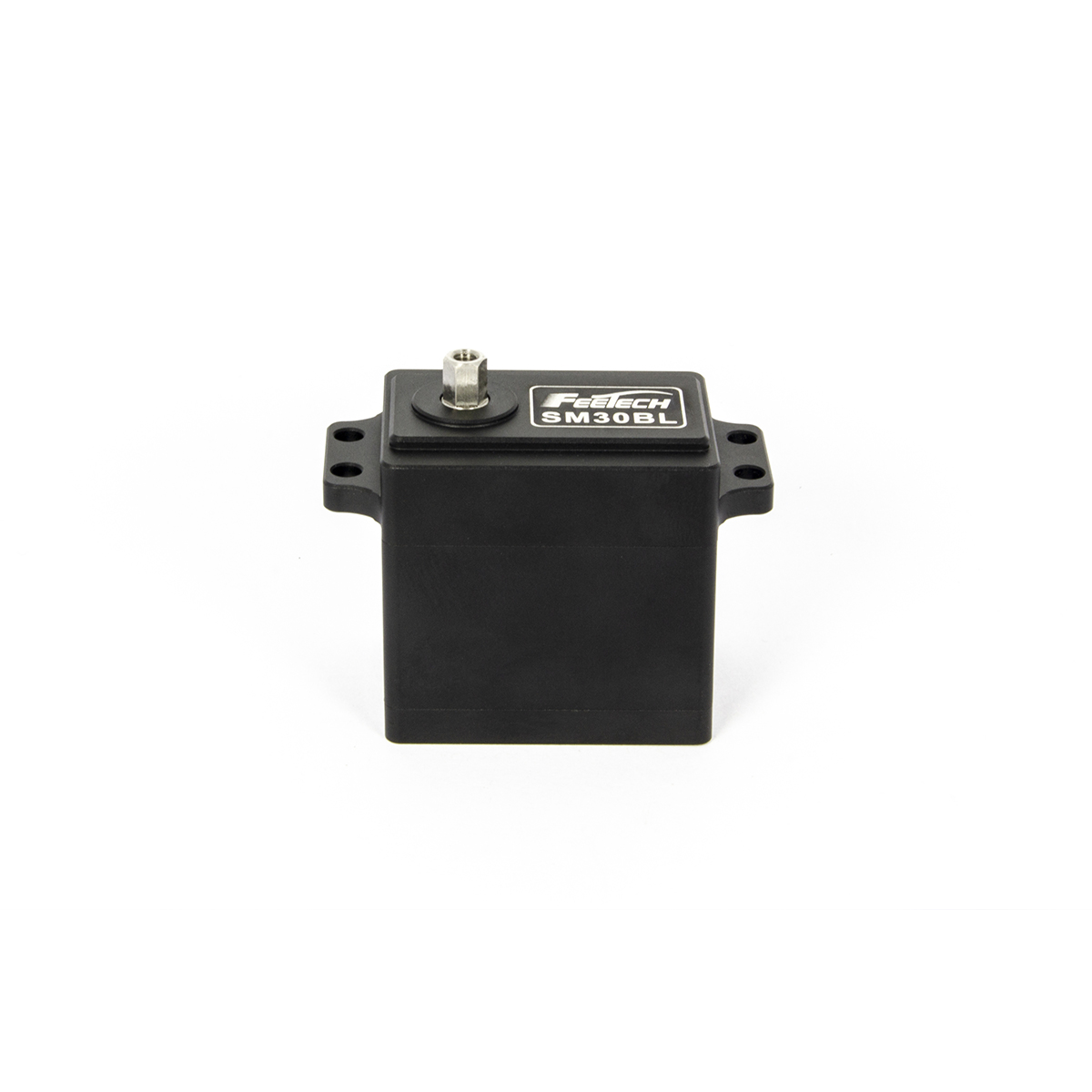

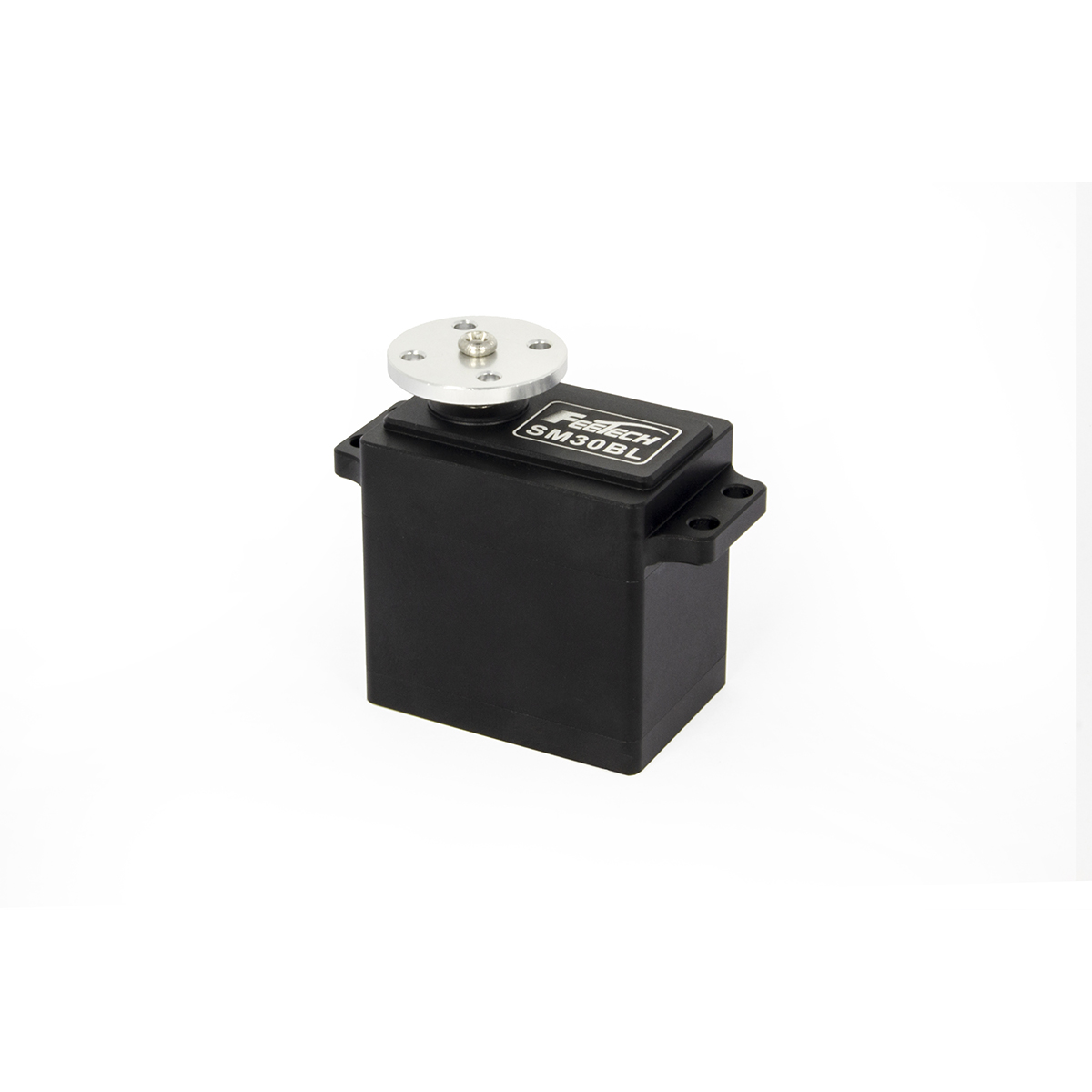

SM30BL is compatible 12V/24V serial port smart bus servo,all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board,12 bit high precision magnetic coding sensor,6T output shaft. The stall torque is 14kg.cm(please note:this version is internal current limiting version),can achieve 0-360 degrees any angle controllable,multi-turn continuous operation mode,it can realize the function of setting the middle point with one key,acceleration slow start and slow stop,can feedback position、speed、voltage、current、temperature、load parameters,thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, logistics, robot and other industries.

*Servos are capable of 360° continuous rotation while still offering position control over an effective range of 360°.

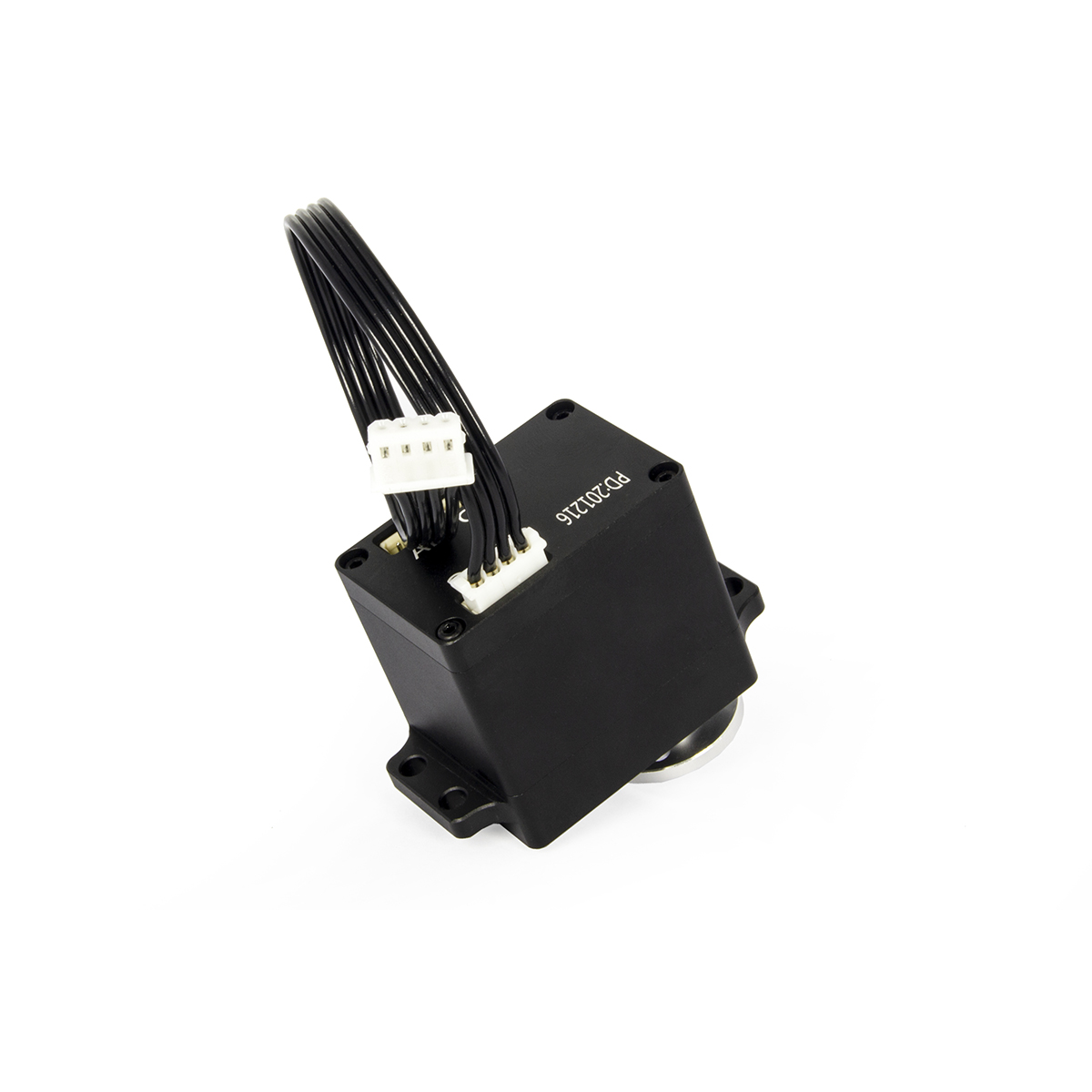

*They feature a TTL serial 3P interface or RS485 4P interface that is used to configure and control the servo and get feedback about position, speed, and temperature.
*Multiple servos can be daisy-chained on the same serial bus.

Model: SM-30BL-C001
Storage Temperature Range: -30℃~80℃
Operating Temperature Range: -15℃~70℃
Size: 40*28*39.3mm
Weight: 96g

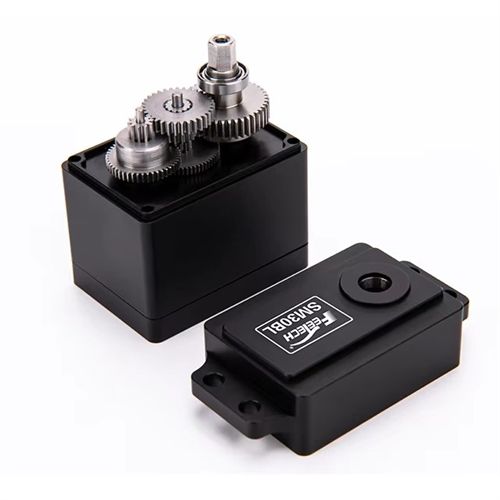

Gear type: Steel
Limit angle: No Limiter
High torque: 14Kg.cm
Wide operating voltage: 9V~24V Power Supply
High resolution: 12-bit Encoder (0.088° per 360°)
Servo control mode: Rotation Range 0-360° and Multi-turn Arbitrary Angle
Command signal: Digital Packet
Serial bus connection: 254 ID Addresses Optional
Baud rate: 34800~1000000 bps
Continuous current: 0.8A
Maximum axial load: 3N
Maximum radial load: 10N
Quiescent Current: 35mA
No-load current: 250mA
Stall current: 1.2A
Position resolution: 0.088°(360°/4096)
Stall torque: 14kg.cm@12V

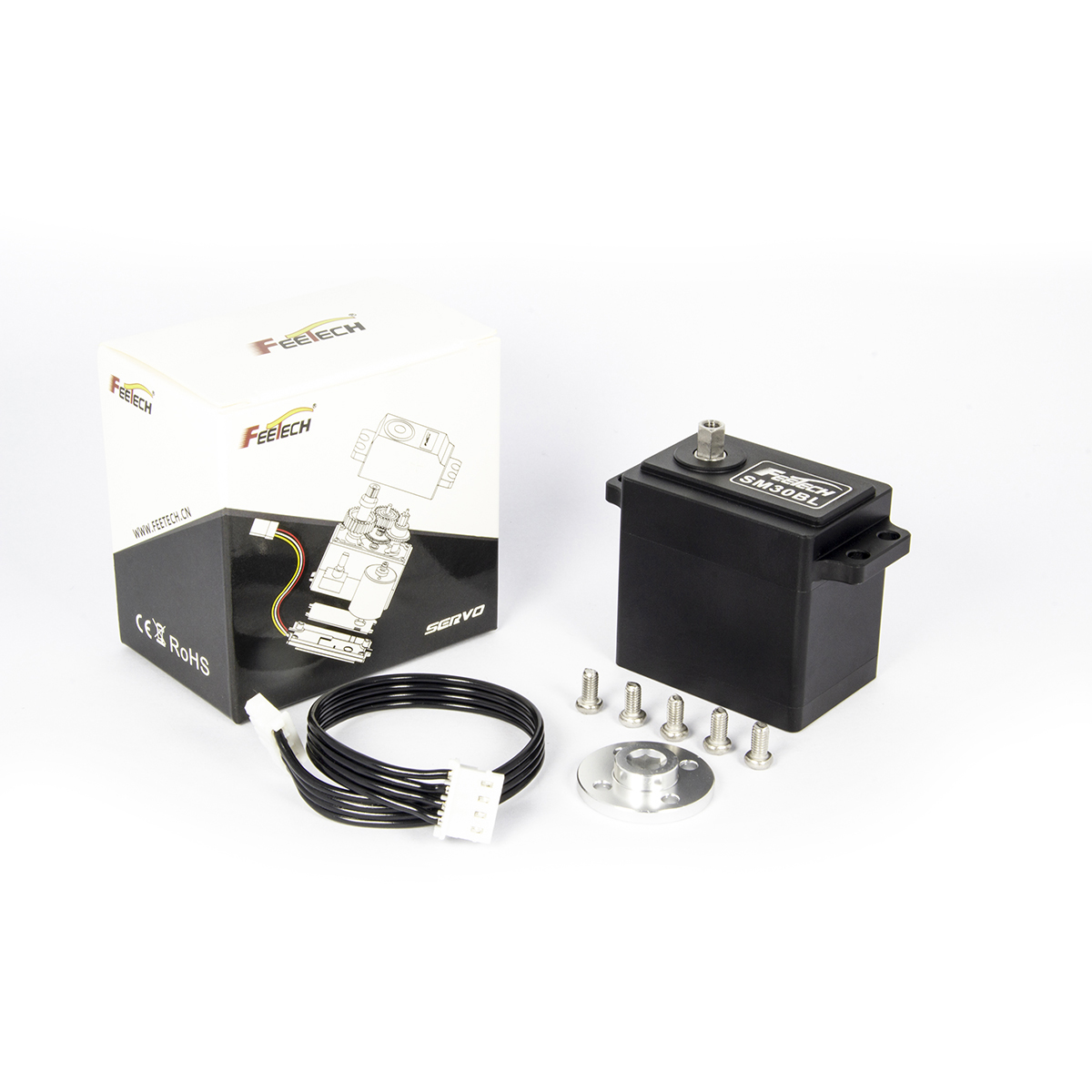

SM30BL Servo x1
