F722 F7 Flight Control 45A 4in1 ESC VTX1000 Video Betaflight Flight Controller
1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.
F722 Flight Control
MCU: STM32F722RET6
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: SPL06-001
Blackbox: 16MB
Input voltage: 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
Receiver: ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
Buzzer: 5V
ESCsignal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor: YES
DFU (DFU button: YES
Firmware: Betaflight 4.3.1 JHEF7DUAL.HE, inav_7.1.0_JHEMCUF722.hex
Size: 36*36mm
Mounting Hole: 30.5*30.5*4mm
Weight: 8.8g

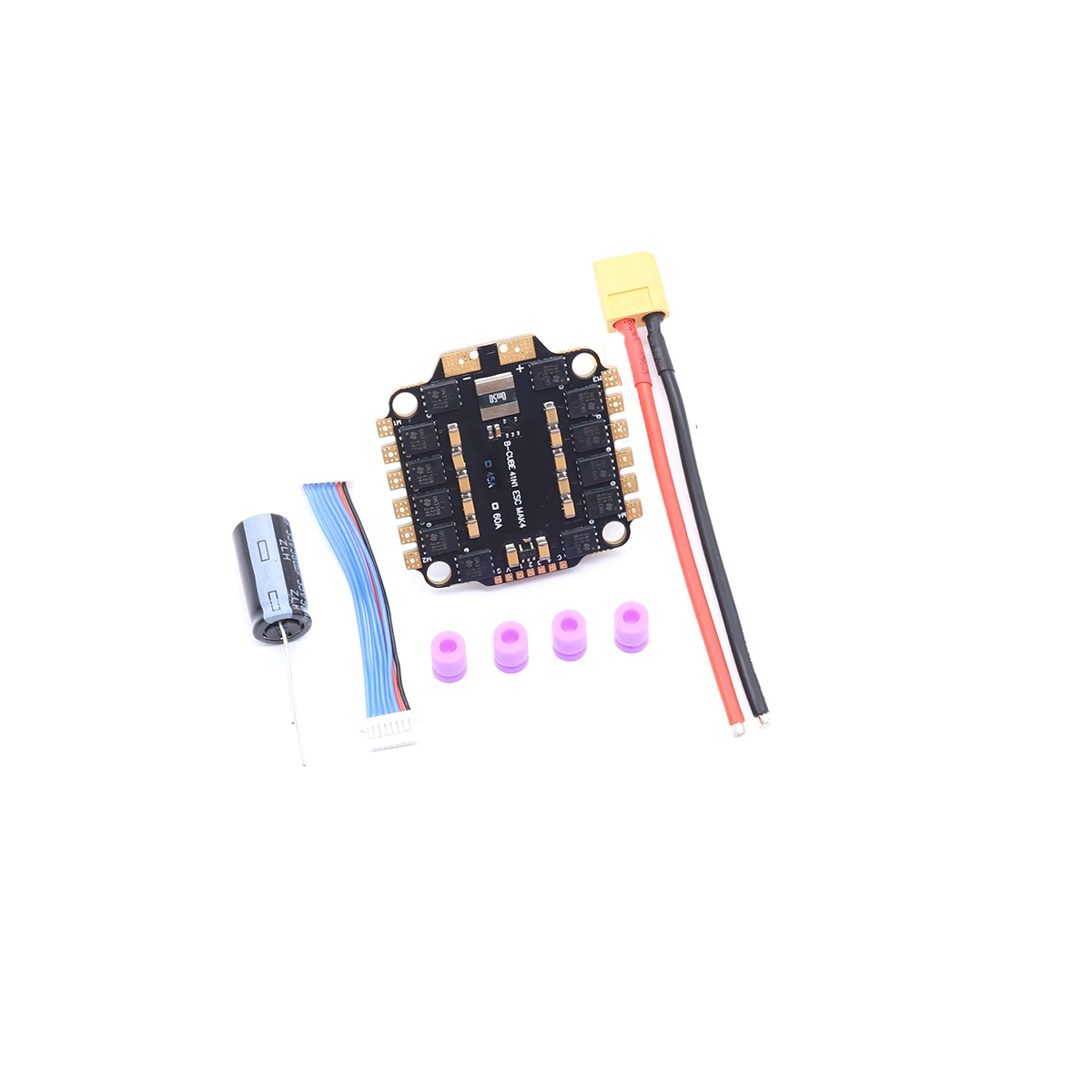

BLHELI_S 45A 4in1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

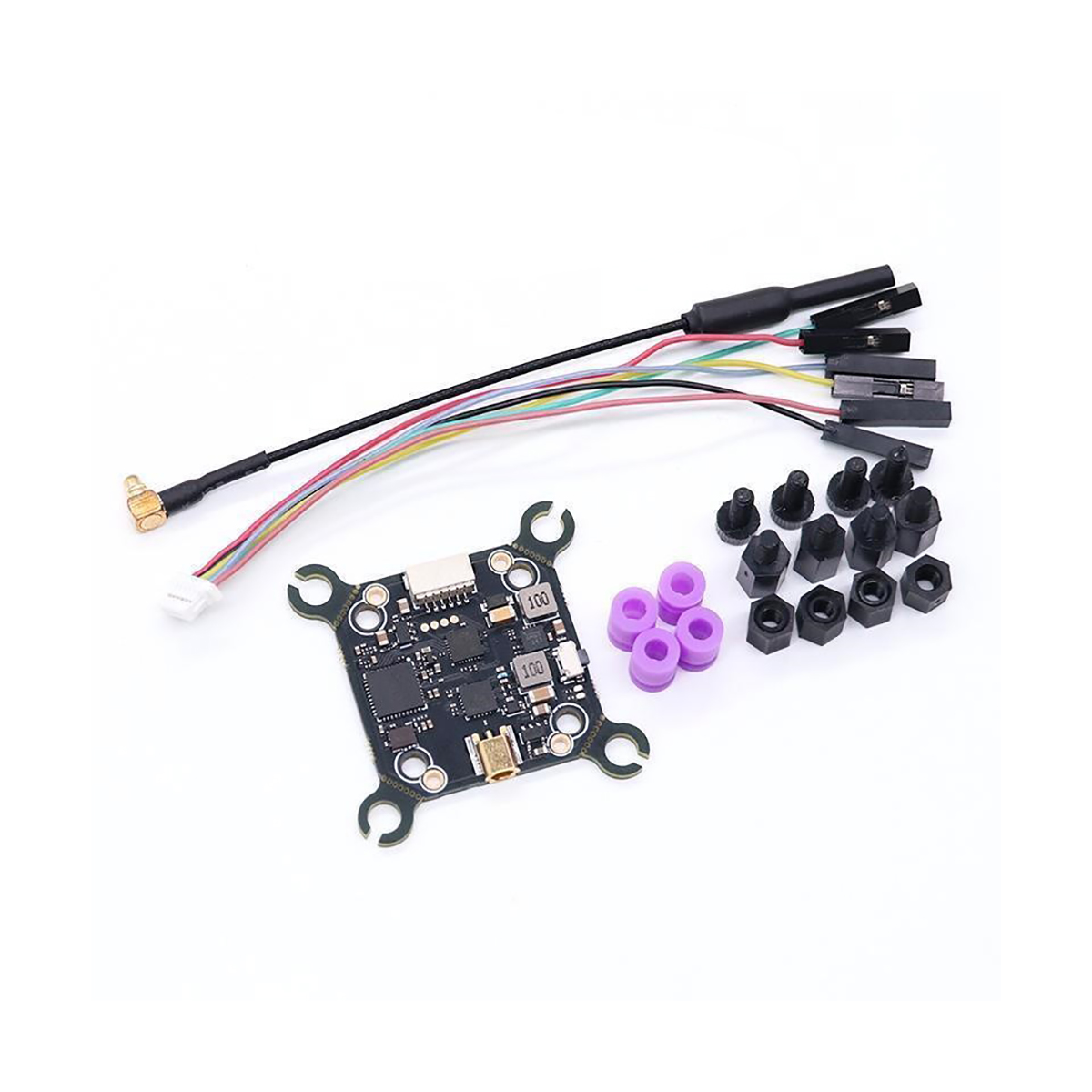

VTX1000 1W Video Transmitter
Model: TX1000
Working Temperature: -25C°~105C°
Input Voltage: 7-26V
Control Protocol: IRC Tramp
On-Board BEC Output: 5V
Antenna Connector: MMCX
Number of Transmission Channels: 48
Connection Mode: SH1.0-6P
Transmitting Power: 25/100/200/400/1000mW
Installation Hole: 20mm & 30.5mm
Video Format: PAL/NTSC
Size: (29mm*29mm)&(37.5mm*37.5mm)

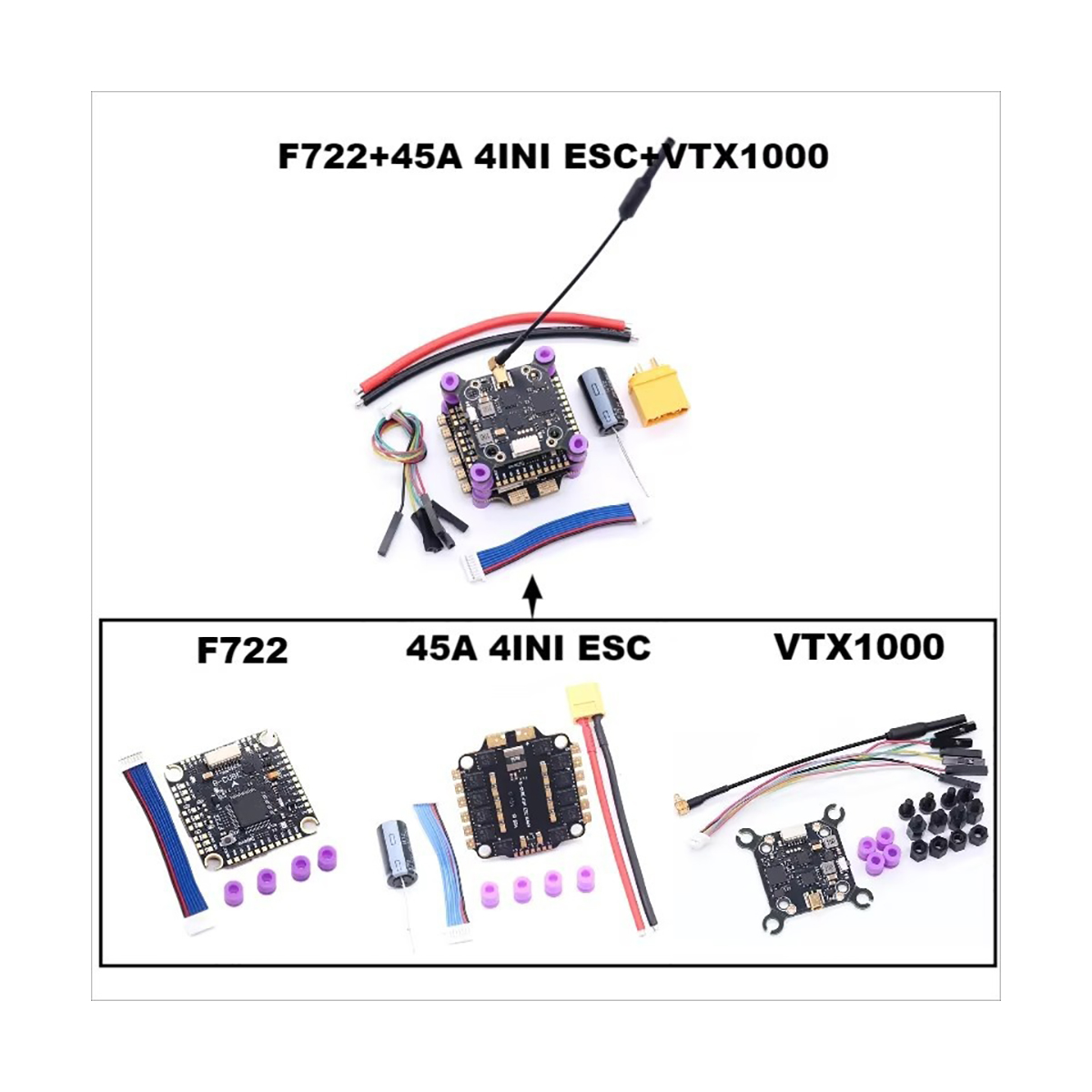

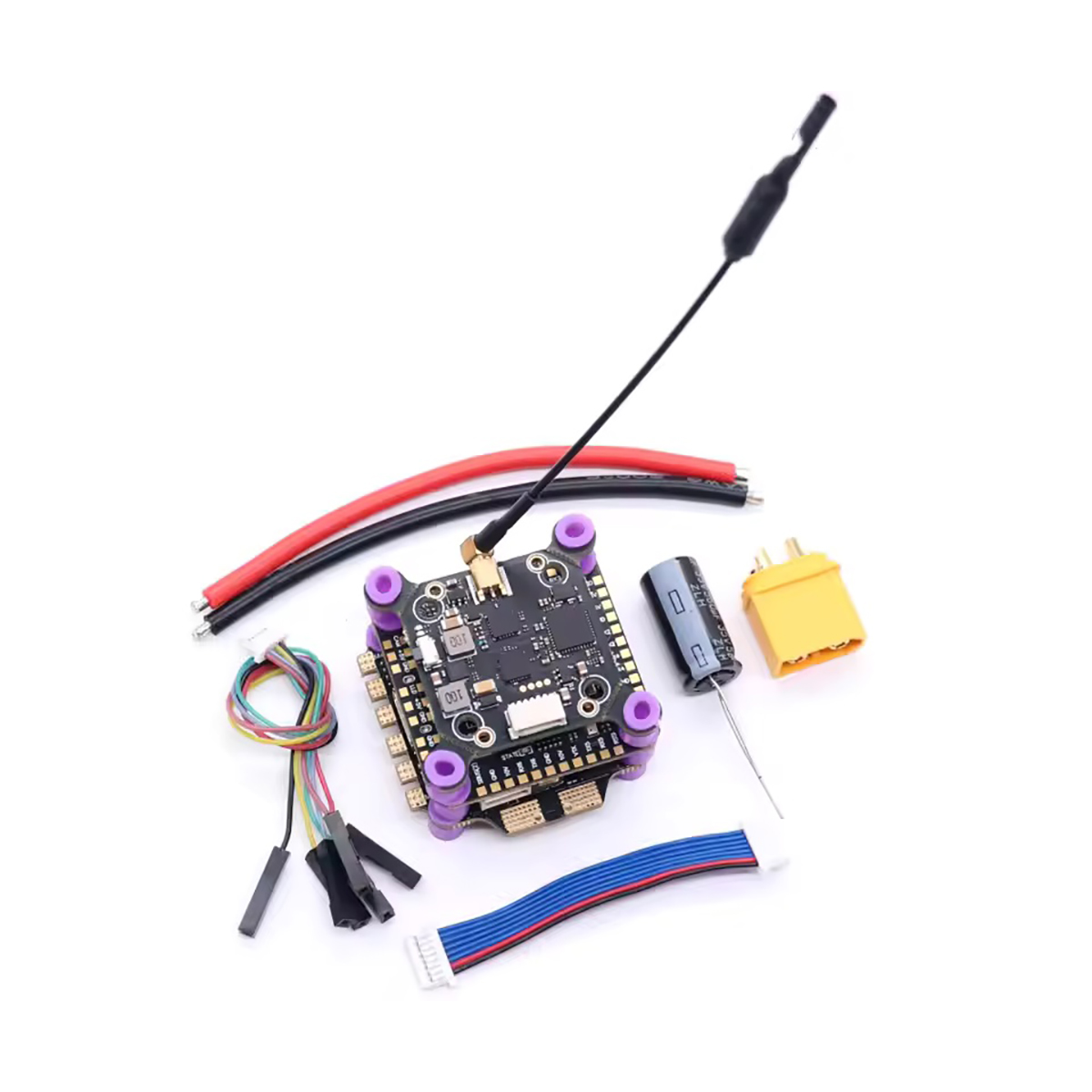

F722 45A VTX1000 x1
