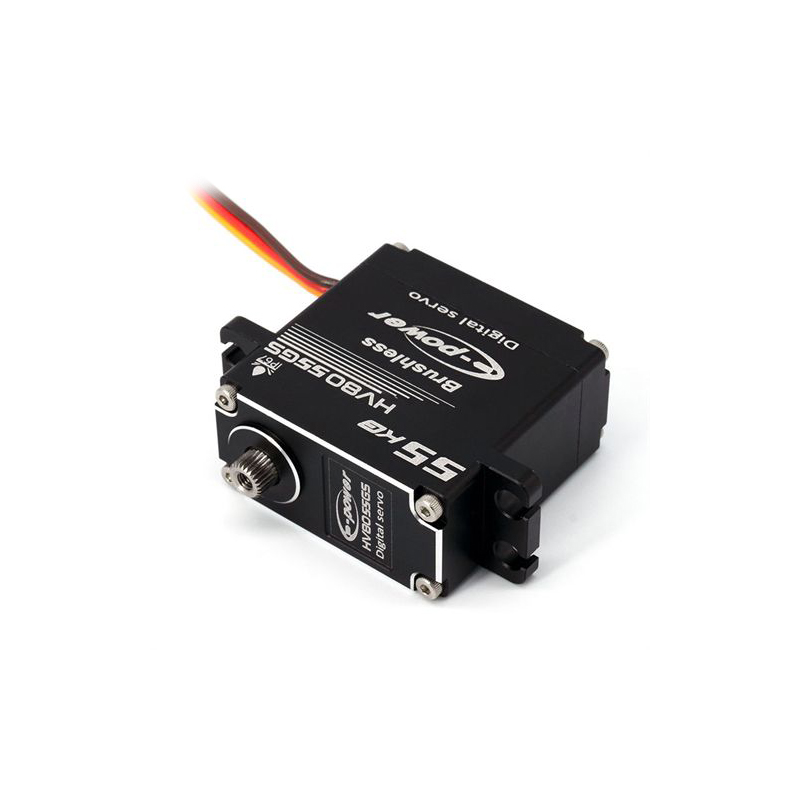

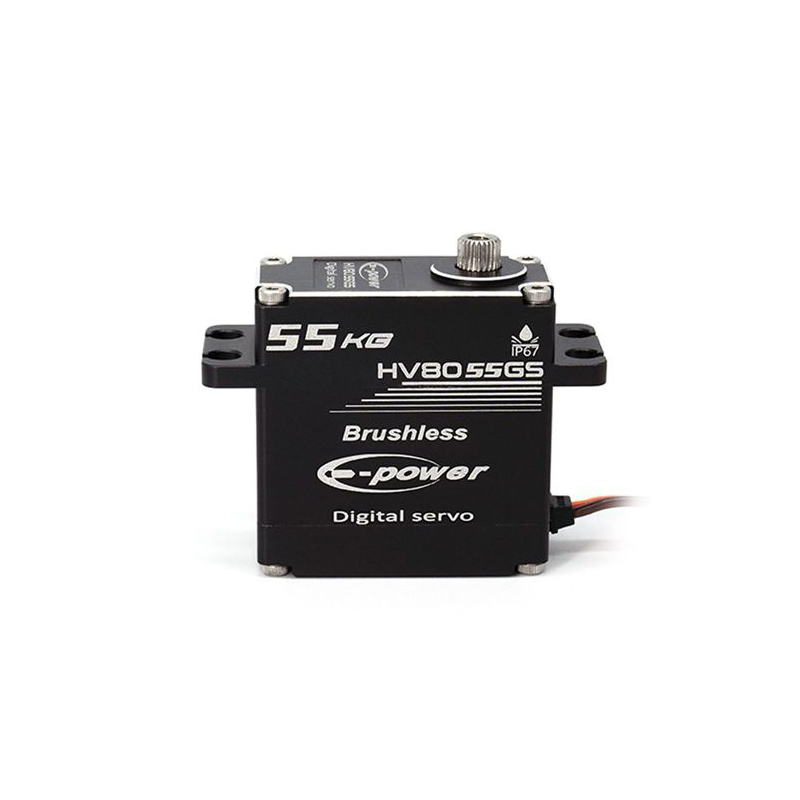

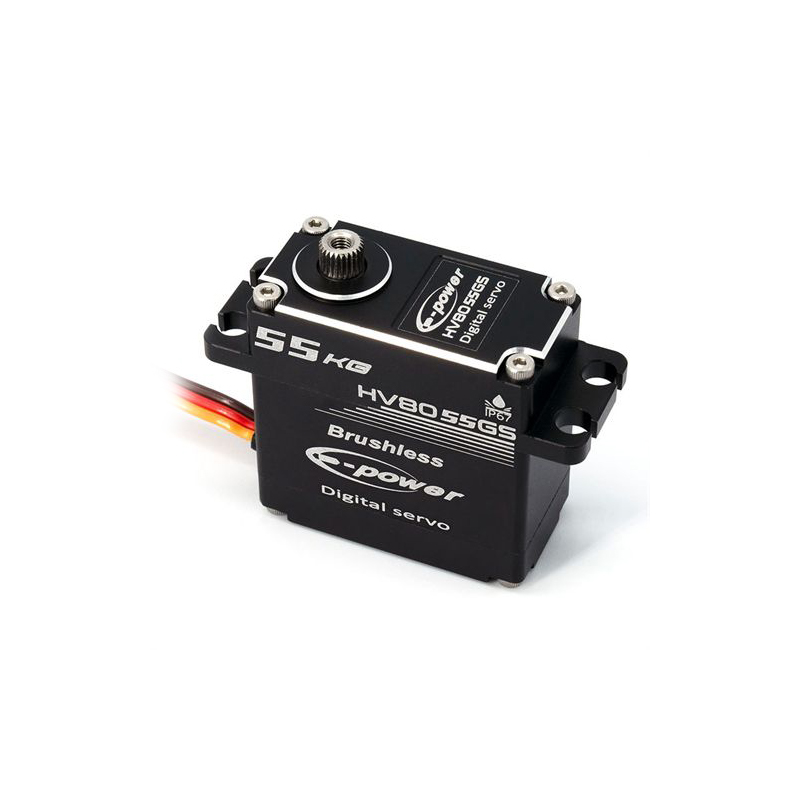

E-POWERRC 55kg Waterproof Brushless Servo 180/270 Metal Magnetic Sensor High Torque Parts For 1/8 1/10 RC Car Traxxas Scx10
E-POWERRC 55kg Waterproof Brushless Servo 180/270 Metal Magnetic Sensor High Torque Parts For 1/8 1/10 RC Car Traxxas Scx10
*Metal Gear Brushless Servo: Equipped with stainless steel gears, full CNC aluminum housing, low noise, light weight, double ball bearings.
*Waterproof performance: IP67, controllable angle range from 0 to 180 degrees, excellent linearity and precise control.
*Widely used digital servo: steering servo (control angle 180°/270°/360° optional) compatible with 1/8, 1/10 scale Clawer Truck, Traxxas, scx10, RC car/robot/boat and other RC models.
Brand: E-power
Model: HV8055GS
Ball Bearing: 2BB
Diver type: Mos Drive
Motor Type: Brushless motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dead band width: 1 usec
Gear Material: Metal Gear
Case Material: Aluminum Case
Operation Voltage Range: 6.0V ~8.4V
Operation Temperature Range: -20C°~ +60C°
Control Angle: 180°/270°/360° Optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control System: PWM Control (1500usec in the central point)
Circle: ＞100 milion times without load
Operation Travel: 60°±1
Limit angle: 180°± 1/270°± 1 Optional
Dimensions: 40x20x40.50mm
Weight: 81g (without servo horn)
Standing Torque: 0.13sec/60°,43kg-cm-@6.00V ;0.1sec/60°,50kg-cm-@7.4V；0.09sec/60°,55kg-cm-@8.4V
Idle Current: 300mA-@6.00V ; 450mA-@7.4V； 550mA-@8.4V
Running Current: 5000mA-@6.00V ; 6500mA-@7.4V；7500mA-@8.4V
Connector Wire Length: 300MMJR Plug
Connector Wire Gauge: 22AWG
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Black): Negative
Wire Info (Yellow): S Sinqle
1×E-POWERRC 55kg Waterproof Brushless Servo
