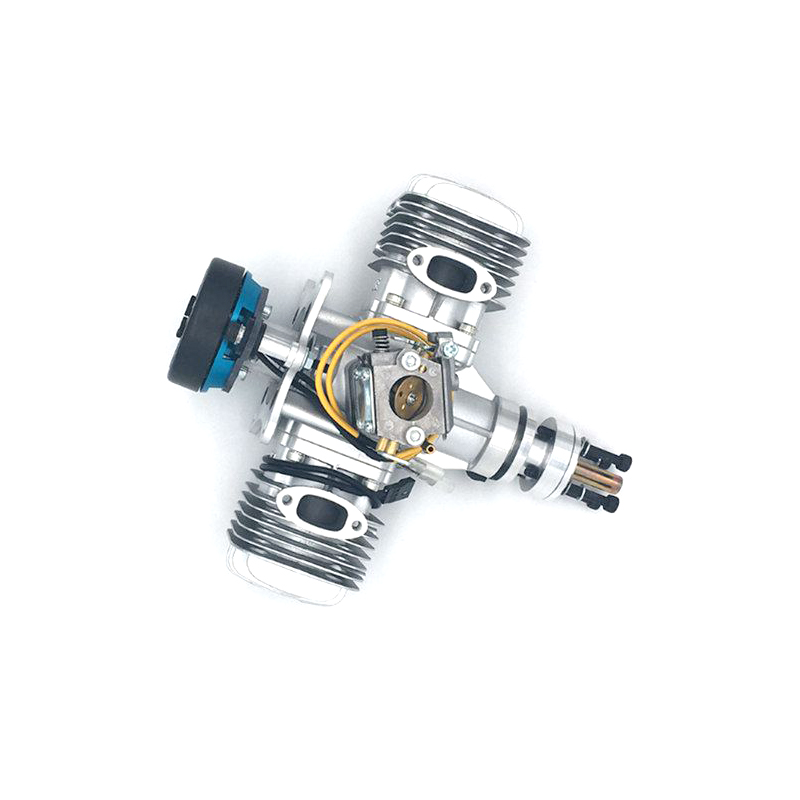

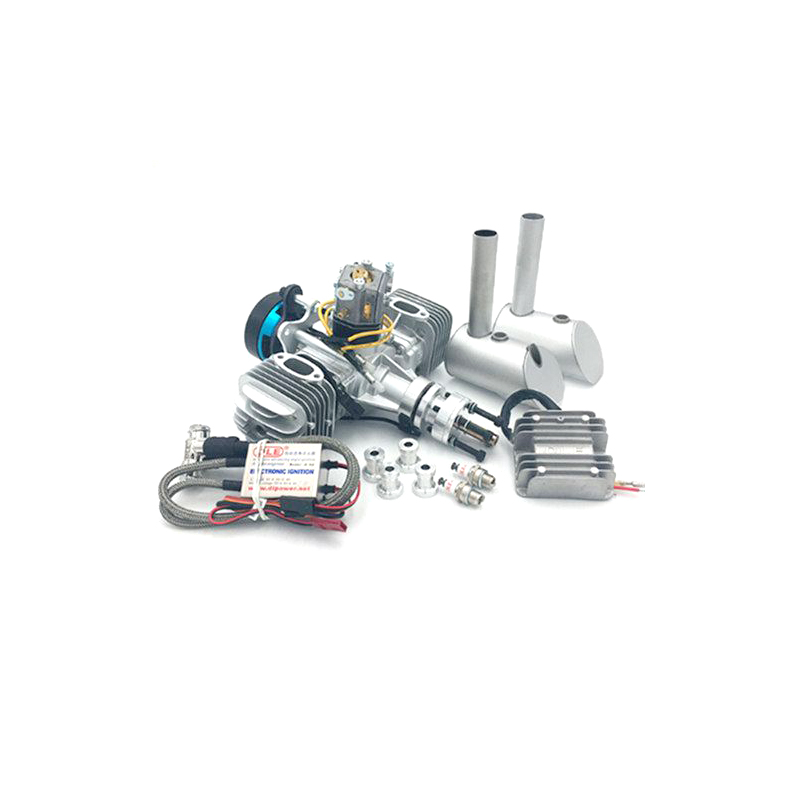

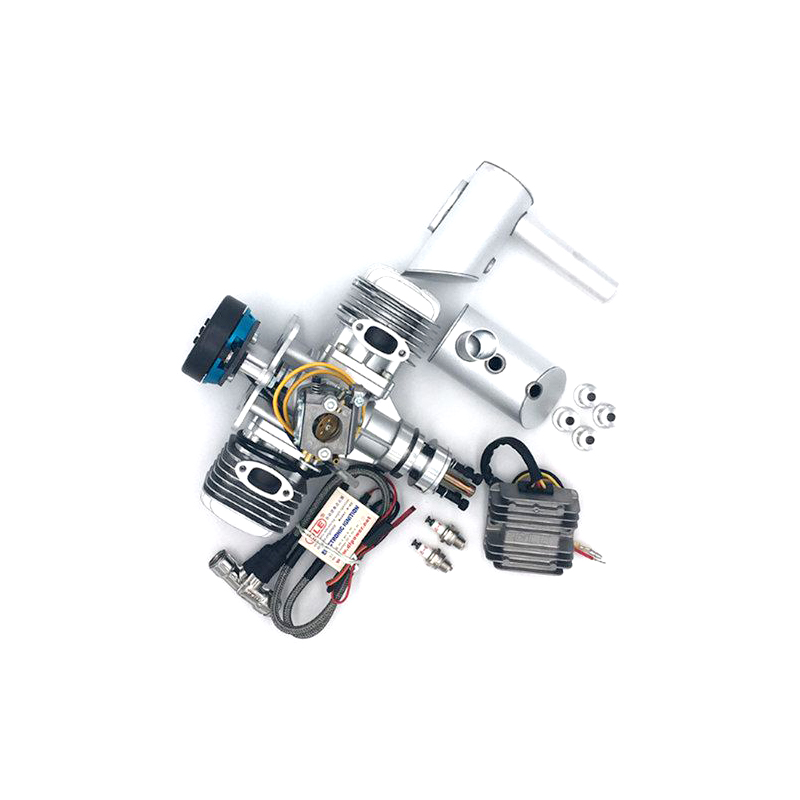

DLE60CC engine UAV power system (180W),DLE60,UAV twin cylinder power generation system






DLE60CC engine UAV power system (180W),DLE60,UAV twin cylinder power generation system
This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE refuses any liability;Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is strongly recommended during the installation.
■CAUTION : During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock absorber. Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.
Parameters:
Performance :7HP/8500rpm
Idle Speed :1400 rmp/min
Static Thrust :15.2kg/100 meters Altitude
Static Thrust :13.5kg/1800 meters Altitude
Recommended Propeller :22×10 ; 23×8 ; 23×10 ; 24×8 ;
Spark Plug Type:NGK CM6
Displacement :61cm3
Diameter × Stroke :36mm×30mm
Compression Ratio :7.6:1
Lubrication Ratio :30:1
Weight of Main Engine :1560g
Weight of Exhaust:200g
Weight of Ignition:190g
Ignition voltage :4.8V-8.4V
13.5kg/1800 meters Altitude
Recommended Propeller :22×10 ; 23×8 ; 23×10 ; 24×8 ;
Spark Plug Type:NGK CM6
DLE60-180W x 1
