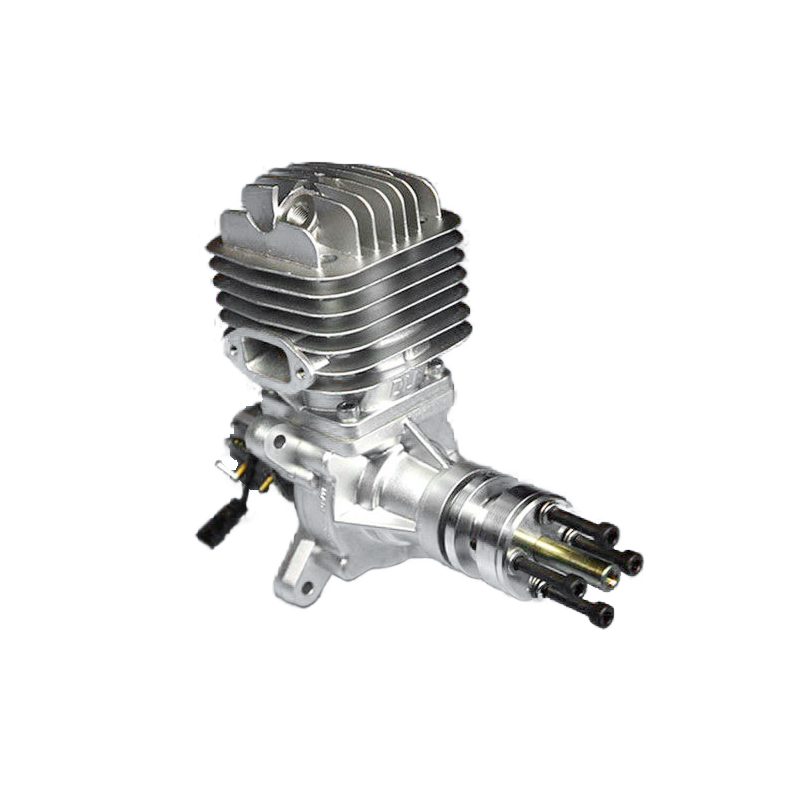

DLE 55 GAS EngineFor Model Airplane






DLE 55 GAS EngineFor Model Airplane
This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE refuses any liability;Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is strongly recommended during the installation.
CAUTION : During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock absorber. Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.
Performance : 5.5HP/8500rpm
Idle Speed : 1500 rmp/min
Static Thrust : 14.5kg/100 meters Altitude
Static Thrust : 12.8kg/1800 meters Altitude
Recommended Propeller : 22×8 ; 22×10 ; 23×8 ; 23×10 ;
Spark Plug Type : NGK CM6
Displacement : 55.6cm3
Diameter × Stroke : 45mm×35mm
Compression Ratio : 7.6:1
Lubrication Ratio : 30:1
Weight of Main Engine : 1330g
Weight of Exhaust : 140g
Weight of Ignition : 140g
Ignition voltage : 4.8V-8.4V



1 X DL55cc engine
User Manual
Walbro Pump Carburettor and Composite Throttle Arm Extension
Spark Plug and Spark Plug Cap Grounding Spring
Muffler, Gasket and Bolts
Machined Engine Mounting Standoffs(68mm long) and Bolts
