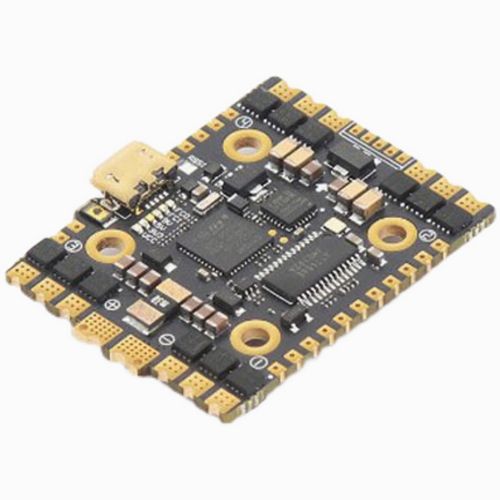

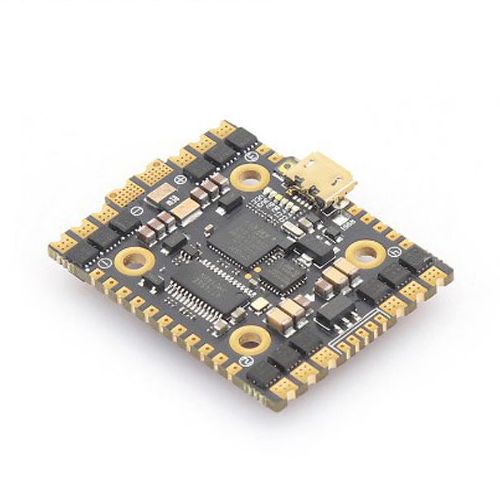

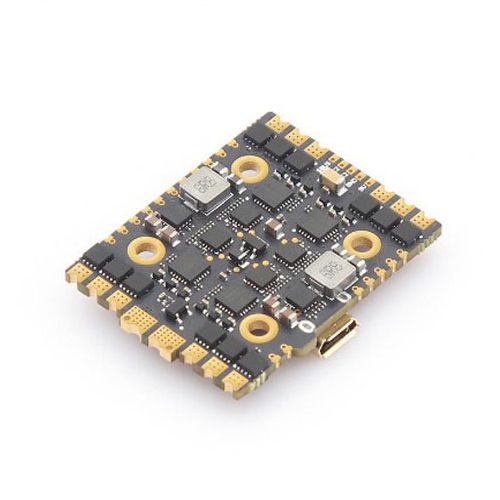

DIATONE MAMBA F411 35A AIO 6S 8bit Flight Controller Stack Internal USB 20mm/M2 for RC Drones DIY Parts
DIATONE MAMBA F411 35A AIO 6S 8bit Flight Controller Stack Internal USB 20mm/M2 for RC Drones DIY Parts
DIATONE MAMBA F411 35A AIO 6S 8bit Flight Controller Stack Internal USB 20mm/M2 for RC Drones DIY Parts
FC Specifications
MAMBA AIO F411 35A /20mm
MCU: 100MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Size:42×33×6mm
MOUNTING: 20×20,M2
ESC Specifications
MAMBA AIO F411 35A /20mm
Input: 3~6S Lipo (12.6~25.2V)
CONTINUE CURRENT: 35A×4
BURST CURRENT: 40A (10S)
Target: BLHeli_S GH30
SOFT: Dshot300/600
Supply :
High-Frequency 470uF/35V ×1
16AWG 60mm ×2
AMASS Original XT60 x 1
Flight Controller x 1
