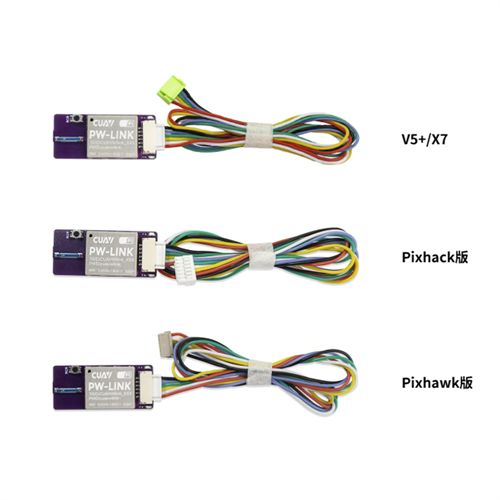

CUAV PW-LINK Wifi Telemetry Module Wifi Data Transmission For PIX FPV Telemetry PIXHACK PIXHAWK Flight Controller
CUAV PW-LINK Wifi Telemetry Module Wifi Data Transmission For PIX FPV Telemetry PIXHACK PIXHAWK Flight Controller
The pw-link model is the data transmission module, 2.4G wireless data transmission module has the following advantages.:
• Network processor – high performance,ESP8266;
• Radio communication, simple and fast and low cost UDP;
• all kinds of mobile devices can be connected quickly through WiFi module;
• It should be used in all kinds of ground station software supporting UDP communication
Version：Pixhack / Pixhawk (Optional)
Wireless standards：IEEE 802.11g、IEEE 802.11b
Transmission speed：11g： The highest54Mbps、11b：The highest 11Mbps
Attended mode：UDP：14550
Channel range：1 – 13
Frequency range：2412 – 2472MHz
Transmitting power：18dbm
Antenna type：UFL type
Wireless safe：WPA/WPA2 security mechanism
Communication protocols：Transparent transmission mode of serial port
Traffic rate：57600
Working voltage：5V +- 0.25V
Working current：100MA
Working temperature：-20 – 50°C
Operation humidity：10% – 90%RH（ noncondensing ）
Storage Temperature：-40 – 80°C
Storage Humidity：5% – 90%RH（ noncondensing ）
Size：28*17*1.2mm
Weight：65g
CUAV PW-LINK Wifi Telemetry Module x1
