– Parameter:

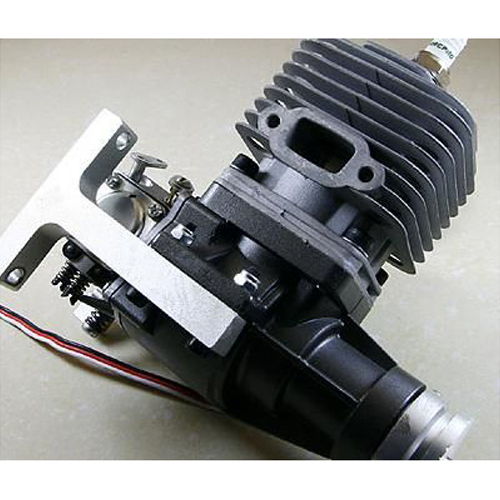

-Type : 2 cycle piston valve type gasoline engine for aircraft
-Displacement (cc) : 26cc
-Bore x Stroke (mm): 34mm x 28.6mm
-Carburetor : Walbro(Diaphragm butterfly valve type)
-Maximum Output : 3.15ps /9000rmp
-RPM rang : 1600-9000rpm
-Weight: about 1100g (without ignition battery)
-Fuel:Gas/Oil mix 25-35:1
-Ignition power: 4.8V (auto advanced) (Do not use 6V or higher for the CDI power supply. )
-Propeller suggestion: 18×6, 18×8, 18×10, 19×6 (2-blade prop)
-Dimensions:
-Width 100mm
-Length: 175mm
-height: 170mm (to top of glow plug), 130mm (to top of cylinder head)
