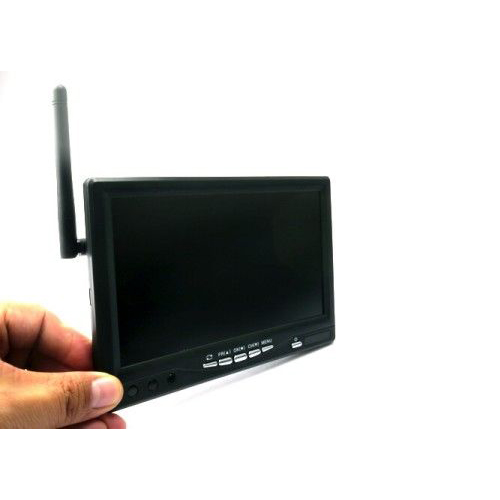

5.8GHz 32CH 7 inch Wireless & DVR Monitor RC800 (all-in-one)
This kit integrated monitor, 32-channel wireless A/V receiving, DVR (video recording) in one unit.
Further more, it has the following special innovative special features:
1. OSD menu displays working frequency, battery level etc on the monitor screen.
2. Switching channels of wireless AV transmitter & receiver synchronously by the model remote control (Special TX must be used for this function, refer to instruction manual for details)
3. ATT antenna tracking supported.
5.8GHz 32CH 7 inch LCD Monitor W/ DVR (Video recording) Function RC800 (all-in-one)
.8GHz 32CH 7 inch LCD Monitor W/ DVR (Video recording) Function RC800 (all-in-one)
Specification:
Resolution：7″ 800*480 HD Screen; PAL(720×576), NTSC(720×480)
Dynamic image：MP4, mono audio channel
Storage：RAM(around 128MB)、Mini SD(TF) Card（support 32GB in max, card is NOT included）
Wireless receiver：5.8G 32CH；
sensitivity：-90dBm

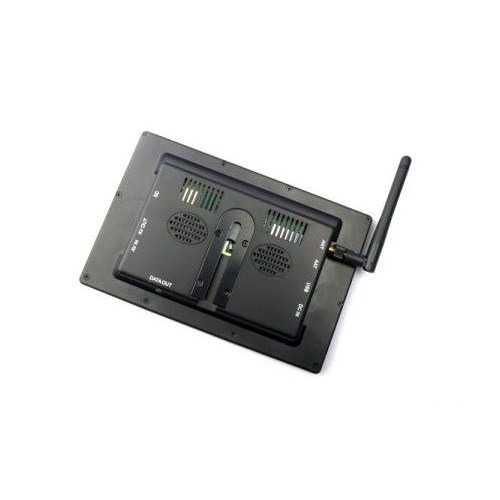

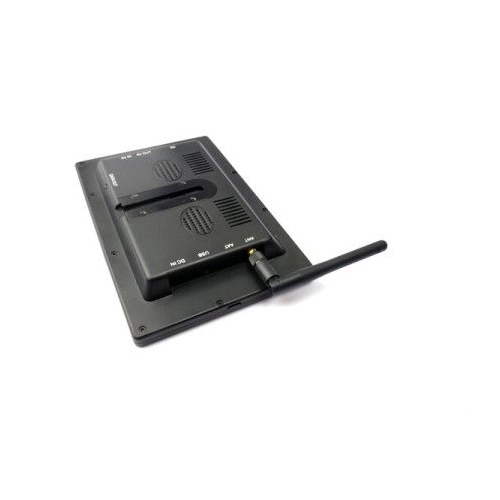

Input and Output port
AV output: mono audio channel; video output
AV input: mono audio channel; video input
DC IN:7-28V
AAT OUT port
ANT: RPSMA
DATA OUT port
USB:USB2.0

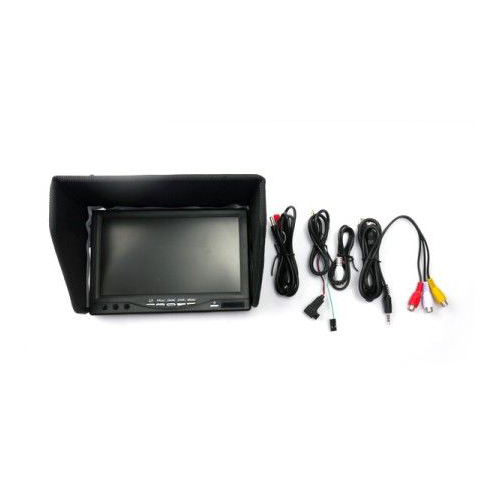

-1 x monitor
-1 x light shield (Fabric hood)
-1 x USB cable
-1 x AV cable
-1 x DC cable
-1 x AAT data cable
-1 x channel switching wire
