3KW Hybrid Solar Inverter 24V Pure Sine Wave Inverter with MPPT 80A Solar Charger Controller
*Pure sine wave inverter
*Configurable input voltage range for home appliances and personal computers via LCD setting
*Configurable AC/Solar Charger priority via LCD setting
*Compatible with mains voltage or generator power
*Configurable battery charging current based on applications via LCD setting
*Auto restart while AC is recovering
*Smart battery charger design for optimized battery performance
*Cold start function
*WIFI
*Can connect to lithium battery
*Overload/ Over temperature/ short circuit protection

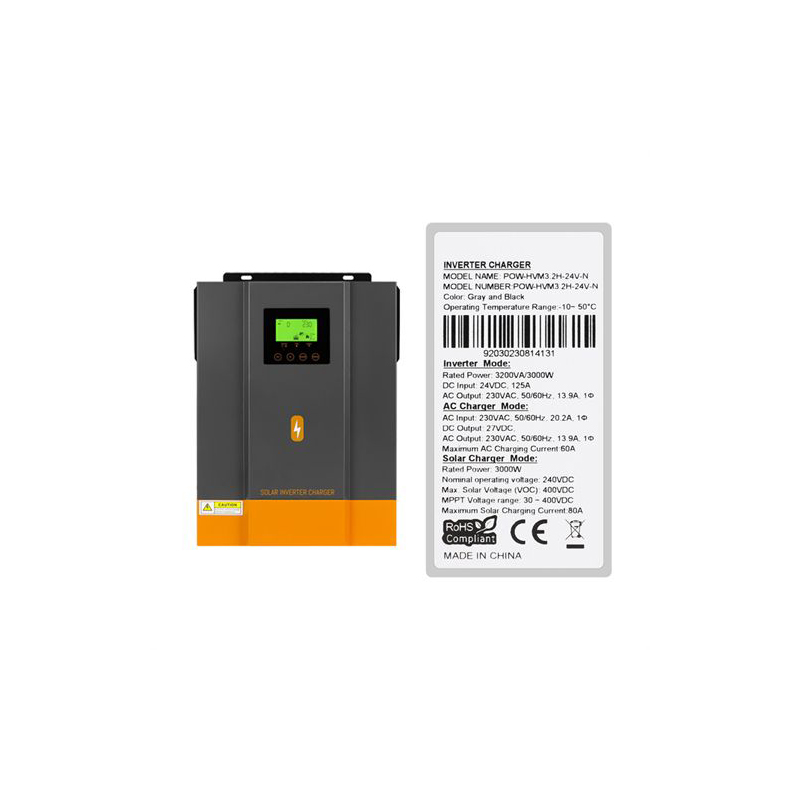

INVERTER MODEL: POW – HVM3.2H – 24V – N
Input Voltage Waveform: Sinusoidal(utility or generator)
Nominal Input Voltage: 230Vac
Low Loss Voltage:
170Vac±7V (UPS)
90Vac±7V (Appliances)
Low Loss Return Voltage:
180Vac±7V(UPS)
100Vac±7V(Appliances)
High Loss Voltage: 280Vac±7V
High Loss Return Voltage: 270Vac±7V
Max AC Input Voltage: 300Vac
Nominal Input Frequency: 50Hz/60Hz(Auto detection)
Output Short Circuit Protection: Circuit Breaker
Efficiency(Line Mode): >95%(Rated R load,battery full charged)
Transfer Time:
10ms typical(UPS)
20ms typical(Appliances)
Inverter Mode Specifications:
INVERTER MODEL: 3000W – 24V
Rated Output Power: 3200VA/3000W
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 230Vac±5%
Output Frequency: 50Hz
Surge Capacity: 2*rated power for 5 seconds
Nominal DC Input Voltage: 24Vdc
No Load Power Consumption: <35W
1×3KW Hybrid Solar Inverter
1×WIFI
