Waveshare Servo Driver HAT Straight Pinheader 16-Channel 12-bit Resolution I2C-Controlled for Raspberry Pi

Part No.: | WS-SDB-15275 |
Manufacturer: | Feixiang |
Send to a friend
Features
Waveshare Servo Driver HAT Straight Pinheader 16-Channel 12-bit Resolution I2C-Controlled for Raspberry Pi
Product Details
Model:Servo Driver HAT
SKU:15275
Weight:17g
Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver: PCA9685
Control interface: I2C

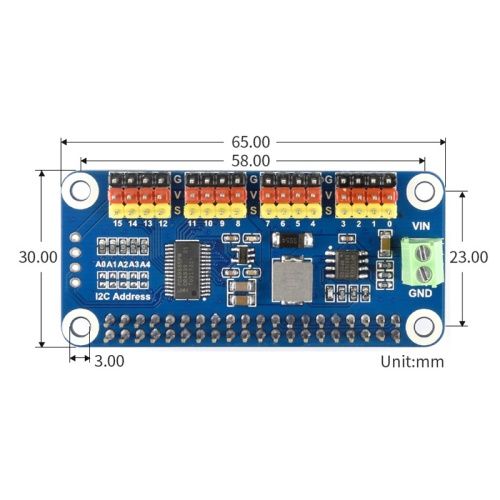

Dimension: 65mm x 30mm
Mounting hole size: 3.0mm
SKU:15275
Weight:17g
Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver: PCA9685
Control interface: I2C
Dimension: 65mm x 30mm
Mounting hole size: 3.0mm

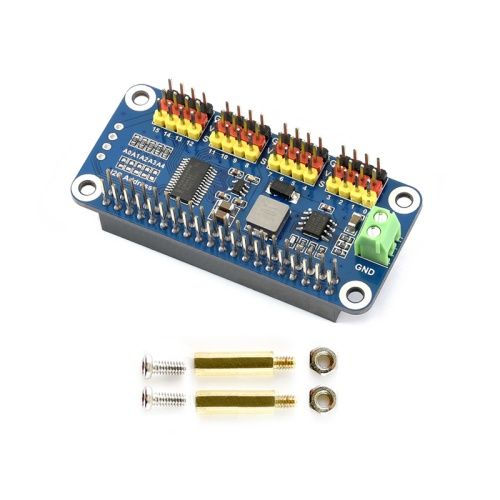

Item Packing
Servo Driver HAT x1
RPi screws pack (2pcs) x1
RPi screws pack (2pcs) x1

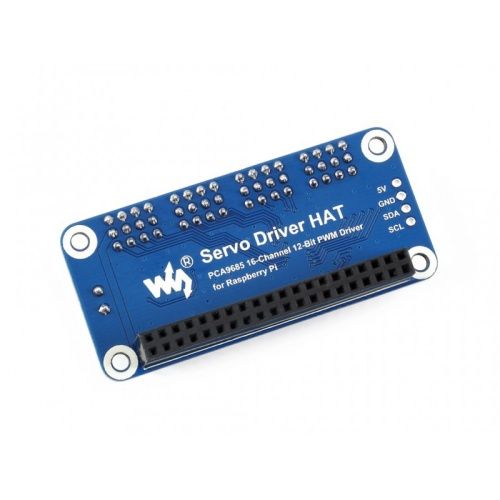

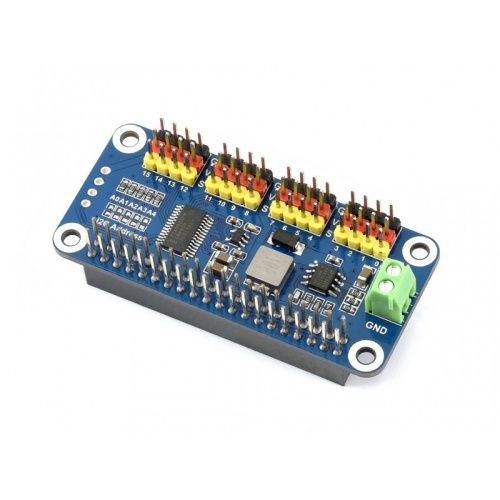

Detailed Images
