Hobbywing QuicRun Fusion SE 1800KV Sensored Brushless Motor Built In 40A ESC 2 in 1 Waterproof For 1/10 1/8 RC Car parts

Hobbywing QuicRun Fusion SE 1800KV Sensored Brushless Motor Built In 40A ESC 2 in 1 Waterproof For 1/10 1/8 RC Car parts
Part No.: Fusion-SE-40A-1800kv
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Hobbywing QuicRun Fusion SE 1800KV Sensored Brushless Motor Built In 40A ESC 2 in 1 Waterproof For 1/10 1/8 RC Car parts

Product Details

Product Name: QuicRun Fusion SE
Product Number: 1800KV-30404317

Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications
Cont./Peak Current: 40A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: 6V/7.4V@4A、6A peak
Motor KV: 1800KV
Diameter/length of Motor: 36mm / 58.1mm
Shaft diameter / exposed shaft length: 3.175mm / 16.5mm
Motor Poles: 4

Wires & Connectors
Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Input Connectors: XT60
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Independent programming interface(switch position)
Firmware Upgrade: Not Supported

Size & Weight
Size: 36X58.1mm
Weight: 201g (including wires&connectors)

Applications: 1/10throck crawler

Item Packing

QuicRun Fusion SE 1800KV Sensored Brushless Motor x 1

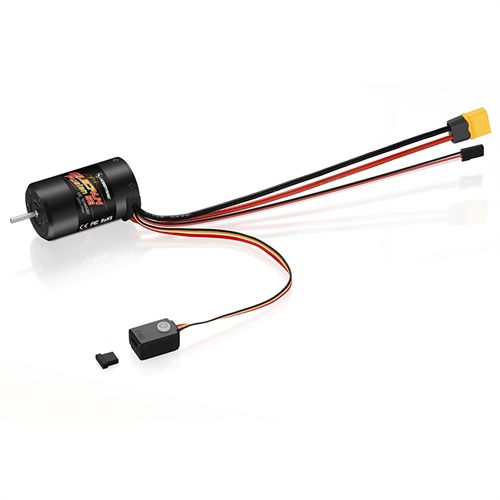

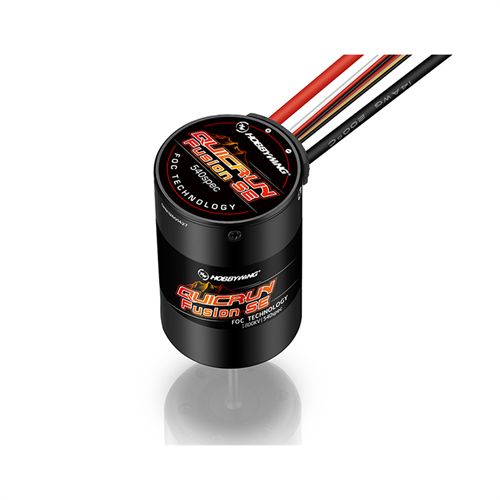

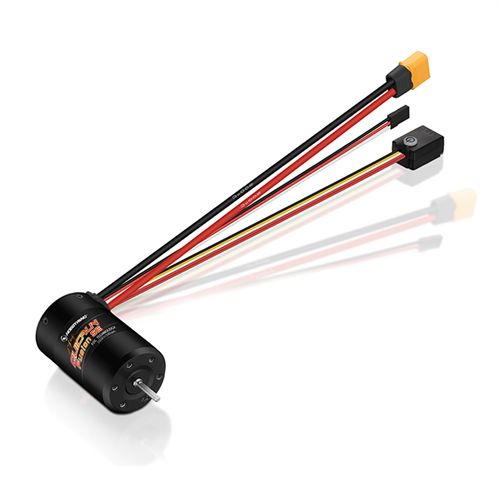

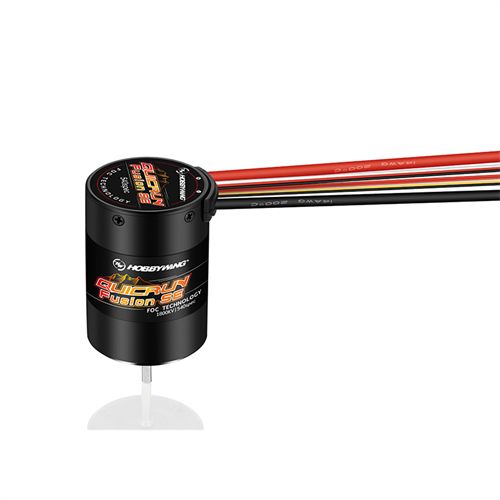

Detailed Images
