HSKRC ZD700 700mm Upgrade Pro Six-Axle Carbon Fiber Umbrella Folding Hexacopter Frame Kit with Landing Gear

HSKRC ZD700 700mm Upgrade Pro Six-Axle Carbon Fiber Umbrella Folding Hexacopter Frame Kit with Landing Gear
Part No.: HSK-ZD700
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

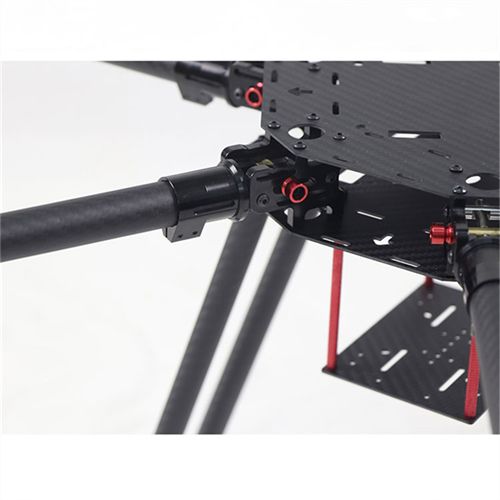

(The upgraded folding parts are more durable for hardware, easy to assemble and easy to use)
The arm adopts a 20mm carbon tube with a larger diameter, an 8-hole motor base, compatible with more motors, the center plate specification 200*200 has more space, the inner space of the frame is about 35mm, and the tripod adopts a vertical tube diameter of 16*300mm carbon Tube, tripod crossbar 10*330mm, more and more stable grounding area. Tripod uses double-tube carbon fiber as support, with a stronger bearing capacity of 50kg, tripod connection parts use plastic parts, low maintenance cost.

Product Details

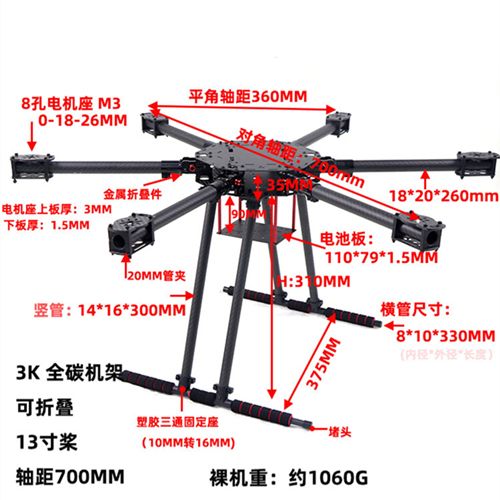

- Item Model: ZD700 Pro
- Material: Carbon fiber
- Diagonal wheelbase: 700mm
- Uppper center board thickness: 1.5mm
- Upper center board size: 200*200mm
- Bottom center board thickness:2.0mm
- Bottom center board size:200x190mm
- Battery board size:110x80x1.5mm
- Red Aluminum Column Length:90MM
- Arm tube size:18x20x260mm
- Height between two center plate: 35mm
- Landing gear horizontal tube length: 8*10*330mm
- Landing gear stand tube length:14*16*300mm
- Weight: 1060g(with fixed landing gear)
- Pipe clamp size:20mm
- Eight hole motor mount:0-18-25mm

Recommended configuration: (Not inlcuded)
 - Motor: 3508 / 4208 380KV
 - Prop: 1355 Carbon Fibre Prop
 - ESC: Hobbywing Xrotor 40A
 - Flight control: PIX / PX4 DJI NAZA-M V2
 - Battery: 6s 8000mah 25c battery, the flight time is about 15 minutes.
 - Load: About 3kg

Item Packing

HSKRC ZD700 700mm Hexacopter Frame Kit x 1set

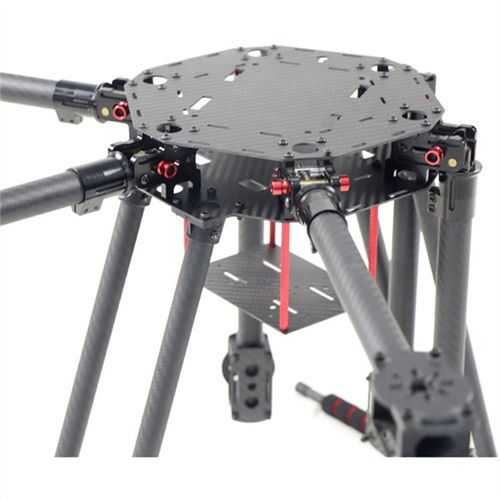

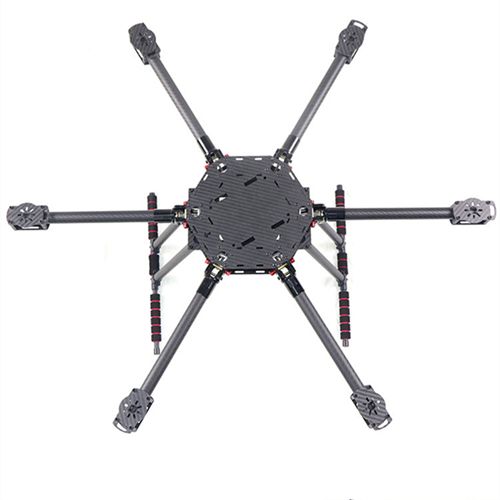

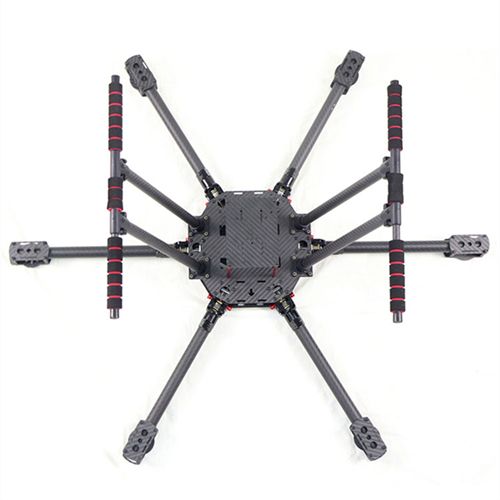

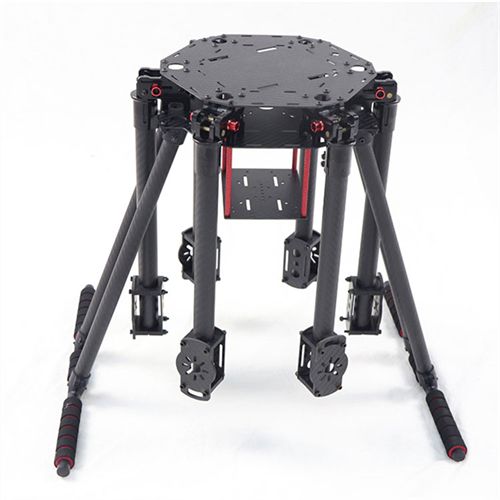

Detailed Images
