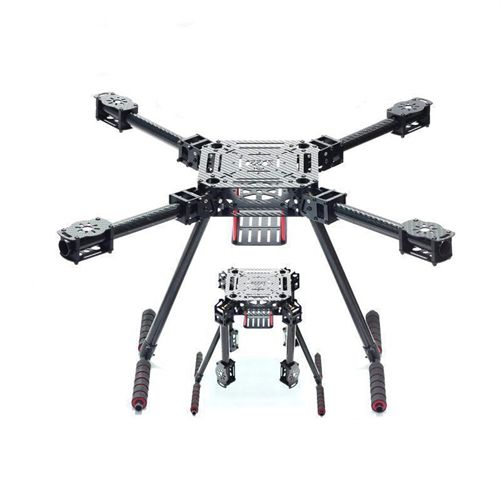

HSKRC ZD550 550mm Carbon Fiber Umbrella Folding FPV Quadcopter Frame Kit with Carbon Fiber Landing Gear Skid
| Part No.: | HSK-ZD550 |
| Manufacturer: | Feixiang |
Send to a friend
Features
The diagonal wheelbase of the motor base is about 550mm, and the flat-angle wheelbase is about 395mm, and the maximum support is 15 inches of propellers.
The center board specification 150*150mm has more space, and the middle height of the center board is about 37mm, making it easier to install the flight controller.
Hanging expansion board, height 45mm, width 45mm. You can put more things, including hanging pan/tilt.
The tripod adopts a carbon tube with a diameter of 16mm, a height of 260mm, and a tripod crossbar of 330mm, which has more grounding area and more stable.
ZD550 arm carbon tube: 18*20*200mm tripod horizontal tube: 8*10*330mm tripod vertical tube: 14*16*245mm
Product Details
- Landing gear height: 260mm
- Weight: 630 ±2 g
- Material of the main board : 3k full carbon fiber
- thickness of the main board : 1.5mm
Recommended configuration: (Not inlcuded)
- Motor: 3508
- Prop: 12-14 inch CW CCW
- ESC: 30A(2-6s) ; 40A (2-4S)
- Flight control: APM opensource flight control
- Battery: 4-6S Lipo
- Weight: 630 ±2 g
- Material of the main board : 3k full carbon fiber
- thickness of the main board : 1.5mm
Recommended configuration: (Not inlcuded)
- Motor: 3508
- Prop: 12-14 inch CW CCW
- ESC: 30A(2-6s) ; 40A (2-4S)
- Flight control: APM opensource flight control
- Battery: 4-6S Lipo
Item Packing

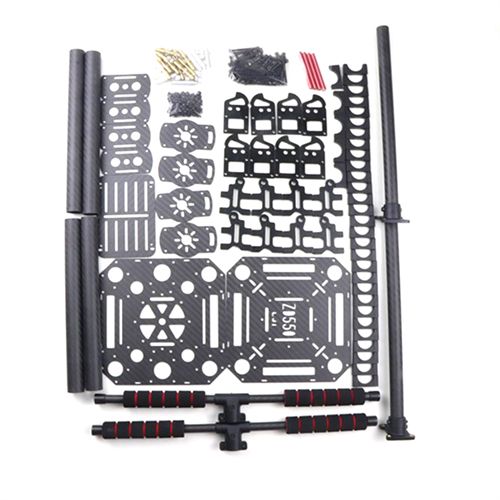

ZD550 550mm Frame Kit x 1set
Detailed Images
