CUAV New Industrial LBA 3 Micro Private Network 4G 5G Large Bandwidth Hybird One To Multiple Communication Base Station
| Part No.: | LBA3-COMBO |
| Manufacturer: | CUAV |
Send to a friend
Features

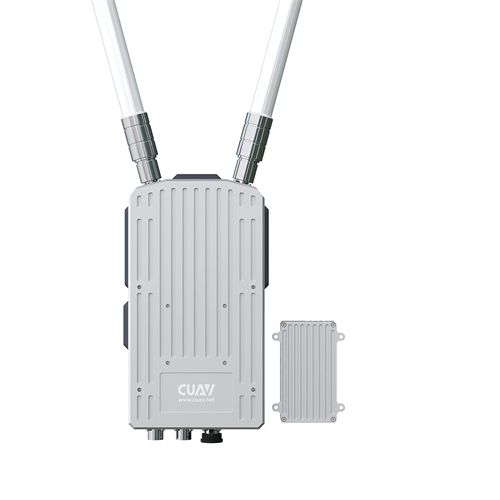

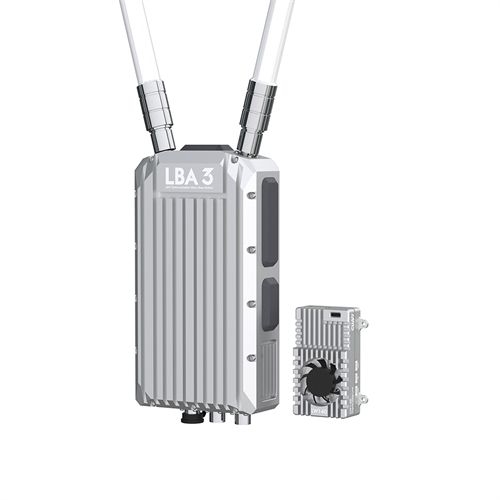

LBA 3 is a micro base station equipment for medium and long-distance networking communication of UAVs. It has a coverage of 54km, 30Mbps large-bandwidth communication, and supports a multi-unit network of up to 16 nodes. It is equipped with CUAV LGC Ground Control Station, which can realize drones Fly in formation to meet more diverse application requirements of users.
LBA 3 Features：
1 --54km coverage area
2--30Mbps large bandwidth
3--16-node network
4--Flying in formation
5--Private network /4G/5G hybrid communication
6--IP67 industrial protection
Product Details
LBA 3 Specification
Coverage Area：1.4 GHz 50km /800MHz 50km
Anti-interference：Dynamic frequency hopping, intelligent frequency hoppingin the frequency band
Frequency band：1420-1448MHz/806~826MHz
RF Power：5W max
Communication bandwidth：Starter version:30Mbps / Advanced version:100Mbps
Network node：Starter version:2~16个/dvanced version: 2~64
Network type：Point-to-point/one-to-multiple
Encryption：AES265
Modulation：Support QPSK,16QAM, 64QAM modulation
Delay：Slave node-central node transmission delay <=150ms
Operation interface：WEB
LTE network type：AII Netcom TD-LTE/FDD LTE/TD-SCDMA/WCDMA
PowerIN：BaseStation: Support 20V~60V input (Standard power consumption24V 1.5A) /POE 90W SupportAir；Unit: Support 20V~60V input (Standard power consumption 24V 1A)
OperatingTemperature：-15~+65°
Size：LBA 3 BaseStation:220x120x50mm(Without antenna)；Air Unit:90xx65x26.4mm
Weight：Base Station: 1.65kg Air Unit: 155g
Interfaces：Air Unit: SMAAntenna interfacex2，XT30 Power connectorx1，RJ45data interface x1，USB x1，TTL serial port x1N female antenna interface x2，SMA antenna interface x2，XT30power interfacex1，POE Network Interfacex1
Protection Level：Base Station IP67 Air Unit IP20
AG Module Specification
Frequency&Power：5.8G 20dbm
CPU：580MHz
RAM：265MB
FLASH：FLASH 32MB
Size：64x38x16.5mm
Voltage Range：5V+-0.2V450mA
Network Parameter
WEB Management IP：192.168.10.100 Account : root Password: none
Network Segment：192.168.10.x
WIFI Name：CUAV AG XXXX
WIFI Password：12345678
Operating Temperature：-15+60°C
Storage Temperature：- 20+65°C
Connector Type
LAN Interface： x3(GH1.25 4P)
UART Interface： x2(GH1.25 6P+GH1.25 4P)
USB Interface： x1(GH1.254P)

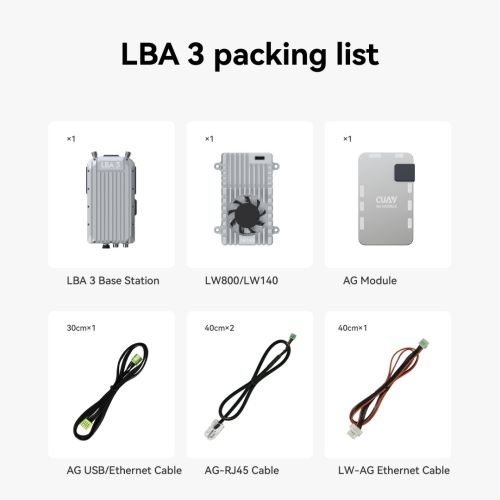

Item Packing
LW800/LW140 x 1
AG Module x 1
AG USB/Ethernet Cable 30cm x 1
AG-RJ45 Cable 40cm x 2
LW-AG Ethernet Cable 40cm x 1

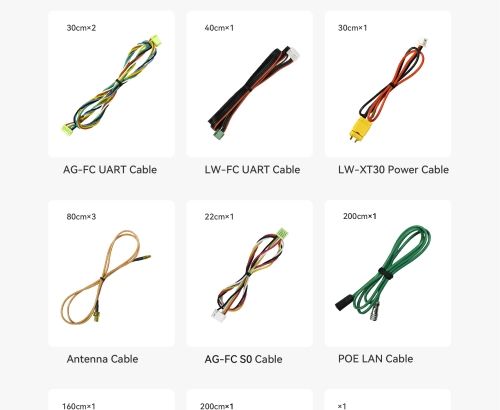

AG-FC UART Cable 30cm x 2
LW-FC UART Cable 40cm x 1
LW-XT30 Power Cable 30cm x 1
Antenna Cable 80cm x 3
AG-FC SO Cable 22cm x 1
POE LAN Cable 200cm x 1

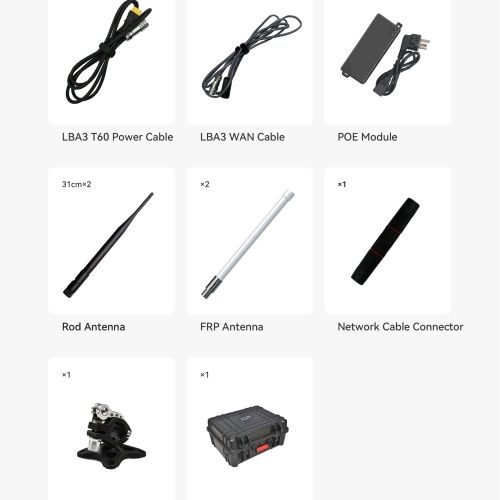

LBA3 T60 Power Cable 160cm x 1
LBA3 WAN Cable 200cm x 1
POE Module x 1
Rod Antenna 31cm x 2
FRP Antenna x 2
Network Cable Connector x 1
Quick Release Plate x 1
Tool Box x 1
Detailed Images
