HappyModel Mobula6 HDZero SuperbeeF4 Lite Built-in SPI ELRS RX EX0802 KV19000 1S 65mm HD FPV Brushless Whoop Drone

HappyModel Mobula6 HDZero SuperbeeF4 Lite Built-in SPI ELRS RX EX0802 KV19000 1S 65mm HD FPV Brushless Whoop Drone
Part No.: HM-HDZERO-ELRS
Manufacturer: happymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Introducing Mobula6 HDZero, the very first 65mm HD brushless whoop in the World, weights less than 23.5 grams only!

We have been working on innovations of Brushless Whoop for a few years. Just like many of you, we are particularly eager to have a 65mm FPV whoop carrying HD VTX. Teaming with HDZero, Runcam, Nick Burns, Mr Shutterbug, Ryan Quellet and many other enthusiasts, here the dream comes true finally!

Product Details

Brand Name: Happymodel
Model: Mobula6 HDZERO
Frame wheelbase: 65mm

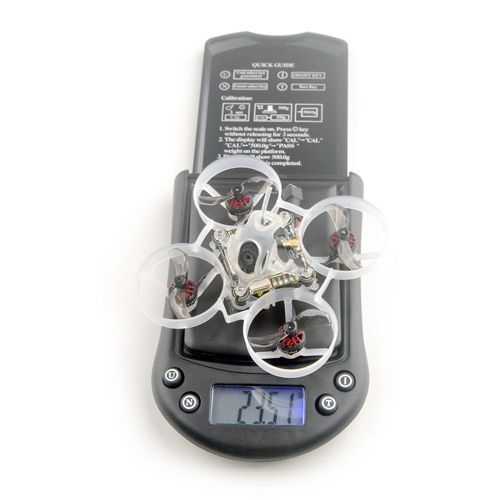

Weight: 23.5 gram without battery
Size: 80mm*80mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0

Flight controller SuperbeeF4 Lite FRSKY
• SPI ELRS version Firmware target: CrazybeeF4SX1280
• MCU:STM32F411CEU6 (100MHz, 512K FLASH)
• Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
• Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in SPI Frsky/ExpressLRS receiver
• Built-in 5V 1A BEC
• Built-in voltage detection

Onboard 4in1 ESC
• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
• Currents: 5A continuous peak 6A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver
• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHz
• Antenna plug: IPEX
• Telemetry output Power: <12dBm
• Receiver protocol:  SPI ExpressLRS
• Could bind with ELRS V2.0 firmware TX module

Motor
• Mode: EX0802 19000KV
• Configu-ration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.7g
• No.of Cells(Lipo):1S only

Propeller Gemfan 1219 Bi-blades
• Weight:0.19g
• Material: PC
• Pitch:1 inch
• Props Dia:30mm
• Center Hole Dia:1mm

HDZero Nano Lite Camera
• 14x16x11 mm
• 1.5gram
• 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
• Excellent low light performance
• Fov: 4:3: D:130° H:108° v:84°
         16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX
• 1S Input
• 25mW/200mW RF Output-SmartAudio Support
• 25.5x25.5 M2 Soft Mounting- Antenna Retention
• Removable Shielding Box- 32.5x32.5mm(29x29mm inner)
• 4.5grams/4mm Thickness (without shielding)

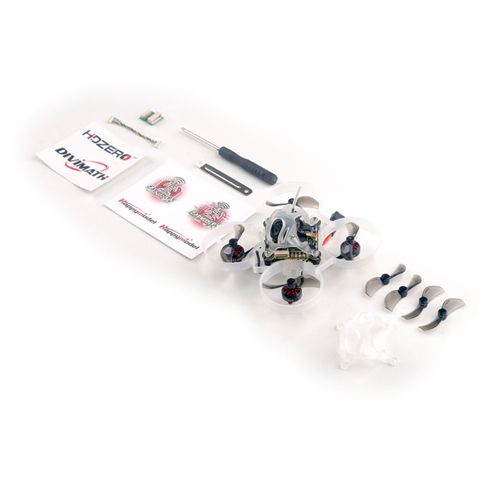

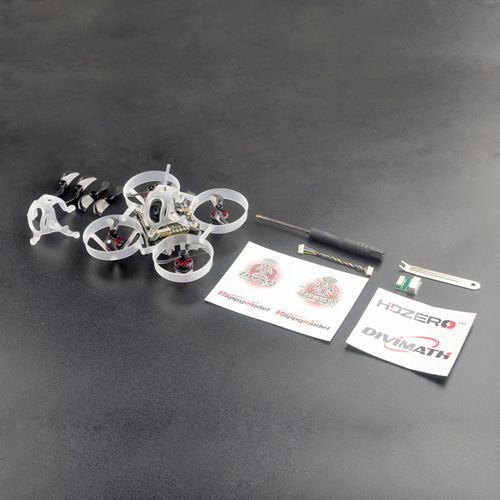

Item Packing

Mobula6 65mm frame+Canopy x 1
SuperbeeF4 Lite FC built-in ExpressLRS SPI RX x 1
EX0802 KV19000 Unibell brushless motor x 4
Gemfan 1210 31mm propeller(4cw+4ccw) x 1
HDZero Nano Lite Camera x1
HDZero Whoop Lite VTX x1
Spare Canopy x1
Propeller disassemble tool x1
Screw driver x 1

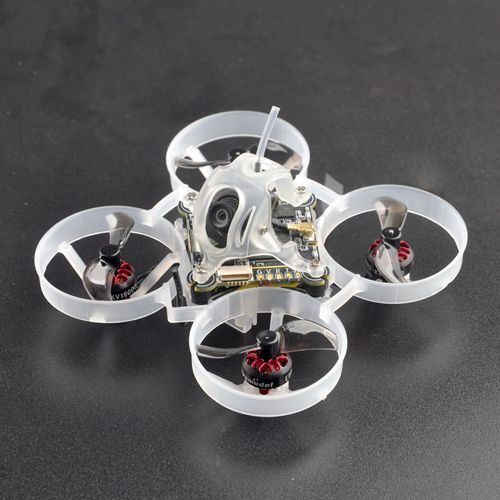

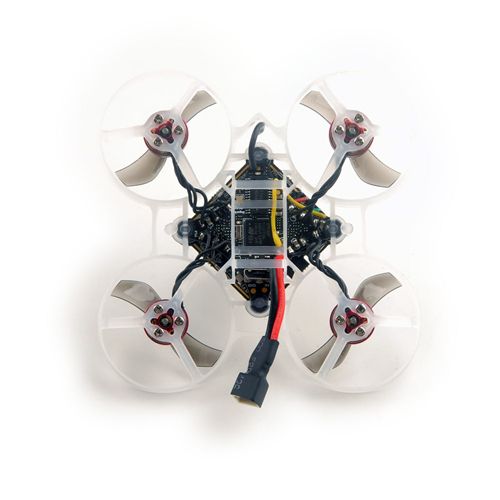

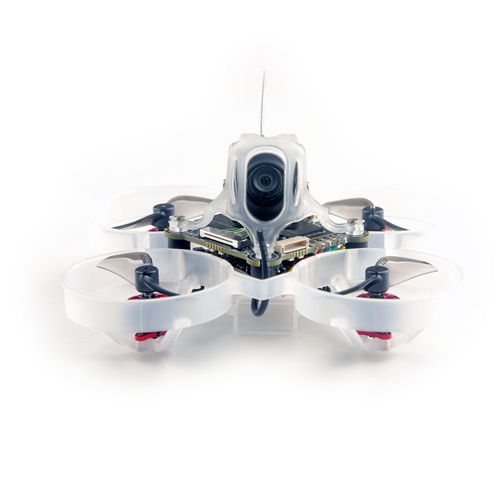

Detailed Images
