MARK4 V2 9inch 387mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

MARK4 V2 9inch 387mm WheelBase RC FPV Freestyle Racing Drone Frame Kit
Part No.: MARK4-9INCH-V2
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

MARK4 V2 9inch 387mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Product Details

Model: MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Item Packing

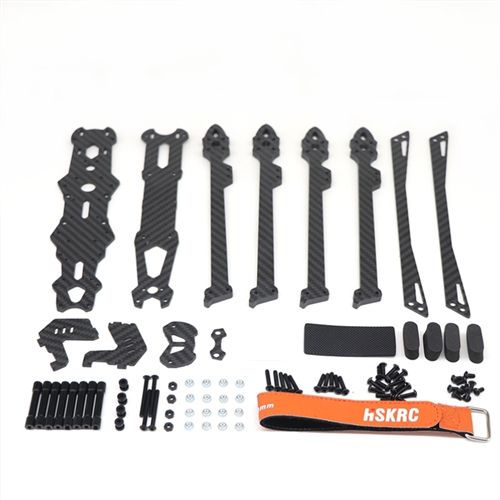

MARK4 V2 9inch 387mm Frame Kit x1set

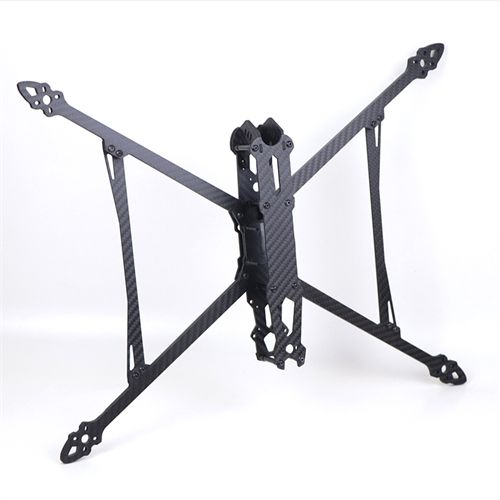

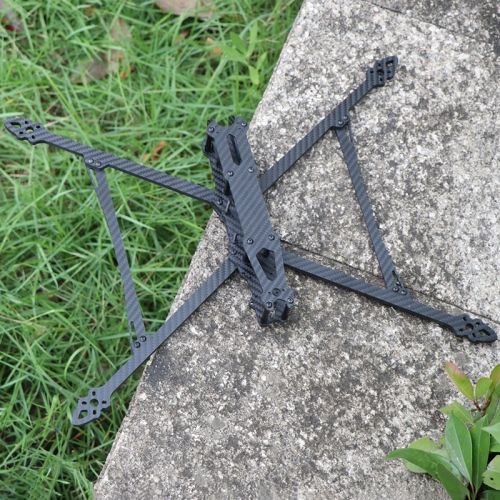

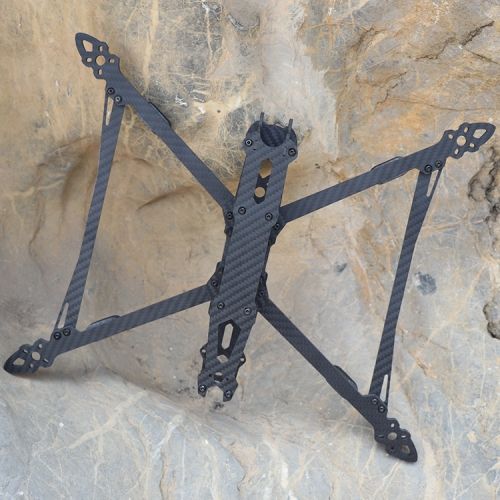

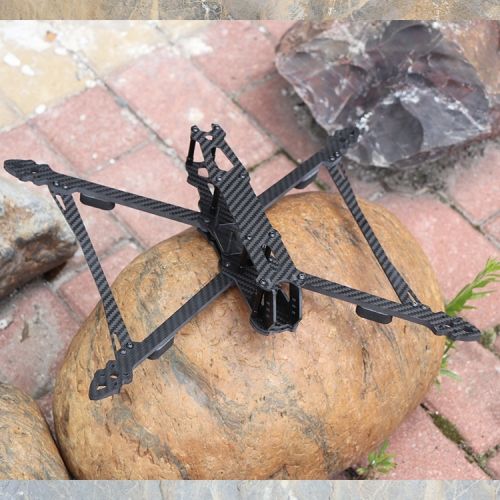

Detailed Images
