Hobbywing BL ESC for Aircraft and Heli > Product details

Platinum PRO V4 160A -HV ESC

Platinum PRO V4 160A -HV ESC
Part No.: Platinum160A-PRO
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

This is the Hobbywing Platinum Pro V4 160HV ESC, for use with 700-800 sized Helicopters.

One of a Kind Design
The elegant case is made from aluminum alloy material. Each cooling slot and its fin were carefully designed and arranged, and the case has gone through oxidation, coloring and edge-highlighting.

Innovative Heat Dissipation Structure
The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.

Excellent Motor Speed Governing
The high performance 32-bit processor, combined with advanced algorithm, makes the motor speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.

Super Soft Start-Up
The Platinum-HV-160A makes the motor start extremely soft and avoids tail-drift issues. The start-up time is adjustable within 8 to 25 seconds. This will definitely create a perfect starting point for every flight.

Super BEC
The built-in switch mode BEC with a continuously adjustable output voltage, range from 5V to 8V (steps: 0.1V). It is certain to put out the power you need for rapid, precise steering servo operation.

Great Current Endurance
A high-quality and high-voltage MOSFET with a great current endurance guarantees the ESC's safety especially in a extremely high power demanding situation.

Built-in Sparkproof Circuit
Built-in sparkproof circuit effectively eliminates sparks produced at the "powering-on" moment and prolongs the connectors lifespan.

Product Details

Main Applications: 700-800 Class Helis
Governor: Internal
Built-in BEC: Yes, Adjustable; 5-8V (10A continuous; 25A burst current)
Continuous Current: 160A
Cell Count: 6-14S
Case: Aluminum Alloy Shell
Programming:
Peak Current: 200A
Weight: 282g
Dimensions: 106x50x34mm
DEO Technology: Yes
Spark-Proof: Yes
Programming: Separate port for ESC programming (this port is also the FAN port)

Item Packing

1XPlatinum Pro V4 160HV

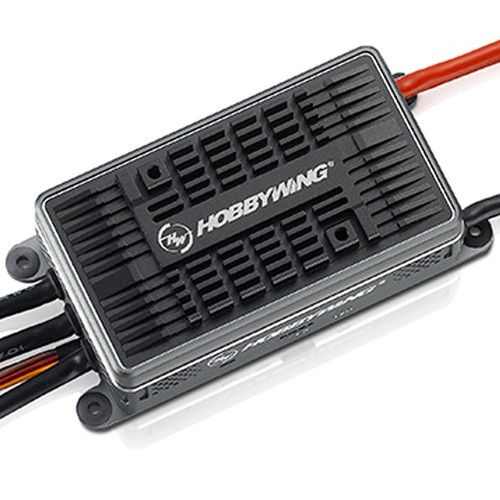

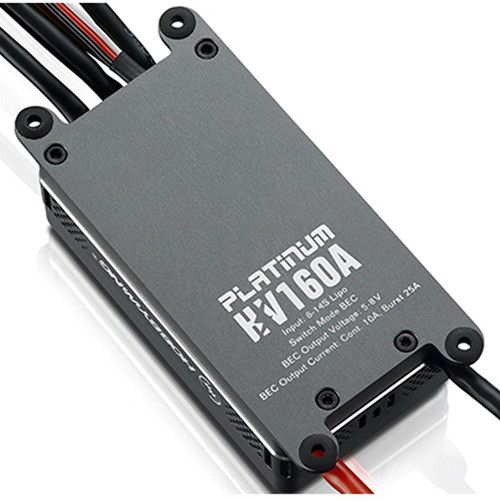

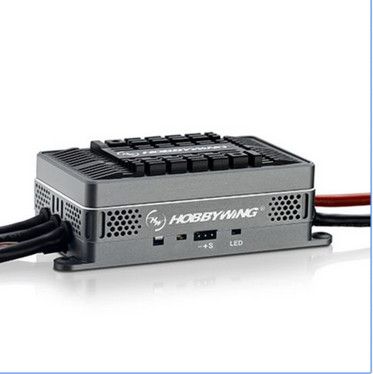

Detailed Images
