Tarot 130 FPV Racing drone/set

Tarot 130 FPV Racing drone/set
Part No.: TL130H1
Manufacturer: TAROT

Send to a friend

Your name:
Your e-mail:
Recipient's email:

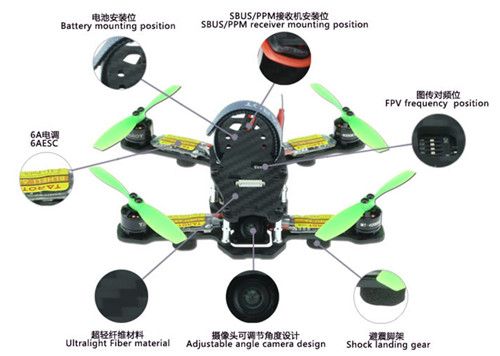

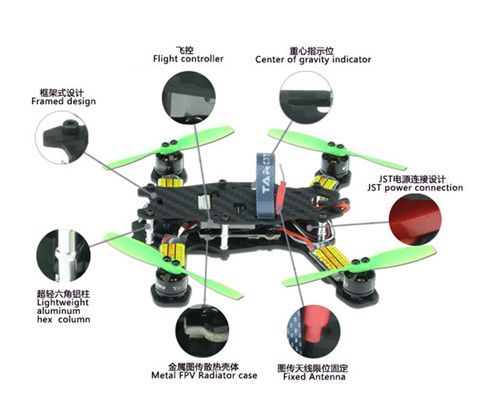

Features

-Miniature camera freely adjustable angle design
-Strong Brushless Power
-Sub-miniature 6A ESC
-300mW miniatures biography
-Full carbon fiber frame design
-Custom shock tripod
-Reliable power connection
-Lightweight aluminum hexagonal column
-Miniature image transmission antenna
-FIG CNC metal shell heat transfer
-Ties slip design
-Compact overall limit
-Free flight mode switch
-Flight control firmware factory default channel CH5 homeostatic control rack / manual mode
-Homeostasis model: flight control LED red light, beep loudly
-Manual mode: flight control LED red light off, beep sound

Reacommended Parts:
Propeller: 3 Inch Propellers
Motor: 1104 Or 1106 Brushless Motor
ESC: 6A Brushless Motor
Flight Control: CC3D/F3 Flight Control
Battery:11.1V 35C 450mAh Battery
Transmitter: 5.8G 300mW


The following products in our website are suit for the TL130H2 135mm frame kit:
Brushless Motor: Tarot MT1104 4000KV Brushless Motor
Brushless ESC: EMAX BLHeli Series 6A ESC
Flight Control:    SP Racing F3 Flight Control  Or Tarot Naze 32 6DOF Flight Controller FC
Camera: Tarot TL300MN2 520TVL 5-12V  FPV 1/4 120 Degree Wide Angle Lens Mini HD Camera
Transmitter: Tarot TL300N2 FPV 5.8G 32CH 300mW Audio Video A/V Transmitter TX

Product Details

Brand Name: Tarot
Model: TL130H1
Item Name: Tarot TL130H1 FPV Racer PNP
Material: Carbon Fiber
Wheelbase: 130mm
Empty rack height / Assembly height: 19mm/28mm
Empty frame length / Total Length: 111MM / 186MM
Empty frame width / Assembly width: 123MM / 199MM
Frame Suit Weight:85G

Item Packing

1x Tarot TL130H1 Frame
1x Flight Control
8x Propellers
4x Motors
4x ESCs
1x Mini FPV Camera
1x  Battery Strap
1x Battery Sticky

Note : Battery and receiver are not included .

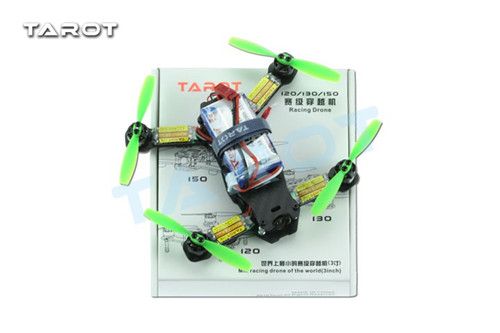

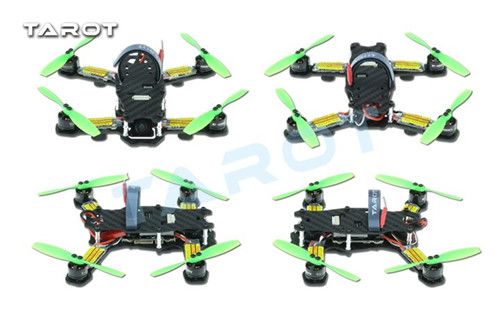

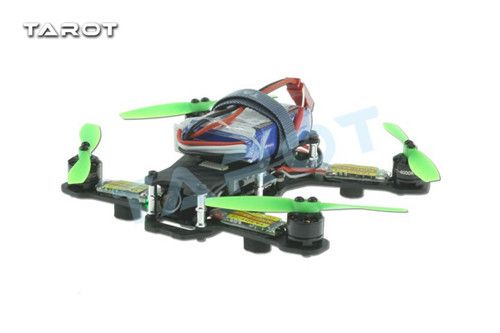

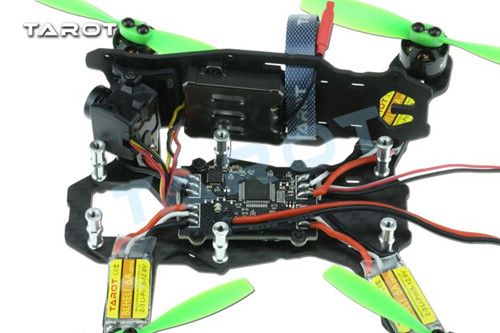

Detailed Images
