Skyzone SJ-H01 Head Tracker HD Video FPV Goggles 5.8g 40CH

Skyzone SJ-H01 Head Tracker HD Video FPV Goggles 5.8g 40CH
Part No.: SJ-H01
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Skyzone SJ-H01 960*1080 AV FPV Goggles Headset Support HDMI  2D 3D Mode With Head Tracker

Product Details

Brand Name :  Skyzone
Item Name : SJ-H01 Goggles

Display
FOV : 100 Degree
Resolution : 960*1080
Brightness : 450cd/㎡
Interpupillary Distance (IPD) : 64mm
Ratio : 16:9, 4:3, Full Screen(default)

5.8G 40CH Diversity Receiver :
Sensitivity : -90dBm±1dBm
Antenna Port : 2 x RP-SMA, 50ohm
Head Tracker
Sensor : Magnetic,Inertial and gyro
Output : PPM 8 channel
Video Standard : (Optional) CH5/CH6,CH5/CH7,CH5/CH8,CH6/CH7,CH6/CH8,CH7/CH8

AV Signal
Video Output Level : NTSC/PAL
Audio Output Level : 1.0Vp-p Typ./75ohm
MINI USB AV : 1.0Vp-p Typ./10Kohm

AV Port
EAR OUT(3.5mm3P) : Diversity Video/Audio output, Video/Audio input
HDMI IN : Stereo 16 Ω/150mW
Micro HDMI/D-Type : HDMI 1.4 specification

Power Supply
DC IN :  DC 10V~26V/1A
Power Consumption : 12V Input, 6.7W/RF Mode

Dimension: 164(L)*194(W)*108(H)mm(not include prominent part)
Weight : 490g(not include package box)
Operating Temp. : -10℃~+60℃

 CH      CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
GROUP
A 5865MHZ 5845MHZ 5825MHZ 5805MHZ 5785MHZ 5765MHZ 5745MHZ 5725MHZ
B 5733MHZ 5752MHZ 5771MHZ 5790MHZ 5809MHZ 5828MHZ 5847MHZ 5866MHZ
E 5705MHZ 5685MHZ 5665MHZ 5645MHZ 5885MHZ 5905MHZ 5925MHZ 5945MHZ
F 5740MHZ 5760MHZ 5780MHZ 5800MHZ 5820MHZ 5840MHZ 5860MHZ 5880MHZ
R 5658MHZ 5695MHZ 5732MHZ 5769MHZ 5806MHZ 5843MHZ 5880MHZ 5917MHZ

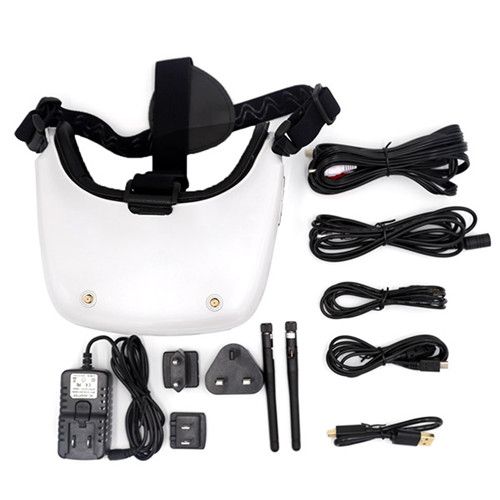

Item Packing

1 x Skyzone SJ-H01 3D FPV Goggles
2 x 5.8G 2dBi Antenna
1 x HDMI A-D Cable
1 x DC Cable
1 x AV Cable
1 x Mini USB Cable
1 x FUTABA Data Cable
1 x JR Data Cable

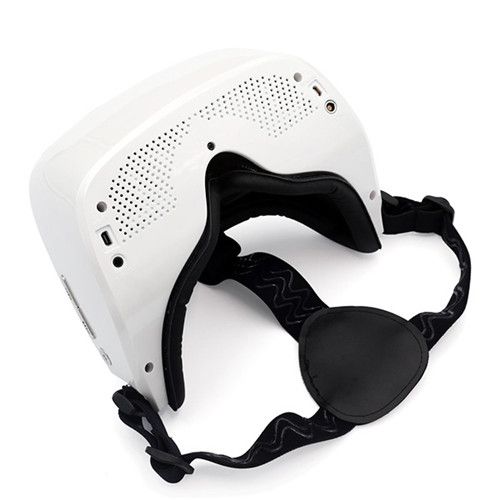

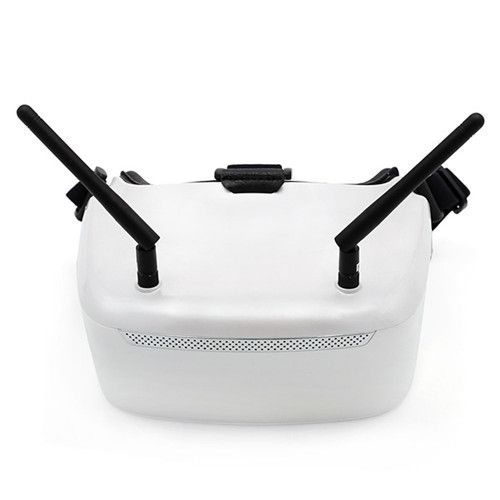

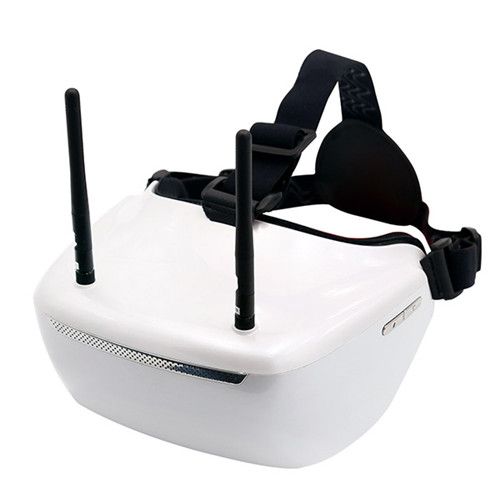

Detailed Images
