Hobbywing XeRun V10 G2 10.5T 3800KV Motor For Xerun ESC

Hobbywing XeRun V10 G2 10.5T 3800KV Motor For Xerun ESC
Part No.: V10-10.5T
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

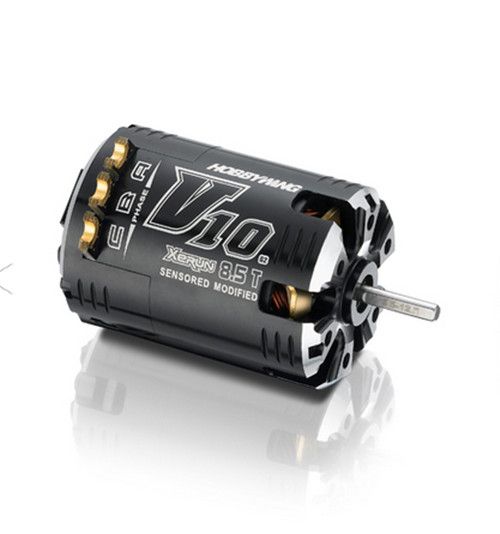

The exterior design of V10 G2 is inspired by the wheel design of super sports car.
The gap between the motor rotor and motor housing is extremely small due to precision machining and
no copper sheet is needed avoids the motor failure caused by
the wear of the copper sheet.
The built-in Hall sensor adjustable end bell combined with a
high precision and balanced rotor guarantees the user a smooth
and linear power on demand.
The motor housing is made from hard anodized aluminum,
motor windings are wound from double insulated wire,
the advanced rotor structure is designed to handle high temperature from the use of rare
earth magnets and the imported bearings which are implemented are high precision
metal caged for a minimum to zero friction which in turn will guarantee strength,
outstanding performance, high durability and smoothness of the motor.
The output performance of this motor has an efficiency of up to 90%.
In the same load condition, V10 G2 motor has the higher efficiency but
lower temperature than V10 motor.

Product Details

KV: 3800
Resistance: 0.0208 Ohm
Current w/o Load: 1.9A
Max Output Power: 250W
Current @ Max Output Power: 63A
Can Diameter: 36mm
Can Length: 52.5mm
Shaft Diameter: 3.17mm
Shaft Length: 14.6mm
Weight: 174g

Item Packing

Hobbywing Xerun V10 Modified Brushless 10.5T Motor (1 pc)
Sensor Cable (1 pc)
