iFlight Force 5.8G 25mW 200mw 400mw 800mw FPV VTX Adjustable with MMCX for FPV drone

iFlight Force 5.8G 25mW 200mw 400mw 800mw FPV VTX Adjustable with MMCX for FPV drone
Part No.: IF-VTX800W
Manufacturer: IFlight
Quantity:out of stock

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

- The output power is stable;
- Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;
- Output 48 frequency points,
- Frequency lock fast, the boot does not interfere with companions;
- Built-in output power self-check function;
- Full format video format: NTSC /PAL;
- Wide input voltage range. low power consumption: 7V~36V,+12V/380mA@800mW;

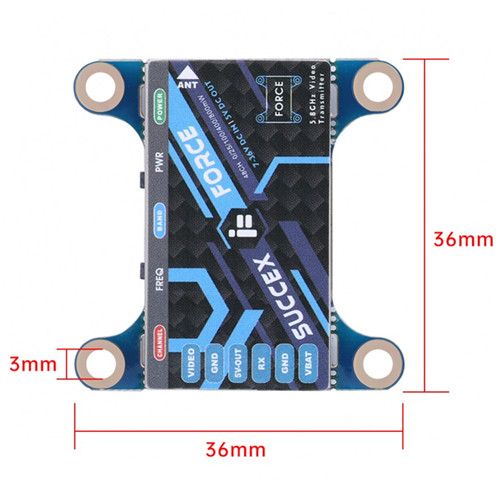

- Small size:36*36*3mm
- Mounting holes 4-M3
- Lightweight: 7.2g(excluding antenna)

Product Details

- Item: SucceX-Force 800mW adjustable VTX
- Input voltage:
- Output voltage/ Max current: 5V 1A
- 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW,250mA@500mW, 380mA@800mW
- Output 48 frequency points,
- size:36*36*3mm
- PIT/25mW/200mW/400mW/800mW

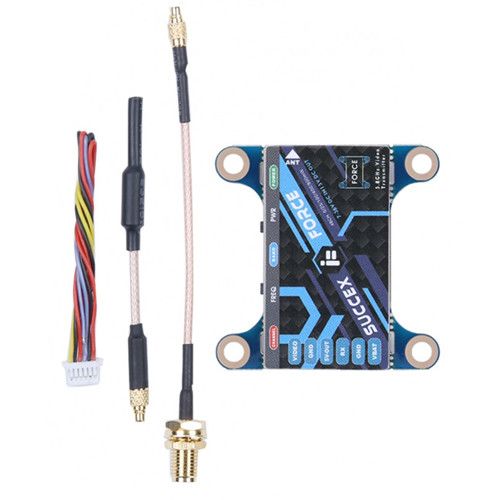

Item Packing

SucceX-Force 800mW adjustable VTX x 1
cables  x 1set

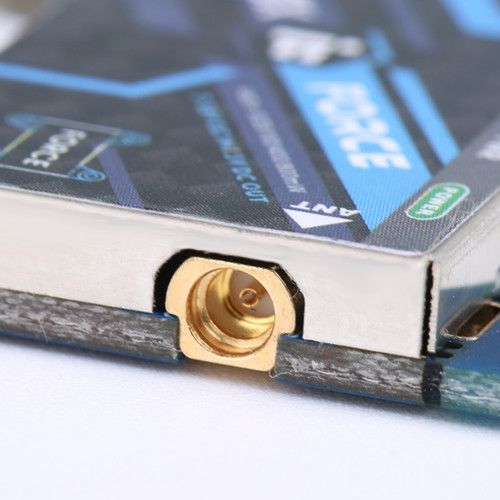

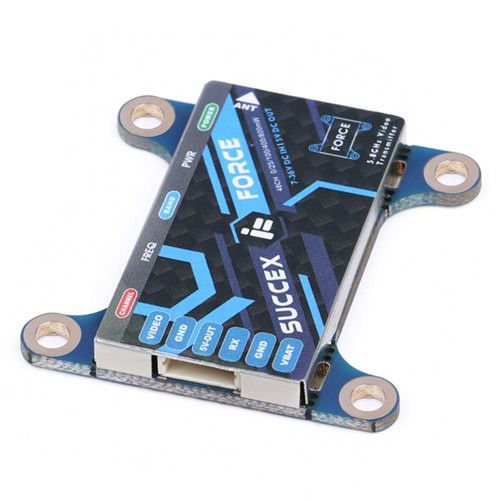

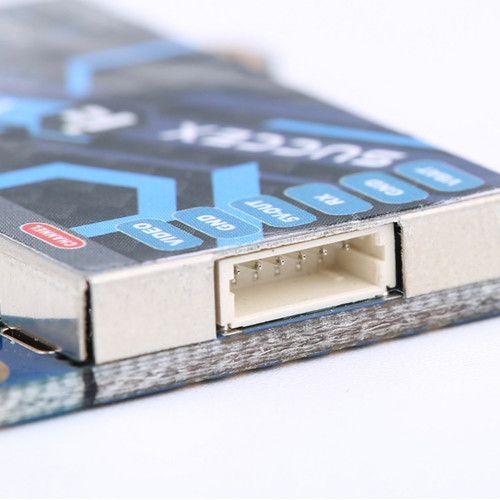

Detailed Images
