Tarot X6 960mm 6-Axis PCB Center Plate Folding FPV Hexacopter Frame Kit TL6X001

Tarot X6 960mm 6-Axis PCB Center Plate Folding FPV Hexacopter Frame Kit TL6X001
Part No.: TL6X001
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

- Downward folding structure, quick preparation before flight
- High quality PCB circuit board, adopts AS150 anti-spark plug, light weight
- Add ESC install position, cable slot for motor mount holder
- Electric landing gear with power reverse polarity protection and out of control function
- Metal GPS fixture plug-play design, very stable
- Obvious color, very clear in air, downward battery mount, larger and stable space

Product Details

- Wheelbase: 960mm
- Rotor size: 18inch
- Single arm length: 392mm
- Single arm weight: 113g
- Center plate diameter: 328mm
- Landing gear height: 395mm
- Battery: 15C 22.2V 10000-20000mAh
- ESC suggest: 40A
- Max.power consumption: 4000W
- Hover power consumption: 1800W
- Work temperature: -10℃~40℃
- Max.take off weight: 9kg
- 12mins duration by take 5D FPV devices
- N.W.: 2000g
- G.W.: 2700g

Item Packing

arot X6 960mm 6-Axis PCB Center Plate Folding FPV Hexacopter Frame Kit  X 1

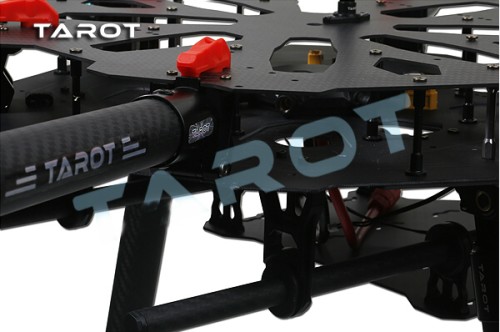

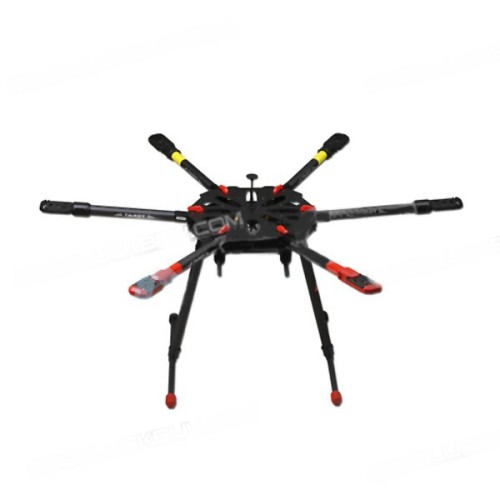

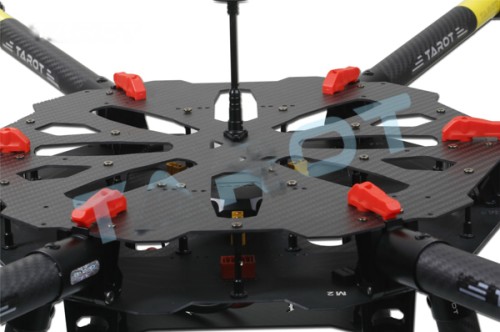

Detailed Images
