MATEK F405-WMN F405 Flight Controller STM32F405RGT6 W/ Baro OSD Blackbox 132A Current Sense 2-6S Lipo For FPV Fixed Wing Drone
Part No.: | F405-WMN |
Manufacturer: | Matek |
Send to a friend
Features
MATEK F405-WMN F405 Flight Controller STM32F405RGT6 W/ Baro OSD Blackbox 132A Current Sense 2-6S Lipo For FPV Fixed Wing Drone
Product Details
FC Specifications
* MCU: STM32F405RGT6, 168MHz , 1MB Flash
* IMU: ICM42688-P
* Baro: SPL06-001
* OSD: AT7456E
* Blackbox: 16M Flash
* 5x UARTs, 1x Softserial_Tx option(INAV)
* 12x PWM outputs
* 1x I2C
* 3x ADC (VBAT, Current, RSSI)
* 1x spare PINIO
* USB/Beep Extender with Type-C(USB2.0)
* Built in inverter on UART2-RX for SBUS input
* Switchable Dual Camera Inputs
Power
* 6~30V DC IN (2~6S LiPo)
* 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
* PDB/Current sense resistor: 90A continuous, 132A burst.
* BEC 5V 1.5A for FC & Peripherals
* BEC Vx 5A for servos, 5V/ 6V option
* Vbat for VTX and camera
* LDO 3.3V 200mA
* Battery Voltage Sensor: 1k:20k
FC Firmware
* ArduPilot: MatekF405-TE
* INAV: MATEKF405TE (INAV 5.0 or newer)
Physical

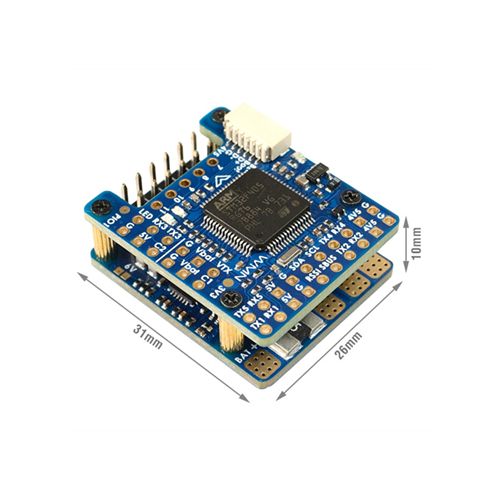

* Dimensions: 31 x 26 x 16.5 mm
* Mounting: 22 x 22mm, Φ2mm
* Weight: 10g
* MCU: STM32F405RGT6, 168MHz , 1MB Flash
* IMU: ICM42688-P
* Baro: SPL06-001
* OSD: AT7456E
* Blackbox: 16M Flash
* 5x UARTs, 1x Softserial_Tx option(INAV)
* 12x PWM outputs
* 1x I2C
* 3x ADC (VBAT, Current, RSSI)
* 1x spare PINIO
* USB/Beep Extender with Type-C(USB2.0)
* Built in inverter on UART2-RX for SBUS input
* Switchable Dual Camera Inputs
Power
* 6~30V DC IN (2~6S LiPo)
* 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
* PDB/Current sense resistor: 90A continuous, 132A burst.
* BEC 5V 1.5A for FC & Peripherals
* BEC Vx 5A for servos, 5V/ 6V option
* Vbat for VTX and camera
* LDO 3.3V 200mA
* Battery Voltage Sensor: 1k:20k
FC Firmware
* ArduPilot: MatekF405-TE
* INAV: MATEKF405TE (INAV 5.0 or newer)
Physical
* Dimensions: 31 x 26 x 16.5 mm
* Mounting: 22 x 22mm, Φ2mm
* Weight: 10g
Item Packing
Including
* 1x F405-WMN
* 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
* Dupont 2.54 pins (Board is shipped unsoldered)
* 1x F405-WMN
* 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
* Dupont 2.54 pins (Board is shipped unsoldered)

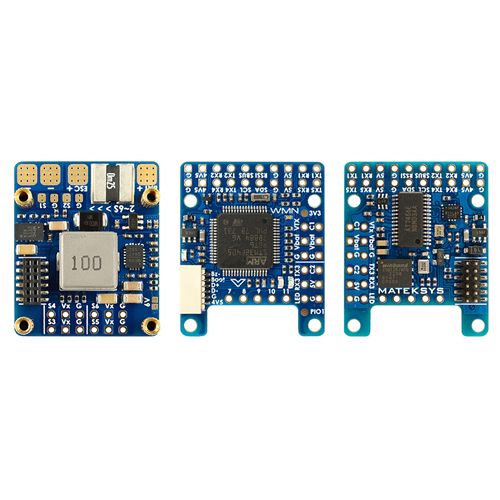

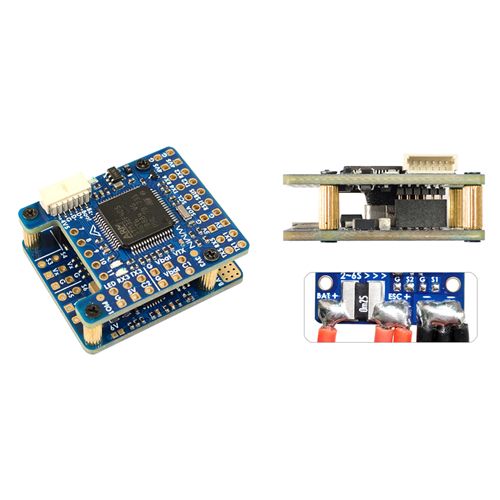

Detailed Images
