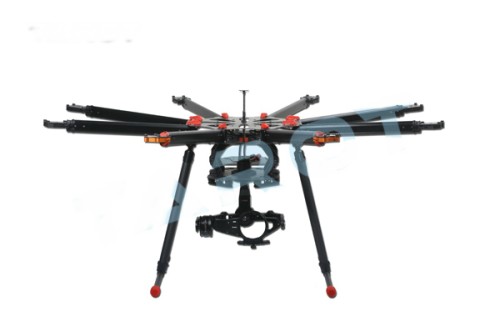

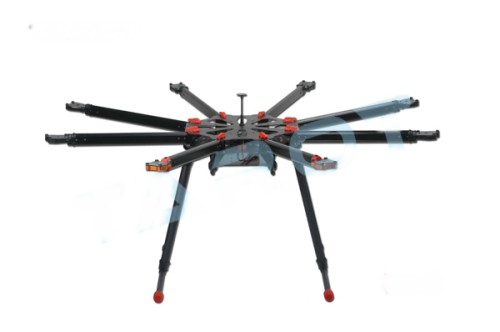

Tarot X8 1050mm 8-Axis PCB Center Plate Folding FPV Octocopter Frame Kit TL8X000
| Part No.: | TL8X000 |
| Manufacturer: | TAROT |
Send to a friend
Features
-Quick release folding arm structure, 4-direction locking design, very stable
- Dual color, downward battery mount design, super large install space

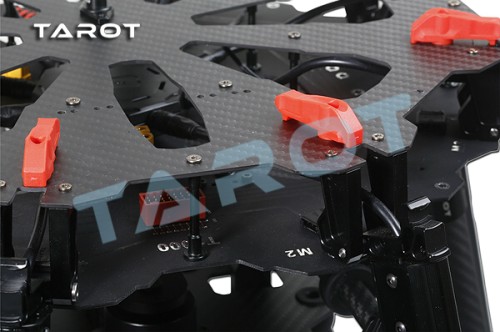

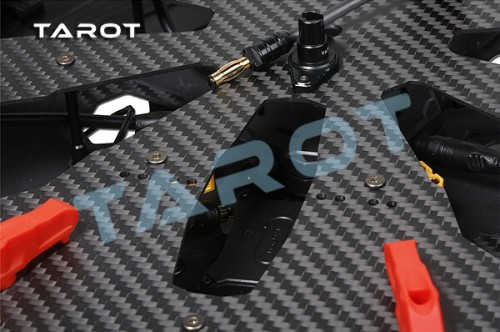

- With strong PCB circuit center plate, adopts AS150 plug, light weight, more effective
- With electric retractable landing gear for FPV, with power reverse polarity protection and out off control protection
- With plug-type folding PCB holder
- Motor holder adds ESC mount position, wire slot, with air flow trench on top
- Dual color, downward battery mount design, super large install space
- With strong PCB circuit center plate, adopts AS150 plug, light weight, more effective
- With electric retractable landing gear for FPV, with power reverse polarity protection and out off control protection
- With plug-type folding PCB holder
- Motor holder adds ESC mount position, wire slot, with air flow trench on top
Product Details
- Wheelbase: 1050mm
- Arm length: 416mm
- Center plate diameter: 338mm
- Landing gear height: 391mm
- N.W./G.W.: 2250g/2700g
- Max.power consumption: 4000W
- Hover power consumption: 1500W(9.5kg)
- Hover time: 15mins
- Work temperature: -10~+40°C
Configuration Suggest(not inlcuded):
- Battery: 6s 15C 22.2V 10000-20000mAH
- ESC: Hobbywing 40A 6S
- Prop: 1555
- Motor: 4114/320KV
- Arm length: 416mm
- Center plate diameter: 338mm
- Landing gear height: 391mm
- N.W./G.W.: 2250g/2700g
- Max.power consumption: 4000W
- Hover power consumption: 1500W(9.5kg)
- Hover time: 15mins
- Work temperature: -10~+40°C
Configuration Suggest(not inlcuded):
- Battery: 6s 15C 22.2V 10000-20000mAH
- ESC: Hobbywing 40A 6S
- Prop: 1555
- Motor: 4114/320KV
Item Packing
- Tarot X8 1050mm 8-Axis PCB Center Plate Folding FPV Octocopter Frame Kit TL8X000 X 1
Detailed Images
