Tarot FY680 Foldable Hexa-copter Carbon Fiber Frame TL68B01 (Not Assembled)
| Part No.: | FY680 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Tarot FY680 adoptsToray 3K carbon fiber cloth woven carbon fiber board CNC precision machining, has design standard higher than similar products, the full set of rack only weighs 600 grams. Full folding design, suitable for customers who has higher requirment for portability, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance, observed fire, life exploration, the cable line patrol, farm monitoring, and other high mobile performance requirements.
Configuration requirements （Not include）:
- Wheelbase diameter 680MM,10-13inch carbon fiber propeller.
- Brushless Motor: 300W around disc motor, 2212/2216/2814 Series,880-1000KV.
- Battery: 2000MHA 3-4S battery.
- ESC: 20-30A Brushless ESC.
- Has a moderate load (for example, small digital camera, a small single electronic camera, etc.), for a variety of small-scale aerial job (Photos, video) with the ground station system can achieve a variety of light load task operation.
Product Details
- 16MM carbon tube folded positioning seat assembly. TL6804
- Metal 16MM carbon tube clamper group. TL6805
- FY680 folding six-axis carbon fiber panels, center board TL6806
- M3H5 hexagonal aluminum column TL6807

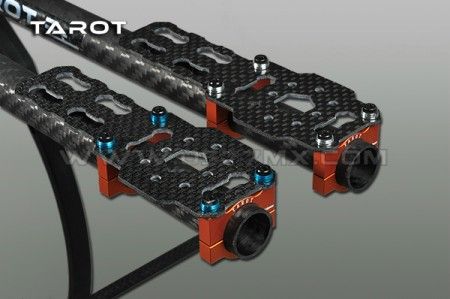

- M16 aircraft motor mount TL6808
- Dia 16MM 3K pattern matte pure carbon tubes (333MM) TL6809-1
- Dia 16MM 3K pattern matte pure carbon tubes (323MM) TL6809-2
- The M10 metal silicone damping Seat TL6810

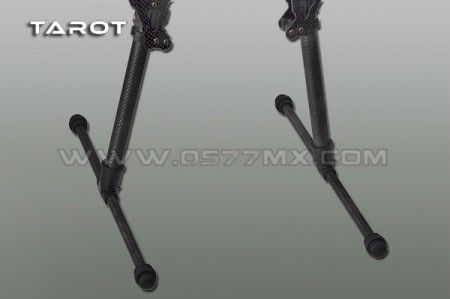

- Plastis Landing Skid
- Y680 six-axis aircraft folding landing skid TL6811
- M2.5 ladder screws TL2778-01
- 500 dedicated outfield bag TL2647 (optional, not included)
Item Packing
FY680 Frame x 1
User Manual x 1

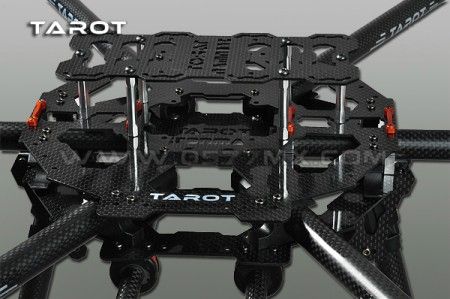

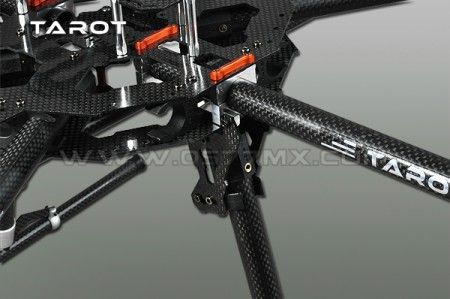

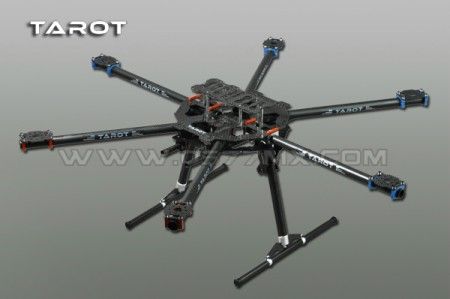

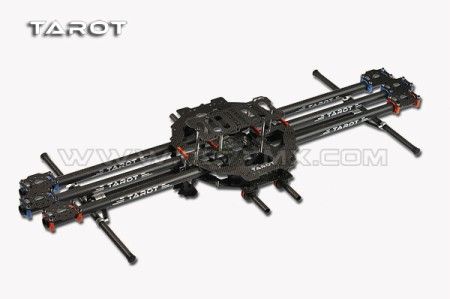

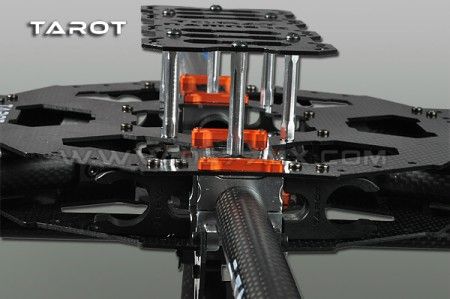

Detailed Images
