HobbyWing Xrotor 2205-2300KV Brushless Motor CW - V1 For Drone Racing

HobbyWing Xrotor 2205-2300KV Brushless Motor CW - V1 For Drone Racing
Part No.: XRT2205-CW
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Adapt the high strength aluminum alloy material on stator, rotor and shalf.
Concavity Antiskid Screw with Locknut and surrounding snap spring, to avoid slipping or  loosing,  enhanced the reliability
Use Low Internal Resistance Enameled Wires,uncluttered layout, make it more balance.
8 Leaf Centrifugal Fan, dramatically reduce the working temperatures
Identify with motor Spinning Direction, easy to install

Product Details

KV: 2300
Unload Current: 1.6A
Resistance: 0.068Ω
Max. Continuous Power: 420W
Max. Continuous Current: 25A/15s
Max. LiPo : 4S LiPo
Recommanded ESC: 30A/3-4S
Recommanded Prop: 5045 Propeller/3-leaf Prop

Size:
Stator Outer Diameter: 22mm
Stator Thickness:  5mm
Stator Number 12
Stator Poles: 14
Weight: 28.4g
Rotor Diameter: 28.1mm
Shaft Diameter: 5mm
Motor Length: 17.1mm
Length with Motor&Shalf:  31.1mm

Item Packing

HobbyWing Xrotor 2205-2300KV Brushless Motor CW X 1

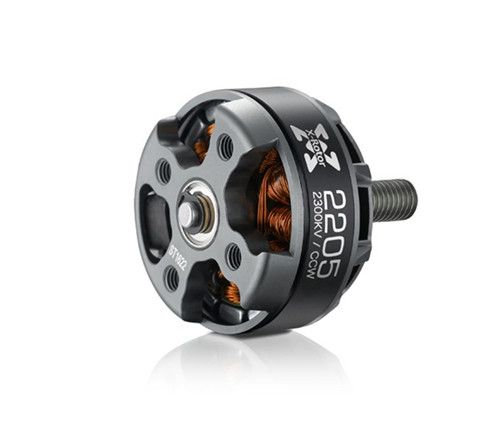

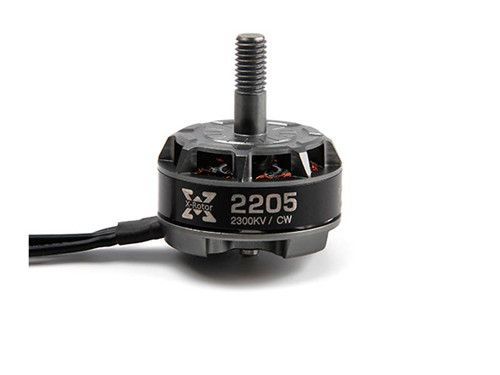

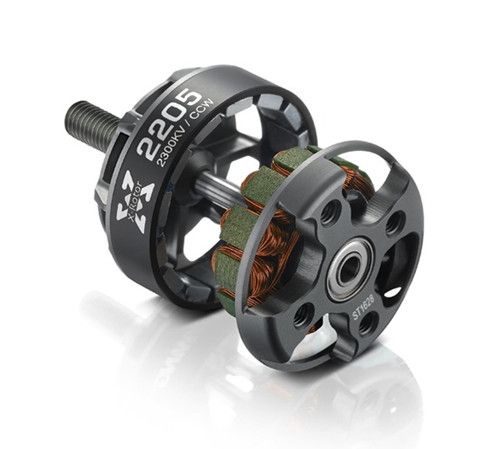

Detailed Images
