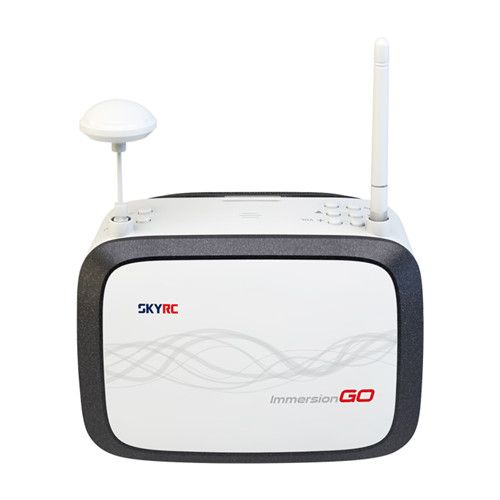

SKYRC GOGGLE WITH DIVERSITY RECEIVER (40CH)

SKYRC GOGGLE WITH DIVERSITY RECEIVER (40CH)
Part No.: SK-600106
Manufacturer: SKYRC

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The SKYRC HD FPV goggle with 5.8GHz diversity receivers, can significantly improve reception in the presence of multipathing, by intelligently switching between two independent receivers when signal quality drops.


Another useful application of diversity switching is to select the best signal from two antennas, use a patch, and an omni directional antenna to provide 360 degree coverage or use two patch antennas to cover a wider flight area.


The goggle keeps it super simple for the FPV flier with auto search functionality, easy press buttons, the exact frequency is displayed on the screen so that you never have to guess which frequency and channel you are on, a wide voltage input from 7V to 18V, and 40CH on the 5.8GHz band !

Product Details

7"1024x600px Immersive Display : 7"1024x600px scree will immerse you in FPV racing, offering a feeling of 5D films.
Dual 40CH 5.8GHz Smart Video Receiver : 2 hyper sensitive 40 channels 5.8GHz Vrx allows auto/manual searching, on more hassle with dip switch, by pushing just 1 button.
Ultra Low Noise Ventilation System : Considerate ventilation design for COOL wearing experience.
HDMI input and External AV Input : High clarity display for various input sources: 900MHz/1.3GHz/2.4GHz EXTERNAL AV receiver and other sources via mini HDMI port.
Air-permeable and Soft : Face contacting part made of leather cushion, comfort to wear.
Ultra Light Body : Main frame made of PP material, light to wear. 308 g only.

LCD Display
Screen Size 7"
Screen Resolution 1024x600
Field of View 65 Degree
Display Scale 4:3 or 16:9
Respond Time 10mS
System PAL/NTSC Auto Selecting
Diversity Receiver
Dual Receivers with Dual Antenna Connection
Automatic Antenna Switching
>-90dB Typical Sensitivity
5.8GHz 5 Band 40 Channel Frequencies
Interface Connectors
3.5mm AV In Port
3.5mm Earphone Port
XT30 Power In Port (DC 7-18V)
Mini HDMI In Port
2 SMA Antenna Connectors
General
Control via 8 Buttons
High Comfortable with Durable Materials
Adjustable Straps
Built-in Speaker with Volume Control
Built-in Ventilation Fan
OSD Language
Weight: 380g(Excluding Antennas)
Size: 195x139x180mm
Electrical Properties
Supply Voltage: 7-18V Recommended 2-4S LiPo
Reverse Voltage Protection
Current Consumption 530mA@12V

Item Packing

SkyRC HD FPV Goggle
Av Cable
Power Cable
SpiroNET antenna
Stick antenna
Battery holder

Detailed Images
